Description
Included in this kit
This bundle includes a Sony XM-GS100 Class D Monaural Power Amplifier, and a Sony XS-W124GS GS 12" Subwoofer (4 ohm).
1x Sony XM-GS100 Class D Monaural Power Amplifier (XM-GS100)

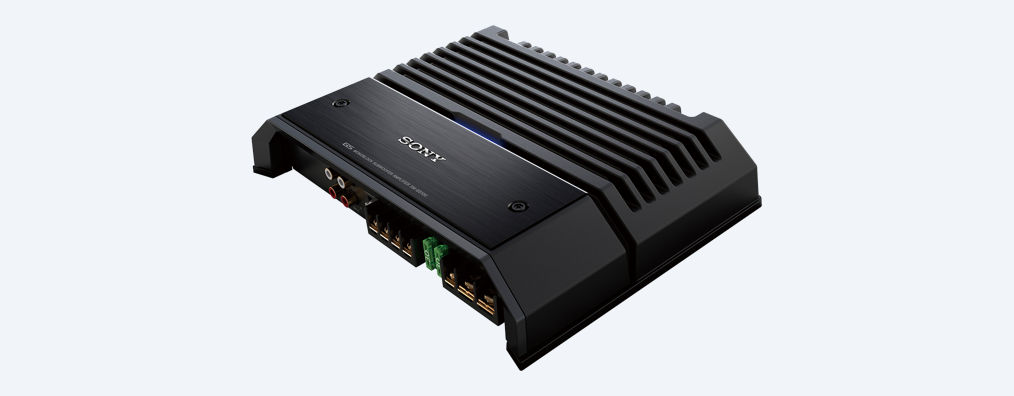

Sony XM-GS100 Class D Monaural Power Amplifier
The XM-GS100 amplifier’s compact framework and single-sided connections provide multiple mounting options while maximizing your audio output. Integrated Active Thermal Control regulates the unit’s operating temperature for stable, long-term playback at high volume, while Dynamic Distortion
Suppressor enables clear bass reproduction.
330 W high power output
600 W (at 4 ohms), 1100 W x 1 (at 2 ohms)
Active Thermal Control for stable playback
Dynamic Distortion Suppressor for clear sound
Low pass filter
1x Sony XS-W124GS GS 12" Subwoofer (4 ohm) (XS-W124GS)
Paper cone diaphragm with polypropylene cap
A light-weight paper cone diaphragm directly connected to the voice coil reproduces tight low end. The injected polypropylene dust cap ensures rigidity and optimizes internal damping, realizing powerful and responsive bass sound.
Rubber surround
Rubber surround reduces excessive vibration and supports cone excursion with less distortion. The result is solid bass response at high volume levels so that your system can play loud and clear.
Progressive height rate double spider
The acoustically-optimized spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone. To increase signal integrity and prevent sound interference the lead wire from the voice coil is also sewn to the spider, reducing wire movement.
Long excursion structure
The voice coil is supported by the double-layered spider, suppressing unwanted rolling, while also ensuring long excursion to reproduce rich bass sounds.
Environment in mind
Our products are not only designed to be stylish but also with the environment in mind. For the individual packaging of the XS-W104GS, 98% of the cushions are made of paper materials, and compared to the prior model, printed information has been carefully considered for simplicity and length to reduce printer ink usage by approximately 90%, reflecting Sony’s commitment to reducing environmental impact.
Specifications:
Speaker System
Size: 12" (30 cm)
Configuration: Single Voice Coil
General Features
Peak Power: 1800 W
RMS Power: 420 W
Rated power: 300 W
Effective Frequency Range: 30-500 Hz
Output Sound Pressure: 83 dB ±2dB SPL (1W,1m)
Impedance (ohms): 4
Diaphragm Material: Paper Cone with PP Cap
Magnet Material: Ferrite
Surround Material: Rubber
