Description

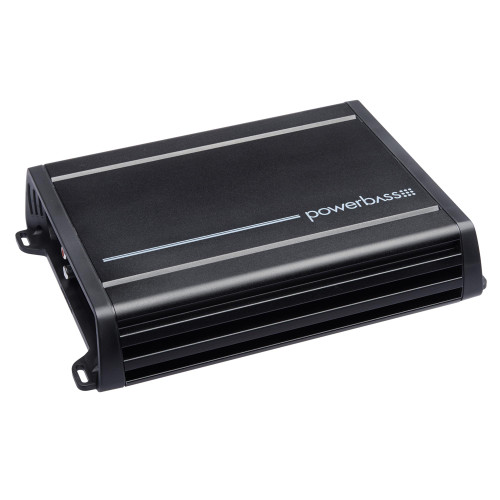

PowerBass ACS-500.2D 1ch Compact Amplifier
The ACS-500.2D provides an astounding 500W RMS at 2Ω Mono giving the user a new option for great power at 2Ω instead of the standard 1Ω load that most D Class Subwoofers amplifiers need to provide peak output.
Borrowing from our classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable. To accomplish this we selected SMD parts and engineered a brand new 6 oz/kg high density heat sink engineered for maximum efficiency and cooling.
Features -
• 500 Watt High Efficiency Class D Design
• 2-OHM Stable Mono Block Amplifier
• MOSFET Power Supply
• High Level (Speaker)/Low Level (RCA) Input
• Remote Soft Delay Turn On/Off Circuit
• Variable Low Pass Electronic Crossover
• Selectable 12dB Bass Boost EQ
• Variable Gain Control
• Remote Level Control Port (for optional PB-GAIN1 controller)
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Specifications -
• Variable Subsonic Freq: Variable 15 Hz - 50 Hz
• Inputs: RCA, 1 Pair Input, 1 Pair Speaker Level Input
• Equalization Boost/Cut: Switchable 0/12 dB @ 45Hz
• Subwoofer Frequency Range: 10 Hz - 250 Hz
• Switchable Subwoofer EQ: 0 / +12 dB @ 45 Hz
• Subwoofer EQ Frequency: 45 Hz
• Variable Subwoofer EQ: Switchable 0/+12 dB
• Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz
• Peak Power: 1000 watts
• Crossover Slope: 12 dB
• Dimensions (in Inches): 9.7" x 7.1" x 2.0"
• Input Sensitivity: 0.25 - 6.0 Volts
• S/N Ratio: >90 dB
• Total Harmonic Distortion: 0.5% at Rated Power
• Strapped Output Power @ 2ohms: N/A
• Output Power (14.4 V) @ 4 ohm: 300 watt x 1
• Output Power (14.4 V) @ 2 ohm: 500 watt x 1
• Channels (mono): 1
• Frequency Response: 10 Hz - 250 Hz
