Description
Included in this kit
This bundle includes an Alpine UTE-M701 Waterproof Marine Bluetooth® Receiver, and 3x Polk DB652 6.5" Coaxial Speakers with Marine Certification.
1x Alpine UTE-M701 Waterproof Marine Bluetooth® Receiver (UTE-M701)

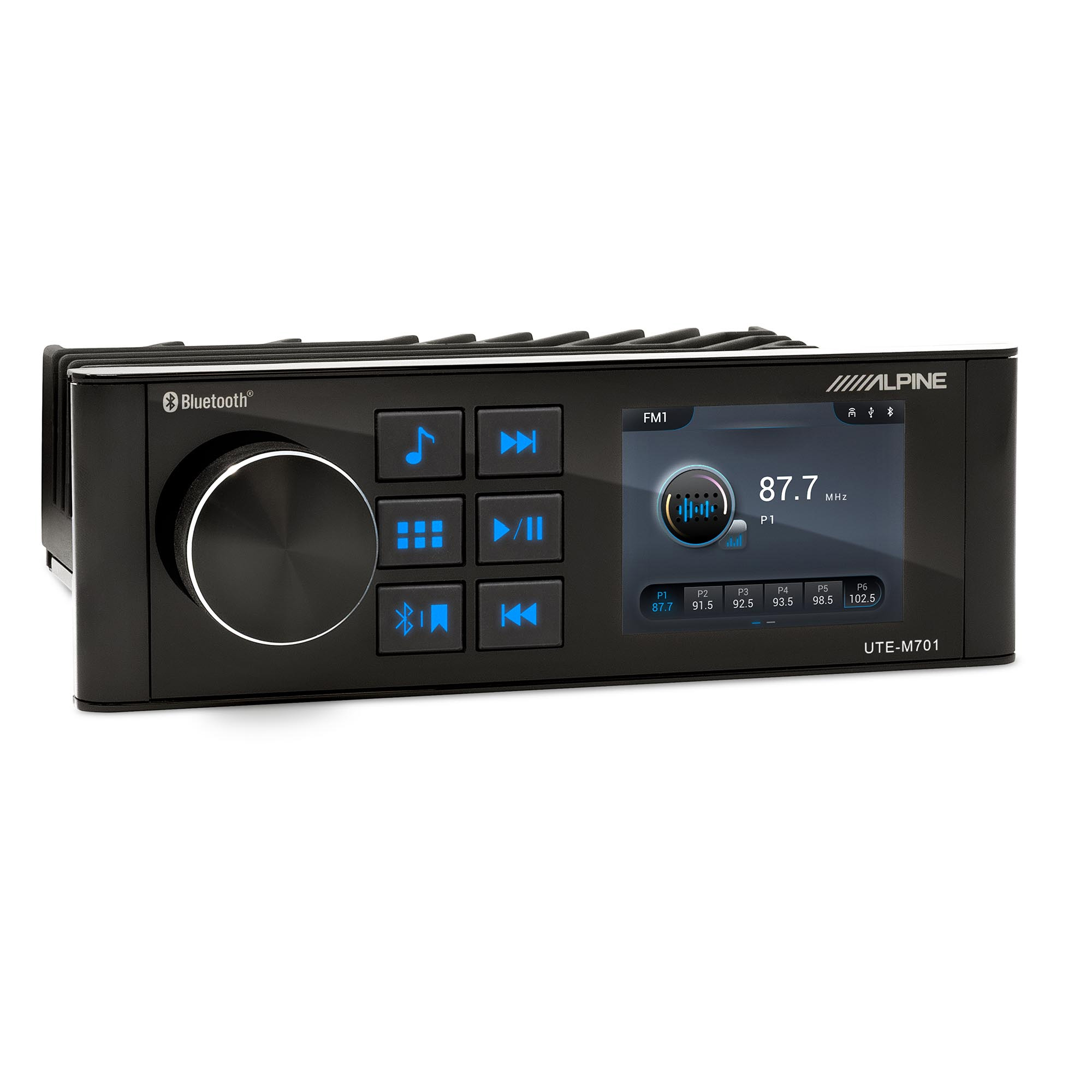

UTE-M701 Waterproof Marine Bluetooth® Receiver
The Alpine UTE-M701 is built as the command center of a marine audio system, combining source control, built-in amplification, dual-zone functionality, and marine-rated durability in a single chassis. Designed for life on the water, it offers Bluetooth® connectivity, AM/FM radio, multiple wired input options, and system-tuning features suited for boats that need both reliable playback and flexible zone control.
Overview
Marine System Control with Built-In Amplification
The UTE-M701 is positioned as more than a source unit, serving as a central control point for a marine audio system. Its built-in 6-channel amplifier delivers 17 watts RMS per channel, allowing it to power multiple speaker zones while also supporting expanded system layouts through dedicated preamp outputs.
Dual-zone control is built in, allowing separate audio management for different areas of the boat, such as the helm and cockpit. This gives the system added flexibility for different listening preferences across the vessel.
- Built-in 6-channel amplifier rated at 17W RMS x 6.
- Dual-zone audio control for separate listening areas.
- Designed as a central command unit for marine audio systems.
Marine Durability
Built for Sun, Salt, Spray, and Open Water
The UTE-M701 is designed for marine environments with an IP66 waterproof front panel, IP55-rated chassis, and waterproof harness connectors. The unit is also tested for salt and fog resistance under ASTM B117 and UV resistance under ASTM G154, supporting long-term durability in harsh conditions.
- IP66 waterproof front panel.
- IP55-rated chassis.
- ASTM B117 salt and fog tested.
- ASTM G154 UV tested.
Feature Highlights
What the UTE-M701 Adds to a Boat
Display & Interface
Designed for Everyday Marine Use
The UTE-M701 uses a 2.8-inch full-color TFT display with a 240 x 320 resolution and a non-touch interface. Combined with physical controls and 5-level dimmable illumination, it is built for clear feedback and practical operation in changing marine light conditions.
- 2.8" full-color TFT display.
- 240 x 320 resolution.
- Non-touchscreen design.
- 5-level dimmable display illumination.
Audio Tuning & Expansion
Built-In Control for Larger Marine Systems
Beyond its internal amplification, the UTE-M701 includes 6-channel 4V RCA pre-outs, 2-channel 4V subwoofer outputs, a 6-band parametric EQ, and adjustable subwoofer level control. These features make it easier to integrate amplifiers, subwoofers, and multi-zone speaker systems.
- 6-band parametric EQ.
- Adjustable subwoofer level control.
- 6-channel 4V RCA pre-outs.
- 2-channel 4V subwoofer output.
The UTE-M701 is built specifically for marine use, with waterproof and weather-resistant construction intended for sun, salt, spray, and open-water conditions.
| Model | Alpine UTE-M701 |
| Product Type | Waterproof marine Bluetooth® receiver |
| Waterproof Rating (Front Panel) | IP66 |
| Water Resistance (Chassis) | IP55 |
| Salt & Fog Resistance | ASTM B117 tested |
| UV Resistance | ASTM G154 tested |
| Built-In Amplifier Power | 17W RMS x 6 channels |
| Pre-Out Voltage | 6 channel x 4V (RCA) |
| Subwoofer Output | 2 channel x 4V (RCA) |
| Zone Control | Dual-zone audio outputs |
| Bluetooth® | Version 5.2 (hands-free and audio streaming) |
| Radio Tuner | AM/FM |
| Inputs | USB-C, RCA AUX, 3.5mm AUX (SWC) |
| Display Size | 2.8" full-color TFT |
| Display Resolution | 240 x 320 pixels |
| Display Type | Non-touchscreen |
| EQ | 6-band parametric EQ |
| Subwoofer Control | Adjustable level control |
| Apple Compatibility | MFi certified for Apple devices |
| Faceplate Dimensions | 2.5" H x 7.5" W x 1.4" D |
| Chassis Dimensions | 1.75" H x 6.25" W x 4" D |
3x Polk DB652 6.5" Coaxial Speakers with Marine Certification (DB652)
Polk DB652 6.5" Coaxial Speakers with Marine Certification
Perfect for anything: Cars, Trucks, Boats ATVs & More. Everything you love about Polk’s Dynamic Balance technology—that rich, clean, full-range sound—is built into the marine-tough, yet ruggedly sophisticated, DB+ series. And with its universal fit, it can be installed in any vehicle: Automobiles, motorcycles, boats, ATVs—you name it.
Specifications:
• Driver Enclosure Type - Marine Certified
• Cut Out Shape - Round
• Cut Out Diameter - 5" (12.7 cm)
• Full-Range Mounting Depth - Top Mount 1.77" (4.5 cm)
• Total Frequency Response - 40 Hz → 22 kHz
• Nominal Impedance - 4 ohms
• Sensitivity (1 watt @ 1 meter) - 92 dB
• Continuous Power Handling (RMS) - 100W
• Peak Power Handling - 300W
High Performance Upgrade - Upgrade from your OEM speaker system toward a bigger, fuller, high-performance sound.
Marine Certification - The DB+ Series is IP55 rated so it’s dirt- & water- resistant. It also has been tested for salt-fog, UV and humidity.
Polypropylene UV Tolerant Cone - Enjoy the peace of mind knowing each speaker cone is built to last, whose clean and polished look won’t discolor or degrade over time.
Waterproof Inner and Outer Surrounds - Completely blocks dirt, liquid and grime from entering the speaker housing.
Universal Fit - Enjoy a simple drop in installation for any vehicle including cars, boats, ATV’s -- you name it. This quick and easy experience also ensures a faster installation process so you can get back to what matters with our great sound always along for the ride.
Zero Tweeter Protrusion - Each speaker in the DB+ Series features a shallow tweeter design to ensure your factory speaker grille re-installs with ease for a flush, seamless look.
