Description
Included in this kit
This bundle includes a Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure, a Cerwin Vega H65C HED 6.5-inch 2-Way Component Speaker Pair, a Cerwin Vega H693 HED 6 x 9-inch 3-Way Coaxial Speaker Pair, a Cerwin-Vega CVP1400.4 CVP Performance 1400w Max 4-ch Small Chassis Amplifier 90WX4@4Ω RMS / 140WX4@2Ω RMS, a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS, and a Kicker 46KISLOC2 K-Series Stereo Line-Output Converter w/ Remote Turn-On Output.

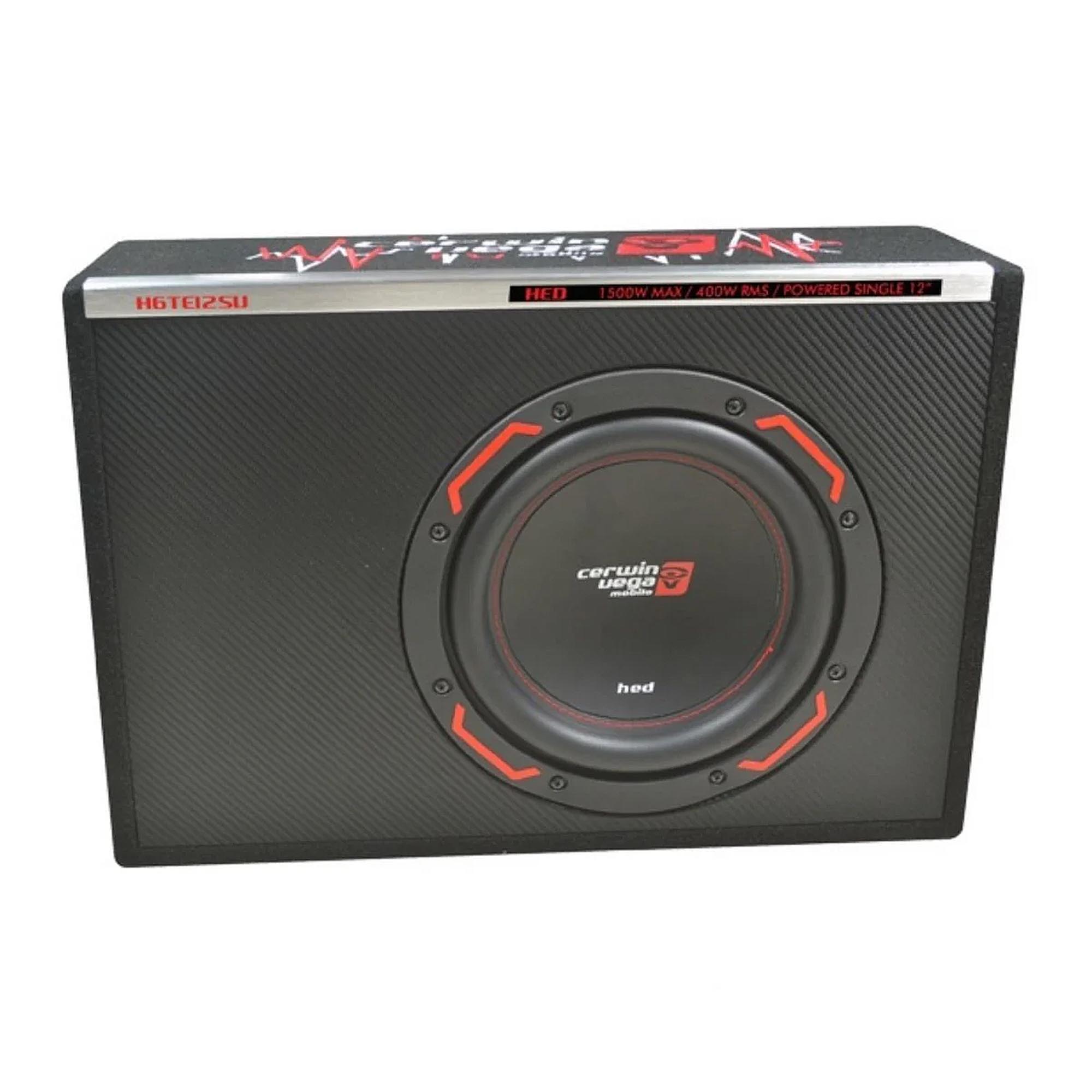

1x Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure (H6TE12SV)
Description:
The HED POWERED ACTIVE SLIM LINE ENCLOSURES blend modern aesthetics with optimal bass performance in a package suited for all vehicle applications. A favorite of the pick-up truck and sport utility vehicle crowd, these powered active slim line enclosures provide tremendous value for its performance.
Specifications
12" Vented Subwoofer Enclosure with Built-In Amplifier
Power Handling: 150W RMS/300W MAX
THD: <0.4%
Signal To Noise Ratio: >90dB
Frequency Response: 30Hz-150Hz
Input Sensitivity (Hi/Lo): 0.2V-20V
Low Pass Filter: 85Hz-150HZ
Bass Boost: 0dB-12bB
Subsonic Filter: 30Hz
Fuse Rating: 25A
Impedance: 2Ω
Dimensions (LxWxH): 30"x7.7"x16" (762mm x 195mm x 406.4mm)
FEATURES
POWER STATUS LED: This bi-color LED glows green when power is on and no problems are present. If one of the protection circuits comes on, it will change to red.
AUTO TURN ON: The AUTO TURN ON circuit is for high level (speaker-level) connections. When the switch is in the “REM” position, you MUST use a solid 12 volts to switch on. If you have no hard switched 12 volts (like the ignition key or an aftermarket radio switch 12V output) then use either the VOX (signal sensing) or DC offset (looks at the difference between power and signal ground).
VARIABLE PHASE: 0-180 degrees of adjustment to help compensate for time alignment problems in the system. Such problems usually result from having the subwoofer at a different distance from the listener than the other speakers in the system. This will effectively “move” the sound of the subwoofer forward in the vehicle. This takes 2 people to adjust.
1x Cerwin Vega H65C HED 6.5-inch 2-Way Component Speaker Pair (H65C)
Cerwin Vega
Cerwin Vega H65C HED 6.5-inch 2-Way Component Speaker Pair
The H65C is a 6.5-inch component speaker set with polypropylene woofers and separate tweeters for a vehicle sound system.
Features
- 6.5-inch 2-way component speakers provide a full-range upgrade for a vehicle audio system.
- Rated at 120W RMS and 360W maximum, with a 4-ohm nominal impedance.
- Published frequency response of 88 Hz–20 kHz covers bass through treble.
- Polypropylene cones and UV-treated foam surrounds combine responsive playback with durability.
- Sold as a pair; 1.77-inch mounting depth helps check installation clearance.
Vehicle speaker installation
The H65C uses the 6.5-inch 2-way component format. Its ferrite woofer magnets and rigid stamped-steel baskets support the speaker assembly. The speakers are sold in pairs.
Technical specifications
| Nominal size | 6.5-inch |
| Speaker design | 2-way component |
| RMS power | 120W |
| Maximum power | 360W |
| Frequency response | 88 Hz–20 kHz |
| Sensitivity | 87 dB (1W/1m) |
| Mounting depth | 1.77 inches |
| Nominal impedance | 4 ohms |
| Quantity | Pair |
| Cone | Polypropylene |
| Surround | UV-treated foam |
| Basket | Powder-coated stamped steel |
| Tweeter | 1-inch PEI |
| Crossover | Integrated crossover with tweeter protection |
1x Cerwin Vega H693 HED 6 x 9-inch 3-Way Coaxial Speaker Pair (H693)
Cerwin Vega
Cerwin Vega H693 HED 6 x 9-inch 3-Way Coaxial Speaker Pair
The H693 uses a 6 x 9-inch woofer, midrange driver and PEI tweeter to reproduce low, middle and high frequencies.
Features
- 6 x 9-inch 3-way coaxial speakers provide a full-range upgrade for a vehicle audio system.
- Rated at 60W RMS and 150W maximum, with a 4-ohm nominal impedance.
- Published frequency response of 90 Hz–20 kHz covers bass through treble.
- Polypropylene cones and UV-treated foam surrounds combine responsive playback with durability.
- Sold as a pair; 3.54-inch mounting depth helps check installation clearance.
Vehicle speaker installation
The H693 uses the 6 x 9-inch 3-way coaxial format. Its ferrite woofer magnets and rigid stamped-steel baskets support the speaker assembly. The speakers are sold in pairs.
Technical specifications
| Nominal size | 6 x 9-inch |
| Speaker design | 3-way coaxial |
| RMS power | 60W |
| Maximum power | 150W |
| Frequency response | 90 Hz–20 kHz |
| Sensitivity | 90 dB (1W/1m) |
| Mounting depth | 3.54 inches |
| Nominal impedance | 4 ohms |
| Quantity | Pair |
| Cone | Polypropylene |
| Surround | UV-treated foam |
| Basket | Powder-coated stamped steel |
1x Cerwin-Vega CVP1400.4 CVP Performance 1400w Max 4-ch Small Chassis Amplifier 90WX4@4Ω RMS / 140WX4@2Ω RMS (CVP1400.4)
Cerwin-Vega CVP1400.4 CVP Performance 4-Channel Class D Amplifier
The Cerwin-Vega CVP1400.4 is a compact 4-channel Class D amplifier engineered to deliver clean, efficient power for factory or aftermarket audio systems. Designed as part of the CVP Performance Series, it provides strong output in a space-saving chassis ideal for modern vehicles.
With versatile input options, adjustable crossovers, and comprehensive protection circuitry, the CVP1400.4 offers flexible system integration and dependable performance for daily drivers and custom builds alike.
Power & Performance
| RMS Power @ 4Ω | 80W x 4 |
| RMS Power @ 2Ω | 140W x 4 |
| RMS Power Bridged @ 4Ω | 290W x 2 |
| Frequency Response (±3dB) | 10Hz – 30kHz |
| Signal-to-Noise Ratio | ≥90dB |
| Channel Separation | >60dB |
| Input Sensitivity | 250mV – 6V |
Crossover & Control Features
- Adjustable High-Pass Filter: 52Hz – 400Hz (-6dB)
- Adjustable Low-Pass Filter: 52Hz – 400Hz (-12dB)
- High-Level Inputs with Auto Turn-On (4V – 8V)
- Power Protection Indicator
Construction & Protection
- Class D Amplifier Topology
- Full MOSFET DC-DC PWM Power Supply
- Double-Sided 2-Layer PC Board
- SMD Technology
- Short Circuit Protection
- Low Impedance Protection
- Reverse Polarity Protection
- Overheating Protection
- Fuse Rating: 30A x 2
Dimensions
| Chassis Dimensions (L x W x H) | 7.28" x 4.92" x 1.93" (185mm x 125mm x 49mm) |
1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
1x Kicker 46KISLOC2 K-Series Stereo Line-Output Converter w/ Remote Turn-On Output (46KISLOC2)
Add an amplifier to nearly any radio with the KISLOC2 Stereo Line-Out Converter. Experience true sonic accuracy at any volume level, with all the sparkling highs and thunderous lows of your original audio.
Unlike traditional LOCs, the KISLOC2 is designed without inductors to deliver a completely flat frequency response at all volume levels.
Using nothing more than your factory speaker wires, the innovative KISLOC2 automatically converts the speaker signal into both an RCA signal and a powerful 100 milli-amp, 12-volt remote wire using DC offset. Powerful enough to turn on multiple amplifiers, the 12-volt remote wire delivers plenty of power without hunting for a switched 12-volt power source.
• Accepts up to 55 watts (16 volts) of input signal
• Fully compatible with standard radios and most smart radios*
• Delivers up to an 8-volt output signal
• Flat 20Hz-20kHz frequency range at all volume levels
• Includes a powerful 100 milli-amp, remote turn-on wire. No 12V power source needed!
• LED indicator for DC offset turn-on
*Amplifier output of smart radio must have 60Ω impedance or lower. See dealer for details.
