Description
Included in this kit
This bundle includes a Cicada Audio 24CHDLID 2024+ H-D® Saddlebag Lid 6×9-inch Cut-in Mounting Kit, and a Cicada Audio CMB69.4 6 X 9-inch Pro Mid-Bass – 4Ω – PAIR.
1x Cicada Audio 24CHDLID 2024+ H-D® Saddlebag Lid 6×9-inch Cut-in Mounting Kit (24CHDLID)
Designed for 2023.5+ Harley-Davidson® updated saddlebag design
Unique Top Load Speaker Baffle Design
3 Part Assembly:
- Speaker Grill
- Speaker Baffle
- Secure Clamping ring with waterproof gasket
Compatible with:
- CICADA 6×9 speakers, even with full size cast frames and oversized surrounds
- CICADA Hard Divider, Tweeter Bridge Accessories
- CICADA 24RING10, 24PORT3 and all CICADA 8” or 10” Midbass drivers.
Baffle Angle that perfectly positions the speaker towards the rider for optimal projection
Increased durability for heavier full size, full depth 6×9 speakers
Better Waterproofing with the fully gasketed baffle clamp
High-strength ASA plastic for durability and performance
UV Resistant materials for long lasting appearance
Engineered for perfect fit and easy installation
Grille Mesh formed with heavy duty powder-coated steel
Edgeless trim design and rugged speaker protection
Compatible with saddlebags featuring electric locks
Included Accessories:
ABS molded Cutout Templates
Heavy duty updated Lid Gasket Seals
Rainproof Lid Covers
CICADA Tethers with Crossover pouch
Die cut speaker gasketing

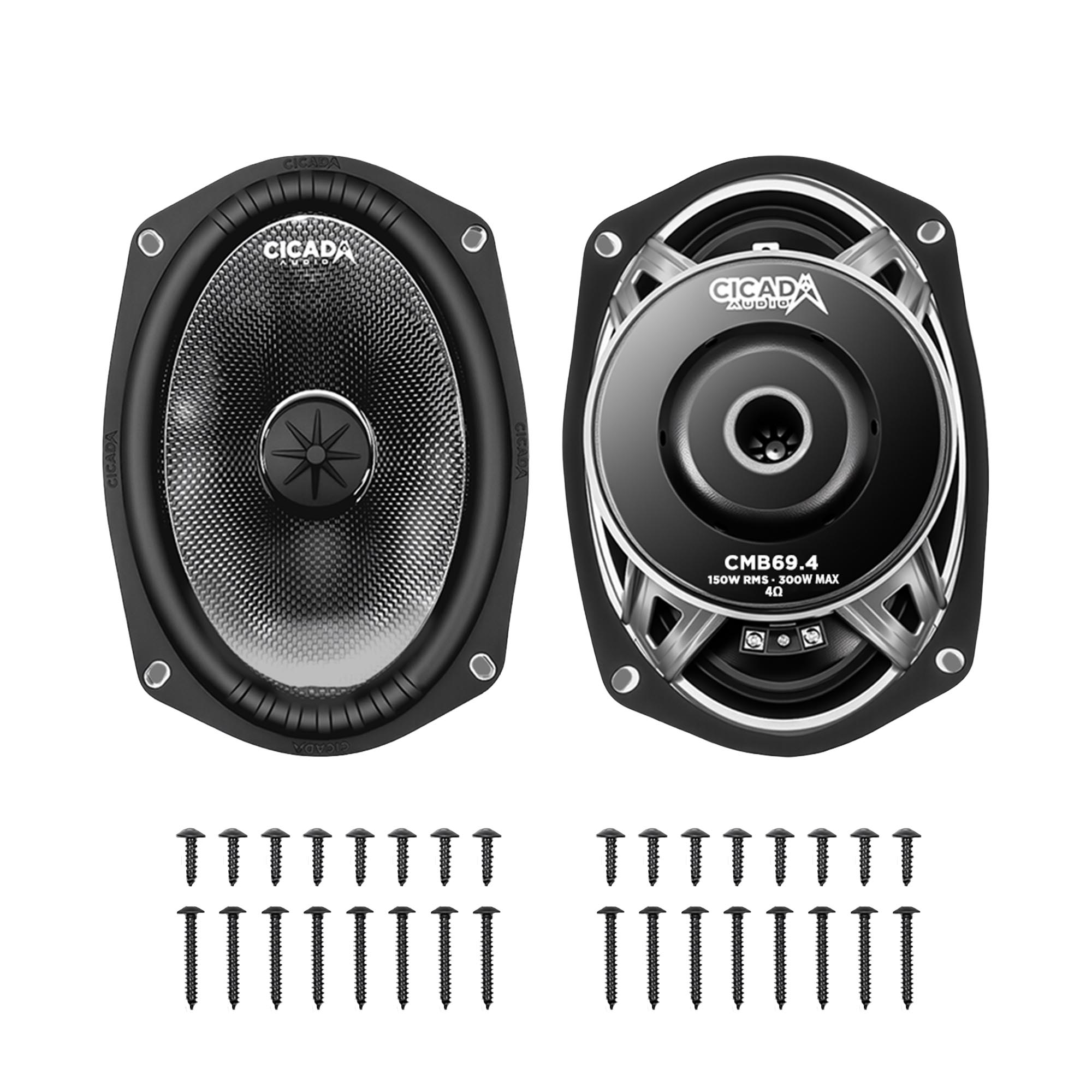

1x Cicada Audio CMB69.4 6 X 9-inch Pro Mid-Bass – 4Ω – PAIR (CMB69.4)
High-Performance 6x9" Mid-Bass Driver
Designed for reliable output in a wide range of environments, this 6x9" mid-bass driver combines durable materials with efficient motor design to deliver consistent performance. With a focus on thermal management, structural rigidity, and cone efficiency, it is built to perform in both daily and demanding conditions.
Key Features
- Rain or Shine™ all-weather performance design
- Carbon Matrix Composite™ (CMC™) cone for strength and efficiency
- Black Coat™ OFC copper voice coil for high conductivity and heat resistance
- Die-cast aluminum basket with Vortex Flow Venting™ for cooling
- Ribbed Santoprene® high roll surround for durability and excursion
- Y35 ceramic magnet motor structure
Engineering & Construction
The Carbon Matrix Composite™ cone provides a balance of rigidity and low mass, improving efficiency while maintaining structural integrity under load. A 1.5-inch (38mm) Black Coat™ OFC copper voice coil enhances thermal stability and reduces resistance, supporting consistent performance at higher power levels.
The die-cast aluminum basket adds strength while minimizing resonance, and Vortex Flow Venting™ improves airflow across the motor structure to dissipate heat effectively. A ribbed Santoprene® surround allows for controlled excursion while maintaining durability in all-weather conditions.
Installation & Fitment
This speaker is designed for standard 6x9" applications with a mounting depth of 3.9 inches (99 mm). The cutout requirement measures 5.7 inches (145 mm) by 8.5 inches (216 mm), making it compatible with a wide range of installations.
Specifications
| Speaker Type | 6x9″ High-Performance Mid-Bass |
| Impedance | 4Ω |
| Power Handling (RMS) | 150W |
| Power Handling (MAX) | 300W |
| Sensitivity | 88 dB (1W / 1M) |
| Frequency Response | 45 Hz – 1 kHz (±3 dB) |
| Voice Coil | 1.5" (38 mm) |
| Cone Material | Carbon Matrix Composite™ (CMC™) |
| Surround | Ribbed Santoprene® High Roll |
| Magnet Type | Y35 Ceramic |
| Mounting Depth | 3.9" (99 mm) |
| Mounting Diameter | 5.7" x 8.5" (145 mm x 216 mm) |
