Description
Included in this kit
This bundle includes a Diamond Audio BTR2 Motorsport Waterproof Bluetooth Audio Receiver Hideaway, a Diamond Audio MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier, and 2x Diamond Audio MP654 MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω).

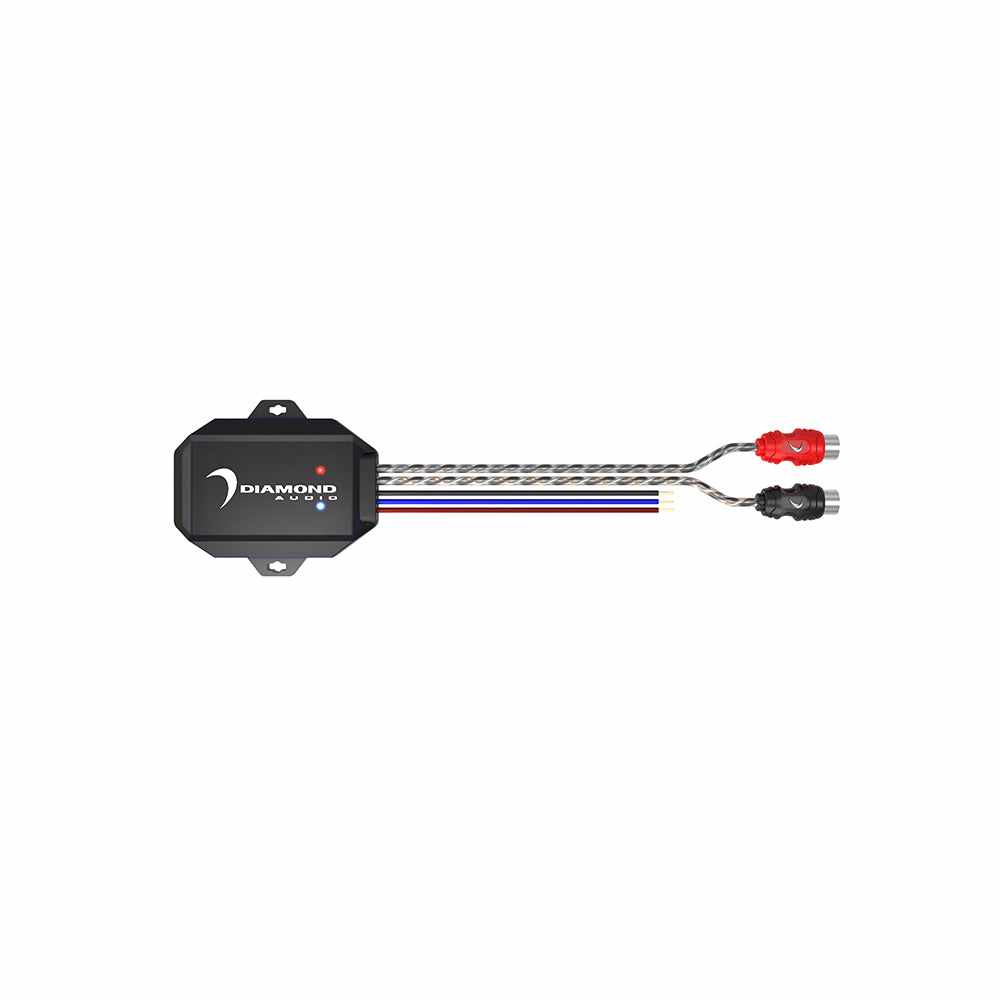

1x Diamond Audio BTR2 Motorsport Waterproof Bluetooth Audio Receiver Hideaway (BTR2)
BTR2 - Motorsport Waterproof Bluetooth Audio Receiver - Hideaway
The BTR2 is designed for Marine and Powersports, but can also be used in Golf Carts and Automotive applications. The BTR2 streams your favorite tunes via Bluetooth allowing you to connect the device directly to your audio system.
Specifications:
- Bluetooth 5.0 (A2DP,AVRCP,HFPHD) For High Quality Audio Streaming
- Multiple Devices Can Be Paired
- Includes Self-Adhesive Backing To Mount The Device & Mounting Hardware
- RCA Output - Connect Any Amplifier Or Source Unit With Line-Level Input
- Direct To Battery Fused Wiring Via Internal Hard-Wire Installation
- Note: Bluetooth Receiver Does Not Support Wireless Hands-Free Phone Communication For Making Or Answering Phone Calls.
1x Diamond Audio MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier (MICRO4V2)
MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.
The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Specifications:
- 150W x 2CH @ 2Ω
- 80W x 4CH @ 4Ω
- 300W x 2CH @ 4Ω Bridged
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.7” x 4.0” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included

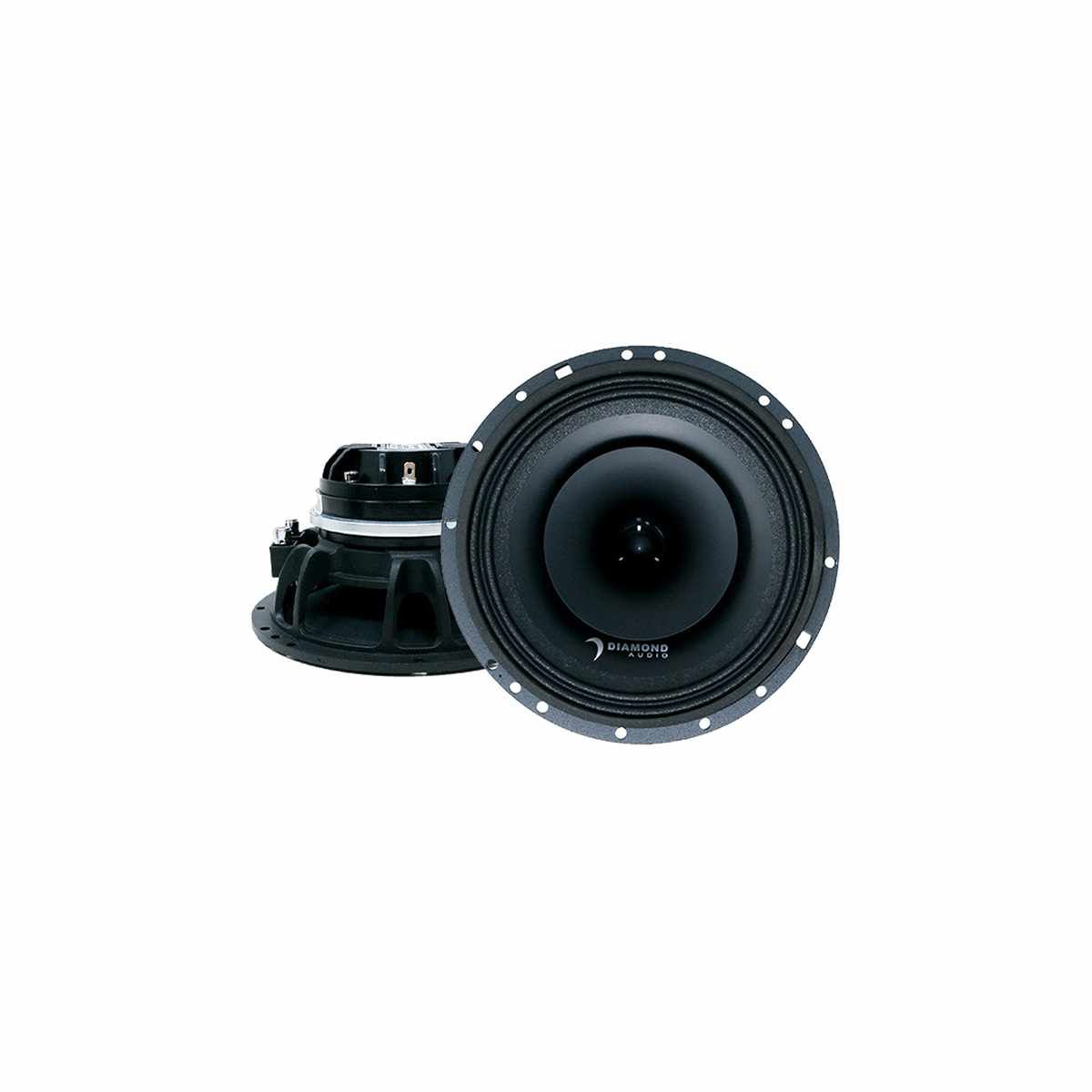

2x Diamond Audio MP654 MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) (MP654)
MP654 - MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω)
Discover the ultimate in audio performance with Diamond Audio’s MP Series speakers. Engineered for maximum efficiency and loudness, these speakers incorporate a horn style tweeter with a replaceable tweeter diaphragm, ensuring unparalleled sound clarity and power. Designed to meet the needs of discerning audio enthusiasts, the MP Series is your perfect audio companion for boats, Harley Davidson motorcycles, and recreational vehicles.
The MP Series speakers are designed to be ultra-efficient, ensuring that you get the most out of your audio system with minimal power consumption. Experience high-decibel sound that delivers powerful, clear audio whether you’re on the water, the open road, or off the beaten path.
Crafted with a high-end cast basket and superior design, the MP Series speakers are built to last. The horn style tweeter enhances sound projection and clarity, while the replaceable tweeter diaphragm ensures long-term performance and ease of maintenance.
Diamond Audio is renowned for delivering superior sound quality, and the MP Series is no exception. Enjoy your favorite music with exceptional clarity, rich mid-range, and powerful bass, making every journey a sonic adventure.
Whether you’re outfitting your boat, Harley Davidson, or recreational vehicle, Diamond Audio’s MP Series speakers are the ideal choice for high-quality, durable audio equipment. Built to withstand the rigors of various environments, these speakers deliver consistent, high-performance sound wherever your journey takes you.
Upgrade your audio system with Diamond Audio MP Series speakers and experience the pinnacle of sound performance and reliability. Feel the difference that high-end engineering and precision craftsmanship can make – choose Diamond Audio for your next adventure!
Disclaimer
*** The speakers are water resistant and not waterproof. They can be damaged by large amounts of water. ***
Specifications:
- Power: 150W RMS/300w MAX
- SPL(dB) MidBass: 92.7
- SPL(dB) Tweeter: 107
- Re(Ω): 3.2
- Qms: 10.73
- Qes: 0.47
- Qts: 0.45
- Fs(Hz): 103.3
- Vas(L): 6.6
- Cms(mm/N): 0.24
- Mms(g): 90.7
- Sd(cm²): 138.9
- BL(T*M): 6.5
- Xmax(mm): 1.0
- Hi-pass Filter: 12dB 2nd Order Crossover
