Description
Included in this kit
This bundle includes a Diamond Audio Motorsport Cut In Speaker Lid Kit With MS692NEO2 2-Ohm Coaxial Speakers Compatible with HD 2024 And Up, and a Diamond Audio MICRO2V2 Micro 2-Ch 250W RMS X 2 @ 2-Ohm.

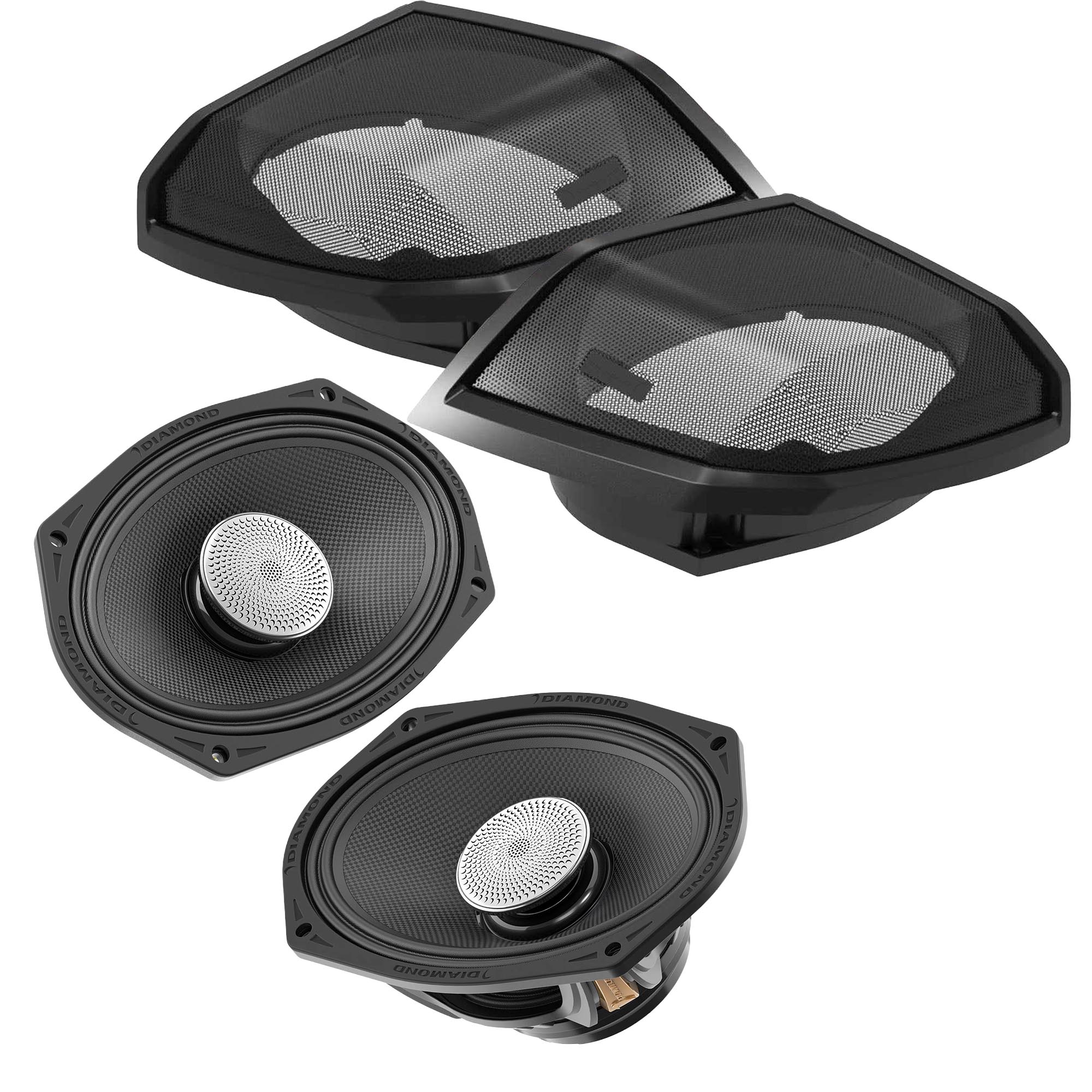

1x Diamond Audio Motorsport Cut In Speaker Lid Kit With MS692NEO2 2-Ohm Coaxial Speakers Compatible with HD 2024 And Up (MS692NEO2LK24)
Take your HD audio to the next level with the MS692NEO2LK24 Cut-in Lid Kit, featuring MS692NEO2 6x9” 2Ω 2-Way Coaxial Speakers for superior sound output and deep bass impact.
What Makes This Kit Stand Out? Low-Impedance Power: Featuring a 2Ω configuration, these speakers draw more power from your amplifier, allowing for higher volume output and increased bass response.
High-Definition Sound: The coaxial subwoofer design ensures a balanced blend of bass, mids, and highs, delivering full-range audio performance without distortion.
Built for Endurance: Constructed with a weather-resistant design, reinforced basket, and high-temp voice coils, this kit is ready for long rides in any condition.
Easy Installation: Comes with pre-wired connectors, a Plug & Play harness, and precision-cut mounting templates for a seamless upgrade process.
For riders who crave deep, booming bass and high-output sound, the MS692NEO2LK24 Cut-in Lid Kit is the ultimate choice. Order now and transform your ride into a mobile sound system!
Specifications
2024 HD Cut In Lid Kit
Includes MS692NEO2 Motorsport Series 6x9" Neodymium Full Range Coaxial Horn Waterproof, 400w RMS 2ω
Includes Plug-n-Play Speaker Wire Harness
Power Handling: 300W RMS/600W MAX
2-Way 1 inch 25mm Titanium Dome Tweeter Speaker System (Pair)
Flush Mount Design
Water Spray and Salt Water Resistant,100% UV Stable
Mounting Diameter: 6.38 x 9.33 in / 162 x 237 mm
Mounting Depth: 2.28" / 58mm
1x Diamond Audio MICRO2V2 Micro 2-Ch 250W RMS X 2 @ 2-Ohm (MICRO2V2)
MICRO2V2 - MICROV2 Series 2-Channel Full Range Class D Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.
The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Specifications:
- 2 Channel Full Range Digital Amplifier
- 250W x 2CH @ 2Ω
- 150W x 2CH @ 4Ω
- 500W x 1CH @4Ω Bridged RMS Power Output
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Dimensions: 7.89” x 4.1” x 1.46” / 200.5 x 103 x 37.2 mm
- Remote Bass Knob Included
- Disconnected RCA Input & Speaker Output Harness Kits Included
