Description
Included in this kit
This bundle includes a Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface, 2x Memphis Audio ETP-3 3-Foot 2 -Channel Audio Interconnect Cables, a Cicada Audio HDPG8K - 8 Gauge Power/Ground Kit, a Diamond Audio MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier, a Diamond Audio HXM65F2BK Motosport 2-way 6.5" 2-ohm Flush Mount Speaker Black Carbon Cone Speaker - 450w Max/150w RMS, and a Diamond Audio MSHXM692LK24 - Motorsport HD Cut-In Speaker Lid Kit With Hxm69F2.
1x Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface (NTV-KIT1021)
NAV-TV’s ZEN-H processor seamlessly allows aftermarket amplifiers to be added to the factory Harley-Davidson headunit via its low level (8 channel) analog RCAs @5V RMS. This plug & play kit integrates with various OEM data networks to retain chimes, volume control, fader/balance, and EQ Presets (for true OEM integration).
Tech Specs:
- 24 Bit 48khz Output
- 8 x 5v RMS RCA outputs
- 113db SNR
- Burr Brown DAC
- 7 - 20v input voltage range
- <250mA idle current draw
Model
2024-2025 Harley Davidson/CVO
2024-2025 Harley Davidson/Road Glide
2024-2025 Harley Davidson/Street Glide
ZEN-H Technical Specifications
Hardware & Software
Current HW version: --1r1--
Current SW version: ZEN-H-1.2.8.ntv
Compatible SW (update) OS: Windows, macOS
INPUT
Digital Input A2B
OUTPUT
Digital Outputs: None
Digital Outputs supported: 24bit/48kHz
Frequency Response (digital): 18Hz – 24kHz
Analog Outputs: 8 channels (RCA)
Output Voltage Peak: 13.8v
Output Voltage RMS: 5v
Analog Output Type: Single-Ended
S/N Ratio (analog): 113dB
Frequency Response (analog): 18Hz – 24kHz
THD+N @ -1dBFS -94dB
DAC 192kHz 24bit
DSP 32bit Fixed Point
Power Supply
Current Consumption Stand-by <1 mA
Current Consumption Operational 250 mA MAX
Operational Voltage 7V – 20V DC
Amp Turn-On Output Automatic
Amp Turn-On Voltage V-batt
Amp Turn-On Current Limitation 500mA
Other
Dimensions: 4”x4”x1 1/2”
Weight: 5 oz'
2x Memphis Audio ETP-3 3-Foot 2 -Channel Audio Interconnect Cables (ETP-3)
ETP RCA connections provide a sound connection for all of your audio equipment. These connectors feature molded color matched ends, flexible PVC jacket and twisted pair wires for noise rejection. Your system performance relies heavily on the connections you use. Don’t sacrifice your vehicles audio quality, use only the best connection available from Memphis Audio.
Molded color matched ends
Clear flexible PVC jacket
Twisted pair design for excellent noise rejection
End 1: 2 Male RCA
End 2: 2 Male RCA
CHANNELS: 2
LENGTH: 3ft
1x Cicada Audio HDPG8K - 8 Gauge Power/Ground Kit (HDPG8K)
HD 8 Gauge Power Harness Kit
1x Diamond Audio MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier (MICRO4V2)
MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.
The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Specifications:
- 150W x 2CH @ 2Ω
- 80W x 4CH @ 4Ω
- 300W x 2CH @ 4Ω Bridged
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.7” x 4.0” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included
1x Diamond Audio HXM65F2BK Motosport 2-way 6.5" 2-ohm Flush Mount Speaker Black Carbon Cone Speaker - 450w Max/150w RMS (HXM65F2BK)
Diamond Audio’s is proud to release it’s new and improved HXMF Black Series Coaxial Drivers. Building on the features of the HXM and HXMF platforms, the new HXMFB series increases performance where it counts. Higher output, more impactful bass response, and more high-end with new larger 1.5” Titanium tweeters. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary HXM and HXMF series to expand it with the new HXMFB Series, combining the best features of the HXM and HXMF drivers and improving both the output performance and low-end response. Available in both 2Ω and 4Ω models to really optimize system design. The result? Class-leading sound quality, exceptional output, and that trademark Diamond Audio quality.
These drivers’ elements are crafted to the highest standards, from the premium voice coils and advanced Neodymium motor structures to the rock-solid fiber-reinforced composite basket design, oversized titanium tweeters, and carbon fiber cones. Choose Diamond Audio’s HXMFB Series Coaxial Drivers — because your music deserves the best.
Specifications
SPEAKER SIZE - 6.5"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 2
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 95
RE (Ω) [SERIES]: 1.8
QMS: 7.506
QES: 0.369
QTS: 0.352
FS (HZ): 105
VAS (L): 6.172
CMS (MM/N): 0.288
MMS (G): 8.024
SD (M2): 122.718
BL (T*M): 5.068
XMAX (MM): 2.75
POWER HANDLING RMS: 125
POWER HANDLING MAX: 250
MOUNTING DEPTH: IN.(MM):2.52" (64MM)
CUT OUT DIAMETER IN.(MM):5.44" (138.06MM)
OVER ALL DIAMETER IN.(MM):6.61" (167.79MM)
OVER ALL HEIGHT IN.(MM):3.03" (77.02MM)

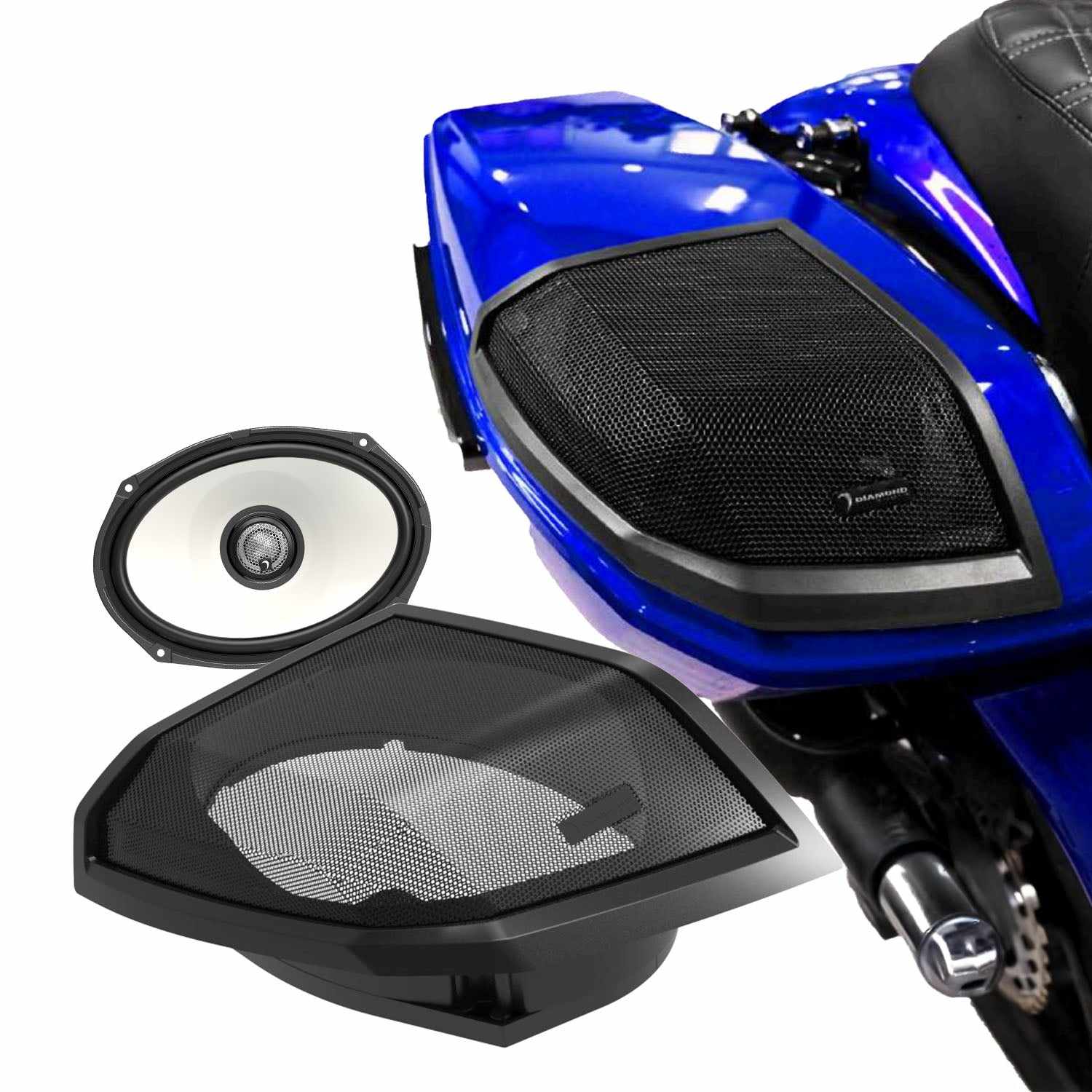

1x Diamond Audio MSHXM692LK24 - Motorsport HD Cut-In Speaker Lid Kit With Hxm69F2 (MSHXM692LK24)
Unleash next-level audio performance with Diamond Audio's MSHXM692LK24 Cut-in Lid Kit, featuring HXM69F2 6x9” 2-Way Speakers with 2Ω impedance and RGB lighting for a bold, high-output sound experience.
Why This Kit Stands Out: Optimized for Power: Designed with a low-impedance 2Ω setup, these speakers maximize amplifier efficiency, delivering higher volume output and deeper bass response.
Customizable LED Aesthetics: Integrated RGB lighting allows you to personalize your bike’s appearance, adding a dynamic visual touch to your audio powerhouse.
High-Performance Sound: Equipped with a heavy-duty magnet structure and precision-tuned voice coils, these speakers ensure rich midrange, clear highs, and solid low-end response.
Built for the Road: Featuring a rugged, water-resistant design, this kit withstands rain, dust, and road debris, keeping your audio system performing flawlessly.
Quick & Easy Installation: Includes a Plug & Play wiring harness and pre-cut mounting templates for a hassle-free installation process.
Upgrade your HD with a powerful, road-ready sound system and custom RGB lighting effects. Get your MSHXM692LK24 Cut-in Lid Kit today!
Specifications
2024 HD Cut-In Lid Kit
Included Rubber Gasket for HXM69F2
Includes: HXM69F2 6”x9” Marine Grade Speaker
Includes Plug-n-Play Wire Harness for LED Wiring (Controller Sold Separately: Item: DALEDLC)
2-Way 1 inch 25mm Titanium Dome Tweeter Speaker System (Pair)
150W RMS / 300W MAX MAX Power Rating
Flush Mount Design
Water Spray and Salt Water Resistant, 100% UV Stable
Ultra Small Neodymium Motor Structure With Max Xmax Suspension
High Temp Injection Molded Composite Basket
Molded, UV-Coated, Patent Pending Waterproof Injection PP Cone
Integrated Dream RGB LED Lighting
Mounting Diameter: 8.64" x 6.0" / 219 x 152.5mm
Mounting Depth: 3.15" / 80m
