Description
Included in this kit
This bundle includes a Diamond Audio MS65NEO Motorsport Neo Series 6.5" Neodymium Midrange Speaker, 300W Rms, a Diamond Audio MO75T Motorsport 1" Compression Horn Titanium Dome Shallow Tweeter, a Diamond Audio MICRO84U Microbu 4-Channel / 125W X 4 @ 2-Ohm, 85w X 4 @ 4-Ohm, 250W X 2 @ 4-Ohm Rms Bridged, All-Weather Application, and a Diamond Audio MSTLINK Motorsport 4-Ch Input With Load Resistor 4-Out T-Harness Kit.
1x Diamond Audio MS65NEO Motorsport Neo Series 6.5" Neodymium Midrange Speaker, 300W Rms (MS65NEO)
MS65NEO – 6.5″ Motorsport High Output 4 Ω Neo Midrange
Introducing the Diamond Audio MSNEO Series, the crown jewel of our speaker lineup. As the pinnacle of Diamond Audio brands, these top-of-the-line speakers represent the very best in audio engineering, incorporating cutting-edge materials and design to deliver unparalleled sound quality and performance.
Experience the best sound quality with the MSNEO Series speakers. Designed for audiophiles and discerning music lovers, these speakers offer an esoteric and exclusive audio experience. The incorporation of carbon fiber in the cone material ensures superior acoustics, delivering crisp highs, rich midrange, and powerful bass with remarkable clarity and precision.
The MSNEO Series speakers are not only the best but also a must-have for anyone serious about their audio. With a superior design tailored to fit Harley Davidson motorcycles, these speakers provide a perfect blend of aesthetics and functionality. The high-output midrange ensures your music stands out, even against the roar of the road.
As a lifestyle product exclusive, the MSNEO Series is limited and highly sought after. These speakers are the epitome of luxury and performance, making them a prized possession for any audio enthusiast. Their esoteric nature and top-of-the-line status make them a statement piece in any audio setup.
Specifications:
- 300 W RMS/600W MAX Power Handling
- Sensitivity: 94dB 1W/M
- Frequency Response: 100Hz - 13kHz
- Nominal Impedance: 4 ohm
- Mounting Depth: 2.77” (70.5 mm)
- Cut-out Diameter: 5.78” (147 mm)
- Over-All Diameter: 6.65” (169 mm)
- Over-All Height: 3.14” (79.7 mm)
- Heavy Duty Industrial Cast Aluminium Basket
- Waterproof Black DUPONT™ Kevlar Cone
- Neodymium Magnet Motor Structure
- US manufactured 2” Black High Temperature Coated Voice Coil

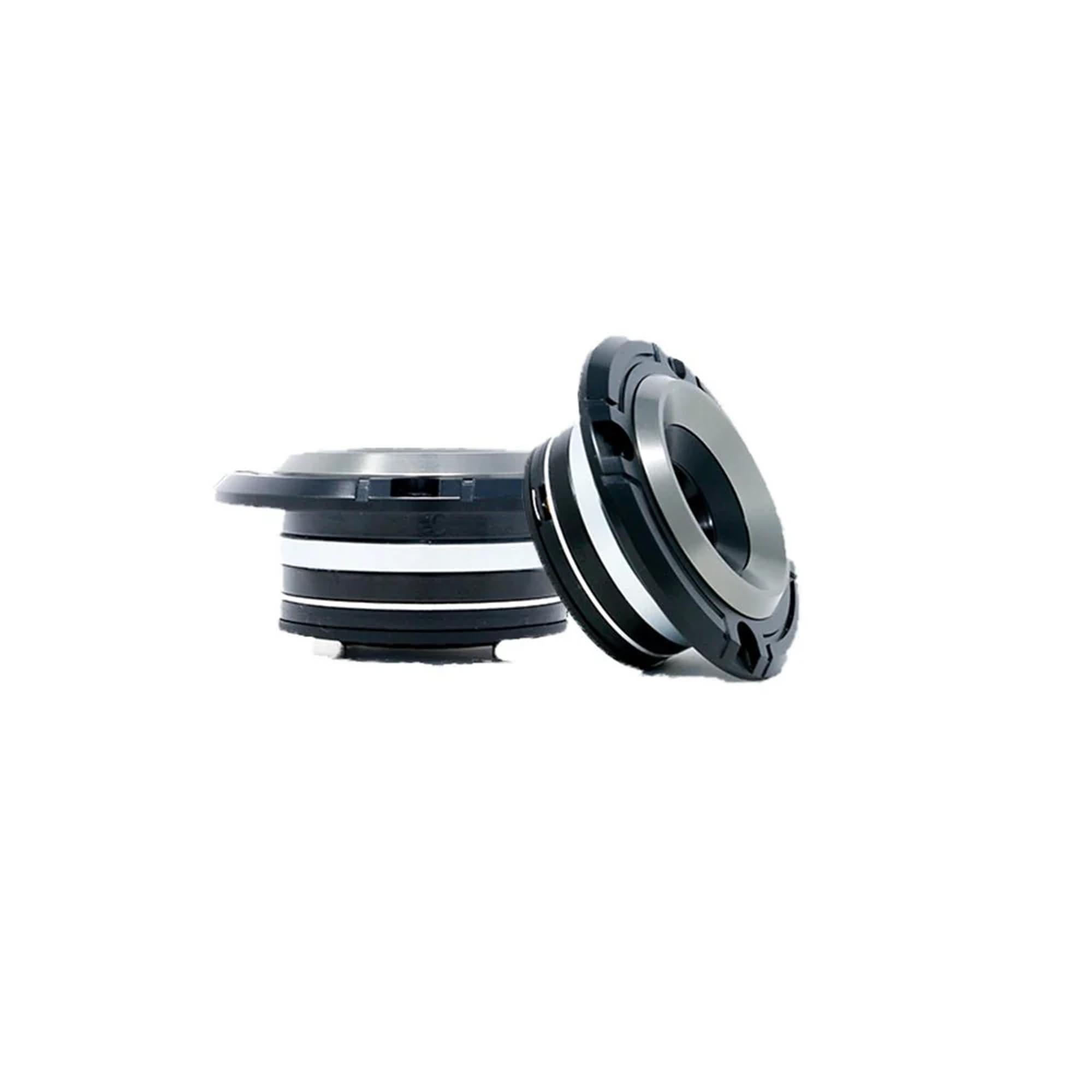

1x Diamond Audio MO75T Motorsport 1" Compression Horn Titanium Dome Shallow Tweeter (MO75T)
.75" Compression Extreme Output Tweeter
Experience powerful, high-frequency performance with the Diamond Audio M075T Compression Extreme Output Tweeter, engineered for maximum clarity, efficiency, and projection. As part of the renowned Diamond Audio Motorsport Series, this high-compression tweeter is designed for motorcycle audio systems, car audio builds, and powersports applications that demand loud, clean, and accurate highs.
The M075T compression tweeter delivers razor-sharp detail and aggressive output, cutting through wind noise, engine vibration, and open-air environments. Built with proprietary phase plug technology, it enhances off-axis response and sound dispersion, ensuring balanced high-frequency performance throughout the listening area. Whether installed in a Harley Davidson® bagger, UTV, side-by-side, or custom car audio system, the M075T maintains crisp clarity even at high volume levels.
Designed for flexible installation, the shallow-depth tweeter housing supports a variety of mounting configurations, making it ideal for custom fabrication projects. Available in standard and short horn versions, the Motorsport Series tweeters adapt easily to different system designs.
Perfect for high-output motorcycle audio upgrades and performance-driven sound systems, the Diamond Audio M075T extreme output tweeter delivers professional-grade clarity and durability.
For enthusiasts seeking loud, precise, and distortion-free highs, the M075T is built to perform at the highest level.
Specifications
50W RMS
100W Max Power Handling
107dB Sensitivity
Composite Rubber Mounting Frame
12dB Crossover included for maximum protection
Radial Slit Phase Plug for Better Response
Over-All Diameter: 2.95" / 75mm
Over-All Depth: 1.57" / 38.8mm
1x Diamond Audio MICRO84U Microbu 4-Channel / 125W X 4 @ 2-Ohm, 85w X 4 @ 4-Ohm, 250W X 2 @ 4-Ohm Rms Bridged, All-Weather Application (MICRO84U)
MICRO84U - MICRO8U Series 4-Channel Full Range Class D Amplifier
Diamond Audio continues to push boundaries with the introduction of the MICRO8U series amplifiers for 2018. Building on the success of the popular MICRO series, the big-brother MICRO8U series amplifiers deliver even more power and performance, setting a new standard in audio excellence.
Engineered from the ground up, these amplifiers not only provide increased power but are also conformal-coated for all-weather applications and outdoor environments. This makes them perfect for a wide range of installations, ensuring durability and reliability no matter the conditions.
All MICRO8U models, except for the MICRO85U and MICRO88U, share the same platform and dimensions, making for a sleek and uniform installation. Their subtle yet elegant design, combined with the signature Diamond Audio aesthetics, ensures that these amplifiers not only perform exceptionally but also look stunning in any setup.
Experience the next level of power, performance, and design with the MICRO8U series amplifiers from Diamond Audio. Upgrade your audio system today and enjoy unparalleled sound quality and durability, whether you're indoors or out.
Specifications:
- 4-CHANNEL
- 250W x 2 @ @ 4Ω RMS BRIDGED
- 125W x 4 @ 2Ω
- 85W x 4 @ 4Ω
- ALL-WEATHER APPLICATION
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included
1x Diamond Audio MSTLINK Motorsport 4-Ch Input With Load Resistor 4-Out T-Harness Kit (MSTLINK)
MSTLINK - Harley Davidson Radio T-Harness Kit, 4-CH Inputs with Load Resistor & 4-CH Outputs 2014-2023 (Standard Model)
Plug & Play is the best way to integrate an aftermarket amplifier with the factory radio of any 2014-2023 Harley bagger. This harness gives you all the connections and features you could want, and it works with all variations of Harley stereo systems
Specifications:
- MOTORSPORT 4-CH Input with Load Resistor 4-Out T-Harness Kit
- Aftermarket Replacement Harness Function
- Retained Accessory Power (RAP) Retention
Non-Amplified
