Description
Included in this kit
This bundle includes a Diamond Audio MSHD9813SG Plug N-Play Radio Digital Media Receiver Features Apple CarPlay, Android Auto, Bluetooth Compatible With 1998-2013 H-D Street Glide Motorcycles, a Diamond Audio MSPRO65 Motorsport Pro Series 6.5" 4-Ohm Midrange Pro Speaker, a Diamond Audio MO75T Motorsport 1" Compression Horn Titanium Dome Shallow Tweeter, a Diamond Audio MICRO84U Microbu 4-Channel / 125W X 4 @ 2-Ohm, 85w X 4 @ 4-Ohm, 250W X 2 @ 4-Ohm Rms Bridged, All-Weather Application, and a Metra 82-9601 Speaker Adapters compatible with Harley Davidson 1998-2013 -6.5 to 6.75 inch.
1x Diamond Audio MSHD9813SG Plug N-Play Radio Digital Media Receiver Features Apple CarPlay, Android Auto, Bluetooth Compatible With 1998-2013 H-D Street Glide Motorcycles (MSHD9813SG)

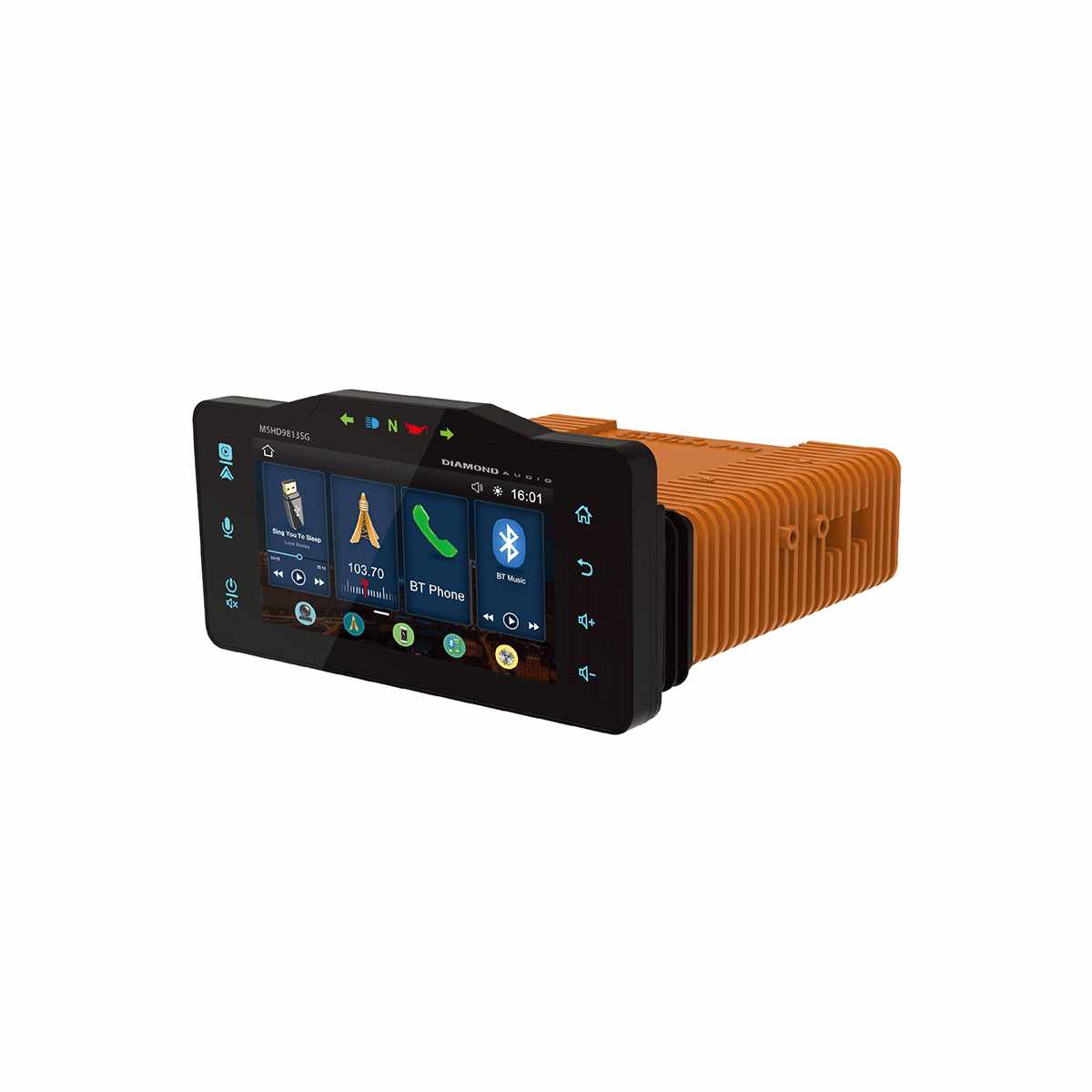

MSHD9813SG - Plug N-Play Digital Media Receiver for 1998-2013 Harley Davidson Street Glide
Introducing the MSHD9813SG Plug N-Play Digital Media Receiver for 1998-2013 Harley Davidson motorcycles – the pinnacle of audio and media performance on the road. Proudly designed in the USA, this high-end Harley radio is engineered to redefine your riding experience with unmatched features and cutting-edge technology. Elevate your ride with the MSHD9813SG Plug N-Play Digital Media Receiver – where cutting-edge technology meets ultimate convenience and performance. Get ready to experience the very best Harley radio on the market today.
Superior Sound Performance
- 10 Channel - Clip-Free Independent Outputs: Experience the clearest audio with (6) 5V RMS RCA outputs and (4) 50x4@2Ω/25x4@4Ω RMS clip-free outputs.
- Wireless Apple CarPlay: Seamlessly integrate your iPhone with the wireless Apple CarPlay feature, providing you with effortless access to music, navigation, and more.
Advanced Display & Controls
- 7" Ultra-Bright, 1000 NIT LCD Touchscreen: This glove-friendly touchscreen is designed for visibility and ease of use, even under the brightest conditions.
Ultimate Sound Customization
- 6 Independent EQs: One global and five setup EQs allow for the ultimate sound customization, ensuring your audio is tuned to perfection.
- 10CH DSP Features: Includes time delay, HP/LP/BP crossovers with adjustable slopes, with independent channels that can be linked or separated from fader control.
Durability & Compatibility
- IPX6 Water Resistance: Comes with a weatherproof trim gasket, ensuring durability in all riding conditions.
- Media Player & Bluetooth 5.2: Supports a wide range of media formats, including MP3, AAC, WMA, and more, with Bluetooth streaming and hands-free calling.
- USB Media Input/Charger: Equipped with a 2.1A charger to keep your devices powered on the go.
- Backup Camera Input: Enhance your safety with a compatible backup camera input.
Innovative Features
- Multiple Patented Technologies: Boasting numerous patented features and technologies, the MSHD9813SG sets a new standard in motorcycle audio systems.
SOFTWARE DOWNLOAD 3-10-2025
PRODUCT VIDEOS
Note: We are temporary using the MSHD14 videos because the user interface is the same.
MSHD8913SG Setup Android Auto & Apple CarPlay
MSHD8913SG Setup Bluetooth Line Driver
MSHD8913SG Setup Compensation EQ's
MSHD8913SG Setup Bluetooth Pairing
MSHD8913SG Setup for DSP Crossover
MSHD9813SG Setup Balance & Fade
Specifications:
- 10 CHANNEL - CLIP FREE INDEPENDENT OUTPUTS
(6) 5V RMS RCA OUTPUTS + (4) - 50X4@2Ω/25X4@4Ω RMS CLIP-FREE
- WIRELESS APPLE CARPLAY
- 7" ULTRA BRIGHT, 1000 NIT LCD TOUCHSCREEN
- GLOVE-FRIENDLY TOUCHSCREEN
- RETAINS HANDLEBAR CONTROLS, RECONFIGURABLE THOUGH PROGRAMMING
- 6 INDEPENDENT EQ'S FOR THE ULTIMATE SOUND CUSTOMIZATION (1 GLOBAL, 5 FOR SETUP)
- 10CH DSP FEATURES TIME DELAY, HP/LP/BP CROSSOVERS WITH ADJUSTABLE 6,12,18,24DB SLOPES INDEPENDENT CHANNELS CAN BE LINKED TOGETHER OR SEPARATED FROM FADER CONTROL (DEFAULT)
- IPX6 WATER RESISTANCE / WEATHERPROOF TRIM GASKET INCLUDED
- AM/FM/WEATHERBAND
- MEDIA PLAYER SUPPORTS MP3, AAC, WMA, APE, FLAC, WAV, MPEG4, H.263, H.264, H.265, XVVID, AVI, VP8, VP9
- BLUETOOTH 5.2 STREAMING / HANDS-FREE CALLING (MICROPHONE INCLUDED)
- USB MEDIA INPUT / CHARGER 2.1A
- BACKUP CAMERA INPUT
- BLUETOOTH LINE DRIVER FOR MAXIMUM OUTPUT
- MULTIPLE PATENTED FEATURES AND TECHNOLOGIES
1x Diamond Audio MSPRO65 Motorsport Pro Series 6.5" 4-Ohm Midrange Pro Speaker (MSPRO65)
MSPRO65 - 6.5" PRO High Output Speakers (Pair)
Elevate your ride with the Diamond Audio MS PRO Series speakers, designed to deliver ultra-efficient, super loud, and reliable performance for the most demanding audio enthusiasts. Tailored specifically for Harley Davidson motorcycles, these speakers offer superior sound quality and durability, making them the perfect companion for your journeys.
The MS PRO Series speakers are engineered for maximum efficiency, ensuring that you get the most out of your audio system with minimal power consumption. Experience super loud sound that cuts through the noise, whether you're cruising down the highway or parked at a rally.
Diamond Audio is synonymous with exceptional sound quality, and the MS PRO Series is no exception. Enjoy crystal-clear highs.
Specifications:
- 200W RMS Power Handling
- Frequency Response: 110 - 10kHz +/- 3dB
- Sensitivity: 97dB 1W/1M
- Manufactured to IP65 Marine Grade Compliant Specifications
- Shorting Ring Utilized In Motor Structure
- For Far-Field Performance
- Thermal Molded Waterproof Paper Cone
- UV-Treated Polycarbonate Cloth Surround
- Nominal Impedance: 4 ohm
- Sensitivity -100dB 1W/1M
- Mounting Depth: 2.4375”
- Cut-out Diameter: 5.625”
- Over-All Diameter: 6.5”
- Over-All Height: 2.625”
1x Diamond Audio MO75T Motorsport 1" Compression Horn Titanium Dome Shallow Tweeter (MO75T)
.75" Compression Extreme Output Tweeter
Experience powerful, high-frequency performance with the Diamond Audio M075T Compression Extreme Output Tweeter, engineered for maximum clarity, efficiency, and projection. As part of the renowned Diamond Audio Motorsport Series, this high-compression tweeter is designed for motorcycle audio systems, car audio builds, and powersports applications that demand loud, clean, and accurate highs.
The M075T compression tweeter delivers razor-sharp detail and aggressive output, cutting through wind noise, engine vibration, and open-air environments. Built with proprietary phase plug technology, it enhances off-axis response and sound dispersion, ensuring balanced high-frequency performance throughout the listening area. Whether installed in a Harley Davidson® bagger, UTV, side-by-side, or custom car audio system, the M075T maintains crisp clarity even at high volume levels.
Designed for flexible installation, the shallow-depth tweeter housing supports a variety of mounting configurations, making it ideal for custom fabrication projects. Available in standard and short horn versions, the Motorsport Series tweeters adapt easily to different system designs.
Perfect for high-output motorcycle audio upgrades and performance-driven sound systems, the Diamond Audio M075T extreme output tweeter delivers professional-grade clarity and durability.
For enthusiasts seeking loud, precise, and distortion-free highs, the M075T is built to perform at the highest level.
Specifications
50W RMS
100W Max Power Handling
107dB Sensitivity
Composite Rubber Mounting Frame
12dB Crossover included for maximum protection
Radial Slit Phase Plug for Better Response
Over-All Diameter: 2.95" / 75mm
Over-All Depth: 1.57" / 38.8mm
1x Diamond Audio MICRO84U Microbu 4-Channel / 125W X 4 @ 2-Ohm, 85w X 4 @ 4-Ohm, 250W X 2 @ 4-Ohm Rms Bridged, All-Weather Application (MICRO84U)
MICRO84U - MICRO8U Series 4-Channel Full Range Class D Amplifier
Diamond Audio continues to push boundaries with the introduction of the MICRO8U series amplifiers for 2018. Building on the success of the popular MICRO series, the big-brother MICRO8U series amplifiers deliver even more power and performance, setting a new standard in audio excellence.
Engineered from the ground up, these amplifiers not only provide increased power but are also conformal-coated for all-weather applications and outdoor environments. This makes them perfect for a wide range of installations, ensuring durability and reliability no matter the conditions.
All MICRO8U models, except for the MICRO85U and MICRO88U, share the same platform and dimensions, making for a sleek and uniform installation. Their subtle yet elegant design, combined with the signature Diamond Audio aesthetics, ensures that these amplifiers not only perform exceptionally but also look stunning in any setup.
Experience the next level of power, performance, and design with the MICRO8U series amplifiers from Diamond Audio. Upgrade your audio system today and enjoy unparalleled sound quality and durability, whether you're indoors or out.
Specifications:
- 4-CHANNEL
- 250W x 2 @ @ 4Ω RMS BRIDGED
- 125W x 4 @ 2Ω
- 85W x 4 @ 4Ω
- ALL-WEATHER APPLICATION
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included
1x Metra 82-9601 Speaker Adapters compatible with Harley Davidson 1998-2013 -6.5 to 6.75 inch (82-9601)
Custom spacer designed for installation of 6-1/2 to 6-3/4 inch aftermarket speakers and works with all varieties of speakers including component drivers. One pair of adaptors included in each package.
