Description
Included in this kit
This bundle includes a Diamond Audio NEO15006DSP 6-Channel 1500W RMS CLASS D Amplifier, 2x Diamond Audio MP654 MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω), a Diamond Audio DESMB8 - 8" Slot Vented Passive Subwoofer Enclosure (2Ω), a Diamond Audio NEO1000.1DSP Full DSP 1000W RMS @1Ω CLASS D Monoblock Amplifier With 2CH Outputs, and a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS.

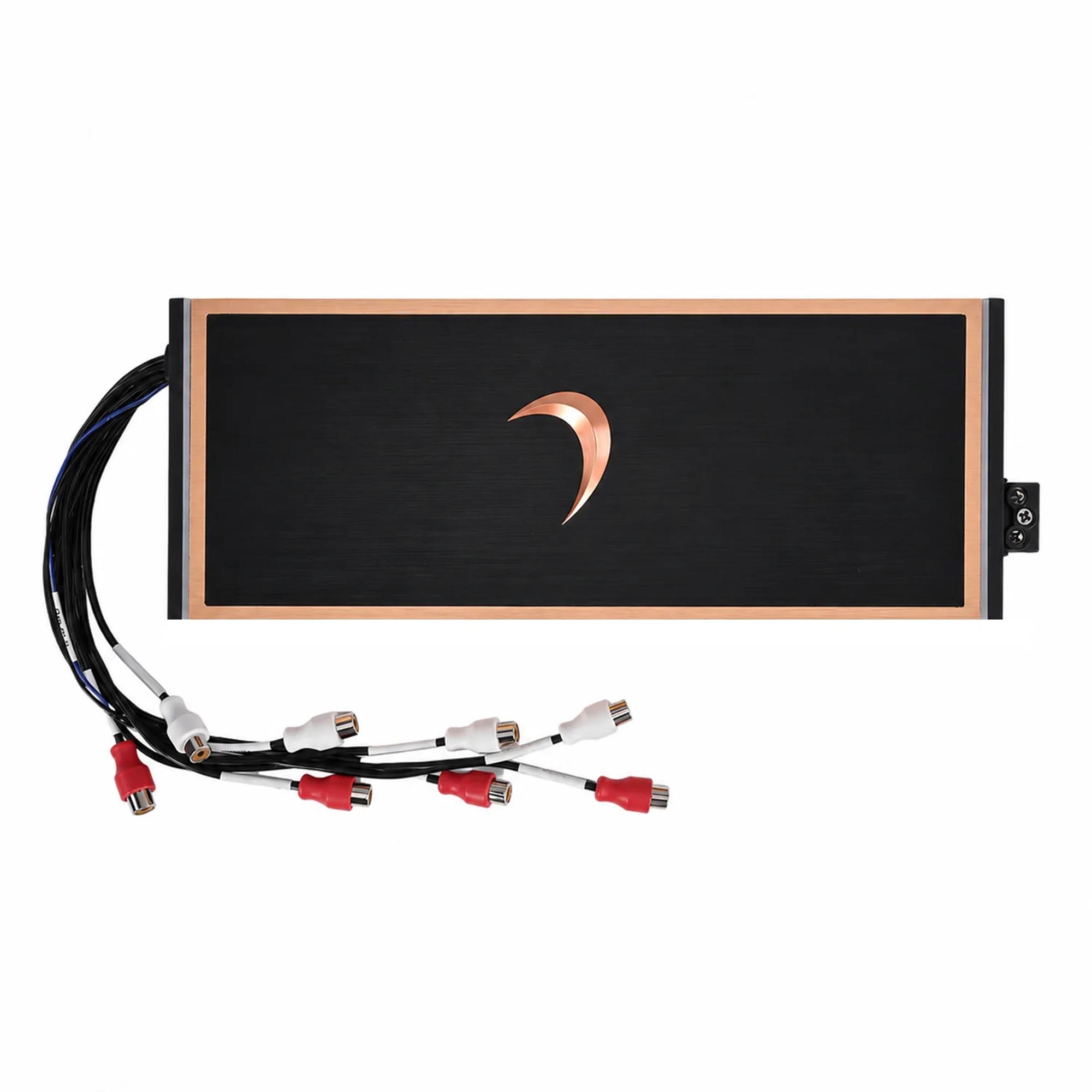

1x Diamond Audio NEO15006DSP 6-Channel 1500W RMS CLASS D Amplifier (NEO15006DSP)
Extensive System Power Meets Precision Control
The Diamond Audio NEO15006DSP is the ultimate solution for audiophiles seeking the perfect balance of multi-channel flexibility and sophisticated tuning with onboard 8CH DSP. As a high-efficiency Class D 6-Channel amplifier, it delivers a massive 1500W RMS total output. 150W RMS x 6 @ 4Ω or 250W RMS x 6 @ 2Ω, providing the dependable strength needed to drive complete active systems or high-output multi-speaker setups, with the ability to bridge channels to 500W x 3 @ 4Ω —all while maintaining the pure sonic clarity Diamond Audio is known for.
Advanced Full DSP Integration
Unlike standard multi-channel amplifiers, the NEO15006DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ per channel , precise crossovers, time delay , and channel linking, you have total command over every aspect of your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to meticulously calibrate complex 6-channel configurations for any acoustic environment.
Key Features:
Full 8CH DSP integration: 6CH internal, 2CH output. 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
Easy OEM integration features:
Up to 20V signal inputs (High/Low level 20V – 0.4V)
Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
EV friendly voltage compatibility (8V – 17V)
Marine ready, water-resistant chassis
Staggered RCA connections for clean installations
High-current quick-connect power block
NeoDRC1 Diamond Remote Commander compatible (sold separately)
2 RCA preamp outputs for system expansion
Specifications
Output Power Rating:
150W x 6 @ 4Ω
250W x 6 @ 2Ω
Bridged @ 4Ω: 3x500W
Frequency Response: 15Hz - 23kHz
Input Sensitivity: 0.4-20V
Signal to Noise Ratio: 85dB
THD & Noise: ≤0.03%
Dimensions(L×H×W): 287.5 X 103.3 X 35mm/ 11.32" X 4.07" X 1.38"
Net Weight: 1.26kg / 2.78lbs
2x Diamond Audio MP654 MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) (MP654)
MP654 - MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω)
Discover the ultimate in audio performance with Diamond Audio’s MP Series speakers. Engineered for maximum efficiency and loudness, these speakers incorporate a horn style tweeter with a replaceable tweeter diaphragm, ensuring unparalleled sound clarity and power. Designed to meet the needs of discerning audio enthusiasts, the MP Series is your perfect audio companion for boats, Harley Davidson motorcycles, and recreational vehicles.
The MP Series speakers are designed to be ultra-efficient, ensuring that you get the most out of your audio system with minimal power consumption. Experience high-decibel sound that delivers powerful, clear audio whether you’re on the water, the open road, or off the beaten path.
Crafted with a high-end cast basket and superior design, the MP Series speakers are built to last. The horn style tweeter enhances sound projection and clarity, while the replaceable tweeter diaphragm ensures long-term performance and ease of maintenance.
Diamond Audio is renowned for delivering superior sound quality, and the MP Series is no exception. Enjoy your favorite music with exceptional clarity, rich mid-range, and powerful bass, making every journey a sonic adventure.
Whether you’re outfitting your boat, Harley Davidson, or recreational vehicle, Diamond Audio’s MP Series speakers are the ideal choice for high-quality, durable audio equipment. Built to withstand the rigors of various environments, these speakers deliver consistent, high-performance sound wherever your journey takes you.
Upgrade your audio system with Diamond Audio MP Series speakers and experience the pinnacle of sound performance and reliability. Feel the difference that high-end engineering and precision craftsmanship can make – choose Diamond Audio for your next adventure!
Disclaimer
*** The speakers are water resistant and not waterproof. They can be damaged by large amounts of water. ***
Specifications:
- Power: 150W RMS/300w MAX
- SPL(dB) MidBass: 92.7
- SPL(dB) Tweeter: 107
- Re(Ω): 3.2
- Qms: 10.73
- Qes: 0.47
- Qts: 0.45
- Fs(Hz): 103.3
- Vas(L): 6.6
- Cms(mm/N): 0.24
- Mms(g): 90.7
- Sd(cm²): 138.9
- BL(T*M): 6.5
- Xmax(mm): 1.0
- Hi-pass Filter: 12dB 2nd Order Crossover
1x Diamond Audio DESMB8 - 8" Slot Vented Passive Subwoofer Enclosure (2Ω) (DESMB8)
Crafted to Perfection!
The DES Enclosure Series epitomizes quality craftsmanship and precision engineering, delivering unparalleled performance in their class. Elevate your audio experience with speakers designed to exceed expectations.
Versatile Excellence!
The popular impedance switch feature enhances their versatility, ensuring that Diamond Audio subwoofers meet your specific audio needs without disappointment. Enjoy adaptable, high-quality sound that fits your preferences perfectly!
The Diamond Elite DES Series subwoofers epitomize quality craftsmanship and precision engineering, delivering the best performance in their class. Designed for versatility, these new DES subwoofers are perfect for a variety of enclosure designs, providing dynamic sound and that signature Diamond Audio bass, capable of withstanding long, extended listening sessions.
Constructed with a high-grade reinforced hybrid paper fiber cone structure, the DES subwoofers handle extreme power effortlessly. The popular impedance switch feature adds to their versatility, ensuring that these subwoofers meet your specific audio needs without disappointment.
Diamond Audio’s new Microbox subwoofer system clearly delivers impressive bass output in a small package! These Microboxes come preloaded with a single or dual pair option of DES series 8” subwoofers. Constructed with high-strength MDF with extensive bracing and lock-tight fastening means no leaks and distortion free bass response.
Specifications
250W RMS, 500W MAX
Loaded with DES84 Dual Voice Coil Subwoofer
Dimensions: 18” (457.2mm) x 5” (234.3mm ) x12” (304.8mm)
1x Diamond Audio NEO1000.1DSP Full DSP 1000W RMS @1Ω CLASS D Monoblock Amplifier With 2CH Outputs (NEO1000.1DSP)
Refined Power Meets Precision Control
The Diamond Audio NEO10001DSP is the definitive solution for audiophiles seeking the perfect balance of raw power and sophisticated tuning. As a high-efficiency Class D Monoblock amplifier , it delivers a robust 1000W RMS at 1Ω, providing the dependable strength needed for high-performance subwoofers while maintaining the pure sonic clarity Diamond Audio is known for.
Advanced Full DSP Integration
Unlike standard monoblock amplifiers, the NEO10001DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ , precise crossovers, time delay , and channel linking, you have total command over your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to calibrate your system for any acoustic environment.
Seamless OEM & EV Integration
Designed for the modern vehicle landscape, the NEO10001DSP excels in integration with onboard 4CH DSP. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.
Key Features:
Full 4CH DSP integration: 2CH internal, 2CH output. 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
Easy OEM integration features:
- Up to 20V signal inputs (High/Low level 20V – 0.4V)
- Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
- EV friendly voltage compatibility (8V – 17V)
Bluetooth Audio streaming direct to amplifier
Control via IOS or Android App (coming soon)
Marine ready, water-resistant chassis
Staggered RCA connections for clean installations
High-current quick-connect power block
NeoDRC1 Diamond Remote Commander compatible
sold separately)
1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
