Description
Included in this kit
This bundle includes a Diamond Audio MSHD9813RG Plug N-Play Radio Digital Media Receiver Features Apple CarPlay, Android Auto, Bluetooth Compatible With 1998-2013 Hd Road Glide Motorcycles, a Diamond Audio MSHXM694LK13 - 1998-2013 Harley Davidson® Cut In Lid Kit with HXM69F4 (4Ω) Speakers Includes Plug-n-Play Wire Harness W/ DLED Wiring (Controller Sold Separately: Item: DALEDLC), a Diamond Audio MICRO2V2 Micro 2-Ch 250W RMS X 2 @ 2-Ohm, and a Diamond Audio HX82 - 2-Channel 8 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable.
1x Diamond Audio MSHD9813RG Plug N-Play Radio Digital Media Receiver Features Apple CarPlay, Android Auto, Bluetooth Compatible With 1998-2013 Hd Road Glide Motorcycles (MSHD9813RG)
MSHD9813RG - Plug N-Play Digital Media Receiver for 1998-2013 Harley Davidson Road Glide
Introducing the MSHD9813RG Plug N-Play Digital Media Receiver for 1998-2013 Harley Davidson motorcycles – the pinnacle of audio and media performance on the road. Proudly designed in the USA, this high-end Harley radio is engineered to redefine your riding experience with unmatched features and cutting-edge technology. Elevate your ride with the MSHD9813RG Plug N-Play Digital Media Receiver – where cutting-edge technology meets ultimate convenience and performance. Get ready to experience the very best Harley radio on the market today.
Superior Sound Performance
- 10 Channel - Clip-Free Independent Outputs: Experience the clearest audio with (6) 5V RMS RCA outputs and (4) 50x4@2Ω/25x4@4Ω RMS clip-free outputs.
- Wireless Apple CarPlay: Seamlessly integrate your iPhone with the wireless Apple CarPlay feature, providing you with effortless access to music, navigation, and more.
Advanced Display & Controls
- 7" Ultra-Bright, 1000 NIT LCD Touchscreen: This glove-friendly touchscreen is designed for visibility and ease of use, even under the brightest conditions.
Ultimate Sound Customization
- 6 Independent EQs: One global and five setup EQs allow for the ultimate sound customization, ensuring your audio is tuned to perfection.
- 10CH DSP Features: Includes time delay, HP/LP/BP crossovers with adjustable slopes, with independent channels that can be linked or separated from fader control.
Durability & Compatibility
- IPX6 Water Resistance: Comes with a weatherproof trim gasket, ensuring durability in all riding conditions.
- Media Player & Bluetooth 5.2: Supports a wide range of media formats, including MP3, AAC, WMA, and more, with Bluetooth streaming and hands-free calling.
- USB Media Input/Charger: Equipped with a 2.1A charger to keep your devices powered on the go.
- Backup Camera Input: Enhance your safety with a compatible backup camera input.
Innovative Features
- Multiple Patented Technologies: Boasting numerous patented features and technologies, the MSHD9813RG sets a new standard in motorcycle audio systems.
SOFTWARE DOWNLOAD 3-10-2025
PRODUCT VIDEOS
Note: We are temporary using the MSHD14 videos because the user interface is the same.
MSHD8913RG Setup Android Auto & Apple CarPlay
MSHD8913RG Setup Bluetooth Line Driver
MSHD8913RG Setup Compensation EQ's
MSHD8913RG Setup Bluetooth Pairing
MSHD8913RG Setup for DSP Crossover
MSHD9813RG Setup Balance & Fade
Specifications:
- 10 CHANNEL - CLIP FREE INDEPENDENT OUTPUTS
(6) 5V RMS RCA OUTPUTS + (4) - 50X4@2Ω/25X4@4Ω RMS CLIP-FREE
- WIRELESS APPLE CARPLAY
- 7" ULTRA BRIGHT, 1000 NIT LCD TOUCHSCREEN
- GLOVE-FRIENDLY TOUCHSCREEN
- RETAINS HANDLEBAR CONTROLS, RECONFIGURABLE THOUGH PROGRAMMING
- 6 INDEPENDENT EQ'S FOR THE ULTIMATE SOUND CUSTOMIZATION (1 GLOBAL, 5 FOR SETUP)
- 10CH DSP FEATURES TIME DELAY, HP/LP/BP CROSSOVERS WITH ADJUSTABLE 6,12,18,24DB SLOPES INDEPENDENT CHANNELS CAN BE LINKED TOGETHER OR SEPARATED FROM FADER CONTROL (DEFAULT)
- IPX6 WATER RESISTANCE / WEATHERPROOF TRIM GASKET INCLUDED
- AM/FM/WEATHERBAND
- MEDIA PLAYER SUPPORTS MP3, AAC, WMA, APE, FLAC, WAV, MPEG4, H.263, H.264, H.265, XVVID, AVI, VP8, VP9
- BLUETOOTH 5.2 STREAMING / HANDS-FREE CALLING (MICROPHONE INCLUDED)
- USB MEDIA INPUT / CHARGER 2.1A
- BACKUP CAMERA INPUT
- BLUETOOTH LINE DRIVER FOR MAXIMUM OUTPUT
- MULTIPLE PATENTED FEATURES AND TECHNOLOGIES

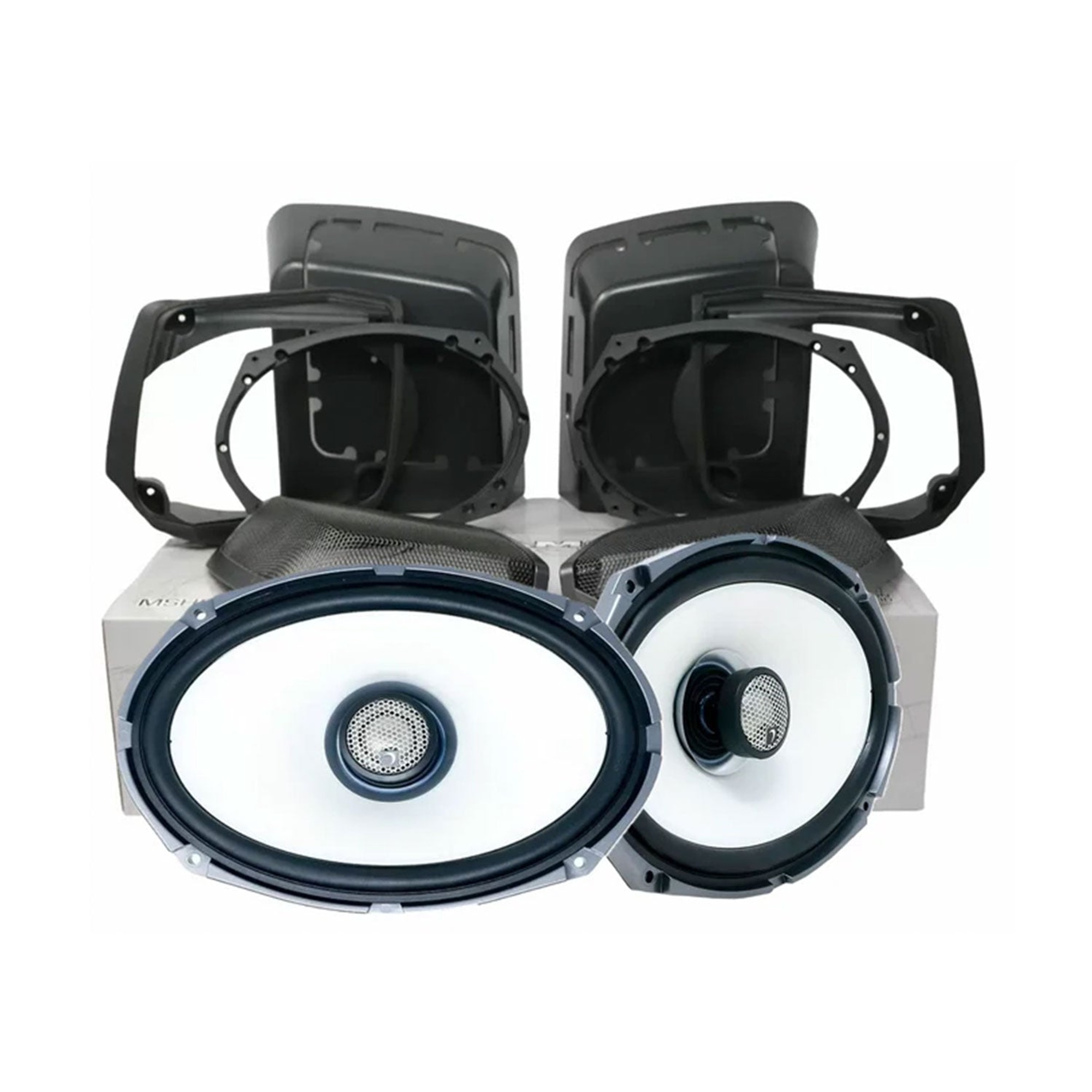

1x Diamond Audio MSHXM694LK13 - 1998-2013 Harley Davidson® Cut In Lid Kit with HXM69F4 (4Ω) Speakers Includes Plug-n-Play Wire Harness W/ DLED Wiring (Controller Sold Separately: Item: DALEDLC) (MSHXM694LK13)
Diamond Audio MSHXM694LK13 is the 1998-2013 Harley Davidson® Cut In Lid Kit with HXM69F4 (4Ω) Speakers. Unleash the Ultimate Sound Experience with Diamond Audio's MSHXM694LK13 Elevate your ride with Diamond Audio's MSHXM694LK13 Cut-in Lid Kit, custom-engineered for 1998-2013 Harley Davidson® motorcycles. This premier audio upgrade brings unparalleled clarity and power to your journey, ensuring every ride is an adventure in sound. Key Features: Seamless Integration: Designed specifically for Harley Davidson® models from 1998-2013, the MSHXM694LK13 kit guarantees a perfect fit and a factory-finish appearance, blending effortlessly with your bike's aesthetic. Superior Sound Quality: At the heart of this kit are the HXM69F4 Motorsports 6” x 9” Marine Grade Speakers.
Features / Specs -
• Included Rubber Gasket for HXM69F4
• Included: HXM69F4 6”x9” (4Ω) Marine Grade Speaker
• Includes Plug-n-Play Wire Harness W/ DLED Wiring (Controller Sold Separately: Item: DALEDLC)
• 2-Way 1 inch 25mm Titanium Dome Tweeter Speaker System (Pair)
• 150W RMS / 300W MAX MAX Power Rating
• Flush Mount Design
• Water Spray and Salt Water Resistant, 100% UV Stable
• Ultra Small Neodymium Motor Structure With Max Xmax Suspension
• High Temp Injection Molded Composite Basket
• Molded, UV-Coated, Patent Pending Waterproof Injection PP Cone
• Integrated Dream RGB LED Lighting
• Mounting Diameter: 8.64" x 6.0" / 219 x 152.5mm
• Mounting Depth: 3.15" / 80m
1x Diamond Audio MICRO2V2 Micro 2-Ch 250W RMS X 2 @ 2-Ohm (MICRO2V2)
MICRO2V2 - MICROV2 Series 2-Channel Full Range Class D Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.
The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Specifications:
- 2 Channel Full Range Digital Amplifier
- 250W x 2CH @ 2Ω
- 150W x 2CH @ 4Ω
- 500W x 1CH @4Ω Bridged RMS Power Output
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Dimensions: 7.89” x 4.1” x 1.46” / 200.5 x 103 x 37.2 mm
- Remote Bass Knob Included
- Disconnected RCA Input & Speaker Output Harness Kits Included
1x Diamond Audio HX82 - 2-Channel 8 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable (HX82)
Noise shield directional construction uses 3 tightly twisted conductor bundles (+, -, signal drain) per channel to create directional noise canceling.
Body Armor Protection utilizes high strength high strength nylon fibers that are woven tightly around the ultra-flexible PVC Cable Jacket
D.N.S Diamond Noise Shield Technology doubles the doubles the shielding efforts by combining two layers of EMI rejecting Mylar foil and radiated noise absorbing mesh, eliminating unwanted noise and interference.
Optimized Dynamic Signal Flow uses finely stranded pure OFC copper to optimize signal vs. frequency interaction for a dynamic listening experience.
Specifications
8 Gauge 4-Channel Amplifier Connection Kits
17ft. 8 Gauge Matte Red Power Wire with ring terminated
3ft. 8 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge Remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 4-Ch. Vega series RCA interconnect
AGU fuse holder with 60A fuse
All Hardware Include
