Description
Included in this kit
This bundle includes a Diamond Audio MICRO84U Microbu 4-Channel / 125W X 4 @ 2-Ohm, 85w X 4 @ 4-Ohm, 250W X 2 @ 4-Ohm Rms Bridged, All-Weather Application, 2x Diamond Audio HXM69F2BK Motorsport 2-Way 6"X9" 2-Ohm Flush Mount Speaker Black Carbon Cone Speaker - 450W Max/150W Rms, and a Diamond Audio HX82 - 2-Channel 8 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable.
1x Diamond Audio MICRO84U Microbu 4-Channel / 125W X 4 @ 2-Ohm, 85w X 4 @ 4-Ohm, 250W X 2 @ 4-Ohm Rms Bridged, All-Weather Application (MICRO84U)
MICRO84U - MICRO8U Series 4-Channel Full Range Class D Amplifier
Diamond Audio continues to push boundaries with the introduction of the MICRO8U series amplifiers for 2018. Building on the success of the popular MICRO series, the big-brother MICRO8U series amplifiers deliver even more power and performance, setting a new standard in audio excellence.
Engineered from the ground up, these amplifiers not only provide increased power but are also conformal-coated for all-weather applications and outdoor environments. This makes them perfect for a wide range of installations, ensuring durability and reliability no matter the conditions.
All MICRO8U models, except for the MICRO85U and MICRO88U, share the same platform and dimensions, making for a sleek and uniform installation. Their subtle yet elegant design, combined with the signature Diamond Audio aesthetics, ensures that these amplifiers not only perform exceptionally but also look stunning in any setup.
Experience the next level of power, performance, and design with the MICRO8U series amplifiers from Diamond Audio. Upgrade your audio system today and enjoy unparalleled sound quality and durability, whether you're indoors or out.
Specifications:
- 4-CHANNEL
- 250W x 2 @ @ 4Ω RMS BRIDGED
- 125W x 4 @ 2Ω
- 85W x 4 @ 4Ω
- ALL-WEATHER APPLICATION
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included

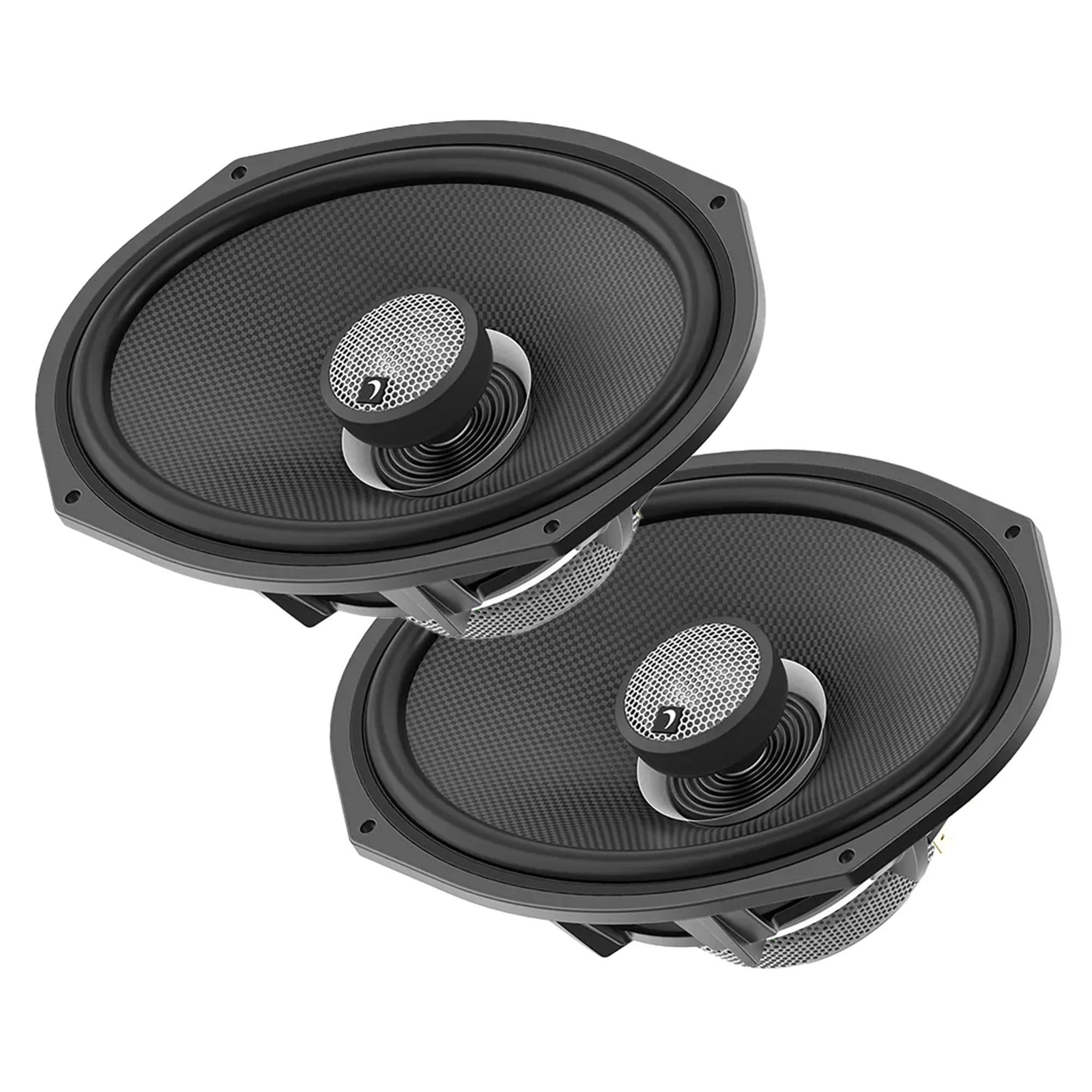

2x Diamond Audio HXM69F2BK Motorsport 2-Way 6"X9" 2-Ohm Flush Mount Speaker Black Carbon Cone Speaker - 450W Max/150W Rms (HXM69F2BK)
Diamond Audio HXMF Black Series 6x9" Horn-Loaded Coaxial Speaker (2Ω)
The Diamond Audio HXMF Black Series builds on the proven HXM and HXMF platforms with increased output capability, improved low-end response, and enhanced high-frequency performance. Designed for high-performance marine and motorsports applications, this 6x9" horn-loaded coaxial driver combines advanced materials and high-efficiency engineering for class-leading sound quality.
With a 2Ω single voice coil configuration, neodymium motor structure, and oversized titanium tweeter, the HXMF Black Series is engineered to deliver impactful bass, strong midrange clarity, and extended high-frequency response in demanding environments.
Performance & Design Highlights
- Horn-loaded 6x9" coaxial design for increased output
- 150 watts RMS / 450 watts max power handling
- 94 dB sensitivity (1W/1M) for efficient high-output performance
- Neodymium motor structure for strong magnetic control
- 2" voice coil for thermal handling and durability
Premium Construction Materials
- Carbon fiber cone for rigidity and reduced distortion
- Titanium diaphragm tweeter for enhanced high-frequency response
- Fiberglass reinforced polymer basket for structural strength
- Rubber surround for durability and excursion control
- Single 2Ω voice coil configuration
Thiele/Small Parameters
| Fs (Hz) | 69 |
| Re (Ω) | 2 |
| Qms | 3.759 |
| Qes | 0.471 |
| Qts | 0.419 |
| Vas (L) | 23.014 |
| Cms (mm/N) | 0.343 |
| Mms (g) | 15.599 |
| Sd (m²) | 217.28 |
| BL (T·m) | 5.348 |
| Xmax (mm) | 3.25 |
Specifications
| Speaker Size | 6x9" |
| Speaker Type | Horn Loaded Coaxial |
| Impedance | 2Ω |
| Number of Voice Coils | Single |
| Voice Coil Diameter | 2" |
| Cone Material | Carbon Fiber |
| Diaphragm Material | Titanium |
| Basket Material | Fiberglass Reinforced Polymer |
| Magnet Type | Neodymium |
| Surround Material | Rubber |
| Sensitivity (1W/1M) | 94 dB |
| Power Handling (RMS) | 150 Watts |
| Power Handling (Max) | 450 Watts |
| Mounting Depth | 3.10" (78.81 mm) |
| Cutout Diameter | 8.51" (216.03 mm) |
| Overall Diameter | 9.46" (240.29 mm) |
| Overall Height | 3.58" (90.81 mm) |
1x Diamond Audio HX82 - 2-Channel 8 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable (HX82)
Noise shield directional construction uses 3 tightly twisted conductor bundles (+, -, signal drain) per channel to create directional noise canceling.
Body Armor Protection utilizes high strength high strength nylon fibers that are woven tightly around the ultra-flexible PVC Cable Jacket
D.N.S Diamond Noise Shield Technology doubles the doubles the shielding efforts by combining two layers of EMI rejecting Mylar foil and radiated noise absorbing mesh, eliminating unwanted noise and interference.
Optimized Dynamic Signal Flow uses finely stranded pure OFC copper to optimize signal vs. frequency interaction for a dynamic listening experience.
Specifications
8 Gauge 4-Channel Amplifier Connection Kits
17ft. 8 Gauge Matte Red Power Wire with ring terminated
3ft. 8 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge Remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 4-Ch. Vega series RCA interconnect
AGU fuse holder with 60A fuse
All Hardware Include
