Description
Included in this kit
This bundle includes a Diamond Audio HX1600.1D - HEX Series Monoblock Class D Amplifier 700 W x 1 @ 4Ω, 2x Diamond Audio DES122 Diamond Elite 12" Dvc 2Ω 500W Rms / 1000W Max Power Handling, 2x Diamond Audio DES12G 12" Des Protective Mesh Grill, a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS, and a Kicker 46KISLOC2 K-Series Stereo Line-Output Converter w/ Remote Turn-On Output.

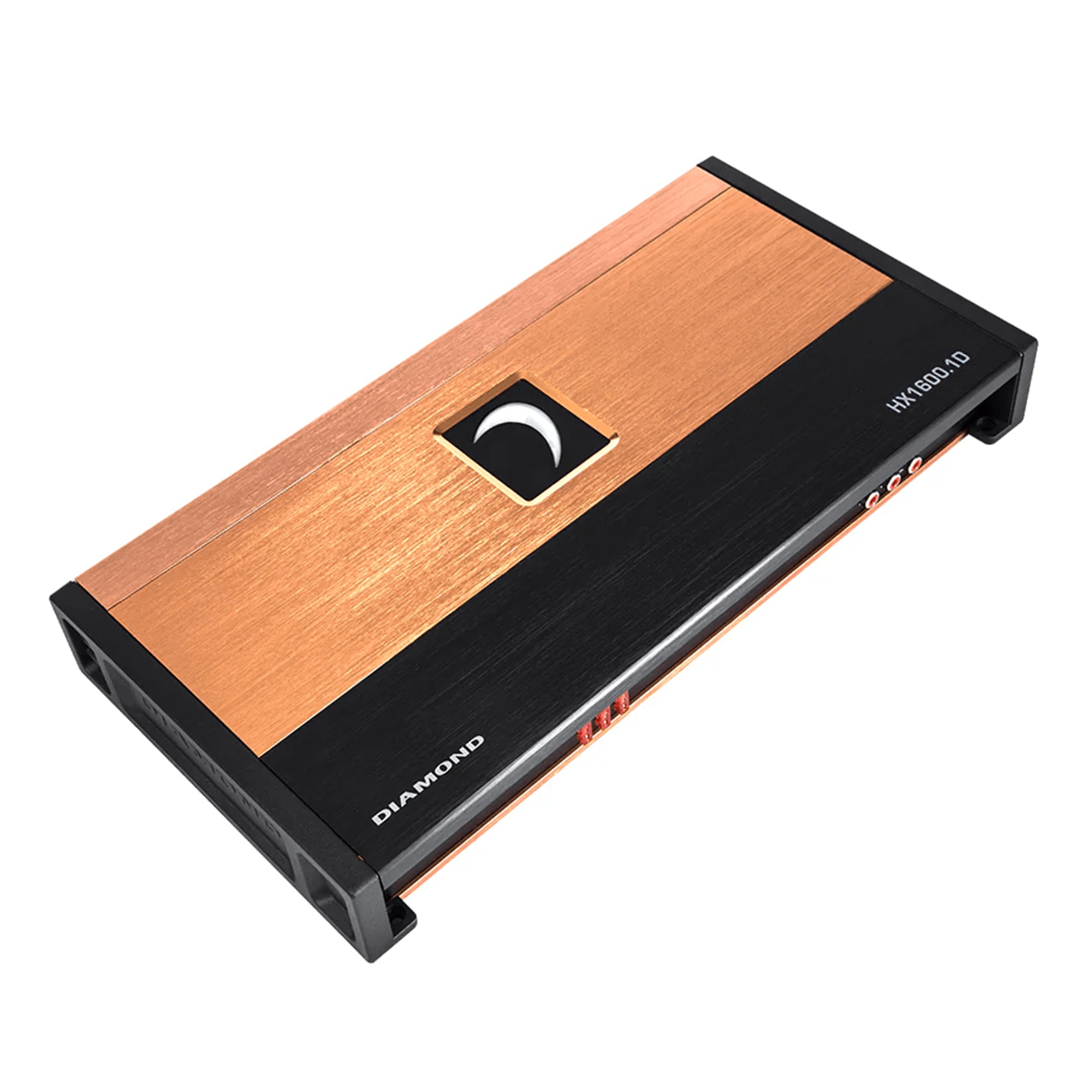

1x Diamond Audio HX1600.1D - HEX Series Monoblock Class D Amplifier 700 W x 1 @ 4Ω (HX1600.1D)
Diamond Audio HX1600.1D is the HEX Series Monoblock Class D Amplifier. Introducing the Hex Series Amplifiers – the ultimate choice for audiophiles who demand nothing but the best in sound quality and power. These amplifiers are engineered with meticulous precision and feature high-tolerance components, ensuring an unparalleled listening experience. With top-of-the-line features and user-friendly controls, the Hex Series Amplifiers seamlessly blend advanced technology with convenience. Whether you're setting up a high-end audio system or upgrading an existing one, these amplifiers are designed to deliver unmatched sound quality and power.
Features / Specs -
• 700 W x 1 @ 4Ω
• 1150 W x 1 @ 2Ω
• 1600 W x 1 @ 1Ω
• S/N: ≤ 95 dBA / THD: .06
• Dimensions: (Remote Included): 15.8" x 7.67" x 2" (402 x 195 x 51.5 mm)
• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• 4-Layer PCB Board with Balanced Differential Inputs
• Full Range Class D IR Chipset
• "SNAP" Capacitors used Throughout the Circuit
• Audiophile Grade High Tolerance Components
• Spring Steel FET Clips Provide a Cleaner Board Design
• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control
• Top Mounted Controls for Convenient Amplifier Adjustment
2x Diamond Audio DES122 Diamond Elite 12" Dvc 2Ω 500W Rms / 1000W Max Power Handling (DES122)
DES122 - DES Series 12" Dual Voice Coil Subwoofer (2Ω)
The Diamond Elite DES Series subwoofers epitomize quality craftsmanship and precision engineering, delivering the best performance in their class. Designed for versatility, these new DES subwoofers are perfect for a variety of enclosure designs, providing dynamic sound and that signature Diamond Audio bass, capable of withstanding long, extended listening sessions.
Constructed with a high-grade reinforced hybrid paper fiber cone structure, the DES subwoofers handle extreme power effortlessly. The popular impedance switch feature adds to their versatility, ensuring that these subwoofers meet your specific audio needs without disappointment.
Experience the unparalleled performance and durability of the Diamond Elite DES Series subwoofers. Upgrade your audio system with these meticulously engineered subwoofers and enjoy dynamic, powerful sound with exceptional reliability.
Specifications:
- Power: 500W RMS/1000W MAX
- SPL(dB): 82.8
- Re(Ω): 3.20
- Qms: 8.0
- Qes: 0.83
- Qts: 0.75
- Fs(Hz): 32.0
- Vas(L): 31.0
- Cms(mm/N): 0.09
- Mms(g): 286
- Sd(cm²): 0.050
- BL(T*M): 14.8
- Xmax(mm): 15.7
2x Diamond Audio DES12G 12" Des Protective Mesh Grill (DES12G)
DES12G - DES SERIES 12" SUBWOOFER MESH GRILL
The Diamond Audio DES12G is a black steel mesh grill designed to fit the 12" DES Series subwoofer. The grill fits between the subwoofer's surround and plastic concealing ring. No screws, clamps or extra hardware needed to attach the grill.
Specifications:
- DES122
- DES124
- DMD122
- DMD124
- DESMB12
- DESMB12A
1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
1x Kicker 46KISLOC2 K-Series Stereo Line-Output Converter w/ Remote Turn-On Output (46KISLOC2)
Add an amplifier to nearly any radio with the KISLOC2 Stereo Line-Out Converter. Experience true sonic accuracy at any volume level, with all the sparkling highs and thunderous lows of your original audio.
Unlike traditional LOCs, the KISLOC2 is designed without inductors to deliver a completely flat frequency response at all volume levels.
Using nothing more than your factory speaker wires, the innovative KISLOC2 automatically converts the speaker signal into both an RCA signal and a powerful 100 milli-amp, 12-volt remote wire using DC offset. Powerful enough to turn on multiple amplifiers, the 12-volt remote wire delivers plenty of power without hunting for a switched 12-volt power source.
• Accepts up to 55 watts (16 volts) of input signal
• Fully compatible with standard radios and most smart radios*
• Delivers up to an 8-volt output signal
• Flat 20Hz-20kHz frequency range at all volume levels
• Includes a powerful 100 milli-amp, remote turn-on wire. No 12V power source needed!
• LED indicator for DC offset turn-on
*Amplifier output of smart radio must have 60Ω impedance or lower. See dealer for details.
