Description
Included in this kit
Dimension offers an immersive 5.1 sound with realistic and precise sound effects not only in the high frequencies. With a soundstage of 4m and a maximum power of 450W, Dimension performances are equivalent to a very good high-fidelity audio system and are perfect for rooms even measuring over 50m2. 5-Channel Sound Bar • Speaker Drivers: 5 ultra-flat speaker-drivers made of paper cones- 3 15/16” (10cm) • Integrated Amplification: 6-channel 450 Watts • Frequency Response: (+/- 6 dB): 50Hz - 25kHz • Inputs: 2 x HDMI™ (OUT/IN) Digital Optical Toslink Analogue 3.5 mm Jack • Subwoofer outputs: - Sub Line Out: Low-Level output compatible with all amplified subwoofers • Soundbar on furniture (WxDxH): 45-1/4 x 4-1/2 x 4-1/2” (115.5 x11.5 x11.5cm) • Wall-Mounted Soundbar (WxDxH): 45- 1/4 x 2-9/16 x 5-15/16” (115.5 x 6.5 x14.7cm)
Focal Sub Air Flat Bass Reflex Subwoofer w/ Integrated 150W BASH Amplifier
• Focal Design and Sound
• Ideal for Home Theater Systems
• Flexibility of Installation / Wireless Connection
• High-Gloss Finish
• Can be wall-mounted, takes up little floor space
• Focal’s flattest subwoofer
• Easy and quick to install: Synchronization button, phase and volume
adjustment
• Wireless Transmitter included: LFE and Left/Right Input
• Speaker Driver (diameter): 8” (21cm)
• Bass Cutoff Frequency: (-6dB) 35Hz
• Frequency Response: (+/- 3dB) 40Hz-200Hz
• Variable Crossover: 50 Hz - 200 Hz
• Input Panel: Left/Right /LFE
• Continuous Power Output: 110 W
• Peak Power: 150 W
• Phase Adjustment: 0 - 180°
• Power Functions: Auto On (1 W) OFF (0,5 W)
• Dimensions (HxWxD): 16.1” x 14.2” x 6.3” (410mmx360mmx160mm)

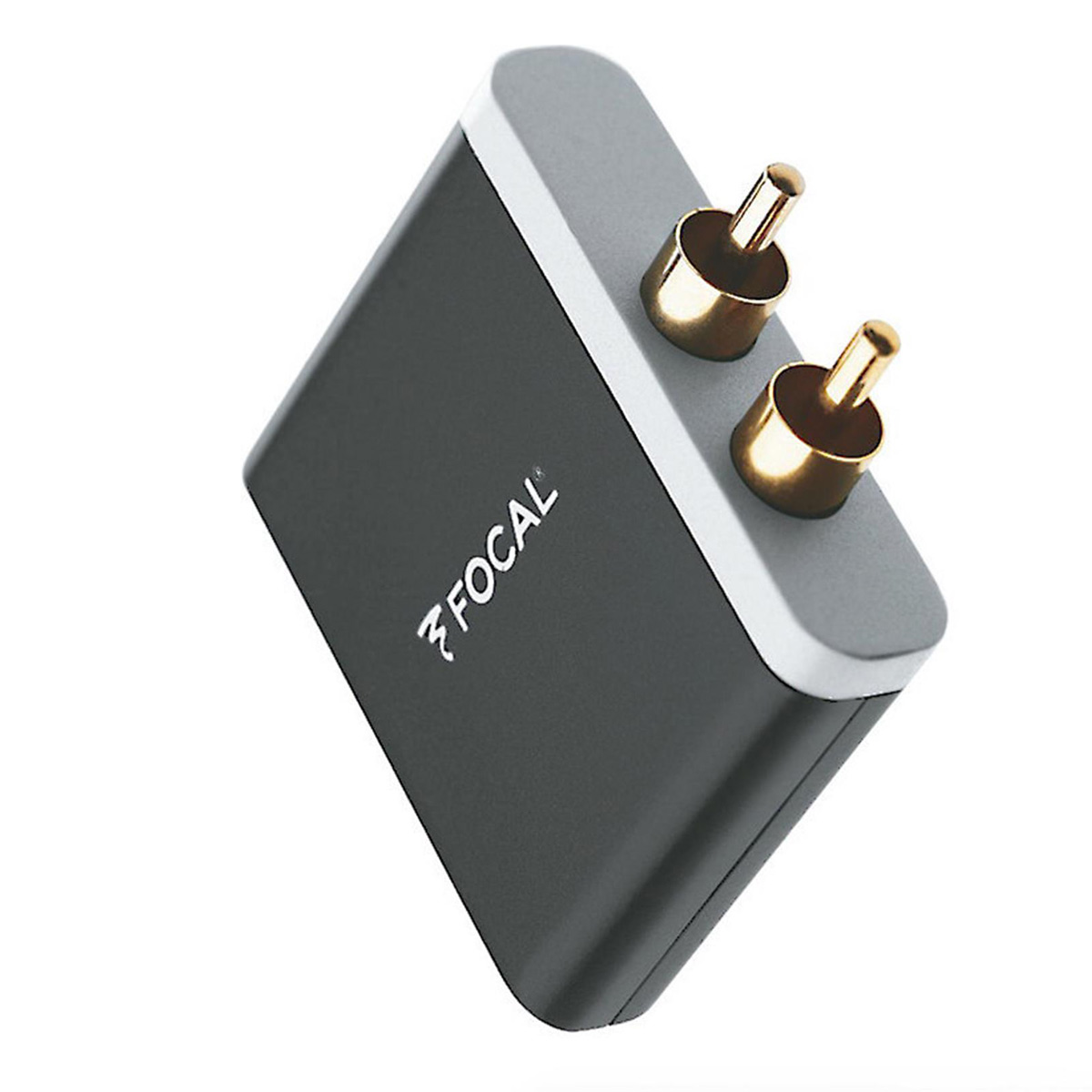

Wireless Connection:
• Range: 15 meters (in a room)
• Sound Sampling: 16 bits
• Sampling Frequency: 44,1kHz
• Coding Delay (latency): 13ms
• Radio Transmission Powers or Sensitivity: 0dBm
• Radio Transmission Frequency Band 2.4Ghz ISM band
