Description
Included in this kit
This bundle includes 2x DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included, a Kicker 46HDBL69VB Painted Left And Right Bag Lid Kit With 6x9 Speakers & Harness Compatible With 2014+ Harley Davidson, a DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS, a Cicada Audio 14HDAR-SG - CX/DSP/FLX Amplifier Mounting System H-D® Street Glide ®, a Cicada Audio CHDSGG - H-D 2014-2023 SG Round Grill, Pair, an AHB WH-RTH Radio T-Harness Amplifier Signal Adapter Kit for 2014-23 Harley, and an AHB IP-SSK-6.5 Hydrophobic Speaker Screens for 6.5 Speakers 1998-Up Harley.
2x DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included (PRO-HY6.4MSL)
DS18 • PRO-HY6.4MSL
DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included
DS18 PRO-HY6.4MSL 6.5” Hybrid Slim Loudspeaker With 1” Compression Driver Horn
Nominal Diameter: 6.5" / 165.1mm
Nominal Impedance: 4 Ohm
RMS Power Handling: 150W
Frequency Response: 100Hz-20Khz
Sensitivity (1w/1m): 93dB
Pair or Single: Single
Overview
Product Overview
The PRO-HY6.4MSL brings full-range power to tight installs. We’ve given you the best of both worlds: a high-output midrange AND compression driver, packed into a water-resistant, off-road–ready design that fits where others can’t.
HYBRID DESIGN FOR FULL-RANGE SOUND This speaker pairs a treated cloth surround + water-resistant paper cone midrange with a titanium compression driver for powerful highs and rich mid clarity. Rated at 150W RMS with a 100Hz–20kHz response range, you get high SPL output across a wide bandwidth.
Highlights
Key Product Features
- 6.5" Slim Hybrid Loudspeaker
- 150W RMS / 300W MAX
- 1" Titanium Compression Driver
- IP65 Rated + Grille w/ Water/Sun Protection Cloth
- Neodymium Driver Magnet / Ferrite Woofer Magnet
SPECS
| SKU | PRO-HY6.4MSL |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 100Hz-20Khz |
| Recommended HI Pass Crossover | 140Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
WOOFER SPECIFICATIONS
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 19.5 Oz |
THIELE & SMALL PARAMETERS
| Equivalent Volume Vas | 9.42L / 0.3327ft3 |
| Excursion (one way) Xmax | 1.5mm |
| Free Air Resonance Fs | 160Hz |
| Mechanical Factor Qms | 6.605 |
| Electrical Factor Qes | 1.296 |
| Total Factor Qts | 1.086 |
| Mechanical Mass Mms | 2.734g |
| Mechanical Compliance Cms | 0.358mm/N |
| BL Factor BL | 2.668 |
| Voice Coil Inductance Le | 0.05892mH |
| Cone Area Sd | 136.848 Cm2 |
| DC Resistance Re | 3.2 ohm |
| Mechanical Mass w/o air Mmd | 23.2g |
DRIVER SPECIFICATIONS
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.15" / 80 mm |
SPEAKER MEASUREMENT
| Overall Diameter | 6.92" / 176mm |
| Overall Depth | 3.52" / 89.5mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.82" / 72mm |
| Motor Diameter | 4.33" / 110mm |
SHIPPING INFO
| Gross Single Unit Weight | 3.75 |
| Single Unit Box Dimensions L x W x H (Inches) | 7.25 x 7.25 x 4.25 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight | 32 |
| Master Carton Dimensions L x W x H (Inches) | 15.25 x 15.25 x 9.5 |

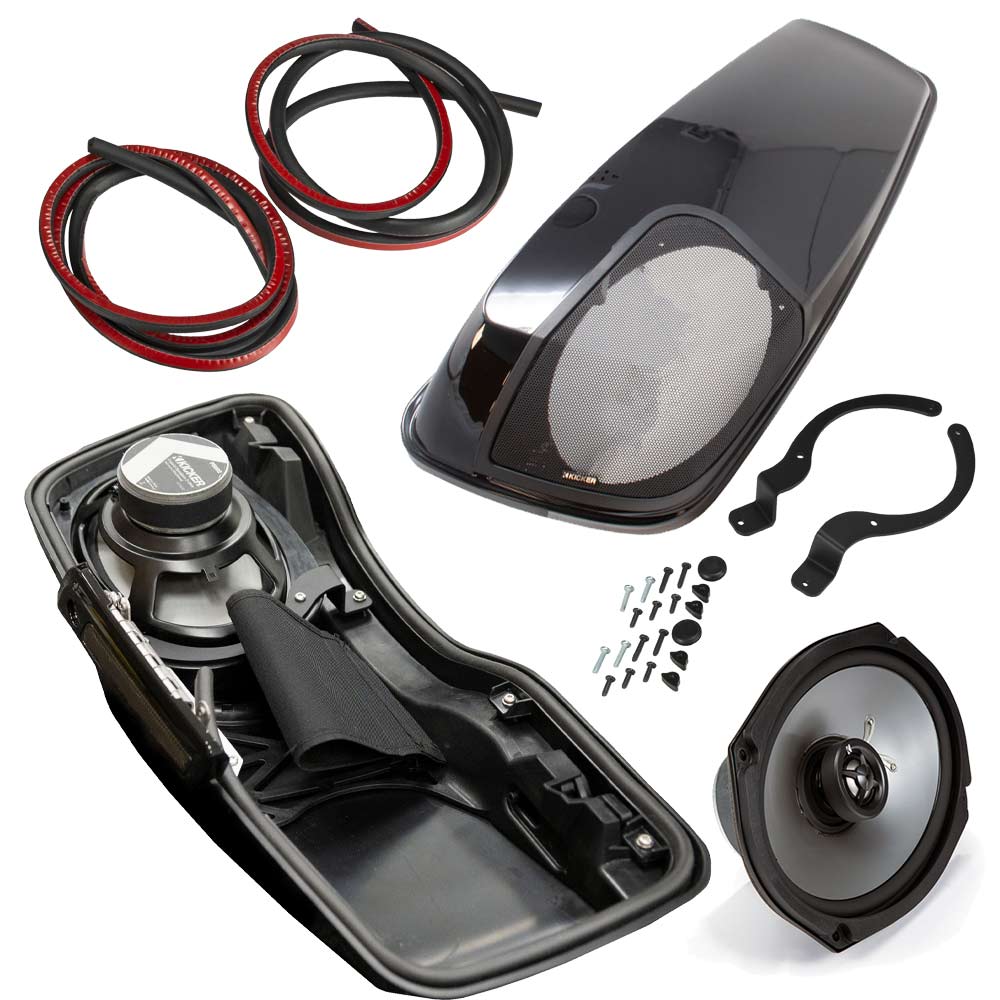

1x Kicker 46HDBL69VB Painted Left And Right Bag Lid Kit With 6x9 Speakers & Harness Compatible With 2014+ Harley Davidson (46HDBL69VB)
Kicker 46HDBL69VB Painter "Very Black" Left And Right Bag Lid Kit With 6x9 Speakers And Harness For 2014 And Up Harley Davidson
Add great sound to your 2014-and-newer Harley-Davidson with this complete speaker/bag lid kit. It’s a complete audio solution loaded with waterproof KICKER PS69 6 x 9-inch Coaxial Powersports Speakers and pre-measured, terminated speaker harnesses.
Built for Baggers
Made specifically for 2014-and-newer Harley-Davidson bikes, these lids for factory bags are made by bike owners – for bike owners. The bag lids are engineered in-house for superior durability and sound quality, with gasketing, grills and mounting hardware included. The smooth, Very Black finish is ready for use right out of the box.
• Top-mounted speaker design stays remarkably stable
• Custom-tooled speaker nuts hold the driver firmly in place
• Pre-terminated and loomed speaker wire included
• Water drain incorporated into lid
• Painted Gloss Black Lids are ready for use
• Custom underhung bracketing joins bag and speaker mount
• Uses existing bag hardware and locks
1x DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS (ION1600.4D)
DS18 • ION1600.4D
DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS
DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
Minimum Impedance: 2 Ohm (St) / 4 Ohms (Bridge)
RMS Power @ 4 ohm: 4 x 240W
Total Watts (Peak): 4800W
Frequency Response: 10Hz-20KHz
Amplifier Class: Digital
RMS Power @ 2 ohm: 4 x 400W
Overview
Product Overview
DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
ION1600.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!
Highlights
Key Product Features
- 4 Channel Full Range
- Class D
- 2 - 4 Ohm Stable
- 4 X 240 Watts @ 4 Ohm
- Power / Clip / Protection Indicator
SPECS
| SKU | ION1600.4D |
| Total Watts (Peak) | 4800W |
| RMS Power @ 4 ohm | 4 x 240W |
| RMS Power @ 2 ohm | 4 x 400W |
| RMS Power @ 1 ohm | N/A |
| RMS Power @ 4 ohm Bridge | 2 x 800W |
AUDIO
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 ohm | 88% |
| Damping Factor | 210 |
| Input Impedance | 27Kohms |
| Channel Separation | 59dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |
| Selectable X-Over | LPF/HPF/FULL |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | NO |
| Bass Boost Frequency | 45Hz |
FEATURES
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Stereo |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm (St) / 4 Ohms (Bridge) |
| Led Indicator | Power / Protect / Clipping |
| Power Input Terminal Size | 4 AWG |
| Fuse Size | 140A (external) |
| Remote Level Control | No |
| Cooling Fan | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Aluminum Black / Silver |
EXTRA FEATURES
| Hi-Level Speaker connector | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| High Efficiency Micro Digital Design | Yes |
MEASUREMENT
| Overall Length | 7.32" / 186mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 2" / 52mm |
| Heatsink Length | 6" / 153mm |
| Gross Single Unit Weight | 1.3Kg |
1x Cicada Audio 14HDAR-SG - CX/DSP/FLX Amplifier Mounting System H-D® Street Glide ® (14HDAR-SG)
Amplifier Mounting Rack for 2014-2023 H-D® Street Glide®
HASSLE-FREE INSTALLATION
Velcro® mount amp to stainless steel tray between the head unit and the headlight.
Powder coated
Stainless steel construction
Mounting hardware included
Designed for CX/FLX/DSP600.4D style amplifiers only
1x Cicada Audio CHDSGG - H-D 2014-2023 SG Round Grill, Pair (CHDSGG)
Custom tooled Street Glide® replacement grills add additional depth required for aftermarket speaker upgrades.
1x AHB WH-RTH Radio T-Harness Amplifier Signal Adapter Kit for 2014-23 Harley (WH-RTH)
This Is The Part You Need! Adding An Amplifier To Your 2014 Or Newer Harley Davidson Touring Bike Has Never Been Easier.
True Plug & Play! This is the ultimate way to integrate an aftermarket amplifier with the factory radio of any '14 or newer Harley bagger. This harness provides all the connections and features you need and works seamlessly with all variations of Harley stereo systems, from basic to CVO Ultra models, both factory-amplified and non-amplified.
This Part Replaces All of the Following Harnesses: Making it the best deal, and the cleanest and easiest way to go:
2014-Up Harley Plug & Play Signal Adapter 14FPNP
2014-Up Harley Plug & Play Rear Signal Adapter
Stealth Accessory Harness Power Tap
Rear Harley Speaker Wire Harness for Bags or Tour Pack
Stealth Power Tap Harness for Battery & Ground
Ultra Rear Radio Signal & Speaker T Harness
Harley Speaker Pod Plug Adapters for Fairing Speakers
Does Not Work With Sound Digital Or Dayton Amplifiers (there may be others we're not aware of though).
True Plug & Play! No cutting of any factory wires.
Both front and rear (4 Channel) RCA outputs from the factory radio (balanced speaker level on RCA, requires an amplifier or DSP that accepts speaker level input on RCA connections).
Front and rear speaker connections for factory locations.
Built-in load resistors keep the factory radio happy and eliminate distortion.
Accessory, battery, and ground outputs for powering DSP without needing additional parts or plugs.
Wire ferrules and crimp connectors built into the harness. No extra connectors needed.
100% developed and designed by American Hard Bag in the USA.
1x AHB IP-SSK-6.5 Hydrophobic Speaker Screens for 6.5 Speakers 1998-Up Harley (IP-SSK-6.5)
Keep your audio crisp and your speakers dry, no matter the weather. The all-new IP-SSK-6.5 Water Sheading Speaker Cover Kit by American Hard Bag is built specifically for Harley-Davidson touring saddlebags equipped with 6.5" lid-mounted speakers.
These aren’t generic foam rings or gimmicky grills. This is a true upgrade engineered for real riders who expect their system to perform in rain, shine, or even a full-on bike wash.
Purpose-Built Protection for the Real World
Most “weather-resistant” speakers barely stand a chance against the standing water that collects in saddlebags during storms or after a good hose-down. The IP-SSK-6.5 kit solves that problem with full-cone coverage, shielding both the mid and tweeter from water intrusion—without muffling your sound.
Made from premium hydrophobic acoustic cloth, this kit forms an invisible moisture barrier that resists splash, spray, and humidity while letting your audio breathe. Each set includes a precision-molded gasket that conforms tightly to the inside of your saddlebag lid.
And with 3M 9448A industrial adhesive pre-applied, installation is fast, clean, and secure.
Why Riders Choose American Hard Bag
At American Hard Bag, we don’t outsource innovation. Every part we make is engineered in-house, rigorously road-tested, and refined for the kind of punishment Harley touring bikes see daily.
When you roll with us, you're buying from a crew of riders who know the road, know audio, and know what works.
Key Features:
Complete moisture barrier for 6.5" saddlebag lid speakers
Hydrophobic cloth resists spray, splash, and standing water
Clear audio performance with no compromise in speaker output
Custom-fit surround gasket for maximum seal and durability
3M 9448A double-coated adhesive ensures long-lasting adhesion
Sold as a pair – covers two 6.5" speakers
Fits most aftermarket 6.5" speakers installed in Harley-Davidson® touring bagger Fairings
Designed in the USA by American Hard Bag
Ride Loud. Stay Protected.
Water damage is the silent killer of great audio. Whether you're crossing state lines or detailing your bike at home, give your speakers the protection they deserve.
Don’t risk it—seal it. American Hard Bag has your back.
