Description
Included in this kit
This bundle includes a Cicada Audio 24CXK65.4RG 2024-up Road Glide Component 6.5-inch Kit w/RR075T 4 Ohm, 2x DS18 PRO-ZXI694BM 6x9" | 300 Watts RMS | 4Ω | Neodymium + Ferrite Magnet | Bullet | Mid-Range, a DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS, an AHB IP-24-LIDKIT 24-Up Cut-In Lid Kit for non-speaker lids on saddlebags, a Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface, a Cicada Audio 24HDNAVTVA2B Direct connect harness NAVTV A2B to Cicada Audio, and a Cicada Audio 24HDAR-RG 2024+ H-D® Road Glide® Amplifier Rack.
1x Cicada Audio 24CXK65.4RG 2024-up Road Glide Component 6.5-inch Kit w/RR075T 4 Ohm (24CXK65.4RG)
This bundle includes a Cicada Audio CM65.4X - 6.5-inch Mid-Bass Speakers - 4 Ohm, Pair, a Cicada Audio RR075T - 0.75-inch Titanium Shallow Horn, Pair, and a Cicada Audio 24CHDRGGT-075 2024+ Road Glide Cicada Audio® Branded Grilles w/ RR075T mounts.
1x Cicada Audio CM65.4X - 6.5-inch Mid-Bass Speakers - 4 Ohm, Pair - (CM65.4X)
250WRMS/500 MAX Power Handling
Neodymium high energy/ light weight N35 magnet structure
Heavy duty/ die-cast Aluminum basket
2.0-inch 4Ω – High Temp (Black Coat™) Voice Coil
Shortening Ring for the ultimate in speaker control
Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
Frequency Response: 75Hz -20Khz+/-5dB
High Sensitivity: 4dB / 93.2dB (1W/1M)
Total Diameter: 6.5-inch / 165mm
Mounting Depth: 3.0-inch / 76.2mm
Mounting Diameter: 5.7-inch / 145.5mm
1x Cicada Audio RR075T - 0.75-inch Titanium Shallow Horn, Pair - (RR075T)
RR075T – 1” SHALLOW RING RADIATOR HORN TWEETER
50WRMS/100W MAX Power Handling- per tweeter
Neodymium High Energy/ Light Weight N35 Magnet structure
Heavy Duty/ Die-cast Aluminum Basket
4 Ohm for increased durability
1.0” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
Frequency Response: 2KHz -20Khz+/-5dB
High Sensitivity: 100dB 1W/1M Average (1W/1M – 2.83V)
12dB -7kHz Crossover with custom tooled/ Vented crossover case
Mounting Depth: 1.13” / 28.9mm
Mounting Diameter: 2” / 50mm
SOLD ONLY IN PAIRS
1x Cicada Audio 24CHDRGGT-075 2024+ Road Glide Cicada Audio® Branded Grilles w/ RR075T mounts - (24CHDRGGT-075)
Description: Crafted from high-quality aluminum, these custom-built grilles are designed specifically to fit 2024 and newer Harley-Davidson Road Glide models. Each grille includes a custom mount for Cicada Audio® RR075T Shallow Horn Tweeters, ensuring a precise fit and clean installation. Built for durability and performance, these grilles offer a sleek, factory-style appearance while optimizing audio performance—all proudly featuring the Cicada Audio® brand.
2x DS18 PRO-ZXI694BM 6x9" | 300 Watts RMS | 4Ω | Neodymium + Ferrite Magnet | Bullet | Mid-Range (PRO-ZXI694BM)
DS18 • PRO-ZXI694BM
DS18 PRO-ZXI694BM 6x9" | 300 Watts RMS | 4Ω | Neodymium + Ferrite Magnet | Bullet | Mid-Range
DS18 PRO-ZXI694BM 6X9" Mid-Range Loudspeaker with Bullet 600 Watts 4-Ohm
Nominal Diameter: 6x9" / 152.4 x 228.6mm
Nominal Impedance: 4 OHMS
RMS Power Handing: 300 Watts
Maximum Power Handing: 600 Watts
Frequency Response: 80Hz - 12.5KHz
Sensitivity (1w/1m): 98dB
Overview
Product Overview
The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.
Highlights
Key Product Features
- 6X9" Mid-Range W/Bullet
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite & Neodymium Magnet
SPECS
| SKU | PRO-ZXI694BM |
| Nominal Diameter | 6x9" / 152.4 x 228.6mm |
| Nominal Impedance | 4 OHMS |
| RMS Power Handing | 300 Watts |
| Maximum Power Handing | 600 Watts |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 80Hz - 12.5KHz |
| Recommended Hi Pass Crossover | 100 Hz |
SPECS
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 30 + 3 Oz |
THIELE & SMALL PARAMETERS
| Vas | 14.9L / 0.5271f |
| Xmax | 7.2mm |
| Fs | 100Hz |
| Qms | 10.64 |
| Qes | 0.439 |
| Qts | 0.421 |
| Re | 3.6 ohms |
MEASUREMENTS
| Overall Diameter | 9.43x6.57" / 240x167mm |
| Front Mount Baffle Cutout | 8.74x6" / 222x153mm |
| Mounting Depth | 3.38" / 86mm |
| Overall Depth | 3.7" / 94mm |
| Product Weight | 6 lbs |
| Product Dimensions | 10.25 x 7.25 x 4.25 |
| M/C Weight | 49 lbs |
| M/C Dimensions | 21 x 15.25 x 9.5 |
| M/C QTY | 8 |
| Sold In | Piece |
1x DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS (ION1600.4D)
DS18 • ION1600.4D
DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS
DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
Minimum Impedance: 2 Ohm (St) / 4 Ohms (Bridge)
RMS Power @ 4 ohm: 4 x 240W
Total Watts (Peak): 4800W
Frequency Response: 10Hz-20KHz
Amplifier Class: Digital
RMS Power @ 2 ohm: 4 x 400W
Overview
Product Overview
DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
ION1600.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!
Highlights
Key Product Features
- 4 Channel Full Range
- Class D
- 2 - 4 Ohm Stable
- 4 X 240 Watts @ 4 Ohm
- Power / Clip / Protection Indicator
SPECS
| SKU | ION1600.4D |
| Total Watts (Peak) | 4800W |
| RMS Power @ 4 ohm | 4 x 240W |
| RMS Power @ 2 ohm | 4 x 400W |
| RMS Power @ 1 ohm | N/A |
| RMS Power @ 4 ohm Bridge | 2 x 800W |
AUDIO
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 ohm | 88% |
| Damping Factor | 210 |
| Input Impedance | 27Kohms |
| Channel Separation | 59dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |
| Selectable X-Over | LPF/HPF/FULL |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | NO |
| Bass Boost Frequency | 45Hz |
FEATURES
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Stereo |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm (St) / 4 Ohms (Bridge) |
| Led Indicator | Power / Protect / Clipping |
| Power Input Terminal Size | 4 AWG |
| Fuse Size | 140A (external) |
| Remote Level Control | No |
| Cooling Fan | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Aluminum Black / Silver |
EXTRA FEATURES
| Hi-Level Speaker connector | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| High Efficiency Micro Digital Design | Yes |
MEASUREMENT
| Overall Length | 7.32" / 186mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 2" / 52mm |
| Heatsink Length | 6" / 153mm |
| Gross Single Unit Weight | 1.3Kg |
1x AHB IP-24-LIDKIT 24-Up Cut-In Lid Kit for non-speaker lids on saddlebags (IP-24-LIDKIT)
Bring the Sound. Keep the Style.
When you ride a Harley, every detail matters—and so does your sound. The American Hard Bag IP-24-LIDKIT Saddlebag Lid Kit is engineered specifically for 2024 and newer Harley-Davidson® Touring models with factory hard saddlebags. This is the cleanest, most precise way to drop 6×9 speakers into your stock lids without the hassle of painting or swapping bags.
Compatible with Velocity RZ69H-H24, R690-H24, and Hertz SX690H Neo speakers, this kit gives you serious volume and clarity on the open road—without touching the body shop.
Clean Fit. No Guesswork. No Mess.
This isn’t a hack job—it’s a purpose-built system designed for riders who want pro-level results. The IP-24-LIDKIT comes with a precision-cut template, all the hardware you need, and black mesh grilles that blend perfectly with your Harley’s stock look.
The fit is tight, the install is straightforward, and the end result, it looks similar to factory.
Key Highlights
Exact Fit Template – Perfect cuts every time with minimal effort.
OEM-Style Black Grilles – Factory look with custom attitude.
Engineered for AHB RZ69H-H24, R690-H24 & Hertz SX690H Neo Speakers – Full-range sound, highway-ready clarity.
No Paint or Replacement Needed – Keep your original lids and just upgrade the sound.
For Riders Who Want It Done Right
If you’re chasing clean installs and killer sound without compromising your Harley’s factory style, the American Hard Bag IP-24-LIDKIT is the upgrade you’ve been waiting for.
Precision-built, easy to install, and tuned for the road—it’s made for riders who care about doing things the right way.
Fitment:
2024+ Harley-Davidson® Street Glide (Base Model)
2024+ Harley-Davidson® Road Glide (Base Model)
1x Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface (NTV-KIT1021)
NAV-TV’s ZEN-H processor seamlessly allows aftermarket amplifiers to be added to the factory Harley-Davidson headunit via its low level (8 channel) analog RCAs @5V RMS. This plug & play kit integrates with various OEM data networks to retain chimes, volume control, fader/balance, and EQ Presets (for true OEM integration).
Tech Specs:
- 24 Bit 48khz Output
- 8 x 5v RMS RCA outputs
- 113db SNR
- Burr Brown DAC
- 7 - 20v input voltage range
- <250mA idle current draw
Model
2024-2025 Harley Davidson/CVO
2024-2025 Harley Davidson/Road Glide
2024-2025 Harley Davidson/Street Glide
ZEN-H Technical Specifications
Hardware & Software
Current HW version: --1r1--
Current SW version: ZEN-H-1.2.8.ntv
Compatible SW (update) OS: Windows, macOS
INPUT
Digital Input A2B
OUTPUT
Digital Outputs: None
Digital Outputs supported: 24bit/48kHz
Frequency Response (digital): 18Hz – 24kHz
Analog Outputs: 8 channels (RCA)
Output Voltage Peak: 13.8v
Output Voltage RMS: 5v
Analog Output Type: Single-Ended
S/N Ratio (analog): 113dB
Frequency Response (analog): 18Hz – 24kHz
THD+N @ -1dBFS -94dB
DAC 192kHz 24bit
DSP 32bit Fixed Point
Power Supply
Current Consumption Stand-by <1 mA
Current Consumption Operational 250 mA MAX
Operational Voltage 7V – 20V DC
Amp Turn-On Output Automatic
Amp Turn-On Voltage V-batt
Amp Turn-On Current Limitation 500mA
Other
Dimensions: 4”x4”x1 1/2”
Weight: 5 oz'

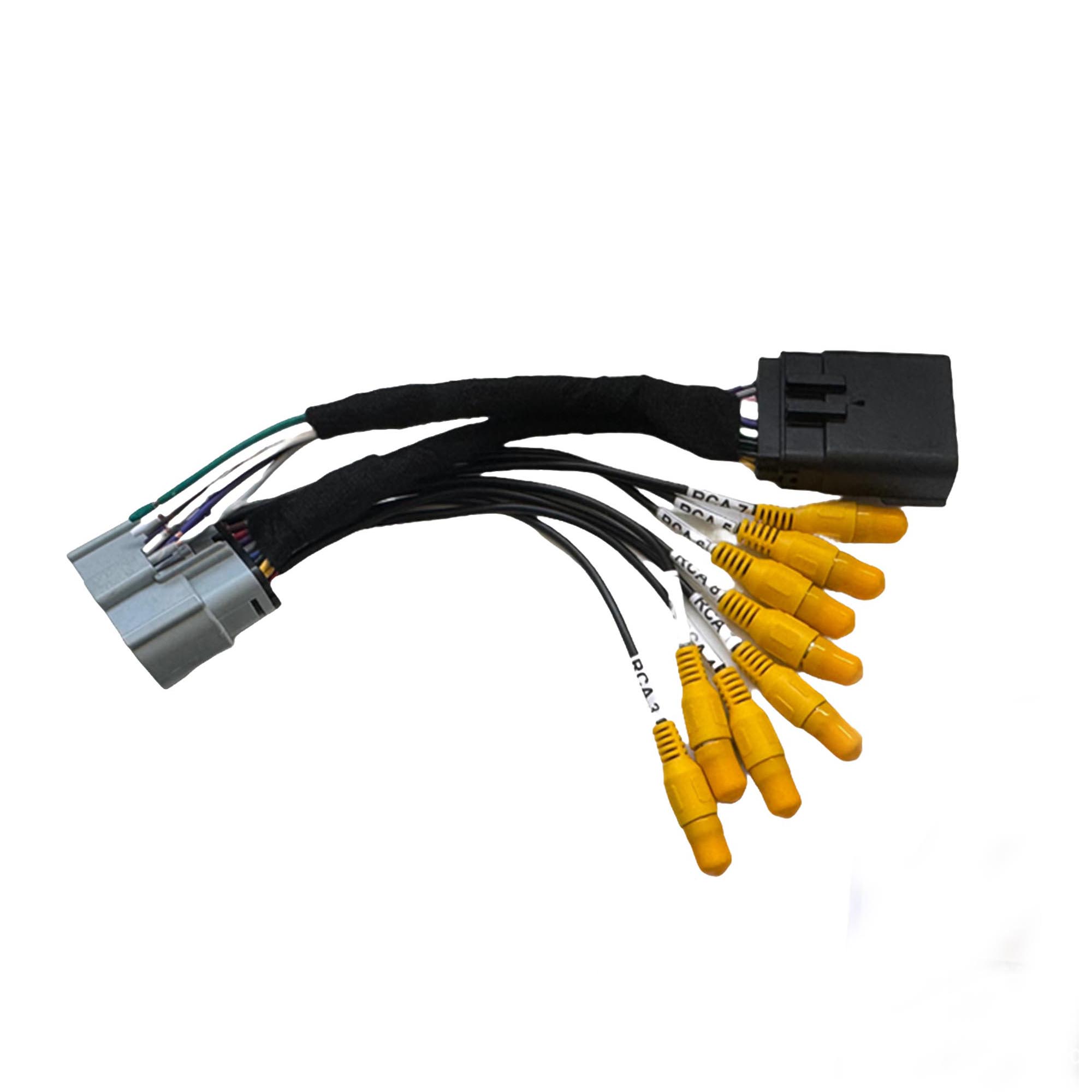

1x Cicada Audio 24HDNAVTVA2B Direct connect harness NAVTV A2B to Cicada Audio (24HDNAVTVA2B)
This harness allows for easy installation of the ZEN-H processor, and does not include the processor.
NAV-TV’s ZEN-H processor seamlessly allows aftermarket amplifiers to be added to the factory Harley-Davidson headunit via its low level (8 channel) analog RCAs @5V RMS. This plug & play kit integrates with various OEM data networks to retain chimes, volume control, fader/balance, and EQ Presets (for true OEM integration).
1x Cicada Audio 24HDAR-RG 2024+ H-D® Road Glide® Amplifier Rack (24HDAR-RG)
HASSLE-FREE INSTALLATION
Easily mount using OEM amplifier mounting locations and mount amp to rack with predrilled holes.
Black Anodized Finish
Aluminum construction
Mounting hardware included
Designed for all FLX style amplifiers
