Description
Included in this kit
This bundle includes a Soundstream Reserve WHD.9813 Plug-N-Play OE Fit WIRELESS Apple® CarPlay® & Android Auto® Headunit for 1998-2013 Road Glides, Street Glides, 5V Preouts, 7.7" High- Definition QLCD Display, IPX5., a DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS, a Diamond Audio MS694NEOLK13 Motorsport '98-'13 H-D Cut In Speaker Lid Kit With Ms694neo, and an AHB IP-SSK-6x9V Hydrophobic 6x9 Speaker Screen Kit 1998-2023 Harley Touring.
1x Soundstream Reserve WHD.9813 Plug-N-Play OE Fit WIRELESS Apple® CarPlay® & Android Auto® Headunit for 1998-2013 Road Glides, Street Glides, 5V Preouts, 7.7" High- Definition QLCD Display, IPX5. (WHD.9813)

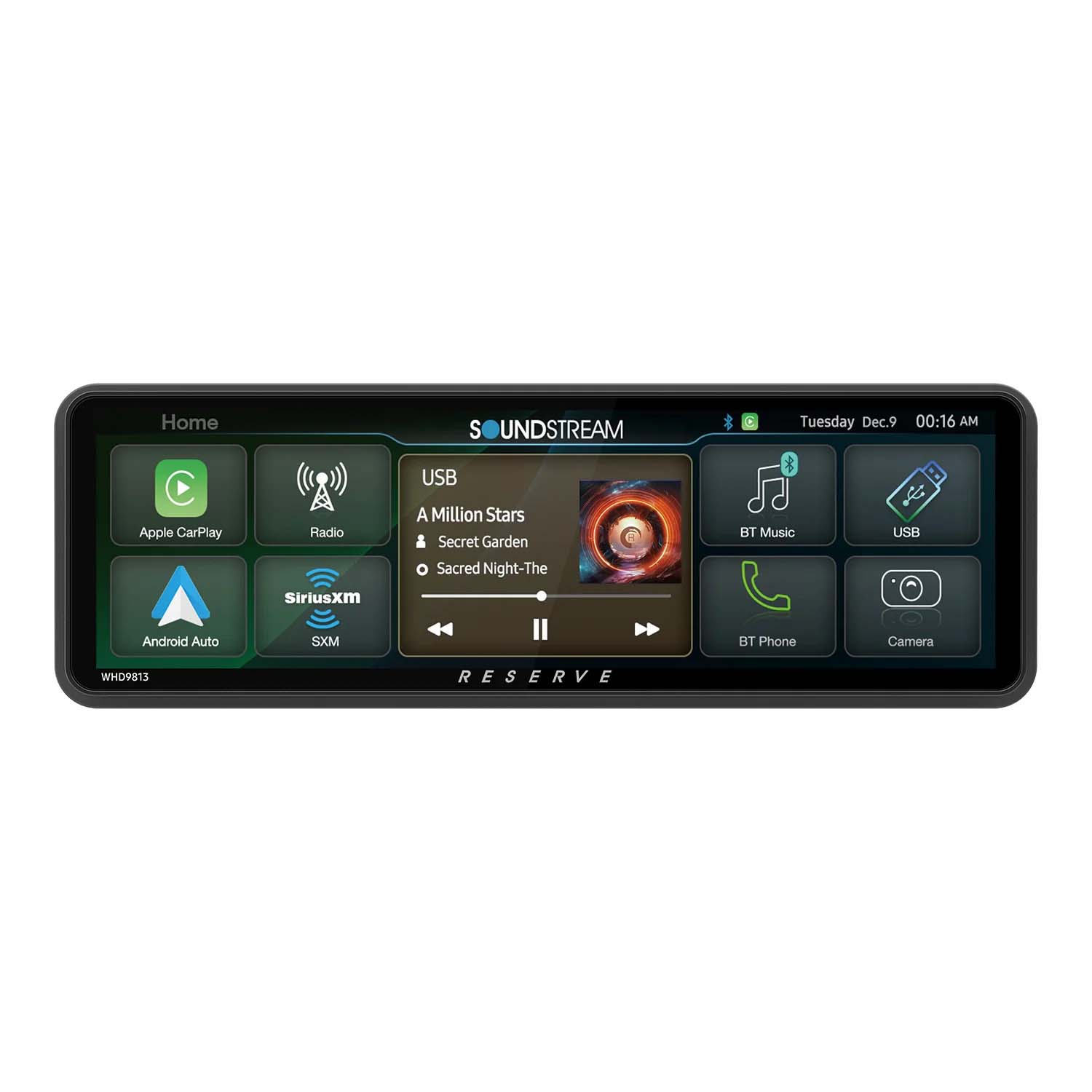

WHD.9813 Plug-n-Play Multimedia Head Unit for 1998–2013 Harley-Davidson® Touring Series Motorcycles
The Soundstream WHD.9813 is a plug-n-play upgrade head unit designed specifically for 1998–2013 Harley-Davidson® Touring Series motorcycles. It combines wireless smartphone integration, SiriusXM® readiness, advanced sound tuning, and a custom 7.7-inch HD widescreen display in a factory-style installation that uses OEM mounting hardware and the original AM/FM antenna connection.
Overview
Factory-Style Fit with Modern Media Features
Built for Harley-Davidson® Touring motorcycles, the WHD.9813 installs directly into the OEM fairing using factory mounting hardware. No brackets, trim panels, or antenna adapters are required, helping preserve a clean installation while adding a modern multimedia interface.
The unit retains the OEM AM/FM antenna connection, includes built-in handlebar control support, and ships with a 21-inch USB cable that can be installed on either side of the fairing for added flexibility.
- Direct upgrade for 1998–2013 Harley-Davidson® Touring Series motorcycles.
- Uses OEM mounting hardware with no brackets or trim panel required.
- Retains OEM AM/FM antenna connection and built-in handlebar controls.
Display & Interface
Custom 7.7" HD Widescreen Touchscreen
The WHD.9813 features a custom 7.7-inch high-definition widescreen Quantum Film LCD designed to deliver vivid color and sharp clarity. Its capacitive touchscreen provides responsive control for media, navigation, communication, and system settings.
- 7.7" high-definition widescreen Quantum Film LCD.
- Capacitive touchscreen interface.
- Built for clear visibility and intuitive operation while riding.
Feature Highlights
Key Functions for Touring Bikes
Connectivity
Smartphone, Satellite, and Camera Support
The WHD.9813 adds multiple modern source options to Harley touring motorcycles, including wireless Apple CarPlay®, wireless Android Auto®, Bluetooth®, and SiriusXM® readiness. A video camera RCA input with a 12V trigger and on-screen shortcut is also included.
- Wireless Apple CarPlay® and Android Auto® support.
- Bluetooth® wireless audio playback and control.
- SiriusXM® Ready® with separate vehicle connect tuner required.
- Video camera RCA input with 12V trigger and on-screen shortcut.
Sound Tuning
Expanded EQ and Crossover Control
For system tuning, the WHD.9813 includes a 15-band digital equalizer with two custom EQ memories and music genre presets. Front and rear channels benefit from adjustable high-pass crossover control, while the subwoofer output includes low-pass and subsonic filtering.
- 15-band digital equalizer.
- 2 custom EQ memories plus music genre presets.
- High-pass crossover for front and rear speaker and RCA outputs.
- Low-pass and subsonic crossover control for subwoofer RCA output.
Installation
Built for Harley Touring Applications
This head unit is specifically engineered for 1998–2013 Harley-Davidson® Touring Series motorcycles and is designed around the OEM fairing layout. It retains important factory integration points while avoiding the need for extra mounting pieces.
- No brackets required.
- No trim panel required.
- No antenna adapters required.
- 21" USB cable included for fairing-side routing flexibility.
The WHD.9813 is described as a plug-n-play upgrade head unit for 1998–2013 Harley-Davidson® Touring Series motorcycles and is intended to install directly into the OEM fairing using factory mounting hardware.
SiriusXM® functionality requires a separate SXV300 tuner.
| Model | Soundstream WHD.9813 |
| Application | 1998–2013 Harley-Davidson® Touring Series motorcycles |
| Display | Custom 7.7" HD widescreen Quantum Film LCD |
| Touchscreen | Capacitive touch screen |
| Apple CarPlay® | Wireless |
| Android Auto® | Wireless |
| SiriusXM® | Ready® (SXV300 tuner required) |
| Bluetooth® | Wireless connectivity for audio playback and control |
| Built-In Amplifier | 4-channel Class A/B, 2-ohm stable |
| Preamp Outputs | 5-volt RCA outputs for front, rear, and subwoofer amplifiers |
| Equalizer | 15-band digital equalizer with 2 custom EQs and music genre presets |
| Crossovers | High-pass front/rear, low-pass and subsonic subwoofer crossover control |
| Camera Input | Video camera RCA input with 12V trigger and on-screen shortcut |
| Handlebar Controls | Built-in, no handlebar control module required |
| USB Cable | Included, 21" long |
| Water Resistance | IPX5 water-resistant faceplate |
| OEM Integration | Retains OEM mounting hardware and OEM AM/FM radio antenna |
1x DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS (ION1600.4D)
DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS
DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
Overview
Product Overview
DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
ION1600.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!
Highlights
Key Product Features
- 4 Channel Full Range
- Class D
- 2 - 4 Ohm Stable
- 4 X 240 Watts @ 4 Ohm
- Power / Clip / Protection Indicator
| SKU | ION1600.4D |
| Total Watts (Peak) | 4800W |
| RMS Power @ 4 ohm | 4 x 240W |
| RMS Power @ 2 ohm | 4 x 400W |
| RMS Power @ 1 ohm | N/A |
| RMS Power @ 4 ohm Bridge | 2 x 800W |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 ohm | 88% |
| Damping Factor | 210 |
| Input Impedance | 27Kohms |
| Channel Separation | 59dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |
| Selectable X-Over | LPF/HPF/FULL |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | NO |
| Bass Boost Frequency | 45Hz |
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Stereo |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm (St) / 4 Ohms (Bridge) |
| Led Indicator | Power / Protect / Clipping |
| Power Input Terminal Size | 4 AWG |
| Fuse Size | 140A (external) |
| Remote Level Control | No |
| Cooling Fan | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Aluminum Black / Silver |
| Hi-Level Speaker connector | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| High Efficiency Micro Digital Design | Yes |
| Overall Length | 7.32" / 186mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 2" / 52mm |
| Heatsink Length | 6" / 153mm |
| Gross Single Unit Weight | 1.3Kg |

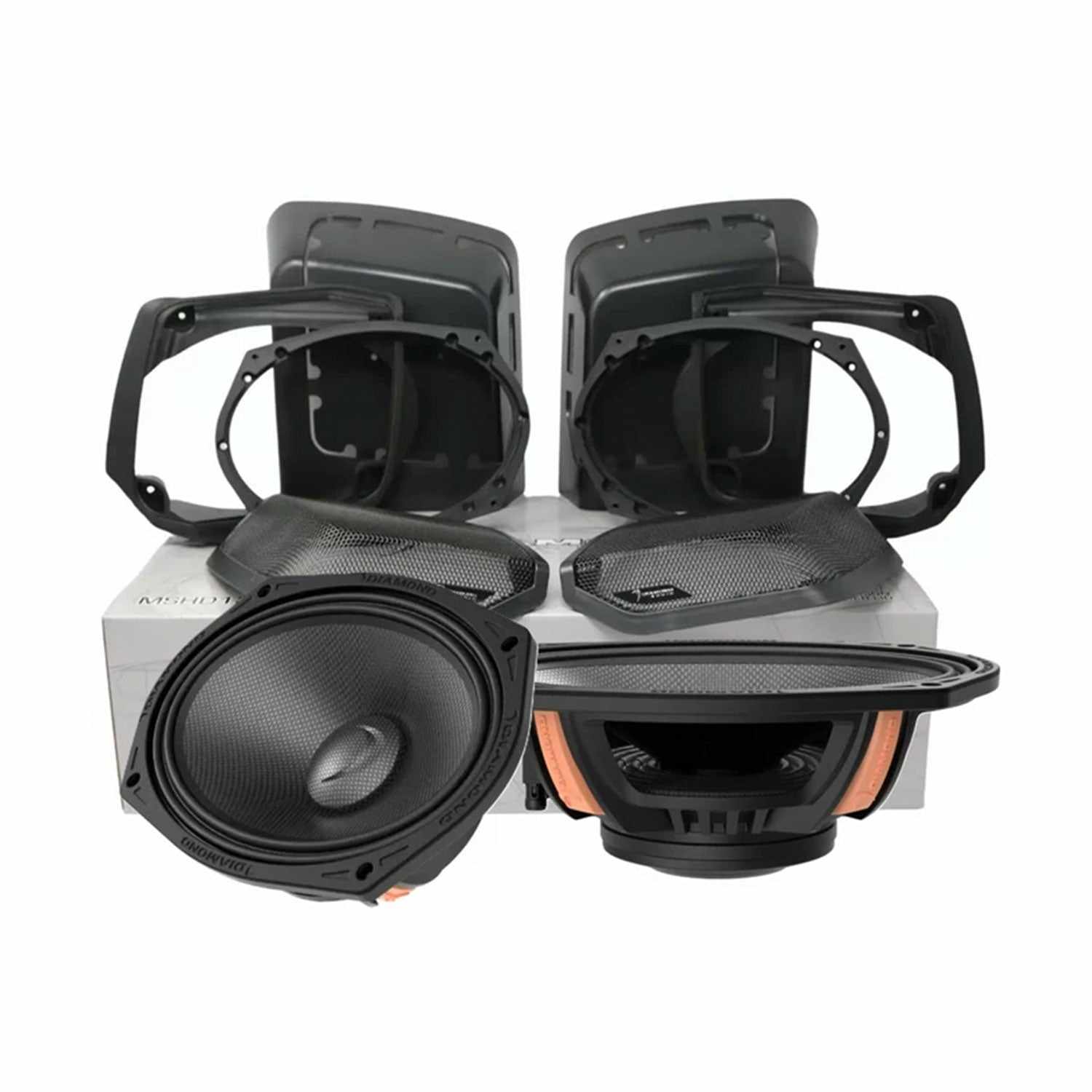

1x Diamond Audio MS694NEOLK13 Motorsport '98-'13 H-D Cut In Speaker Lid Kit With Ms694neo (MS694NEOLK13)
1998-2013 Harley Davidson® Cut In Lid Kit with MS69NEO Speaker (4Ω)
Unleash the Ultimate Sound Experience with Diamond Audio's MS694NEOLK13
Elevate your ride with Diamond Audio's MS694NEOLK13 Cut-in Lid Kit, custom-engineered for 1998-2013 Harley Davidson® motorcycles. This premier audio upgrade brings unparalleled clarity and power to your journey, ensuring every ride is an adventure in sound.
Key Features:
Seamless Integration:
Designed specifically for Harley Davidson® models from 1998-2013, the MS694NEOLK13 kit guarantees a perfect fit and a factory-finish appearance, blending effortlessly with your bike's aesthetic.
Superior Sound Quality:
At the heart of this kit are the MS69NEO Motorsports 6”x9” Marine Grade Speakers. With their robust 4Ω impedance, these speakers deliver rich, immersive audio, transforming your motorcycle into a mobile concert hall.
Durability:
Crafted to withstand the elements, the marine-grade speakers are designed for optimal performance in all weather conditions, ensuring your audio system remains as rugged as your bike.
Complete Installation Kit:
The package includes everything you need for a hassle-free installation. The included rubber gasket ensures a secure and vibration-free fit, allowing you to get back on the road with minimal downtime.
Enhanced Ride Experience:
Whether you're cruising down the highway or parked at a rally, the MS694NEOLK13 kit will provide the perfect soundtrack to your adventures, enhancing every moment with pristine audio quality.
Why Choose Diamond Audio's MS694NEOLK13?
-
Precision Engineering: Each component is meticulously designed to offer superior performance and longevity.
-
Effortless Installation: The comprehensive kit and user-friendly design make upgrading your audio system a breeze.
-
Premium Sound: Experience music the way it was meant to be heard, with deep bass, clear mids, and crisp highs.
Transform your Harley Davidson into a sound powerhouse with Diamond Audio's MS694NEOLK13 Cut-in Lid Kit. Order now and ride the sound wave to a whole new level of audio excellence.
Specifications:
- Includes .5” 6”x9” Spacer Ring
- Includes MS69NEO Motorsports 6”x9” Marine Grade Speaker
- Power Handling: 350W RMS/700W MAX
- Sensitivity: 96dB 1W/M
- Frequency Response: 90Hz - 10kHz
- Nominal Impedance: 4Ω
- Heavy Duty Industrial Cast Aluminum Basket
- Waterproof Black DUPONT™ Kevlar Cone
- Neodymium Magnet Motor Structure
- US manufactured 2” Black High Temperature Coated Voice Coil
- Mounting Depth: 3.09” (78.5 mm)
- Cut-out Diameter: 8.6” x 5.7” (218 mm x 146 mm)
- Over-All Diameter: 9.2” x 6.4” (233.5 mm x 162 mm)
- Over-All Height: 3.43” (87.2 mm)
1x AHB IP-SSK-6x9V Hydrophobic 6x9 Speaker Screen Kit 1998-2023 Harley Touring (IP-SSK-6X9V)
Ride through storms, washes, and whatever the road throws at you—without sacrificing your sound. Designed by American Hard Bag for Harley-Davidson touring bikes, the IP-SSK-6×9 Waterproof Speaker Cover Kit is the ultimate protection upgrade for your saddlebag-mounted 6×9 speakers.
Whether you’re blasting tunes through downtown or heading out on a cross-country run, water intrusion is the silent killer of aftermarket audio. Most so-called “weatherproof” speakers fall short, relying on tiny tweeter gaskets that can’t handle the standing water and spray that saddlebag speakers face daily. That’s where our IP-SSK-6×9 covers come in.
Built for Riders. Built for Battle.
Crafted from premium hydrophobic acoustic cloth, these covers act as a full-cone moisture barrier—not just a patch for the tweeter. That means zero compromise on clarity and protection.
Each cover includes a custom-fit gasket that seals tight against your saddlebag lid, keeping your speakers bone dry and your audio crisp. The 3M 9448A adhesive backing delivers ultra-strong, long-lasting bonding to most aftermarket 6×9 speaker frames—perfect for high-performance audio gear that wasn’t built with weather in mind.
Why Harley Riders Trust American Hard Bag
We don’t just slap our name on parts—we design them right here in the U.S. with real riders in mind. Every product we make is battle-tested on the same streets, highways, and trails you ride. This isn’t fluff—it’s function with purpose, tuned for the rider who won’t settle for stock.
Features at a Glance:
Complete waterproofing for 6×9 saddlebag speakers
Blocks spray, splash, and standing water without muting your sound
Hydrophobic cloth engineered for acoustic transparency and water resistance
Precision-molded surround gasket for a tight seal to your saddlebag lids
3M 9448A industrial-grade adhesive for strong, reliable mounting
Sold as a pair — one kit protects two 6×9 speakers
Fits most aftermarket 6×9 speakers in Harley-Davidson® touring saddlebags
