Description
Included in this kit

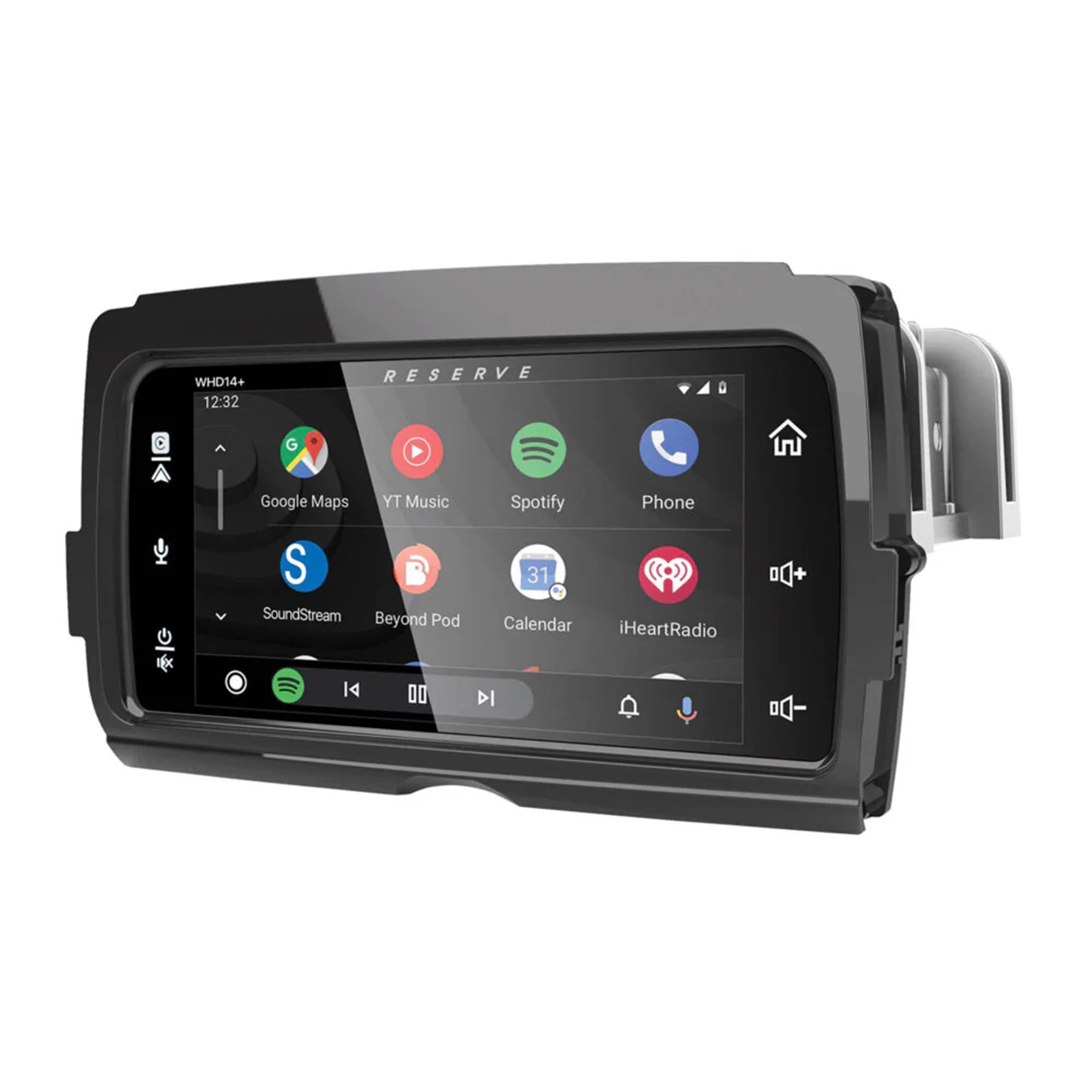

This bundle includes a Soundstream Reserve WHD14+ Plug-n-Play OE Fit Wireless Apple® CarPlay® & Android Auto® Headunit for 2014-2023 Touring Bikes, 5V Preouts, QLCD 7" Screen, IPX5, 2x DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included, a DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS, a MSMP692LK 2014-2023 H-D® Cut In Lid Kit with MP692 Speakers (2Ω), and an AHB IP-SSK-6.5 Hydrophobic Speaker Screens for 6.5 Speakers 1998-Up Harley.
1x Soundstream Reserve WHD14+ Plug-n-Play OE Fit Wireless Apple® CarPlay® & Android Auto® Headunit for 2014-2023 Touring Bikes, 5V Preouts, QLCD 7" Screen, IPX5 (WHD14++)
Wireless Entertainment with Apple CarPlay/Android Auto
With Apple CarPlay, you can get directions, make calls, send messages, listen to music, and use Siri for voice control, keeping you hands-free and focused. For Android users, Android Auto keeps you hands-free with Google Assistant, letting you make calls, send messages, and get real-time traffic alerts from Google Maps.
Plug-n-Play Installation
Installation of WHD14+ couldn’t be easier. Simply connect the OEM head unit wire harness to a secondary harness provided. No splicing required! Additionally, WHD14+ utilizes the OEM radio antenna cable & USB media port cable. The faceplate of WHD14+ maintains styling of the OEM head unit.
Handlebar Integration Module Ready
With a little help from a handlebar integration module, key functions of WHD14+ like volume level, track playback, & phone call operations can be performed with the OEM handlebar controls. If you’re upgrading to WHD14+ receiver, insist on adding a handlebar integration module to keep the convenience of the handlebar controls.
IPx5 Liquid Ingress Protection
WHD14+ was subjected to testing above and beyond industry standards, earning an Ingress Protection (IP) rating of IPx5, protecting itself from any weather condition you’ll ride in.
OE Fit Chassis w/ Factory Styling for 2014+ Touring Models:
•Street Glide
•Road Glide
•Ultra Limited
•Tri-Glide Ultra
•Electra Glide
Plug-N-Play, No Mounting Hardware or Dash Kit Required
Ready for Aftermarket Handlebar Integration Modules
IPX5 Liquid Ingress Protection for Direct Water Exposure
Wireless CarPlay® & Android Auto
7” Optically Bonded QLCD w/ Capacitive Touchscreen
Bluetooth 5.0 Wireless Phone Calling + A2DP Audio Streaming
2-ohm Stable Class D 4-Channel Speaker Amplifier Built-in
13-Band Custom Staging Equalizer or Preset Effects EQ
Active Crossovers for Front, Rear, & Subwoofer Outputs
RCA Video Input w/ 12V Power Trigger for Front/Rear Camera
5 V RCA Audio Outputs for Aftermarket Amplifier Integration
2x DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included (PRO-HY6.4MSL)
DS18 • PRO-HY6.4MSL
DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included
DS18 PRO-HY6.4MSL 6.5” Hybrid Slim Loudspeaker With 1” Compression Driver Horn
Nominal Diameter: 6.5" / 165.1mm
Nominal Impedance: 4 Ohm
RMS Power Handling: 150W
Frequency Response: 100Hz-20Khz
Sensitivity (1w/1m): 93dB
Pair or Single: Single
Overview
Product Overview
The PRO-HY6.4MSL brings full-range power to tight installs. We’ve given you the best of both worlds: a high-output midrange AND compression driver, packed into a water-resistant, off-road–ready design that fits where others can’t.
HYBRID DESIGN FOR FULL-RANGE SOUND This speaker pairs a treated cloth surround + water-resistant paper cone midrange with a titanium compression driver for powerful highs and rich mid clarity. Rated at 150W RMS with a 100Hz–20kHz response range, you get high SPL output across a wide bandwidth.
Highlights
Key Product Features
- 6.5" Slim Hybrid Loudspeaker
- 150W RMS / 300W MAX
- 1" Titanium Compression Driver
- IP65 Rated + Grille w/ Water/Sun Protection Cloth
- Neodymium Driver Magnet / Ferrite Woofer Magnet
SPECS
| SKU | PRO-HY6.4MSL |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 100Hz-20Khz |
| Recommended HI Pass Crossover | 140Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
WOOFER SPECIFICATIONS
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 19.5 Oz |
THIELE & SMALL PARAMETERS
| Equivalent Volume Vas | 9.42L / 0.3327ft3 |
| Excursion (one way) Xmax | 1.5mm |
| Free Air Resonance Fs | 160Hz |
| Mechanical Factor Qms | 6.605 |
| Electrical Factor Qes | 1.296 |
| Total Factor Qts | 1.086 |
| Mechanical Mass Mms | 2.734g |
| Mechanical Compliance Cms | 0.358mm/N |
| BL Factor BL | 2.668 |
| Voice Coil Inductance Le | 0.05892mH |
| Cone Area Sd | 136.848 Cm2 |
| DC Resistance Re | 3.2 ohm |
| Mechanical Mass w/o air Mmd | 23.2g |
DRIVER SPECIFICATIONS
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.15" / 80 mm |
SPEAKER MEASUREMENT
| Overall Diameter | 6.92" / 176mm |
| Overall Depth | 3.52" / 89.5mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.82" / 72mm |
| Motor Diameter | 4.33" / 110mm |
SHIPPING INFO
| Gross Single Unit Weight | 3.75 |
| Single Unit Box Dimensions L x W x H (Inches) | 7.25 x 7.25 x 4.25 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight | 32 |
| Master Carton Dimensions L x W x H (Inches) | 15.25 x 15.25 x 9.5 |
1x DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS (ION1600.4D)
DS18 • ION1600.4D
DS18 ION1600.4D 4-Channel | 2 x 800 @ 4Ω Bridge | 4 x 400 @ 2Ω | 4 x 240 @ 4Ω Watts RMS
DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
Minimum Impedance: 2 Ohm (St) / 4 Ohms (Bridge)
RMS Power @ 4 ohm: 4 x 240W
Total Watts (Peak): 4800W
Frequency Response: 10Hz-20KHz
Amplifier Class: Digital
RMS Power @ 2 ohm: 4 x 400W
Overview
Product Overview
DS18 ION Compact Full-Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
ION1600.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!
Highlights
Key Product Features
- 4 Channel Full Range
- Class D
- 2 - 4 Ohm Stable
- 4 X 240 Watts @ 4 Ohm
- Power / Clip / Protection Indicator
SPECS
| SKU | ION1600.4D |
| Total Watts (Peak) | 4800W |
| RMS Power @ 4 ohm | 4 x 240W |
| RMS Power @ 2 ohm | 4 x 400W |
| RMS Power @ 1 ohm | N/A |
| RMS Power @ 4 ohm Bridge | 2 x 800W |
AUDIO
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | >95dB |
| Efficiency @ 4 ohm | 88% |
| Damping Factor | 210 |
| Input Impedance | 27Kohms |
| Channel Separation | 59dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.2-6V |
| High Level Input | Yes |
| Selectable X-Over | LPF/HPF/FULL |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | NO |
| Bass Boost Frequency | 45Hz |
FEATURES
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Stereo |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm (St) / 4 Ohms (Bridge) |
| Led Indicator | Power / Protect / Clipping |
| Power Input Terminal Size | 4 AWG |
| Fuse Size | 140A (external) |
| Remote Level Control | No |
| Cooling Fan | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Aluminum Black / Silver |
EXTRA FEATURES
| Hi-Level Speaker connector | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| High Efficiency Micro Digital Design | Yes |
MEASUREMENT
| Overall Length | 7.32" / 186mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 2" / 52mm |
| Heatsink Length | 6" / 153mm |
| Gross Single Unit Weight | 1.3Kg |
1x MSMP692LK 2014-2023 H-D® Cut In Lid Kit with MP692 Speakers (2Ω) (MSMP692LK)
Key Features:
Seamless Integration:
Designed specifically for HD® models from 2014-2023, the MSMP692LK kit guarantees a perfect fit and a factory-finish appearance, blending effortlessly with your bike's aesthetic.
Superior Sound Quality:
At the heart of this kit are the MP692 Motorsports 6”x 9” Marine Grade Speakers. With their robust 2Ω impedance, these speakers deliver rich, immersive audio, transforming your motorcycle into a mobile concert hall.
Durability:
Crafted to withstand the elements, the marine-grade speakers are designed for optimal performance in all weather conditions, ensuring your audio system remains as rugged as your bike.
Complete Installation Kit:
The package includes everything you need for a hassle-free installation. The included rubber gasket ensures a secure and vibration-free fit, while the plug-n-play wire harness with LED wiring simplifies the process, allowing you to get back on the road with minimal downtime.
Enhanced Ride Experience:
Whether you're cruising down the highway or parked at a rally, the MSMP692LK kit will provide the perfect soundtrack to your adventures, enhancing every moment with pristine audio quality.
Why Choose Diamond Audio's MSMP692LK?
Precision Engineering: Each component is meticulously designed to offer superior performance and longevity.
Effortless Installation: The comprehensive kit and user-friendly design make upgrading your audio system a breeze.
Premium Sound: Experience music the way it was meant to be heard, with deep bass, clear mids, and crisp highs.
Specifications
2014-2023 HD® Cut In Lid Kit
Included: MP692 6”x9” Marine Grade Speaker
Includes Plug-n-Play Wire Harness
Power Handling: 150W RMS/300W MAX
Flush Mount Design
Ultra Small Neodymium Motor Structure With Max Xmax Suspension
High Temp Injection Molded Composite Basket
Molded,UV-Coated,Patent Pending Waterproof Cone
Mounting Diameter: 6.38 x 9.33 in / 162 x 237 mm
Mounting Depth: 2.28" / 58mm
1x AHB IP-SSK-6.5 Hydrophobic Speaker Screens for 6.5 Speakers 1998-Up Harley (IP-SSK-6.5)
Keep your audio crisp and your speakers dry, no matter the weather. The all-new IP-SSK-6.5 Water Sheading Speaker Cover Kit by American Hard Bag is built specifically for Harley-Davidson touring saddlebags equipped with 6.5" lid-mounted speakers.
These aren’t generic foam rings or gimmicky grills. This is a true upgrade engineered for real riders who expect their system to perform in rain, shine, or even a full-on bike wash.
Purpose-Built Protection for the Real World
Most “weather-resistant” speakers barely stand a chance against the standing water that collects in saddlebags during storms or after a good hose-down. The IP-SSK-6.5 kit solves that problem with full-cone coverage, shielding both the mid and tweeter from water intrusion—without muffling your sound.
Made from premium hydrophobic acoustic cloth, this kit forms an invisible moisture barrier that resists splash, spray, and humidity while letting your audio breathe. Each set includes a precision-molded gasket that conforms tightly to the inside of your saddlebag lid.
And with 3M 9448A industrial adhesive pre-applied, installation is fast, clean, and secure.
Why Riders Choose American Hard Bag
At American Hard Bag, we don’t outsource innovation. Every part we make is engineered in-house, rigorously road-tested, and refined for the kind of punishment Harley touring bikes see daily.
When you roll with us, you're buying from a crew of riders who know the road, know audio, and know what works.
Key Features:
Complete moisture barrier for 6.5" saddlebag lid speakers
Hydrophobic cloth resists spray, splash, and standing water
Clear audio performance with no compromise in speaker output
Custom-fit surround gasket for maximum seal and durability
3M 9448A double-coated adhesive ensures long-lasting adhesion
Sold as a pair – covers two 6.5" speakers
Fits most aftermarket 6.5" speakers installed in Harley-Davidson® touring bagger Fairings
Designed in the USA by American Hard Bag
Ride Loud. Stay Protected.
Water damage is the silent killer of great audio. Whether you're crossing state lines or detailing your bike at home, give your speakers the protection they deserve.
Don’t risk it—seal it. American Hard Bag has your back.
