Description
Included in this kit
This bundle includes 4x DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included, and a Memphis Audio MJP800.4 4-Channel 800 Watt Amplifier - 200 Watts RMS x 4 at 2-Ohm.
4x DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included (PRO-HY6.4MSL)
DS18 PRO-HY6.4MSL 6.5" | 150 Watts RMS | 4Ω | Mid-Range | Shallow | Grill Included
DS18 PRO-HY6.4MSL 6.5” Hybrid Slim Loudspeaker With 1” Compression Driver Horn
Overview
Product Overview
The PRO-HY6.4MSL brings full-range power to tight installs. We’ve given you the best of both worlds: a high-output midrange AND compression driver, packed into a water-resistant, off-road–ready design that fits where others can’t.
HYBRID DESIGN FOR FULL-RANGE SOUND This speaker pairs a treated cloth surround + water-resistant paper cone midrange with a titanium compression driver for powerful highs and rich mid clarity. Rated at 150W RMS with a 100Hz–20kHz response range, you get high SPL output across a wide bandwidth.
Highlights
Key Product Features
- 6.5" Slim Hybrid Loudspeaker
- 150W RMS / 300W MAX
- 1" Titanium Compression Driver
- IP65 Rated + Grille w/ Water/Sun Protection Cloth
- Neodymium Driver Magnet / Ferrite Woofer Magnet
| SKU | PRO-HY6.4MSL |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 100Hz-20Khz |
| Recommended HI Pass Crossover | 140Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 19.5 Oz |
| Equivalent Volume Vas | 9.42L / 0.3327ft3 |
| Excursion (one way) Xmax | 1.5mm |
| Free Air Resonance Fs | 160Hz |
| Mechanical Factor Qms | 6.605 |
| Electrical Factor Qes | 1.296 |
| Total Factor Qts | 1.086 |
| Mechanical Mass Mms | 2.734g |
| Mechanical Compliance Cms | 0.358mm/N |
| BL Factor BL | 2.668 |
| Voice Coil Inductance Le | 0.05892mH |
| Cone Area Sd | 136.848 Cm2 |
| DC Resistance Re | 3.2 ohm |
| Mechanical Mass w/o air Mmd | 23.2g |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.15" / 80 mm |
| Overall Diameter | 6.92" / 176mm |
| Overall Depth | 3.52" / 89.5mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.82" / 72mm |
| Motor Diameter | 4.33" / 110mm |
| Gross Single Unit Weight | 3.75 |
| Single Unit Box Dimensions L x W x H (Inches) | 7.25 x 7.25 x 4.25 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight | 32 |
| Master Carton Dimensions L x W x H (Inches) | 15.25 x 15.25 x 9.5 |

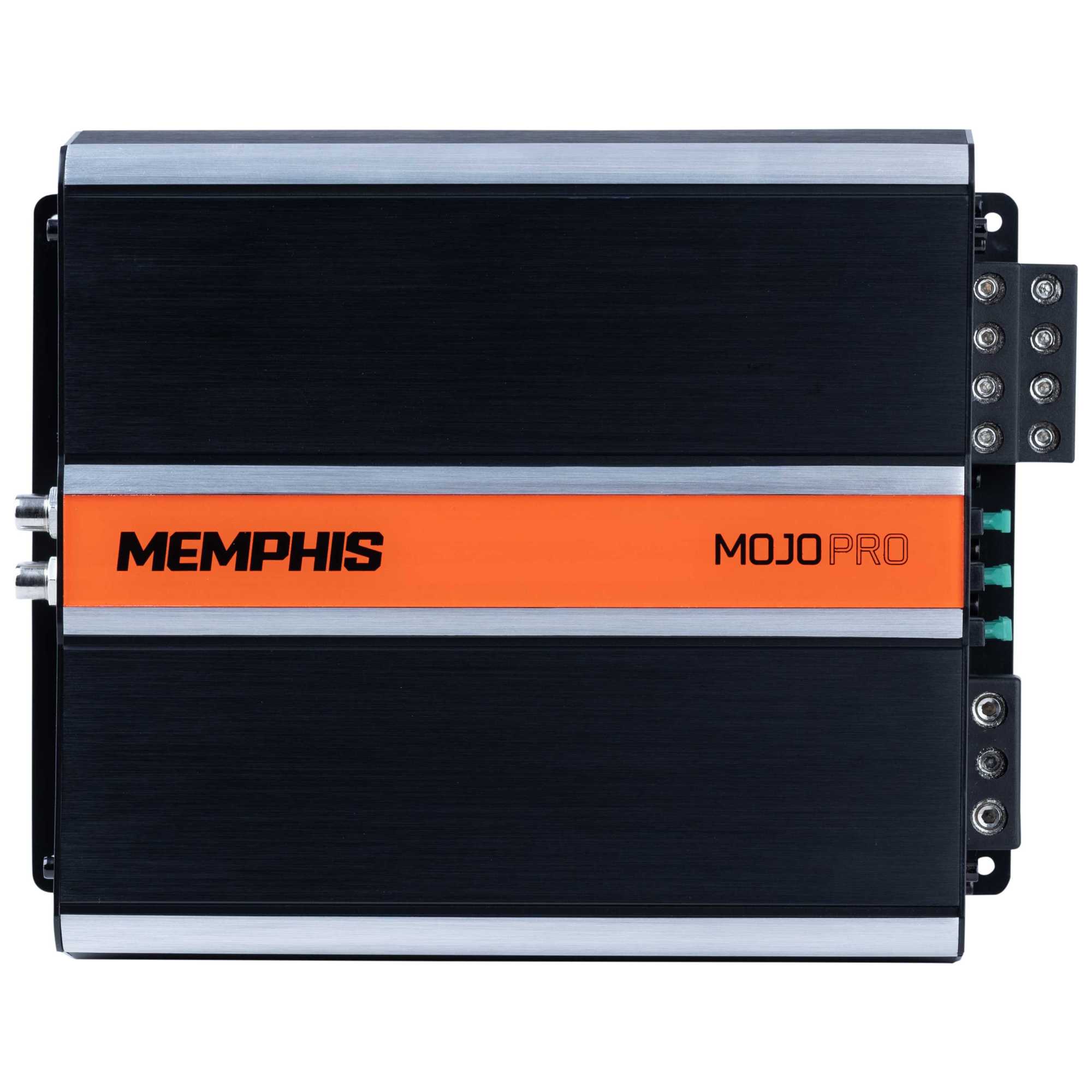

1x Memphis Audio MJP800.4 4-Channel 800 Watt Amplifier - 200 Watts RMS x 4 at 2-Ohm (MJP800.4)
MJP800.4 – MOJO Pro 4-Channel Amplifier
200W x 4 @ 2Ω • Pro Audio Power & Control
MOJO Pro amplifiers are engineered for high-output pro audio performance with unmistakable Memphis styling. The MJP800.4 is a powerful 4-channel amplifier designed to drive multiple pro audio speaker systems with authority, clarity, and control. Featuring a rugged extruded aluminum chassis with exposed aluminum accents and a signature orange highlight strip, the MJP800.4 delivers both aggressive aesthetics and serious power.
Overview
High-Powered MOJO Pro Performance
The MJP800.4 is built to push demanding multi-speaker systems with ease. Delivering up to 200 watts RMS per channel at 2 ohms, this amplifier provides the headroom required for high-efficiency pro audio speakers while maintaining clean, controlled output. Bridgeable channels allow additional flexibility for system designs requiring higher power per channel.
- Designed for high-output pro audio speaker systems.
- Bridgeable channels for flexible configurations.
- Compact chassis with serious power delivery.
Built to deliver loud, clean output for demanding audio systems.
Design & Build
Rugged Pro Audio Construction
An extruded aluminum heat sink with exposed aluminum accents provides excellent thermal management while reinforcing the aggressive MOJO Pro aesthetic. The compact footprint allows the MJP800.4 to fit into a wide range of installations without sacrificing power or performance.
- Extruded aluminum heat sink.
- Signature MOJO orange accent strip.
- Built for high-current, high-output operation.
Features
Tuning & Control
| Amplifier Type | 4-Channel |
| RMS Power @ 4Ω | 125 W x 4 |
| RMS Power @ 2Ω | 200 W x 4 |
| Bridged Power @ 4Ω | 400 W x 2 |
| THD @ 4Ω | < 1% |
| Frequency Response | 10 Hz – 25 kHz |
| Input Range | 400 mV – 7.5 V (Low) / 3 V – 20 V (High) |
| Dimensions (L × W × H) | 7.5 × 2 × 8.7 in |
| Recommended Amp Kit | 4GKIT |
