Description
Included in this kit
This bundle includes a DS18 G4000.5D 5-Channel | 2 x 420 @ 4Ω Bridge | SUB 900 @ 1Ω | 4 x 220 SUB 600 @ 2Ω | 4 x 130 SUB 300 @ 4 Ω Watts RMS, and an ATG Audio Transcend Series 100% Copper 4 Gauge Amplifier Kit with Mini ANL Fuseholder - ATG4CXMANL.
1x DS18 G4000.5D 5-Channel | 2 x 420 @ 4Ω Bridge | SUB 900 @ 1Ω | 4 x 220 SUB 600 @ 2Ω | 4 x 130 SUB 300 @ 4 Ω Watts RMS (G4000.5D)
DS18 • G4000.5D
DS18 G4000.5D 5-Channel | 2 x 420 @ 4Ω Bridge | SUB 900 @ 1Ω | 4 x 220 SUB 600 @ 2Ω | 4 x 130 SUB 300 @ 4 Ω Watts RMS
DS18 G4000.5D Full-Range Class D 5-Channel Amplifier 4000 Watts
Minimum Impedance: 2ohm St / 4ohm Bridge (Puente) / 1ohm Sub
Rms Power @ 4 OHM: 4 x 130W / SUB: 300W
Total Watts (Peak): 4000W
Frequency Response: 20Hz-20Khz
Amplifier Class: Digital (D)
Rms Power @ 2 OHM: 4 x 220W / SUB: 600W
Overview
Product Overview
DS18’s GEN-X Series has a successor, which we would love to introduce. This time, new options with the G series G4000.5D : a car audio amplifier equipped with all the special benefits you expect from DS18’s components!
The experts at DS18 have redesigned the renowned GEN-X series to surpass the expectations of the competitors and enthusiasts in our community looking to complete the system of their dreams.
Highlights
Key Product Features
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
POWER
| Total Watts (Peak) | 4000W |
| Rms Power @ 4 OHM | 4 x 130W / SUB: 300W |
| Rms Power @ 2 OHM | 4 x 220W / SUB: 600W |
| Rms Power @ 1 OHM | SUB: 900W |
| Rms Power @ 4 OHM Bridge | 2 x 420W |
AUDIO
| Frequency Response | 20Hz-20Khz |
| Signal To Noise Ratio | >90 dB |
| Efficiency @ 4 OHM | 83% |
| Damping Factor | 78 |
| Input Impedance | 22 K |
| Channel Separation | 55 dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.25 - 6 V |
| High Level Input | No |
| Selectable X-over | HPF/LPF |
| X-over Filter Range | HPF:10-250Hz / LPF:50-250Hz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | Fixed @ 45Hz |
| Infrasonic Filter | 10-50Hz |
FEATURES
| Amplifier Class | Digital (D) |
| Amplifier Type | 5CH Full Range |
| Number Of Channels | 5 Ch |
| Minimum Impedance | 2ohm St / 4ohm Bridge (Puente) / 1ohm Sub |
| Led Indicator | Power | Protection | Clip / |
| Power Input Terminal Size | 4 GA |
| Fuse Size | External / 160A |
| Remote Level Control | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| Dc Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color | Finish | Matte Black |
MEASUREMENT
| Overall Length | 12.8" / 325mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 11.02" / 280mm |
| Gross Single Unit Weight | 2.2Kg |
EXTRA FEATURE
| Input Selector | 2/4/5 ch |

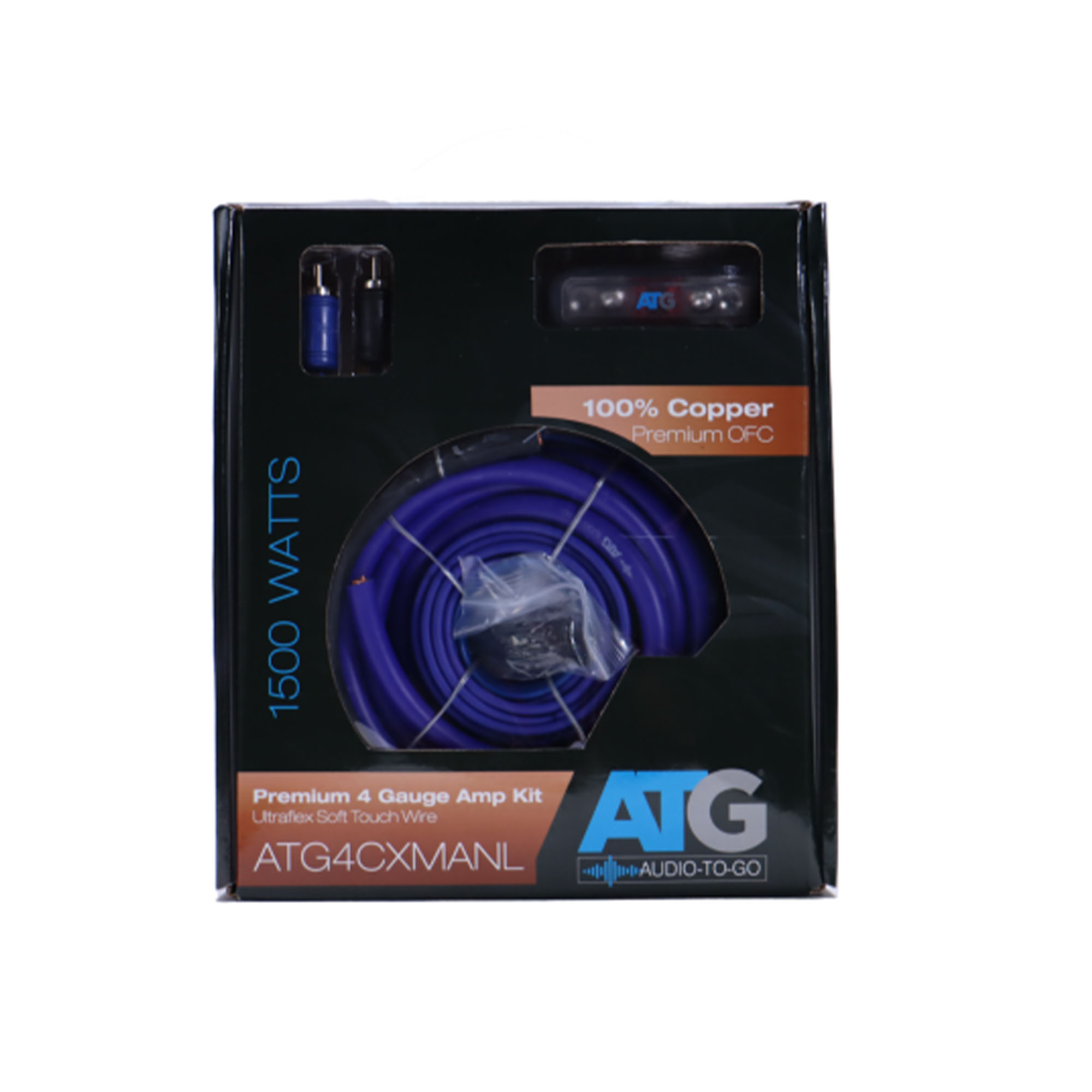

1x ATG Audio Transcend Series 100% Copper 4 Gauge Amplifier Kit with Mini ANL Fuseholder - ATG4CXMANL (ATG4CXMANL)
Elevate your car audio to the next level with our Premium 1500W 4 Gauge Amp Kit. Engineered for power and performance, this kit is your key to unlocking the full potential of your car's sound system. With a robust 4-gauge power cable, you can trust that your amplifier will receive the necessary power to deliver crisp, clear sound even at high volumes. Say goodbye to distortion and hello to premium audio quality.
Features -
• 4 Gauge 100% Copper Mini ANL Amp Kit
• 15' (4.6M) Blue 100% Copper Soft Touch RCA Cable
• 15' (4.6M) 4 Ga. Blue 100% Copper Soft Touch Power Cable
• 15' (4.6M) 18 Ga. Blue 100% Copper Remote Wire
• 17' (5.2M) 16 Ga. Speaker Cable
• 2' (0.6M) 4 Ga. Black 100% Copper Soft Touch Ground Cable
• Mini ANL Heat Resistant Fuse Holder
• Mini ANL Fuse
• Split Loom
• Accessories: Wire Ties, Ring
• Terminals, Butt connectors,
• Spades, Grommet
• Master Carton: 8
• Packed: Blister Shell
