Description
Included in this kit
This bundle includes a DS18 BRO-BASS Tailgate Subwoofer Enclosure | 12" Loaded | IXS12.4D Included (Speaker Included), a Diamond Audio HX1200.1D - HEX Series Monoblock Class D Amplifier 540 W x 1 @ 4Ω, and a Diamond Audio HX42 - 2-Channel 4 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable.
1x DS18 BRO-BASS Tailgate Subwoofer Enclosure | 12" Loaded | IXS12.4D Included (Speaker Included) (BRO-BASS)
DS18 • BRO-BASS
DS18 BRO-BASS Tailgate Subwoofer Enclosure | 12" Loaded | IXS12.4D Included (Speaker Included)
DS18 BRO-BASS Ford Bronco 6th Gen Tailgate 12" Subwoofer Enclosure with IXS12.4D
Speaker Size: 12" / 304mm
Total Impedance: 2 Ohms
Total RMS Power Handling: 800W
Frequency Response: 30Hz-200Hz
Sensitivity (1w/1m): 90dB
Water Resistant Materials for Light Rain: Yes (IP11)
Overview
Product Overview
DS18 BRO-BASS Ford Bronco 6th Gen Tailgate 12" Subwoofer Enclosure with IXS12.4D
The BRO-BASS comes with DS18’s IXS12.4D: a shallow subwoofer made for ported boxes and guaranteed to output heavy bass every session! The BRO-BASS was designed to maximize bass response and output without requiring a lot of rear cargo space – the IXS12.4D’s minimized mounting depth (4.33”) makes it the perfect speaker for this enclosure.
Highlights
Key Product Features
- Loaded Tailgate Subwoofer Enclosure
- 6th Gen Bronco
- 1 X 12" IXS12.4D(800 Watts RMS)
- LED RGB Lights
- Water Resistant Housing IPX1
SPECS
| SKU | BRO-BASS |
| Speaker Size | 12" / 304mm |
| Total Impedance | 2 Ohms |
| Total RMS Power Handling | 800W |
| Total MAX Power Handling | 1600W |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 30Hz-200Hz |
| Recommended Lo Pass Crossover | 80Hz |
FEATURES
| Ported Box for High Output | Yes |
| Water Resistant Materials for Light Rain | Yes (IP11) |
| Exclusive Ford Bronco Design | Yes |
| Injected Molded ABS Grill with Built-in RGB LED lighting | Yes |
| Input Wires for RGB LED and Subwoofer | Yes, 5ft / 1.5m (6 Cores) |
| Subwoofer Included | Yes, 12" (IXS12.4D) |
| Installation Hardware Included | Yes, 3 x 6M screws / 3 x 6M rivet nut |
| Easy to Install | Yes, fits on the tailgate and secures using the factory bolt location |
SPEAKER SPECIFICATIONS
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Fiberglass |
| Surround Material | Stitched rubber |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 62 Oz |
BOX SPECIFICATIONS
| Internal Volume | 34L / 1.2ft3 |
| Port Tune Fb | 45Hz |
| Load Configuration | Parallel |
| Box Type | Front Loaded Ported |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| -3Db Dropping Point F3 | 36Hz |
MEASUREMENT
| Overall Height | 17.81" / 452.3mm |
| Overall Width | 27.4" / 695.6mm |
| Overall Depth | 7.4" / 188mm |

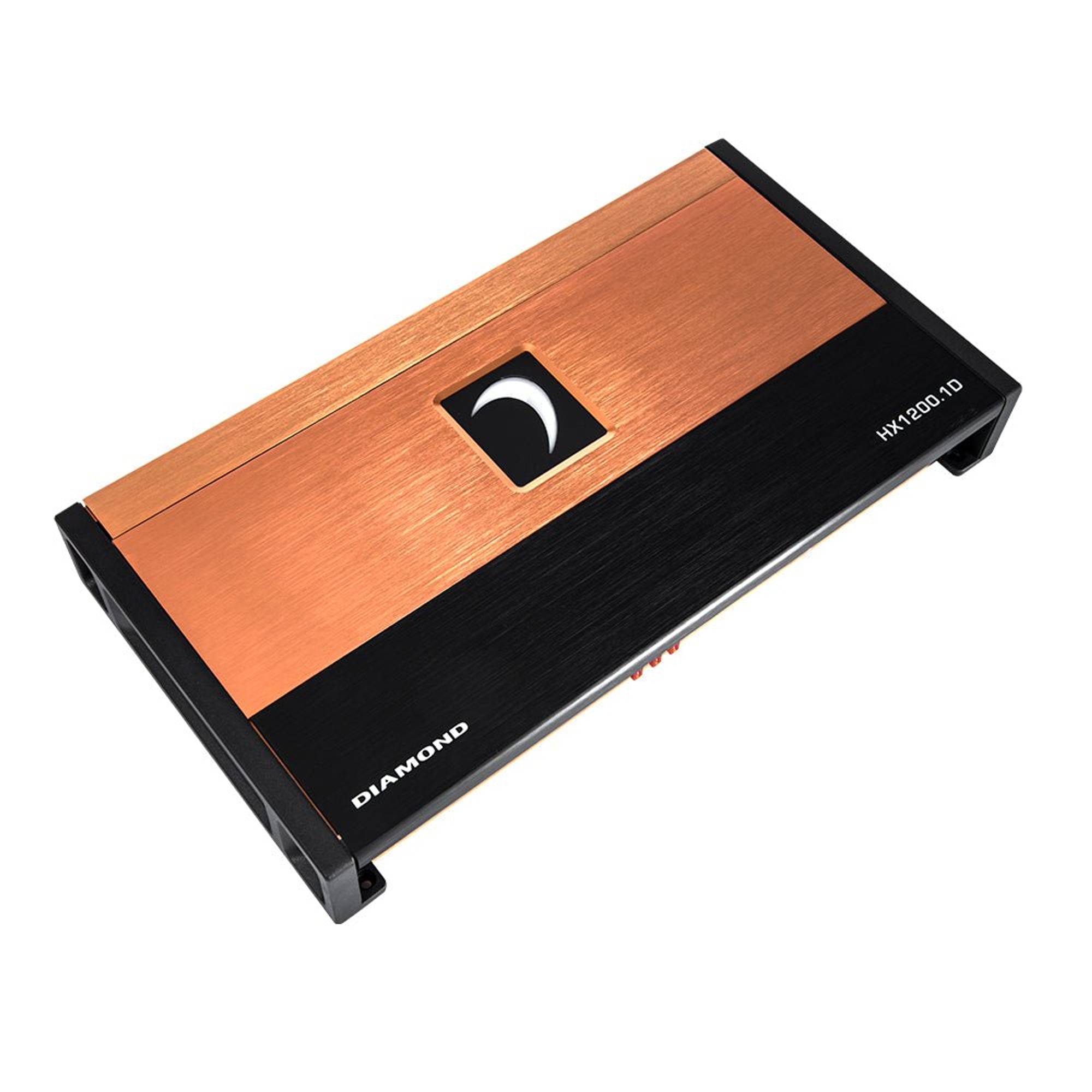

1x Diamond Audio HX1200.1D - HEX Series Monoblock Class D Amplifier 540 W x 1 @ 4Ω (HX1200.1D)
Diamond Audio HX1200.1D is the HEX Series Monoblock Class D Amplifier. Introducing the Hex Series Amplifiers – the ultimate choice for audiophiles who demand nothing but the best in sound quality and power. These amplifiers are engineered with meticulous precision and feature high-tolerance components, ensuring an unparalleled listening experience. With top-of-the-line features and user-friendly controls, the Hex Series Amplifiers seamlessly blend advanced technology with convenience. Whether you're setting up a high-end audio system or upgrading an existing one, these amplifiers are designed to deliver unmatched sound quality and power.
Features / Specs -
• 540 W x 1 @ 4Ω
• 870 W x 1 @ 2Ω
• 1200 W x 1 @ 1Ω
• S/N: ≤ 95 dBA / THD: .06%
• Dimensions: (Remote Included): 14.25" x 7.67" x 2" (363 x 195 x 51.5 mm)
• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• 4-Layer PCB Board with Balanced Differential Inputs
• Full Range Class D IR Chipset
• "SNAP" Capacitors used Throughout the Circuit
• Audiophile Grade High Tolerance Components
• Spring Steel FET Clips Provide a Cleaner Board Design
• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control
• Top Mounted Controls for Convenient Amplifier Adjustment

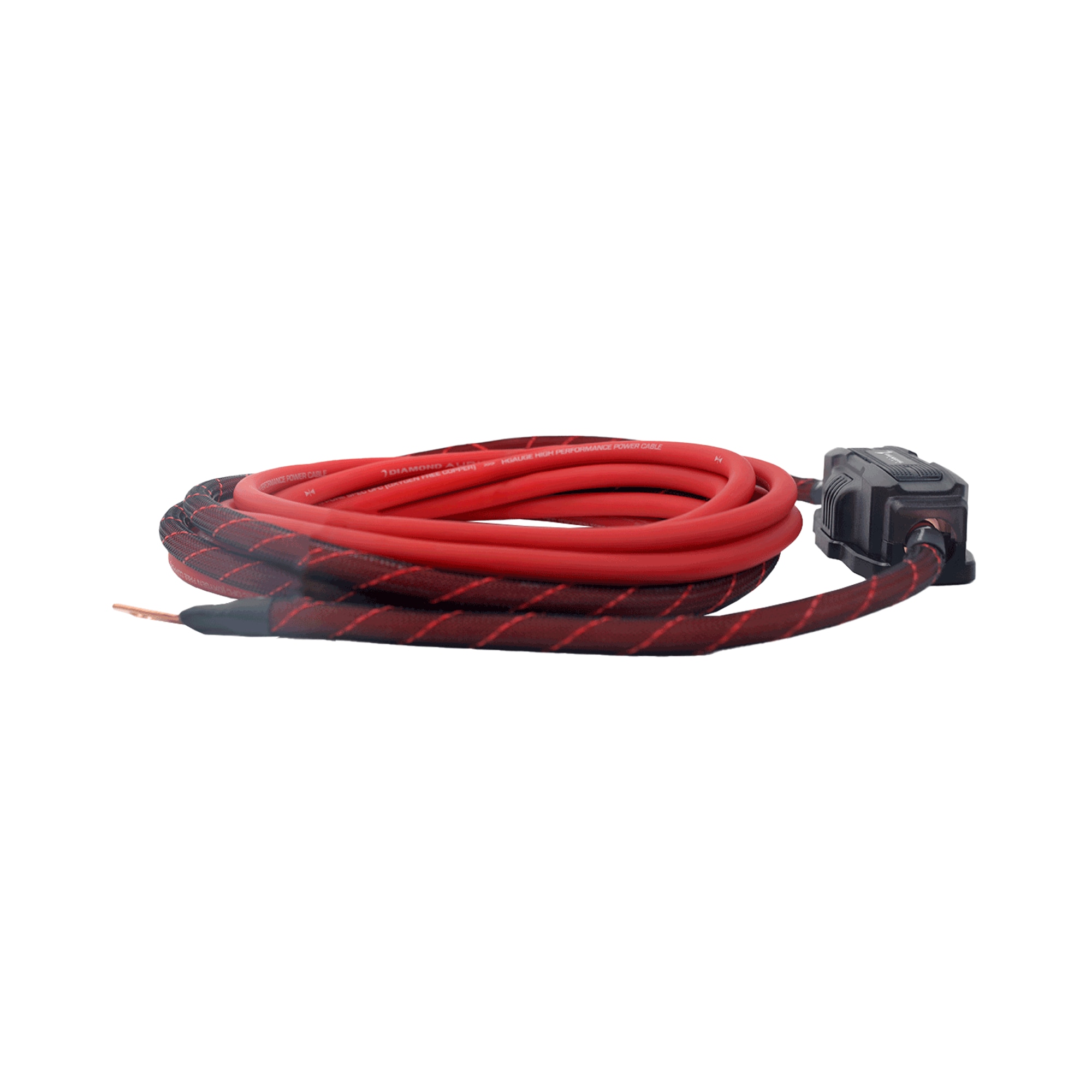

1x Diamond Audio HX42 - 2-Channel 4 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable (HX42)
Diamond Audio HX42 is the 2-Channel 4 Gauge Amplifier Installation Kit W/ RCA Interconnect and 20 ft Speaker Cable. Noise shield directional construction uses 3 tightly twisted conductor bundles (+, -, signal drain) per channel to create directional noise canceling. Body Armor Protection utilizes high strength high strength nylon fibers that are woven tightly around the ultra-flexible PVC Cable Jacket D.N.S Diamond Noise Shield Technology doubles the doubles the shielding efforts by combining two layers of EMI rejecting Mylar foil and radiated noise absorbing mesh, eliminating unwanted noise and interference. Optimized Dynamic Signal Flow uses finely stranded pure OFC copper to optimize signal vs. frequency interaction for a dynamic listening experience.
Features / Specs -
• 4 Gauge 2-Channel Amplifier Connection Kits
• 17ft. 4 Gauge Matte Red Power Wire with ring terminated
• 3ft. 4 Gauge Matte Black Ground Wire with ring terminated
• 17ft. 18 Gauge remote Turn-on wire
• 20ft. 16 Gauge Speaker Wire
• 17ft. 2-Ch. Vega series RCA interconnect
• ANL fuse holder with 100A fuse
• All Hardware Include
• OFC
