Description
Included in this kit
This bundle includes a DS18 JL-FD-LRV2 Jeep JL/JLU/JT | Fits 2 x 6.5" Speakers | 2 x 3.78" Tweeters | Front Door Panels, 2x DS18 PRO-CF6.4SL 6.5" | 250 Watts RMS | 4Ω | Mid-Bass | Shallow, 2x DS18 PRO-TWX1/BK 3.8" | Super Bullet | 120 Watts RMS | 1" Aluminum Vc | 4Ω | Black, a Diamond Audio HX600.4D - HEX Series 4-Channel Full Range Class D Amplifier RMS Power (4 Ω): 160W x 4, and a Diamond Audio MSLOC2 Motorsport 2-Ch Line Output Converter Harness Kit.
1x DS18 JL-FD-LRV2 Jeep JL/JLU/JT | Fits 2 x 6.5" Speakers | 2 x 3.78" Tweeters | Front Door Panels (JL-FD-LRV2)
DS18 JL-FD-LRV2 Jeep JL/JLU/JT | Fits 2 x 6.5" Speakers | 2 x 3.78" Tweeters | Front Door Panels
DS18 JL-FD-LRv2 Front Door Panels 1 X 6.5" speaker + 1 x 3.8" Tweeter Right And Left for JL/JLU/JT Gladiator Jeeps with Short Armrest (Speakers Not Included)
Overview
Product Overview
DS18 JL-FD-LRv2 Front Door Panels 1 X 6.5" speaker + 1 x 3.8" Tweeter Right And Left for JL/JLU/JT Gladiator Jeeps with Short Armrest (Speakers Not Included)
This item is only for power windows models, will not fit on manual windows base models with short armrest.
Highlights
Key Product Features
- JL/JLU/JT Front Door Panels
- 1 X 6.5" Shallow Mount Speaker
- 1 X 3.8" Tweeter
- Hardware Included
- Pair (Left and Right)
| SKU | JL-FD-LRV2 |
| Compatible with | Jeep JL/JLU/JT Short Armrest Front Doors |
| Fits | 1 x 6.5" Shallow Speaker / 1 x 3.8" Tweeter |
| Sold as | Pair (left, right) |
| Material | High density plastic molded with black color injected |
| Weather Resistant | UV Protected and all elements ready |
| Mounting hardware included | Yes |
2x DS18 PRO-CF6.4SL 6.5" | 250 Watts RMS | 4Ω | Mid-Bass | Shallow (PRO-CF6.4SL)
DS18 PRO-CF6.4SL 6.5" | 250 Watts RMS | 4Ω | Mid-Bass | Shallow
DS18 PRO-CF6.4SL PRO 6.5" Slim Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 500 Watts Max 4-Ohm
Overview
Product Overview
DS18 PRO-CF6.4SL PRO 6.5" Slim Carbon Fiber Water resistant Cone Mid-Bass Loudspeaker 500 Watts Max 4-Ohm
The PRO-CF6.4SL is a water-resistant Pro Audio loudspeaker with amazing highs and comparable low mid-bass frequency responses. This speakers versatility allows it to hit frequencies as high as 12.5KHz and as low as 80 Hz providing an extreme full range of frequencies that all listeners will notice and enjoy!
Highlights
Key Product Features
- 6.5" Shallow Mid-Bass
- Water Resistant Carbon Fiber Cone
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4-Ohm
- Ferrite Magnet
| SKU | PRO-CF6.4SL |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 OHMS |
| RMS Power Handing | 250 Watts |
| Maximum Power Handing | 500 Watts |
| Sensitivity (1w/1m) | 95 dB |
| Frequency Response | 80Hz-12.5KHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Voice Coil Diameter | 1.5" / 38.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 20Oz |
| Vas | 9L / 0.317 ft3 |
| Xmax | 2.5 mm |
| Fs | 128Hz |
| Qms | 15.55 |
| Qes | 0.891 |
| Qts | 0.842 |
| Re | 3.6 OHMS |
| Overall Diameter | 6.5" / 165 mm |
| Front Mount Baffle Cutout | 5.67" / 144 mm |
| Mounting Depth | 2.15" / 54.5 mm |
| Overall Depth | 2.38" / 60.5 mm |
| Product Weight | 3.5 lbs |
| Product Dimensions | 7 x 7 x 3 |
| M/C Weight | 30 lbs |
| M/C Dimensions | 14.8 x 14.5 x 7 |
| M/C QTY | 8 |
| Sold In | Piece |
2x DS18 PRO-TWX1/BK 3.8" | Super Bullet | 120 Watts RMS | 1" Aluminum Vc | 4Ω | Black (PRO-TWX1/BK)
DS18 PRO-TWX1/BK 3.8" | Super Bullet | 120 Watts RMS | 1" Aluminum Vc | 4Ω | Black
DS18 PRO-TWX1/BK – 1” PRO Aluminum Super Bullet Tweeter VC – 240 Watts with Capacitor Crossover (Pair)
Overview
Product Overview
DS18 PRO-TWX1/BK – 1” PRO Aluminum Super Bullet Tweeter VC – 240 Watts with Capacitor Crossover (Pair)
The DS18 PRO-TWX1/BK are out-of-this-world tweeters and for good reason. With 240W peak power handling and a frequency response of 3.5KHz to 20KHz, these professional grade super tweeters deliver accurate sounds at high frequencies––perfect if you like your highs crisp, bright, and loud! Better yet, the Bullet dust cover protects the voice coil and ensures that your highs cut through the noise.
Highlights
Key Product Features
- 3.8" Super Bullet Tweeter
- MAX Power: 240 Watts
- RMS Power: 120 Watts
- Impedance: 4 Ohm ~ 103dB
- Ferrite Magnet
| SKU | PRO-TWX1/BK |
| Nominal Diameter | 3.8" / 96mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 103 db |
| Frequency Response | 3.5K-20Khz |
| Recommended Hi Pass Crossover | 2KHz |
| Sold In Pair or Single | Pair |
| Filter (Bass Blocker) | N/A |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| Voice Coil Diameter | 1" 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 8 Oz |
| Overall Diameter | 3.78" / 96mm |
| Overall Depth | 1.78" / 45mm |
| Front Mount Baffle Cutout | 2.76" / 70mm |
| Mounting Depth | 1.57" / 40mm |
| Motor Diameter | 2.76" / 70mm |
| Gross Single Unit Weight (lb) | 3 |
| Single Unit Box Dimensions W x L x H (Inches) | 8.5 x 4.25 x 2.25 |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight (lb) | 33 |
| Master Carton Dimensions W x L x H (Inches) | 17.25 x 9.25 x 7.5 |

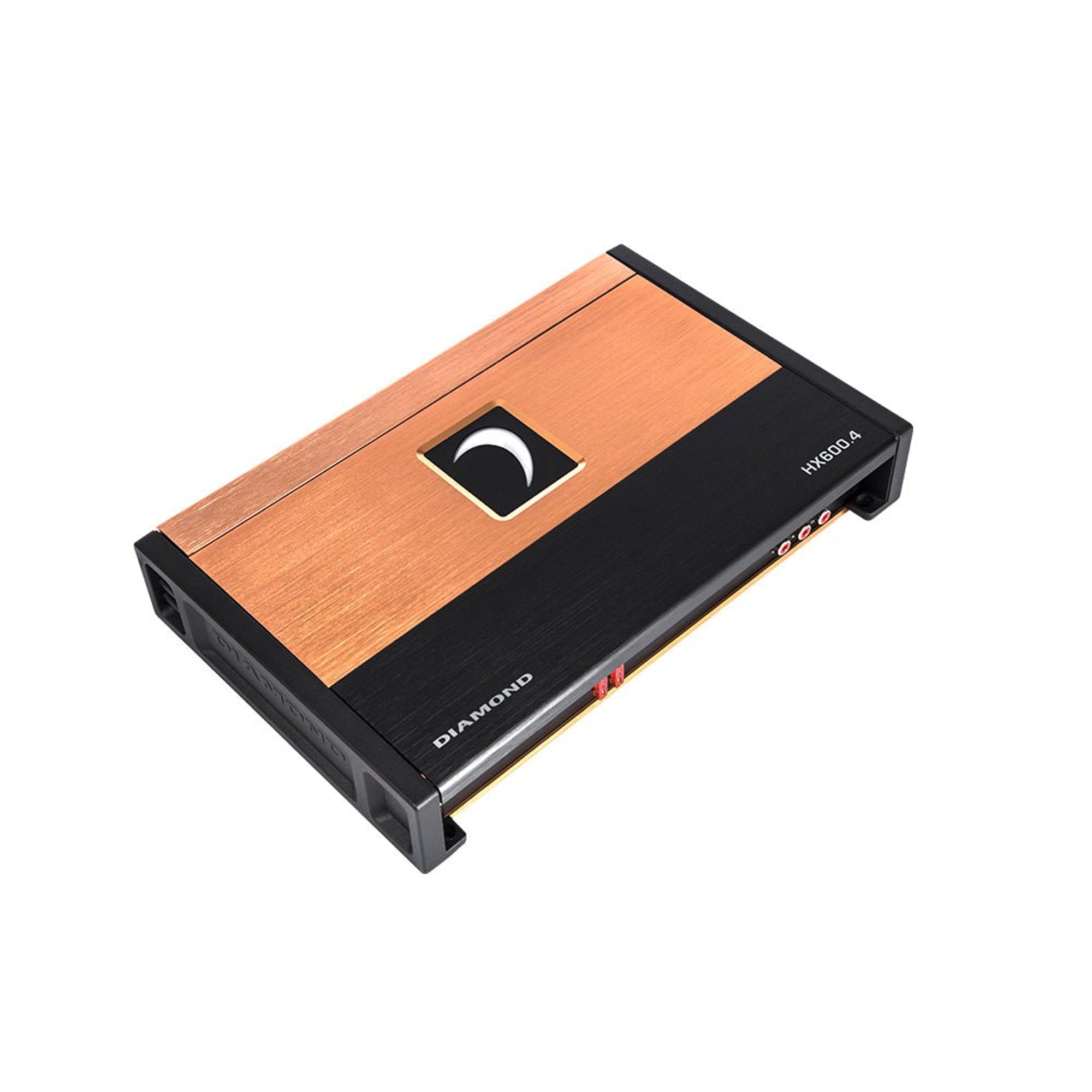

1x Diamond Audio HX600.4D - HEX Series 4-Channel Full Range Class D Amplifier RMS Power (4 Ω): 160W x 4 (HX600.4D)
Diamond Audio HX600.4D is the HEX Series 4-Channel Full Range Class D Amplifier. Introducing the Hex Series Amplifiers – the ultimate choice for audiophiles who demand nothing but the best in sound quality and power. These amplifiers are engineered with meticulous precision and feature high-tolerance components, ensuring an unparalleled listening experience. With top-of-the-line features and user-friendly controls, the Hex Series Amplifiers seamlessly blend advanced technology with convenience. Whether you're setting up a high-end audio system or upgrading an existing one, these amplifiers are designed to deliver unmatched sound quality and power.
Features / Specs -
• RMS Power (4 Ω): 160W x 4
• RMS Power (2 Ω): 250W x 4
• Bridged (mono 4 Ω): 500W x 2
• Bridged (mono 2 Ω): N/A
• Bridged (stereo 4 Ω): 500W x 2

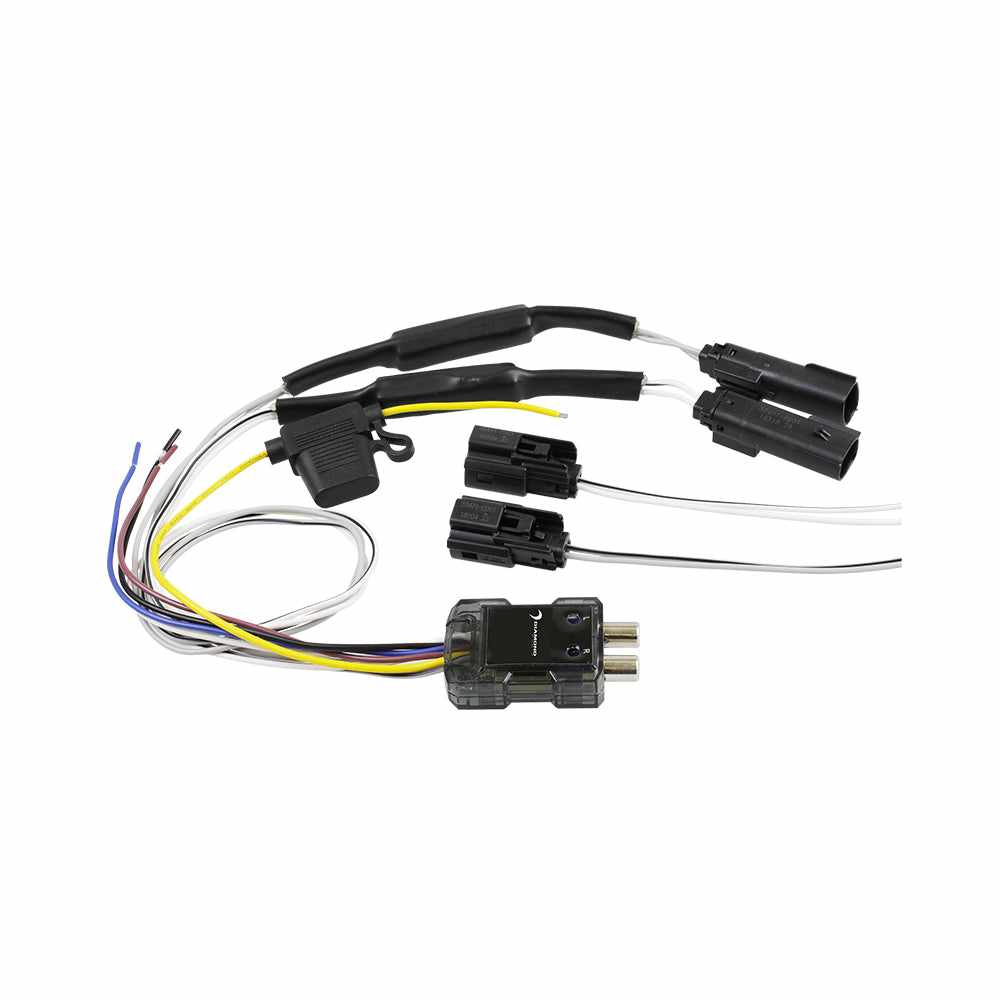

1x Diamond Audio MSLOC2 Motorsport 2-Ch Line Output Converter Harness Kit (MSLOC2)
MSLOC2 - MOTORSPORT 2-CH Line Output Converter Harness Kit
Enhance your motorcycling audio experience with the MSLOC2 Motorsport 2-CH Line Output Converter Harness Kit. Specifically designed for easy integration, this plug-and-play kit seamlessly connects an aftermarket amplifier to the factory radio of your 2014-2023 Harley bagger. Crafted to ensure compatibility with all variations of Harley Motorcycles, this harness offers a comprehensive set of connections and features, providing you with the flexibility and performance you desire. Upgrade your ride today with the MSLOC2 Motorsport Harness Kit.
