Description
Included in this kit
This bundle includes an ELAC DCB61-BK Debut ConneX Powered Speaker - Black, and an ELAC DS123-BK 12" Debut 3.0 Powered Subwoofer – 400W Peak Class D, Sealed Cabinet, 28Hz Low-Frequency Extension, LFE & High-Level Inputs – Black Ash Finish.
1x ELAC DCB61-BK Debut ConneX Powered Speaker - Black (DCB61-BK)

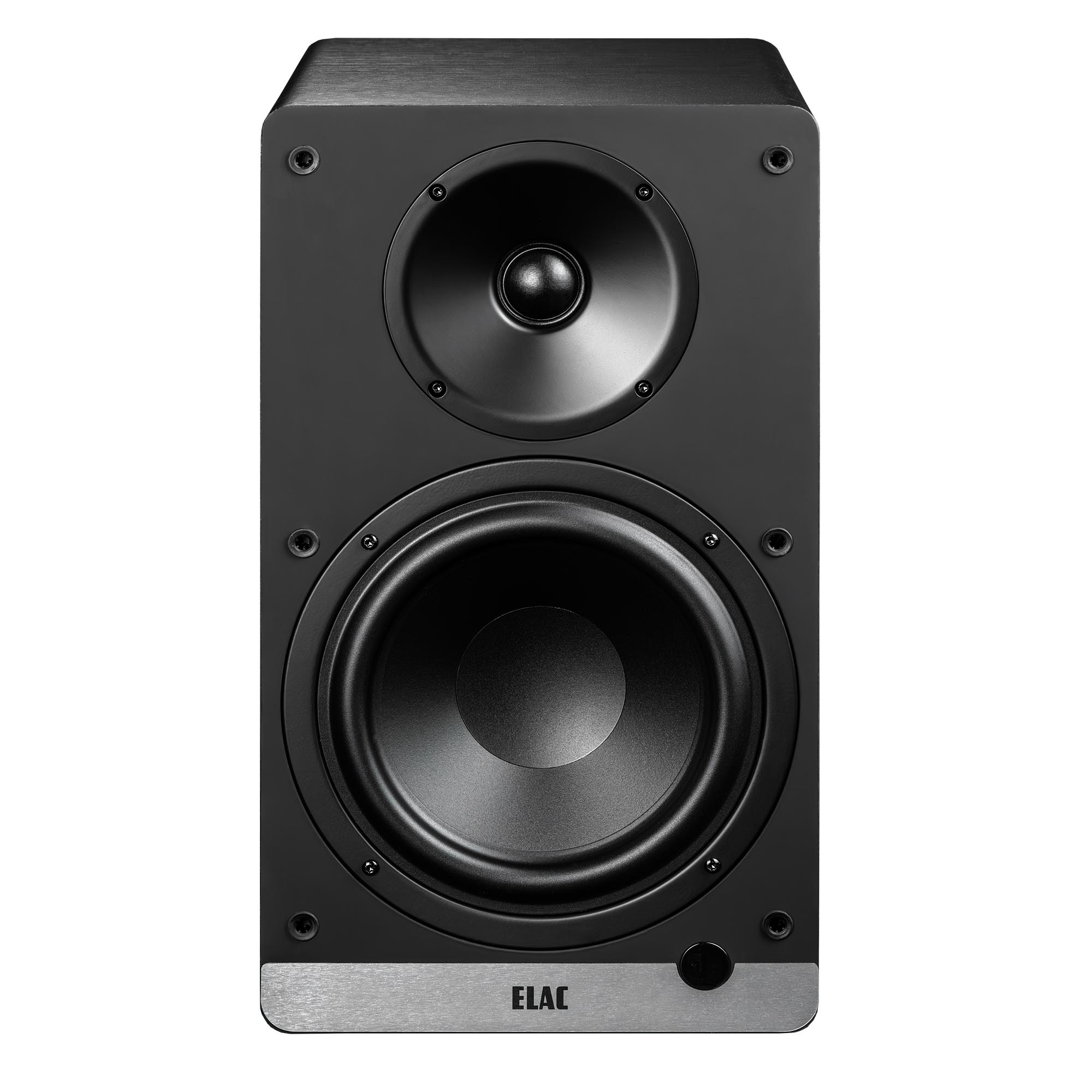

The Debut ConneX DCB61 is a high-performance wireless speaker system designed for ultimate convenience and superior sound quality. Expanding on the design fundamentals of the compact, award-winning DCB41s, the DCB61 Powered Bookshelf Speakers feature enhanced App Control (available on iOS and Android), and powerful long-excursion 6.5" Woofers. Featuring Dolby Digital support, these speakers deliver immersive, cinema-quality sound. With a versatile array of inputs— including HDMI ARC, Analog/Phono, Optical, USB, and Bluetooth—alongside meticulously engineered drivers and amplifiers, the DCB61 guarantees an exceptional listening experience that surpasses expectations.
XBass Enhance
The ELAC ConneX features ELAC’s proprietary XBass Enhancer, delivering enhanced bass extension and output for a richer, more dynamic sound with the option to disable it for a neutral response. To further improve low-frequency performance while minimizing ventilation noise, the DCB61 utilizes a rear-firing, S-shaped bass reflex port, ensuring deep and clean bass reproduction.
Custom Long Excursion Woofer
The DCB61 is equipped with a long excursion 6.5” woofer, designed to deliver powerful output with extended bass response. This high performance woofer enhances low-frequency depth and impact, ensuring rich, dynamic sound with great clarity and precision, whether you’re listening to music or watching movies.
Specifications:
Input: HDMI (eARC)
Input: Line/Phono
Input: USB Audio (96/24)
Input: Optical
Input: Bluetooth - LC3+, supports 96k/24 bit
Outputs: Speaker, Subwoofer Output
Frequency Response @ -3 dB: 48 Hz - 22 kHz
Frequency Response @ -6 dB: 41 Hz - 24 kHz
Total Harmonic Distortion (THD): <=0.1%
Signal to Noise ratio (S/N): >=90 dB
Dimensions (WxDxH): 205 x 243 x 330
Net weight (pair): 24 lbs / 10.9 kg
Gross weight (pair): 30.64 lbs / 13.9 kg
Amplifier (RMS/Peak): 160/320 Watts
APP Control: iOS and Android
Remote Control: Infra-Red
Cabinet: 12mm reinforced MDF
Grilles: Removeable
1x ELAC DS123-BK 12" Debut 3.0 Powered Subwoofer – 400W Peak Class D, Sealed Cabinet, 28Hz Low-Frequency Extension, LFE & High-Level Inputs – Black Ash Finish (DS123-BK)
ELAC DS123-BK 12" Debut 3.0 Powered Subwoofer
The ELAC DS123-BK delivers deep, room-filling bass in a sealed-cabinet design built for both power and precision. Perfectly matched to the Debut 3 series, it offers a commanding low end for music, movies, and gaming.
Performance Highlights
- Custom 12" Driver – High-excursion polypropylene cone with textured surface for accurate, distortion-free bass.
- High-Efficiency Class D Amplifier – 200W RMS / 400W peak output ensures powerful yet controlled performance.
- Sealed Cabinet Design – Acoustic suspension ensures tight bass with quick transient response.
- Versatile Integration – LFE, stereo RCA, and high-level inputs with high-level outputs for flexible setup.
- Customizable Sound – Adjustable crossover, phase, volume, and auto on/off.
Specifications
- Speaker Type: Powered sealed cabinet
- Woofer: 12" polypropylene cone with textured surface
- Frequency Response: 28Hz (-3dB), 26Hz (-6dB)
- Crossover Frequency: 50–150Hz
- Amplifier Type: Class D
- Power Output: 200W RMS / 400W peak
- Standby Consumption: <0.5W
- Inputs: LFE, stereo RCA, high-level
- Outputs: High-level
- Controls: Volume, frequency, phase, auto on/off
- Cabinet Finish: Black ash vinyl, satin black vinyl front
- Dimensions (W x D x H): 14.17" x 14.8" x 14.17" (360 x 378 x 360 mm)
- Net Weight: 30.2 lbs (13.7 kg)
- Total Harmonic Distortion: <0.1%
