Description
Included in this kit
This bundle includes an Elac MRC601-GB - Miracord 60 Turntable - Gloss Black, an ELAC DCB61-BK Debut ConneX Powered Speaker - Black, and an ELAC DS103-BK 10" Debut 3.0 Powered Subwoofer – 200W Peak Class D, Sealed Cabinet, 31Hz Low-Frequency Extension, LFE & High-Level Inputs – Black Ash.

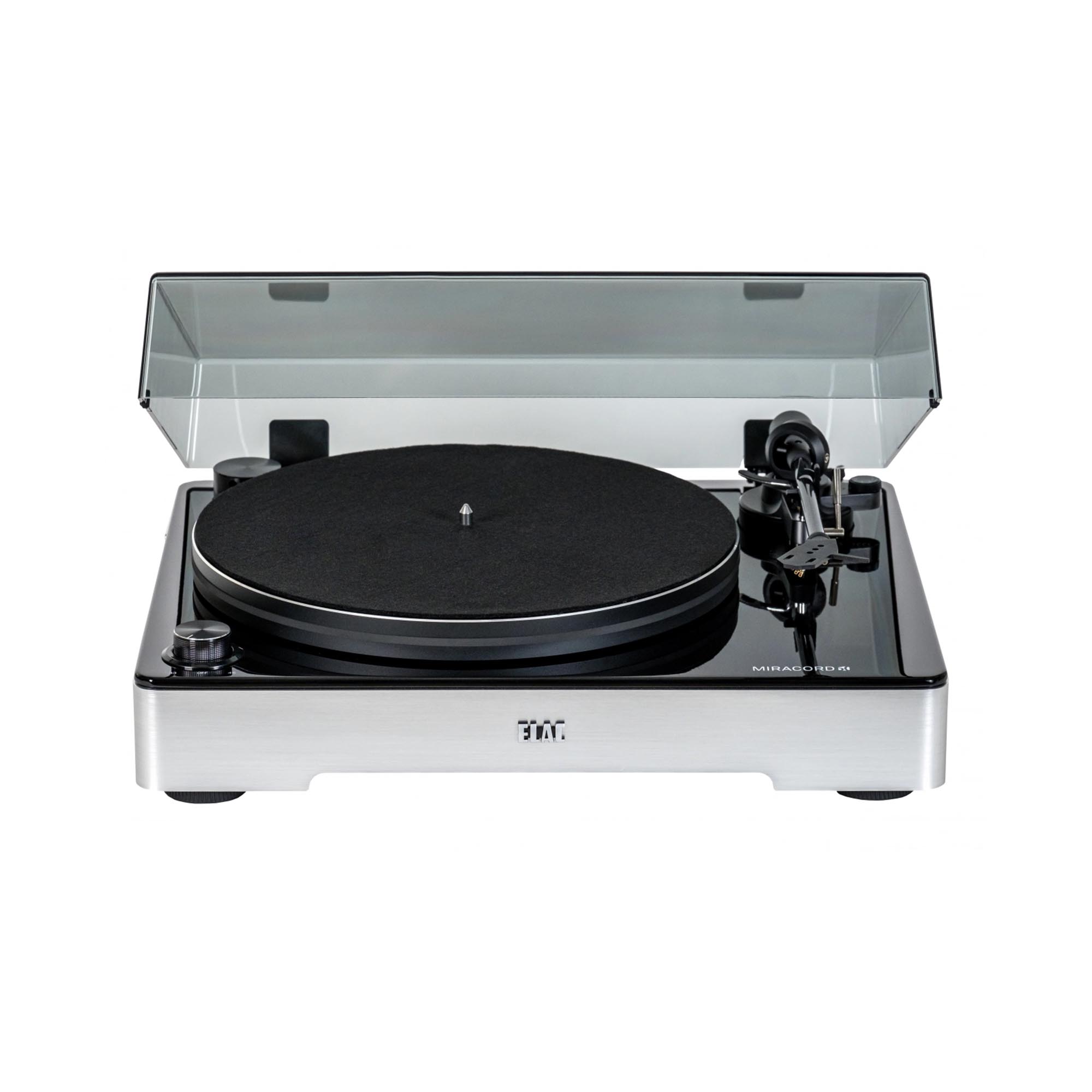

1x Elac MRC601-GB - Miracord 60 Turntable - Gloss Black (MRC601-GB)
For the discerning audiophile seeking a turntable that harmonizes exceptional performance with timeless elegance, the ELAC Miracord 60 emerges as a beacon of sonic excellence. Crafted with meticulous attention to detail, the Miracord 60 boasts a belt-drive mechanism that ensures unwavering rotational stability, minimizing the dreaded wow and flutter that can mar the listening experience. Its carbon fiber tonearm, a testament to ELAC's engineering prowess, glides effortlessly across vinyl records, extracting every nuance and detail with remarkable precision.
Carbon Fiber Tone-Arm
A carbon fiber tonearm with a gimbal bearing represents a pinnacle of audio precision and performance. Its carbon fiber construction offers unparalleled rigidity and lightness, minimizing unwanted resonance and distortion while ensuring remarkable tracking accuracy across the vinyl grooves. The incorporation of a gimbal bearing provides a fluid, low-friction pivot, enabling the tonearm to effortlessly glide, reducing frictional noise and preserving delicate details within the music.
Die Cast Aluminum Platter The 22mm thick die-cast aluminum platter stands as a testament to precision engineering and audiophile-grade performance. Its substantial mass contributes to excellent rotational stability, effectively minimizing unwanted vibrations and resonances that can distort audio playback. The die-cast aluminum construction ensures a high degree of inertness, promoting consistent speed stability for a more accurate and detailed reproduction of the music.
Specifications:
TURNTABLE SECTION
Drive System: Belt-drive
Motor: DC motor
Selectable Speeds: 33⅓ and 45 pm
Rotation Speed Variation: +/- 0.33%
Wow and Flutter: < 0.12%
Platter: Aluminum die-cast
TONEARM SECTION
Type: Carbonfibre tube
Overhang: 18.6 mm
Offset Angle: 25 degrees
Anti-Skating Adjustment: 0...4
Main Bearing: Stainless steel
1x ELAC DCB61-BK Debut ConneX Powered Speaker - Black (DCB61-BK)
The Debut ConneX DCB61 is a high-performance wireless speaker system designed for ultimate convenience and superior sound quality. Expanding on the design fundamentals of the compact, award-winning DCB41s, the DCB61 Powered Bookshelf Speakers feature enhanced App Control (available on iOS and Android), and powerful long-excursion 6.5" Woofers. Featuring Dolby Digital support, these speakers deliver immersive, cinema-quality sound. With a versatile array of inputs— including HDMI ARC, Analog/Phono, Optical, USB, and Bluetooth—alongside meticulously engineered drivers and amplifiers, the DCB61 guarantees an exceptional listening experience that surpasses expectations.
XBass Enhance
The ELAC ConneX features ELAC’s proprietary XBass Enhancer, delivering enhanced bass extension and output for a richer, more dynamic sound with the option to disable it for a neutral response. To further improve low-frequency performance while minimizing ventilation noise, the DCB61 utilizes a rear-firing, S-shaped bass reflex port, ensuring deep and clean bass reproduction.
Custom Long Excursion Woofer
The DCB61 is equipped with a long excursion 6.5” woofer, designed to deliver powerful output with extended bass response. This high performance woofer enhances low-frequency depth and impact, ensuring rich, dynamic sound with great clarity and precision, whether you’re listening to music or watching movies.
Specifications:
Input: HDMI (eARC)
Input: Line/Phono
Input: USB Audio (96/24)
Input: Optical
Input: Bluetooth - LC3+, supports 96k/24 bit
Outputs: Speaker, Subwoofer Output
Frequency Response @ -3 dB: 48 Hz - 22 kHz
Frequency Response @ -6 dB: 41 Hz - 24 kHz
Total Harmonic Distortion (THD): <=0.1%
Signal to Noise ratio (S/N): >=90 dB
Dimensions (WxDxH): 205 x 243 x 330
Net weight (pair): 24 lbs / 10.9 kg
Gross weight (pair): 30.64 lbs / 13.9 kg
Amplifier (RMS/Peak): 160/320 Watts
APP Control: iOS and Android
Remote Control: Infra-Red
Cabinet: 12mm reinforced MDF
Grilles: Removeable
1x ELAC DS103-BK 10" Debut 3.0 Powered Subwoofer – 200W Peak Class D, Sealed Cabinet, 31Hz Low-Frequency Extension, LFE & High-Level Inputs – Black Ash (DS103-BK)
ELAC DS103-BK 10" Debut 3.0 Powered Subwoofer
The ELAC DS103-BK delivers deep, articulate bass in a compact, sealed-cabinet design engineered for both precision and impact. Perfectly matched to the Debut 3 series, it blends refined aesthetics with powerful low-frequency performance.
Performance Highlights
- Custom 10" Driver – High-excursion polypropylene cone with textured surface ensures clean, distortion-free bass with extended low-frequency response.
- High-Efficiency Class D Amplifier – 100W RMS / 200W peak output delivers dynamic power while maintaining cool operation.
- Sealed Cabinet Accuracy – Acoustic suspension design produces fast, tight bass with excellent transient response.
- Versatile Integration – LFE, stereo RCA, and high-level inputs plus high-level outputs for flexible system connectivity.
- Customizable Sound – Adjustable crossover (50–150Hz), phase switch, volume control, and auto on/off functionality.
Specifications
- Speaker Type: Powered sealed cabinet design
- Woofer: 10" polypropylene cone with textured surface
- Frequency Response: 31Hz (-3dB), 29Hz (-6dB)
- Crossover Frequency: 50–150Hz
- Amplifier Type: Class D
- Power Output: 100W RMS / 200W peak
- Standby Consumption: <0.5W
- Inputs: LFE, stereo RCA, high-level
- Outputs: High-level
- Controls: Volume, frequency, phase, auto on/off
- Cabinet Finish: Black ash vinyl, satin black vinyl front
- Dimensions (W x D x H): 12.2" x 12.9" x 12.2" (310 x 328 x 310 mm)
- Net Weight: 22.7 lbs (10.3 kg)
- Total Harmonic Distortion: <0.1%
Whether you're enhancing your stereo system or adding authority to your home theater, the ELAC DS103-BK delivers bass performance that is powerful, precise, and seamlessly integrated.
