Description
Included in this kit

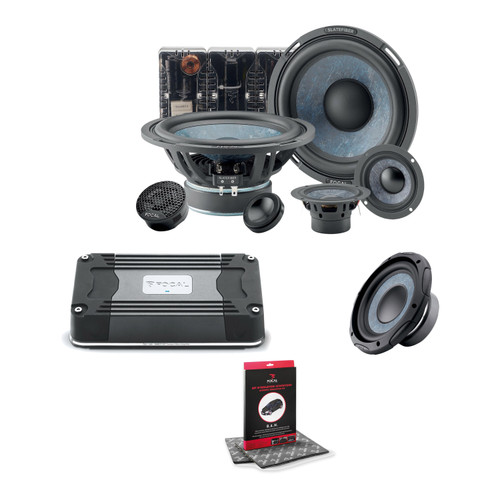

This bundle includes a Focal 165 SF3 - Slate Fiber 3-way Component kit, a Focal BAM Acoustic insulation kit, a Focal SUB 20 SF - Slate Fiber 8" Subwoofer; RMS:200W - 400W MAX, 4ohm, and a Focal FDS-1.350 1 Channel amplifier 1 x 350 W.

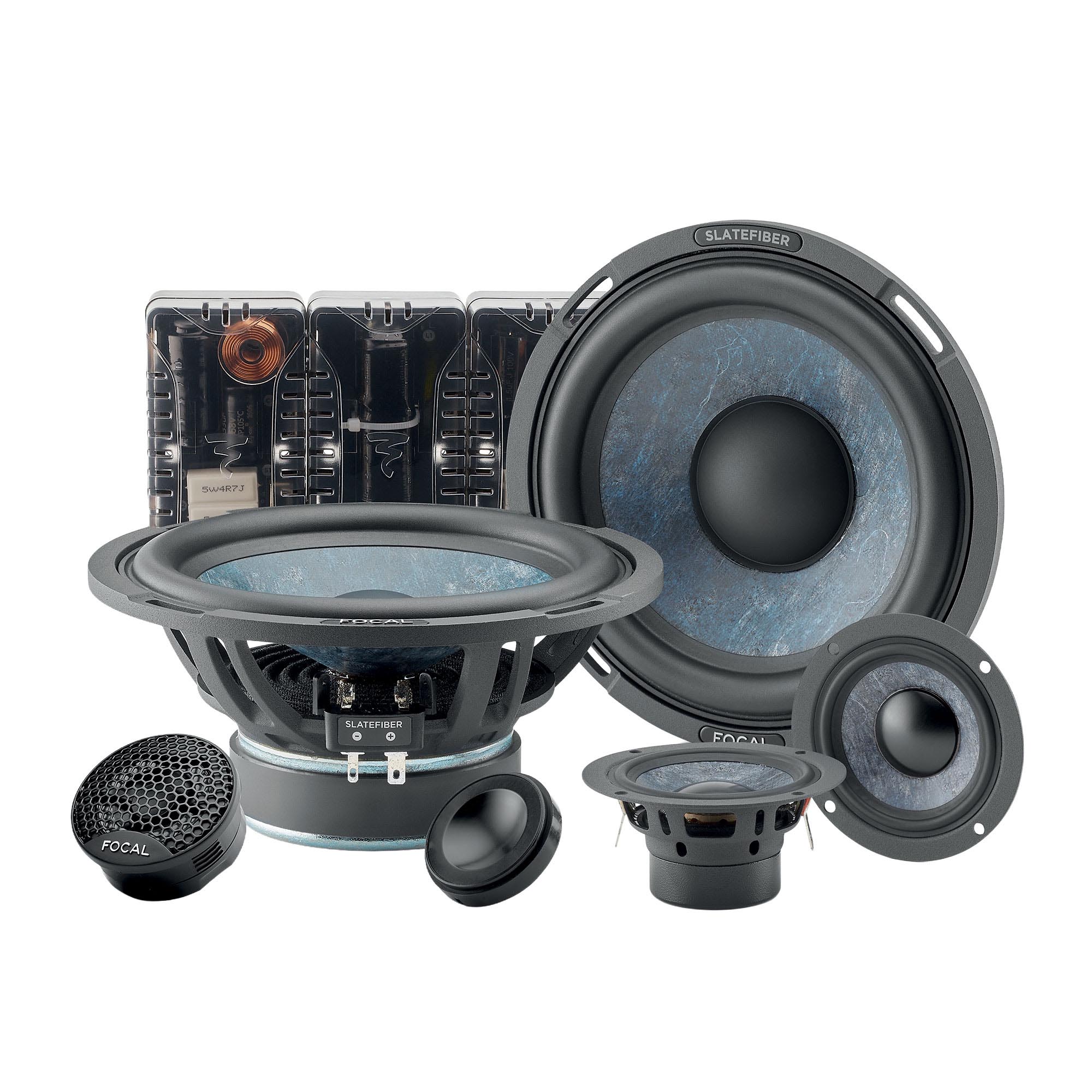

1x Focal 165 SF3 - Slate Fiber 3-way Component kit (165SF3)
The Slatefiber 165 SF3 offers a wide, immersive, and highly detailed soundstage. Its 165 mm woofer, 65 mm midrange, and Al/Mg tweeter work together to reveal every nuance, from impactful bass to delicate highs, all powered by France made Slatefiber technology for balance, natural tone, and dynamics.
Al/Mg tweeter & adjustable filtering
The aluminium/magnesium inverted dome tweeter brings clarity and finesse. With three level adjustment (-3/0/+3 dB), it adapts perfectly to the cabin. Separable crossovers allow flexible, optimised installation based on the vehicle and system design.
Premium construction & perfect integration
Featuring an aluminium rotor design frame, butyl surround, and a 65 mm midrange engineered for intuitive integration, the 165 SF3 offers easy installation and long term reliability.
SPECIFICATIONS
6.5" Speaker
Nominal power: 80W RMS
Maximum power: 160W
Sensitivity: 91dB
Nom. impedance: 4Ω
Cone: Slatefiber
Surround: Butyl
DC resistance: 2.8Ω
VC diameter: 25mm / 1"
Former: Kapton
Layers: 2
Wire: Copper
Net weight: 980g / 2.16lbs
Frequency response (kit): 55-21kHz
Frequency response (woofer with crossover): 55-450Hz
Frequency response (woofer without crossover): 55-4kHz
PARAMETERS Rdc: 2.75Ω
Fs: 50Hz
Mms: 15g
Cms: 0.5mm/N
Vas: 12l
Qts: 0.55
Qes: 0.7
Qms: 9
Bxl: 4.7N/A
Sd: 132cm2
SPL: 91dB
Xmax: 4mm
2.5" Speaker
Nominal power: 40W RMS
Maximum power: 80W
Sensitivity: 87dB
Nom. impedance: 4Ω
Cone: Slatefiber
Surround: Butyl
DC resistance: 2.8Ω
VC diameter: 25mm / 1"
Former: Kapton
Layers: 2
Wire: Copper
Net weight: 150g / 0.33lbs
Frequency response: 250-11kHz
PARAMETERS
Rdc: 2.8Ω
Fs: 230Hz
Mms: 2.8g
Cms: 0.2mm/N
Vas: 0.12l
Qts: 1
Qes: 1.3
Qms: 4.5
Bxl: 2.9N/A
Sd: 22cm2
SPL: 87dB
Xmax: 2mm
Tweeter
Nominal power: 15W RMS
Maximum power: 100W
Sensitivity: 93dB
Nom. impedance: 4Ω
Frequency response: 3000Hz-21kHz
Cone: Al/Mg
Surround: Poron®
VC diameter: 20mm / 0.8"
Net weight: 50g / 0.11lbs
PARAMETERS
Rdc: 4Ω
Fs: 2.6KHz
1x Focal BAM Acoustic insulation kit (BAM)
Acoustic Insulation Kit
Two 21cm x 31cm Sheets
Key Points
Replaces Plain chant
Attenuates the speaker back wave
Increases the bass level in your car
Increases Soundproofing out outside noise
Advantages
3 technical materials, 3 strategic functions
This acoustic insulation kit is completing and essential to a quality car audio installation.
From its use depends optimum acoustic rendering of speakers, amplifiers and installed accessories. Technical materials made of honeycombed damping material, an Aluminum sheet and a viscoelastic complex (Butyl).
Honeycombed damping material
Just like the acoustic foam inside a loudspeaker, the honeycombed damping material attenuates the speaker back wave and thus increases the speaker performance.
Aluminum sheet
Aluminum provides rigidity to the Butyl/foam couple. This rigidity also permits the easy laying of BAM in difficultlocations.
Viscoelastic complex
Self-adhesive, the Butyl complex absorbs the vibrations of the surface with which it’s in contact. It highly attenuates the outside noise that gets inside the car.
1x Focal SUB 20 SF - Slate Fiber 8" Subwoofer; RMS:200W - 400W MAX, 4ohm (SUB20SF)
The SUB 20 SF delivers powerful, controlled bass that transforms the presence and impact of low frequencies in your vehicle. Made with an exclusive Slatefiber cone of recycled carbon fibres, it ensures precision, energy, and exceptional durability.
Powerful bass
The non-woven recycled carbon fibre Slatefiber cone provides rigidity, speed, and precise damping. The result is dynamic, deep, and distortion free bass, even at high volume or during long listening sessions.
Robust design & exemplary performance
A ferrite motor guarantees stability at high excursion, while the butyl surround maintains durability and precise control. The aluminium rotor design frame adds strength and a bold visual identity.
Easy installation & compatibility
With its convenient push terminal block and included grille, the SUB 20 SF is designed for quick, reliable installation. Its optimized efficiency reduces amplification requirements, making the subwoofer compatible with a wide range of car audio systems.
Key points
• Exclusive Slatefiber technology
• High power handling, for long-lasting performances, even at high volume
• Optimised efficiency to limit amplification requirements
• Solid design and rigorously selected materials for long-term reliability
• Grille included
SPECIFICATIONS
Nominal power: 200W RMS
Maximum power: 400W
Sensitivity: 87dB
Nom. impedance: 4Ω
Cone: Slatefiber
Surround: Butyl
DC resistance: 2.8Ω
VC diameter: 52mm/2.05"
Former: Glass fiber
Layers: 4
Wire: Copper
Net weight: 3300g/7.28lbs
PARAMETERS Rdc: 2.8Ω
Fs: 36Hz
Mms: 95g
Cms: 0.2mm/N
Vas: 12l
Qts: 0.39
Qes: 0.42
Qms: 3.8
Bxl: 11.8N/A
Sd: 202 sq. cm
SPL: 87dB
Xmax: 10mm
SUGGESTED APPLICATIONS
Volume: F-3dB
9L (0.32 cu.ft.): 68Hz
14L (0.5 cu.ft.): 64Hz
1x Focal FDS-1.350 1 Channel amplifier 1 x 350 W (FDS-1.350)
Focal FDS-1.350 1 Channel amplifier 1 x 350 W
Ultra Compact Mono Amplifier
The FDS 1.350 is a mono block amplifier specifically designed for handling a subwoofer channel. It has a power of 210 and 350 Watts RMS under 4 and 2 Ohms respectively. In order to configure the system’s bass according to the car’s installation; it is equipped with an active crossover, bass correction and phase adjustment.
Advantages
D Class – Direct Fet ® Technology – Efficient heat dissipation and precision
Stable under 2 Ohms
Stackable aluminium chassis with high heat dissipation
Low noise operational amplifiers New Japan Radio® NJM4580
Low ESR capacitors – 105°C (220°F)
Pseudo-balanced inputs
Cable accessories included – easy to install
Specifications:
Mono Class D amplifier with dual output High-level inputs with auto-detection / RCA low-level inputs
CEA power (4 Ohms) 1 x 210 Watts RMS
Power max (2 Ohms) 1 x 350 Watts RMSv Low-pass crossover 40Hz – 400Hz
Progressive phase adjustment (0-180°)
Bass boost (0/6dB/12dB)
Protections Short circuit / low impedance / reversal of polarity / DC / power drop / heat protection
Dimensions (L X H X W) 7-13/16 x 4-1/4 x 1-11/16 in (199 x 108 x 43mm)
Weight 1.8lbs
