Description
Included in this kit
This bundle includes a Focal F100ICW6 In-wall/in-ceiling 2-way Coaxial Loudspeaker, and a Focal 100 ICW 6 Mounting Kit.

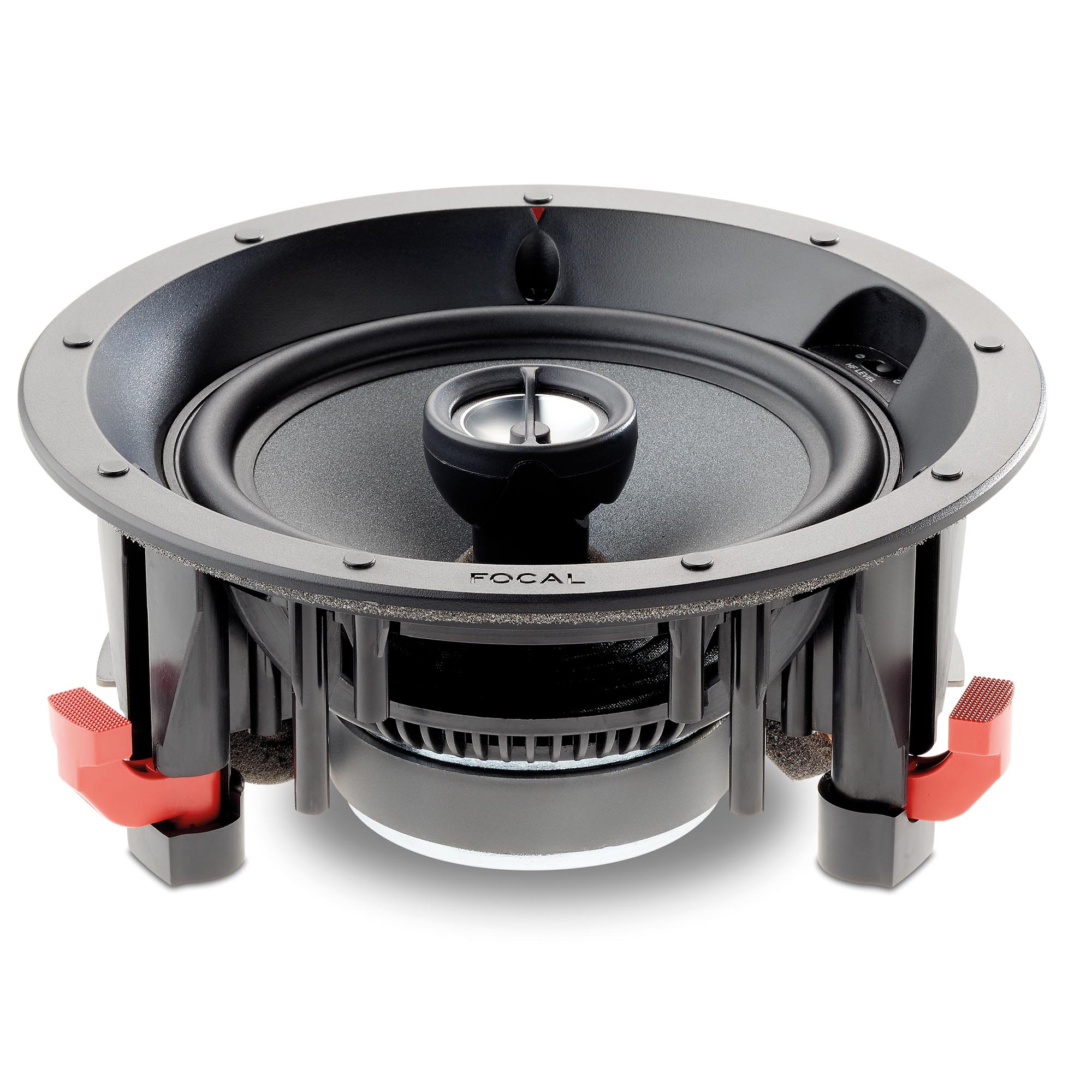

1x Focal F100ICW6 In-wall/in-ceiling 2-way Coaxial Loudspeaker (F100ICW6)
The 100ICW6 loudspeaker which is dedicated to home audio can be highlighted for its acoustic performances and compact design. This product is aimed at small to medium sized rooms and for three types of use: distributed systems (hallways, living rooms…), stereo systems (bedrooms, kitchens…) and Home Cinema systems (in dedicated rooms or living rooms). The product is suitable for every room in the house, even in humid environments such as bathrooms. It can be used in-wall or in-ceiling. This coaxial loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving sound dispersion. It is also equipped with a new Polyglass cone (61/2” – 16.5 cm). A new crossover improves the off-axis listening and avoids the “shower effect”. This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis being redesigned as a single piece and also to square and circular magnetic front grilles, frameless. The 100 Series brings an unexpected musicality to your home with ease. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.
Accessories required for installation are sold separately (pre-mounting kit and fire rated backcan)
Drivers 6 1/2" (16,5cm) Polyglass Midbass
1" (25mm) AI inverted dome Tweeter
Sensitivity (2.83V/1m) 89dB
Frequency response (+/-3dB) 62Hz-23kHz
Low frequency point (-6dB) 50Hz
Nominal impedance 8 Ώ
Minimal impedance 7.3 Ώ
Recommended amplifier power 25-100W
External dimensions (Ø/Depth) 8 3/16"x3 47/64" (208x95mm)
Cut-Out diameter 7 1/4" (184mm)
Depth from wall 3 37/64" (91mm)
Net weight (with front grille) 3.3lbs (1.50kg)
Packing dimensions (WxDxH) 10 5/8"x10 5/8"x6 11/16" (270x270x170mm)
Total weight (with packaging) 4.96lbs (2.25kg)

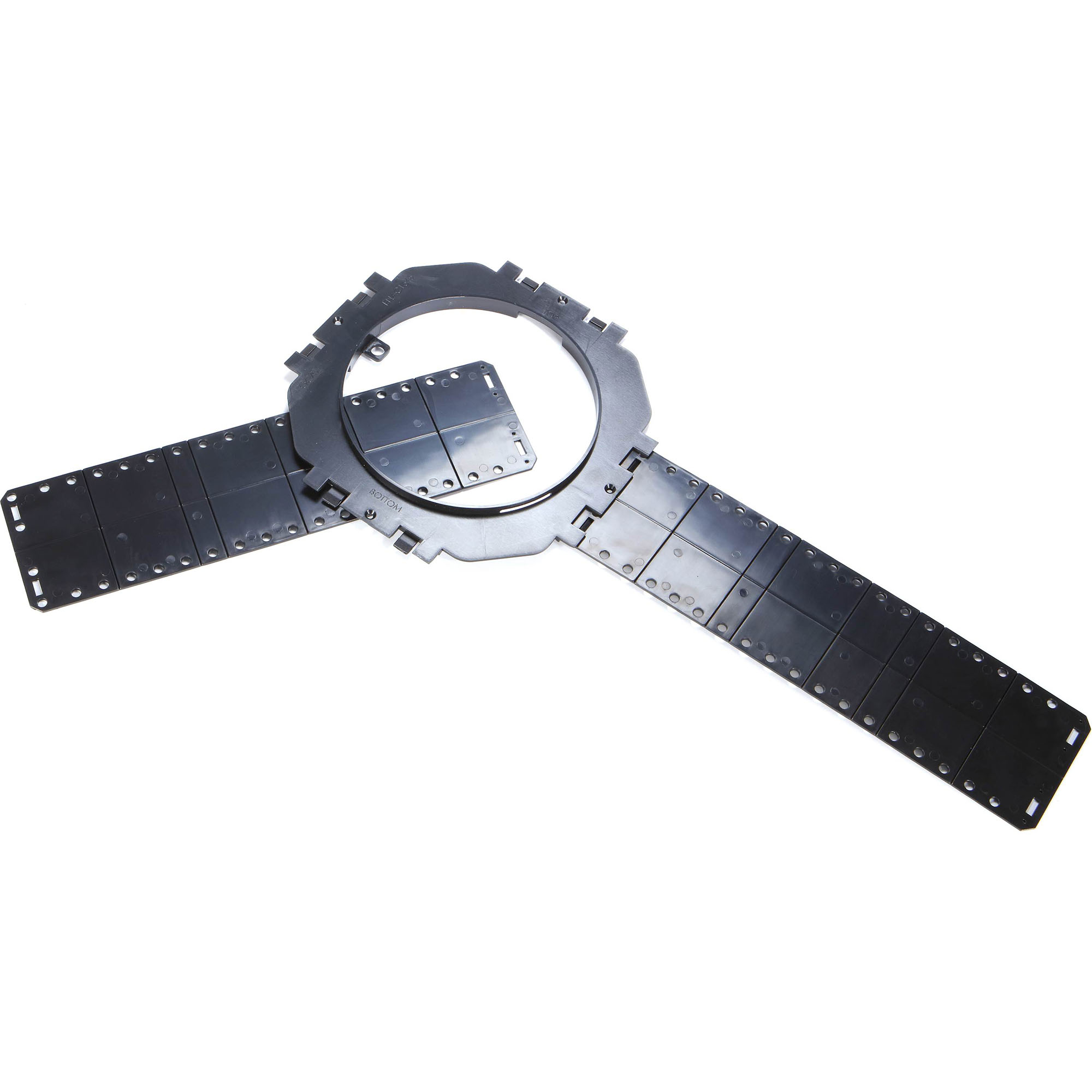

1x Focal 100 ICW 6 Mounting Kit (F100ICW6MOUNT)
This new-construction bracket is designed for the Focal 100 ICW 6 in-ceiling speaker. Attach the bracket to the ceiling joists before the drywall goes up to mark the speaker location for your builders. This ensures precise speaker placement, and helps make your installation go smoother.
Features -
• new-construction bracket for the Focal 100 ICW 6 in-ceiling speaker
• easily marks the speaker installation location
