Description
Included in this kit
This bundle includes a Hertz HMP-1D Marine & Powersports D-Class Mono Bass Amplifier 300 WRMS x 1 at 2-Ohm (IP64 rated), and 2x Hertz HMS 10 S4-LD-G.1 - 10" 4-Ohm Marine Subwoofer with RGB LEDs, Gray Sport Grille.
1x Hertz HMP-1D Marine & Powersports D-Class Mono Bass Amplifier 300 WRMS x 1 at 2-Ohm (IP64 rated) (HMP-1D)
Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 1D amplifiers is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results. The level of HMP 1 D amplifiers can be remote controlled with the included HRC BM (Hertz Remote Control Bass Management). Connected to the Remote Control plug, this provides extremely precise volume level from the comfort of your seat.
Features -
• To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
• Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marine grade (epoxy coated) PCB boards.
• The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
Specifications -
• Distortion - THD (100 Hz @ 4Ω): 0.1 %
• Bandwidth: 10 ÷ 500 Hz
• S/N Ratio (A weighted @ 1 V): 105 dB
• Damping factor (100 Hz @ 4Ω): 300
• Load impedance (MIN) @ 2 Ch: 2Ω:

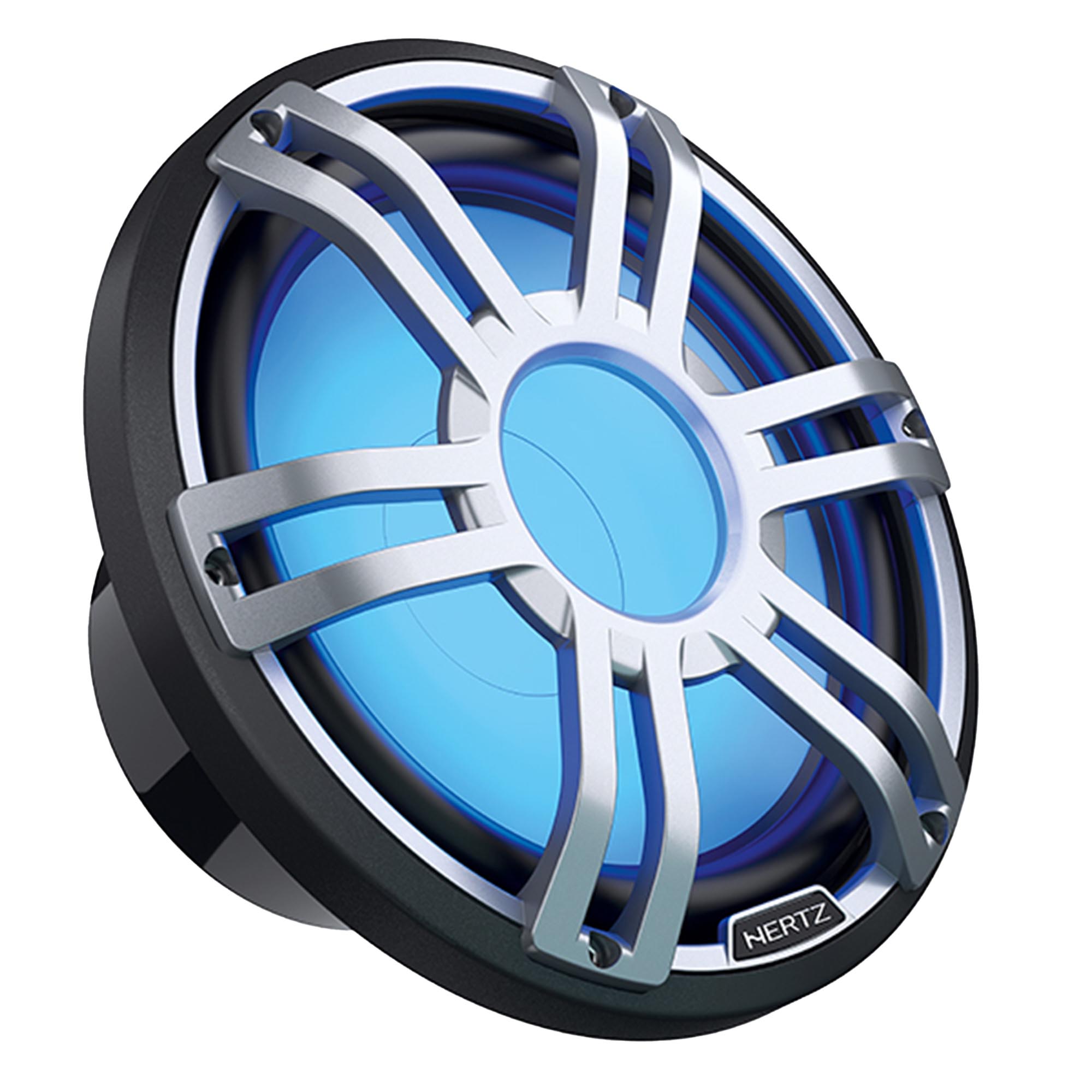

2x Hertz HMS 10 S4-LD-G.1 - 10" 4-Ohm Marine Subwoofer with RGB LEDs, Gray Sport Grille (HMS-10-S4-LD-G.1)
Sport grille, featuring built-in LEDs, can be easily removed to be painted with the perfect color for your vessel. HMS subwoofers are designed to be installed without the need for a dedicated enclosure delivering powerful and precise bass in any vessel.
The motor and suspension design are optimized for high-power, infinite-baffle operation featuring long linear excursion capability for tremendous output with low-distortion.
Hertz Marine subwoofers not only add tons of bass output to your system but also relieve the main speakers from the hard work of reproducing the lowest frequency range, maximizing the overall system performance, for unlimited sound pressure and emotion!
Technical Specs
Size mm (in.): 250 (10)
Power Handling - Continuous W: 300
Power Handling - Peak W: 600
Impedance Ohm: 4
Depth mm (in.): 191 (7.52)
No Filter Component: 2Ω SPORT LED SUBWOOFER
Voice Coil Ø: 50 (2)
Magnet size D x d x h mm (in.): 140 x 60 x 30 (5.51 x 2.36 x 1.18)
Weight of one component kg (lb.): 5,1 (11.24)
Magnet: High density flux ferrite
Cone: Polypropylene with UV inhibitors
Xmech mm (in.): ±16,3 (0.64)
Electro-acoustic Specs
D mm: 210
Xmax mm: 12,3
Re Ohm: 4,5
Fs Hz: 43
Le mH: 0,46
Vas I: 30,46
Mms g: 75,6
Cms mm/N: 0,18
BL T*m: 8,3
Qts: 0,60
Qes: 0,63
Qms: 12,3
Spl dB: 88,5
