Description
Included in this kit
This bundle includes a Hertz Venezia Compact V4C - 4-Channel Compact Marine Amplifier 150 W x 4 @ 2-Ohm, and a Hertz HMLC4-32 Marine Line 4 Channel RCA Cable 32 feet / 10 meters.
1x Hertz Venezia Compact V4C - 4-Channel Compact Marine Amplifier 150 W x 4 @ 2-Ohm (Venezia-Compact-V4C)
Venezia V4C compact marine amplifier features an optimized power/size ratio boosting 110 W x 4 (4Ω) and 380 W x 2 (4Ω)! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V4C is engineered and tested for marine applications and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. Last but not least, Venezia V4C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
General Specs
Channels 4 - 3 - 2
POWER SUPPLY
Power supply voltage 9 ÷ 16 VDC
ldling current (power ON/OFF): 1 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 21 A
Remote In: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,06%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 102 dB
Damping factor (100Hz @ 4Ω) 150
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Load impedance (MIN)
@4Ch: 2Ω + 2Ω + 4Ω
@3Ch: 2Ω
@2Ch: 4Ω
Adjustable Crossovers: yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
4Ch: 110 W x 4 (4Ω)
4Ch: 190 W x 4 (2Ω)
3Ch: 110 W x 2 (4Ω) + 380 W x 1 (4Ω)
3Ch: 190 W x 2 (2Ω) + 380 W x 1 (4Ω)
2Ch: 380 W x 2 (4Ω)
Total Power RMS: 760 W
INPUTS / FILTERS
Inputs: PRE IN
Pre Out FULL range (FRONT): Yes
FRONT Ch. filters FULL: Yes
Hi-Pass : 50 ÷ 4k Hz @ dB/Oct
Lo-Pass: 50 ÷ 4k Hz @ dB/Oct
REAR Ch. filters FULL: Yes
Hi-Pass: 50 ÷ 4k Hz @ dB/Oct
Lo-Pass: 50 ÷ 4k Hz @ dB/Oct
FRONT Ch. MONO (on/off): Yes
REAR Ch. MONO (on/off): Yes
BOOST 50 Hz (adjust): (0 ÷ 12) dB

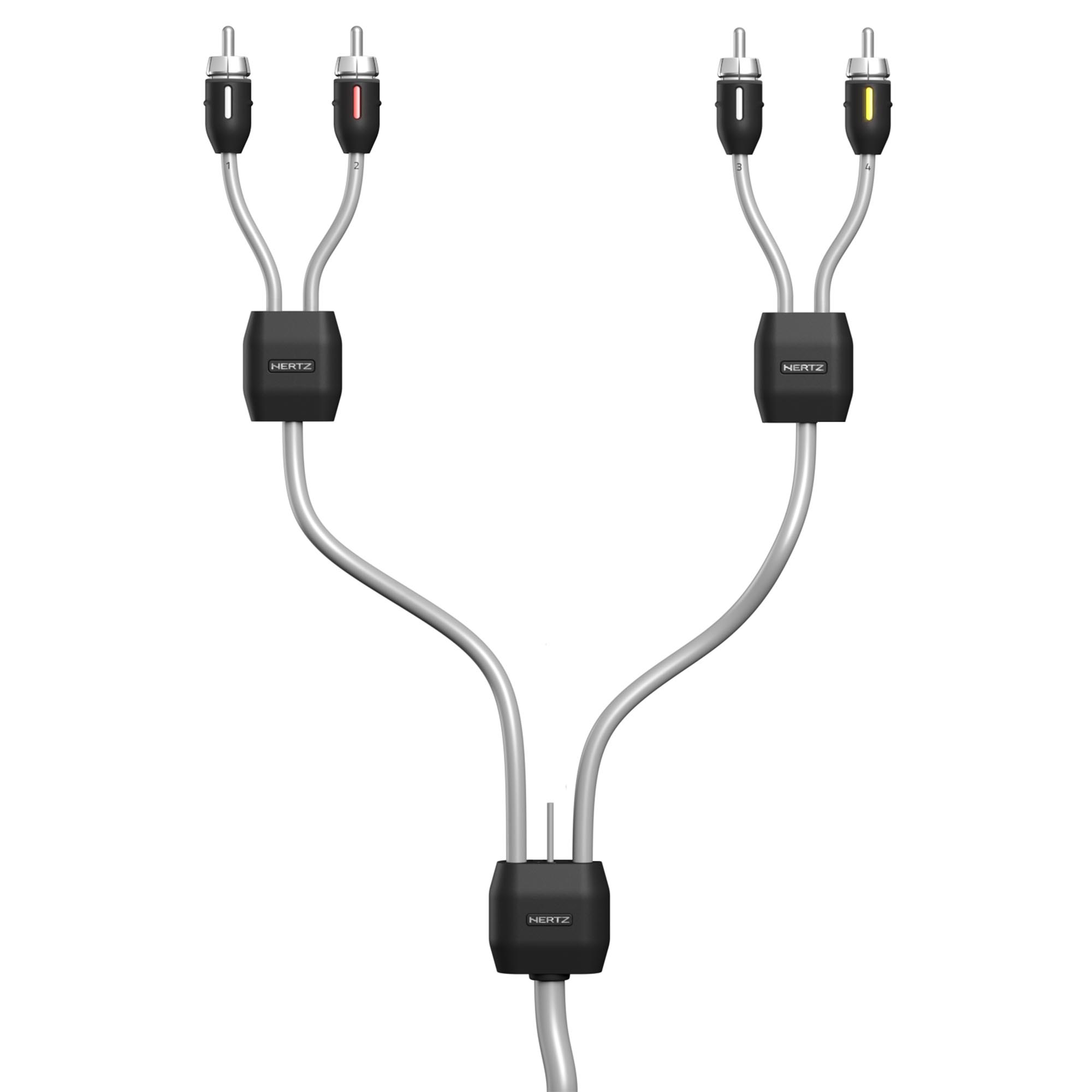

1x Hertz HMLC4-32 Marine Line 4 Channel RCA Cable 32 feet / 10 meters (HMLC4-32)
High-performance 4-channel RCA cable built for long-distance marine audio signal routing. Designed for clean, interference-free transmission with rugged shielding and marine-grade construction.
Features
4-channel RCA cable for multi-zone or multi-amp marine audio systems
Gold-plated connectors ensure excellent contact and long-term corrosion resistance
Heavy-duty shielding protects against EMI and RF interference across long runs
Tinned OFC copper conductors ensure high signal integrity in humid, salty environments
Flexible and UV-resistant marine-grade outer jacket for reliable installation
10-meter (32 ft.) length ideal for complex marine setups requiring extended cable runs
Technical Specs
Cable Length Meter m: 10
Cable Length Feet feet: 32.81
Number of Channels: 4 CH
Cable Color: White
