Description
Included in this kit
This bundle includes a Hertz Venezia Compact V5C - 5-Channel Compact Marine Amplifier 115W x 4 + 550W x 1 @ 2-Ohm, and a Hertz HMLC6-32 Marine Line 6 Channel RCA Cable 32 feet / 10 meters.
1x Hertz Venezia Compact V5C - 5-Channel Compact Marine Amplifier 115W x 4 + 550W x 1 @ 2-Ohm (Venezia-Compact-V5C)
Venezia V5C is the compact five channels marine amplifier, featuring 80 W x 4 (4Ω) plus 330 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5C is engineered and tested for marine applications and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. Last but not least, Venezia V5C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
General Specs
Channels: 5 - 3
POWER SUPPLY
Power supply voltage: 9 ÷ 16 VDC
ldling current (power ON/OFF): 1.7 A / 0.05 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 47 A
Remote In:: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,05%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 100 dB
Damping factor (100Hz @ 4Ω): >130
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN)
@5Ch: 2Ω
@3Ch: 4Ω + 4Ω + 2Ω
Weight (kg/lb): 3.72 / 8.2
Adjustable Crossovers: yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
5Ch: 80 W x 4 (4Ω) + 330 x 1 (4Ω)
5Ch: 115 W x 4 (2Ω) + 550 W x 1 (2Ω)
3Ch: 230 W x 2 (4Ω) + 330 W x 1 (4Ω)
3Ch: 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
Total Power RMS: 1010 W
INPUTS / FILTERS
Inputs: A Ch. Pre in, B Ch. Pre in, Sub Ch. Pre in
Pre Out: No
A Ch. filters: Yes
By-Pass Yes
Hi-Pass : 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
B Ch. filters:
By-pass: Yes
Hi-Pass: 50 ÷ 500 Hz @ 12 dB/Oct
Band-Pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Sub Ch. filters:
By-pass: No
Low-Pass: 50 ÷ 250 Hz @ 24 dB/Oct
Phase (adjust°): (0 ÷ 180°)
Subsonic: 25 Hz @ 24 dB/Oct
Boost 50 Hz (adjust): (0 ÷ 12) dB

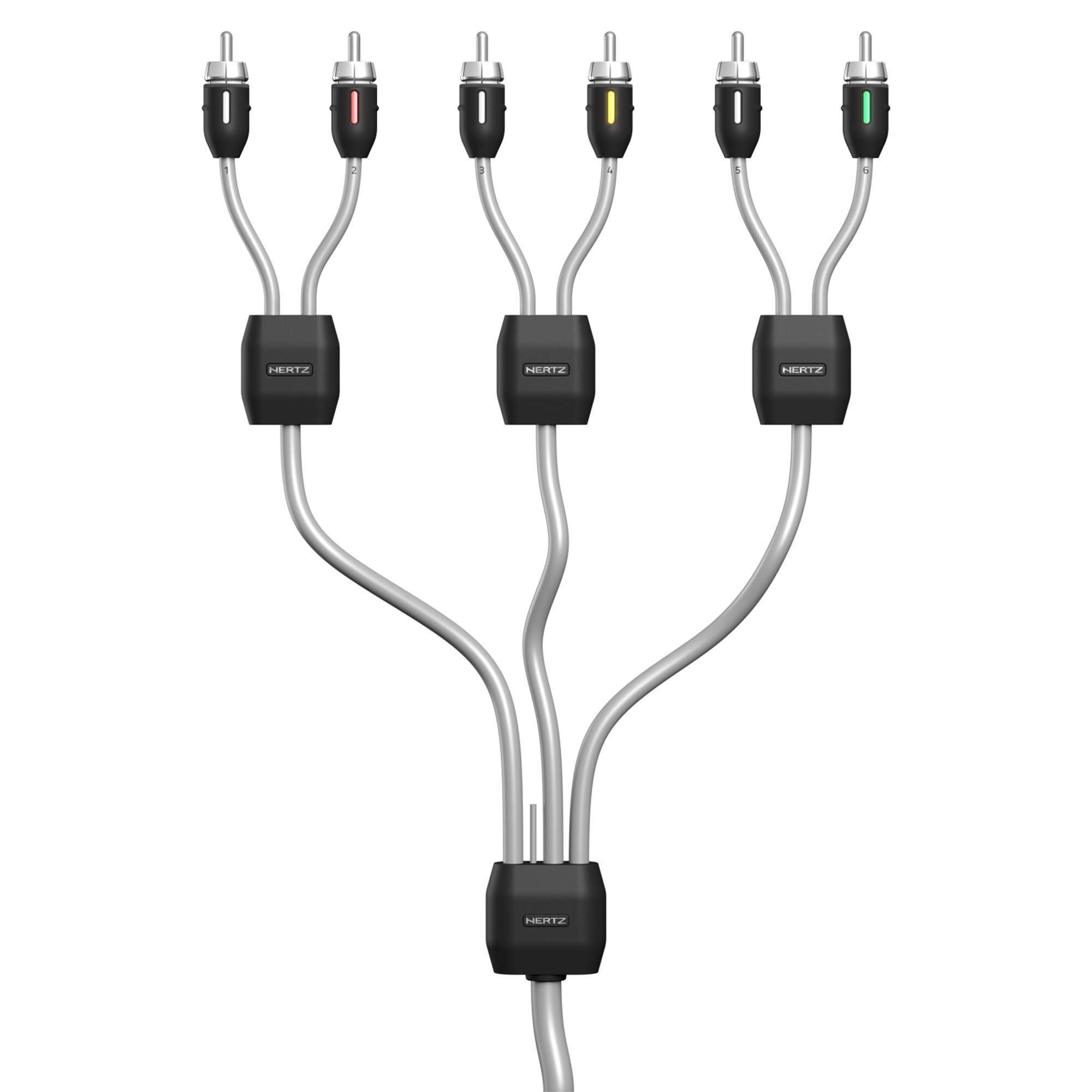

1x Hertz HMLC6-32 Marine Line 6 Channel RCA Cable 32 feet / 10 meters (HMLC6-32)
Premium 6-channel RCA marine cable designed for long-distance high-fidelity signal transmission. Ideal for complex audio systems with multiple zones or amplifiers, ensuring clean signal delivery in any marine environment.
Features
6-channel RCA cable simplifies wiring for advanced multi-zone marine audio systems
Gold-plated connectors offer long-term corrosion resistance and optimal contact
Heavy-duty shielding eliminates EMI/RFI interference for clean sound
Tinned OFC copper conductors ensure stable and distortion-free signal flow
Rugged marine-grade jacket provides UV, moisture, and salt resistance
10-meter (32 ft.) length suitable for large boats or distributed system layouts
Technical Specs
Cable Length Meter m: 10
Cable Length Feet feet: 32.81
Number of Channels: 6 CH
Cable Color: White
