Description
Included in this kit
This bundle includes a Hertz Compact Power HCP-2X High Power AB-Class Stereo Amplifier 200 WRMS X 2 at 2-Ohm, and a Hertz Mille Pro Series MPK 1653 6.5" Two-Way Pro Audio Component System w/ 1" Tweeters.

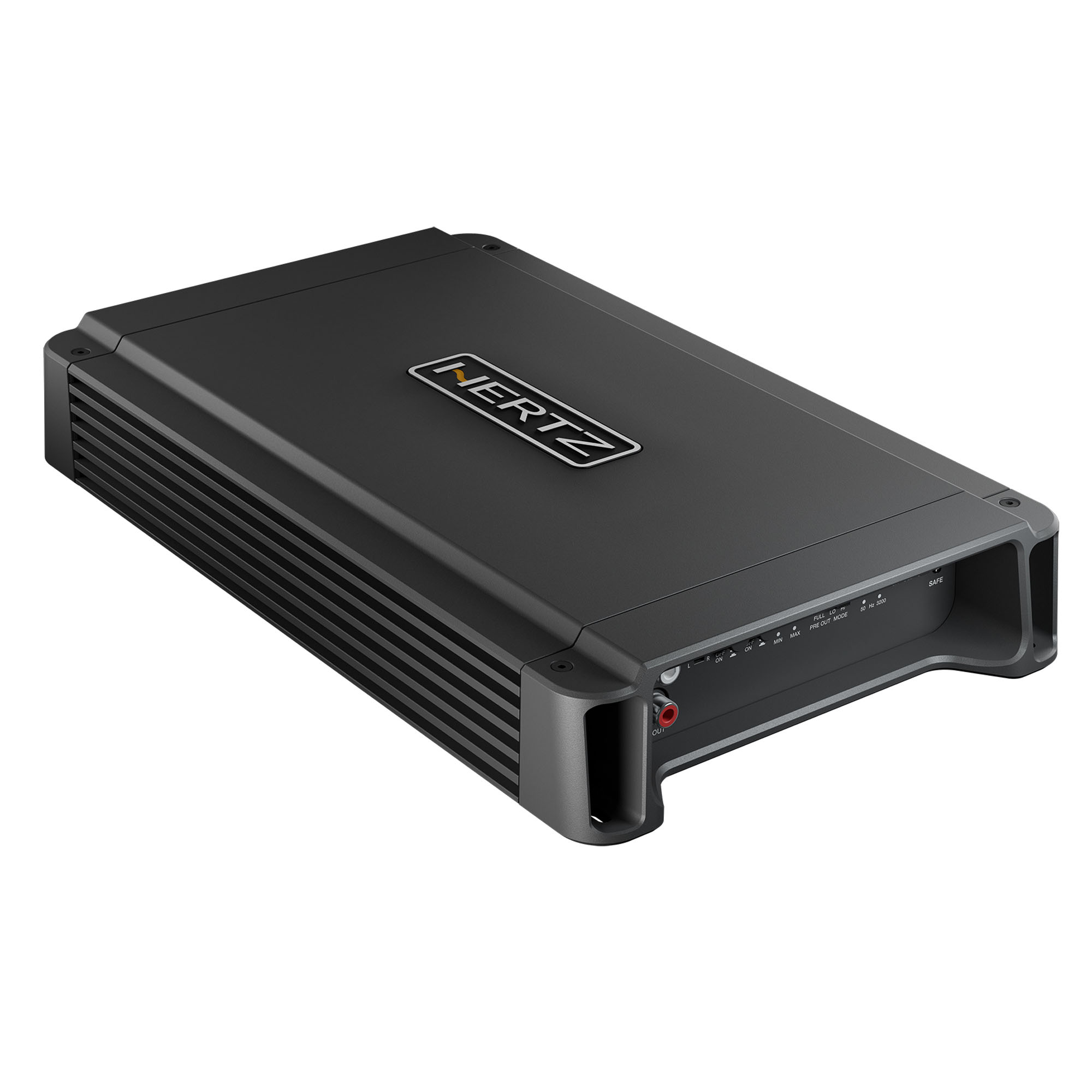

1x Hertz Compact Power HCP-2X High Power AB-Class Stereo Amplifier 200 WRMS X 2 at 2-Ohm (HCP-2X)
HCP 2X is a brand new stereo car audio amplifier, 800W amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. With HCP 2X high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 ÷ 12 dB) to enhance low frequencies.
Features -
• Compact Design Built from Extruded Aluminum Heatsink with the Top Side Ensuring Effective Transfer of Heat.
• Special Balanced High-Noise Rejection Input Circuitry on the Pre-In or Speaker-In Inputs.
• Speaker-In (For OEM Head Units) and RCA-In (For Aftermarket Head Units) Inputs.
Power Supply -
• Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 20 A
• Idling current (power ON/OFF): 0. 6 A / 0.4 mA
• Remote In: 7 ÷ 15 VDC - 1 mA
• ART: Automatic Remote Turn-On/Off with Speaker-In
• Amplifier Stage -
• Distorsion - THD (100 Hz @ 4 Ω): 0.03 %
• Bandwidth: 10 ÷ 65k Hz
• S/N Ratio (A weighted @ 1 V): 105 dB
• Damping factor (100 Hz @ 4 Ω): 300
• Pre-In sensitivity: 0.2 ÷ 5 VRMS
• Speaker-In sensitivity: 0.8 ÷ 20 VRMS
1x Hertz Mille Pro Series MPK 1653 6.5" Two-Way Pro Audio Component System w/ 1" Tweeters (MPK-1653)
The MPK 165.3 car audio speakers system has been designed to ensure a wide low frequency response, even in cars with no space for a subwoofer. Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 woofer boast outstanding dispersion features and generates high SPL with compact dimensions. The dedicated crossover MPCX 2.3 has been designed to exploit the wide extension of the MP 165.3 woofers , ensuring a natural transition towards the MP 25.3 tweeter, for maximum natural acoustic emission. The 1mm low parasitic resistance copper filter coil of the woofer maximizes its efficiency. The MPCX 2.3 crossover features tweeter level (0/+2 dB) to calibrate the MP 25.3 acoustic emission level comparing it to the woofer one.
Features -
• High density flux ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels.
• Low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
• Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.
• 1mm pure copper wire low series resistance inductors, for low dissipation losses on the woofer section where high transient currents are demanded
• Small footprint design for easy installation, with top vent grille for efficient heat dissipation.
Specifications -
• Power Handling - Peak W: 220
• Power Handling - Continuous W: 110
• Impedance Ω: 4
• Frequency response Hz: 40 ÷ 22,5k
• Sensitivity dB SPL: 92
• Voice coil Ø mm (in.): 25 (1)
• Woofer size mm (in.): 165 (6.5)
• Tweeter size mm (in.): 29 (1.14)
