Description
Included in this kit

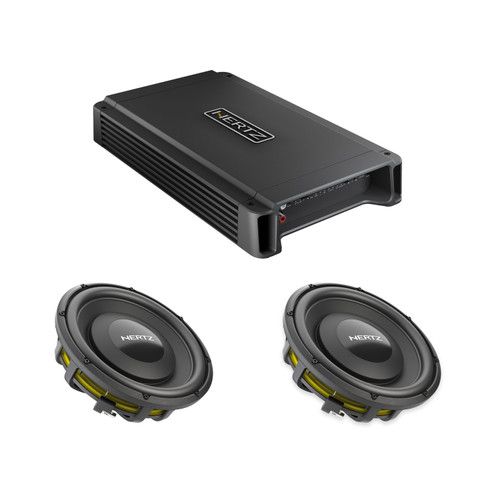

This bundle includes a Hertz Compact Power HCP-1DK D-Class Mono Bass Amplifier 1240 WRMS x 1 at 2-Ohm, and 2x Hertz Mille Pro Shallow MPS 250 S4 Shallow 10 in. (250mm) 4Ω SVC Subwoofer incl. grille.
1x Hertz Compact Power HCP-1DK D-Class Mono Bass Amplifier 1240 WRMS x 1 at 2-Ohm (HCP-1DK)
HCP 1DK is a mono car audio amplifier with an incredibly minimized size heat sink. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. HCP 1DK has been designed to work in multiple configurations. More specifically, it features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer. Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.
Features -
• The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.
• Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.
Power Supply -
• Power supply voltage / fuse: 11 ÷ 15 VDC / 3 x 30 A
• Idling current (power ON/OFF): 0.8 A / 1 mA
• Remote In: 7 ÷ 15 VDC - 1 mA
• ART: Automatic Remote Turn-On/Off with Speaker-In
Amplifier Stage -
• Distorsion - THD (100 Hz @ 4 Ω): 0.25 %
• Bandwidth: 10 ÷ 500 Hz
• S/N Ratio (A weighted @ 1 V): 100 dB
• Damping factor (100 Hz @ 4 Ω): 100
• Pre-In sensitivity: 0.2 ÷ 5 VRMS
• Speaker-In sensitivity: 0.8 ÷ 20 VRMS
• Load impedance (MIN): 2 Ω
2x Hertz Mille Pro Shallow MPS 250 S4 Shallow 10 in. (250mm) 4Ω SVC Subwoofer incl. grille (MPS-250-S4)
Mille PRO shallow subwoofers have been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.
MPS 250 S4 is optimized to work in ultra-compact sealed boxesstarting from only 14 Lt (0.49 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.
Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.
This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.
Provided with MPS 250 there is a full metal sturdy structure composed by a solid cast aluminium ring and a steel mesh black grille featuring an elegant diamond-cut Hertz Logo
Technical Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 4
• Depth mm (in.): 82,6 (3.25)
• Voice Coil Type: single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38 (1.5)
• Frequency Response Hz: 25 - 400
• Magnet size D x d x h mm (in.): 134 x 55 x 36 (6.28 x 2.17 x 1.42)
• Weight of one component kg (lb.): 5,11 (11.27)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20 (0.79)
