Description
Included in this kit

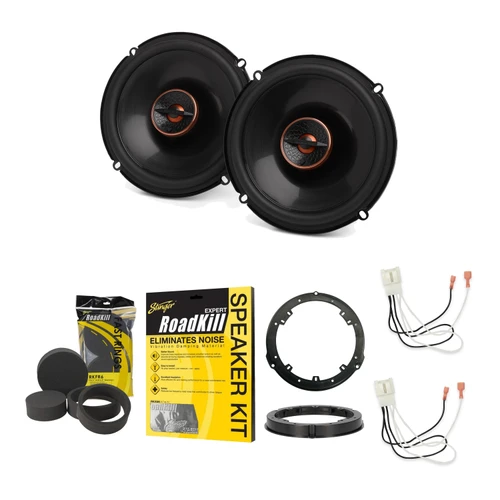

This bundle includes an Infinity REF607F Reference Series 6.5" Extreme-performance automotive coaxial speakers, a Metra 82-5605 Speaker Mounting Brackets Install 6.5" to 6.75" speakers in select 2001-up Ford, Alfa Romeo, Hyundai, Jaguar, Land Rover, Lincoln vehicles, a Metra 72-5602 Speaker Harness Pair - Fits Ford/Multi-App 2008-Up, a Stinger RKFR6 Roadkill Fast Rings 6" & 6.5", and a Stinger RKXSK RoadKill Expert Speaker Kit.
1x Infinity REF607F Reference Series 6.5" Extreme-performance automotive coaxial speakers (REF607F)
New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes, they’re the perfect upgrade from factory speakers.
Features and Benefits
Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
Optimized frame size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.
Technical Specifications
Power Handling: 60W RMS, 180W peak
Sensitivity (@ 2.83V): 93dB
Frequency Response: 53Hz – 21kHz
Impedance: 3.0 ohms
What’s in the box
1 pair of coaxial speakers
8 large mounting screws
8 speed clips
8 small mounting screws
1 pair of adapter rings
Foam mounting tape
Owner’s manual
1x Metra 82-5605 Speaker Mounting Brackets Install 6.5" to 6.75" speakers in select 2001-up Ford, Alfa Romeo, Hyundai, Jaguar, Land Rover, Lincoln vehicles (82-5605)
Upgrade your speakers with the help of these speaker adapter plates. These plates are sold as a pair and designed to install most 6.5" to 6.75" aftermarket speakers in multiple vehicle applications, making them convenient to have on hand. They mount directly into the factory location, so no drilling is required, and feature a breakaway tab design for easy installation.
Features:
For the installation of most 6.5-6.75” aftermarket speakers in the original factory location
For use in multiple vehicle applications
Breakaway tab design
Sold as a pair
1-year warranty
Includes:
(2) Speaker adapter plates
Vehicle Compatibility
Alfa Romeo
2017-2024 Alfa Romeo Giulia
2018-2024 Alfa Romeo Stelvio
Ford
2021-2025 Ford Bronco
2021-2024 Ford Bronco Sport
2013-2018 Ford C-Max
2018-2021 Ford EcoSport
2015-2023 Ford Edge
2013-2023 Ford Escape
2018-2024 Ford Expedition
2011-2025 Ford Explorer
2015-2025 Ford F-150
2017-2024 Ford F-250 Super Duty
2017-2024 Ford F-350 Super Duty
2011-2019 Ford Fiesta
2012-2018 Ford Focus
2012-2020 Ford Fusion
2015-2024 Ford Mustang
2021-2024 Ford Mustang Mach-E
2015-2024 Ford Transit-150
2015-2024 Ford Transit-250
2015-2024 Ford Transit-350
2015-2024 Ford Transit-350 HD
2012-2021 Ford Transit Connect
Hyundai
2022-2024 Hyundai Ioniq 5
2023-2024 Hyundai Ioniq 6
2020-2024 Hyundai Venue
Jaguar
2018-2024 Jaguar E-Pace
2017-2020 Jaguar F-Pace
2019-2020 Jaguar I-Pace
2001-2008 Jaguar X-Type
2017-2020 Jaguar XE
2009-2023 Jaguar XF
2011-2019 Jaguar XJ
Land Rover
2021-2023 Land Rover Defender 90
2020-2023 Land Rover Defender 110
2023 Land Rover Defender 130
2015-2020 Land Rover Discovery Sport
2008-2015 Land Rover LR2
2018-2020 Land Rover Range Rover
2012-2020 Land Rover Range Rover Evoque
Lincoln
2020-2023 Lincoln Aviator
2017-2020 Lincoln Continental
2020-2024 Lincoln Corsair
2016-2018 Lincoln MKX
2013-2020 Lincoln MKZ
2018-2024 Lincoln Navigator
1x Metra 72-5602 Speaker Harness Pair - Fits Ford/Multi-App 2008-Up (72-5602)
Connect aftermarket front kick panel speakers to your Ford Bronco's factory wiring with these vehicle-specific speaker harnesses. The plug-n-play design eliminates the need to cut and splice wires. It is constructed of quality materials to ensure durability.
Keep in mind that you may need additional parts to complete your installation. For fitment information, look up your vehicle in our vehicle fit guide.
Fiat
2017-2020 Fiat 124 Spider
Ford
2021-2025 Ford Bronco
2021-2024 Ford Bronco Sport
2013-2018 Ford C-Max
2018-2021 Ford EcoSport
2015-2023 Ford Edge
2013-2023 Ford Escape
2018-2024 Ford Expedition
2011-2025 Ford Explorer
2015-2025 Ford F-150
2017-2024 Ford F-250 Super Duty
2017-2024 Ford F-350 Super Duty
2011-2019 Ford Fiesta
2012-2018 Ford Focus
2013-2020 Ford Fusion
2015-2024 Ford Mustang
2021-2024 Ford Mustang Mach-E
2019-2023 Ford Ranger
2015-2024 Ford Transit-150
2015-2024 Ford Transit-250
2015-2024 Ford Transit-350
2015-2024 Ford Transit-350 HD
2014-2023 Ford Transit Connect
Jaguar
2018-2024 Jaguar E-Pace
2017-2020 Jaguar F-Pace
2014-2021 Jaguar F-Type
2019-2021 Jaguar I-Pace
2017-2020 Jaguar XE
2009-2023 Jaguar XF
2011-2019 Jaguar XJ
Land Rover
2021-2023 Land Rover Defender 90
2020-2023 Land Rover Defender 110
2023 Land Rover Defender 130
2017-2023 Land Rover Discovery
2015-2020 Land Rover Discovery Sport
2008-2015 Land Rover LR2
2013-2020 Land Rover Range Rover
2012-2020 Land Rover Range Rover Evoque
2014-2020 Land Rover Range Rover Sport
2018-2020 Land Rover Range Rover Velar
Lincoln
2020-2023 Lincoln Aviator
2017-2020 Lincoln Continental
2020-2024 Lincoln Corsair
2013-2020 Lincoln MKZ
2019-2023 Lincoln Nautilus
2018-2024 Lincoln Navigator
Mazda 2011-2014 Mazda 2
2010-2023 Mazda 3
2014-2021 Mazda 6
2016-2021 Mazda CX-3
2013-2024 Mazda CX-5
2016-2023 Mazda CX-9
2020-2023 Mazda CX-30
2016-2021 Mazda MX-5
2016-2024 Mazda MX-5 Miata
Scion
2016 Scion iA
Toyota
2019-2020 Toyota Yaris
2017-2018 Toyota Yaris iA
1x Stinger RKFR6 Roadkill Fast Rings 6" & 6.5" (RKFR6)
Our 3-piece foam ring speaker enhancement system solves the problem of acoustically coupling aftermarket speakers to factory speaker openings. The RoadKill Fast Rings kit increases speaker output, improves the projection of the audio into the car cabin and reduces unwanted rear reflections that can degrade the sound.
3-piece Foam Ring System fits 6" & 6.5" Speakers
Features:
Reduce panel vibration
Increase mid-bass response
Enhanced audio output efficiency
Minimize destructive wave interference
Help prevent front and rear wave cancellation
Easy installation with peel & stick application
Maximize performance for speaker installations
Sold in pairs
3 Ring DNA
Gasket for speaker mounting to the baffle plate surface
Middle ring to mount around the outer edge of the speaker
Circular foam pad goes behind the speaker to absorb unwanted reflections on hard surfaces, such as inside a car door
1x Stinger RKXSK RoadKill Expert Speaker Kit (RKXSK)
Expert level sound dampening
Aluminum outer layer
Self adhesive
Easy installation
Use on all metal panels, doors, roof, floor, firewall & trunk
Kills panel resonance, squeaks and rattles
Highest damping vs. weight ratio of any material available
Improves overall audio frequency response and bass output
Speaker kit
2-Pack: 1.7sq-ft total (10” x 12”) sound dampening material
Expert RoadKill Published Specifications
Minimum Thickness 0.080in
Minimum Weight 0.65bs/ft2
Aluminum Layer- 6 mils
