Description
Included in this kit
This bundle includes a JBL CLUB-A6001A High performance mono subwoofer car amplifier, and a JBL CLUB12 JBLSUBCB122 12” Subwoofer w/SSITM (Selectable Smart Impedance) switch from 2 to 4 ohm.
1x JBL CLUB-A6001A High performance mono subwoofer car amplifier (Club-A6001A)
The JBL Club A600 mono subwoofer amplifier delivers 600-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car’s factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
What’s in the box:
One Club A600 mono subwoofer car amplifier
Four 30A ATO fuses (2 installed, 2 spare)
2 Bare wire-to-RCA adapters
Remote bass control module
16.5' Remote control cable (RJ-25 plugs on both ends)
2 Self-tapping screws for remote (M3 x 15mm)
4 Mounting screws (M4 x 53mm)
Owner’s Manual
Two JBL stickers
1 logo badage
Technical specifications:
Mono subwoofer car amplifier
350 watts RMS x 1 at 4 ohms
(600 watts RMS x 1 at 2 ohms)
Class D amp technology
Variable low-pass filter (32–320 Hz, 12 dB/octave)
Variable bass boost (0-12dB at 45Hz)
Phase switch (0, 180 degrees)
Preamp and speaker-level inputs
Fuse rating: 30A x 2
8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
W x H x D = 220mm x 51.3mm x 180mm
W x H x D = 8-11/16" x 2-1/16" x 7-1/8"

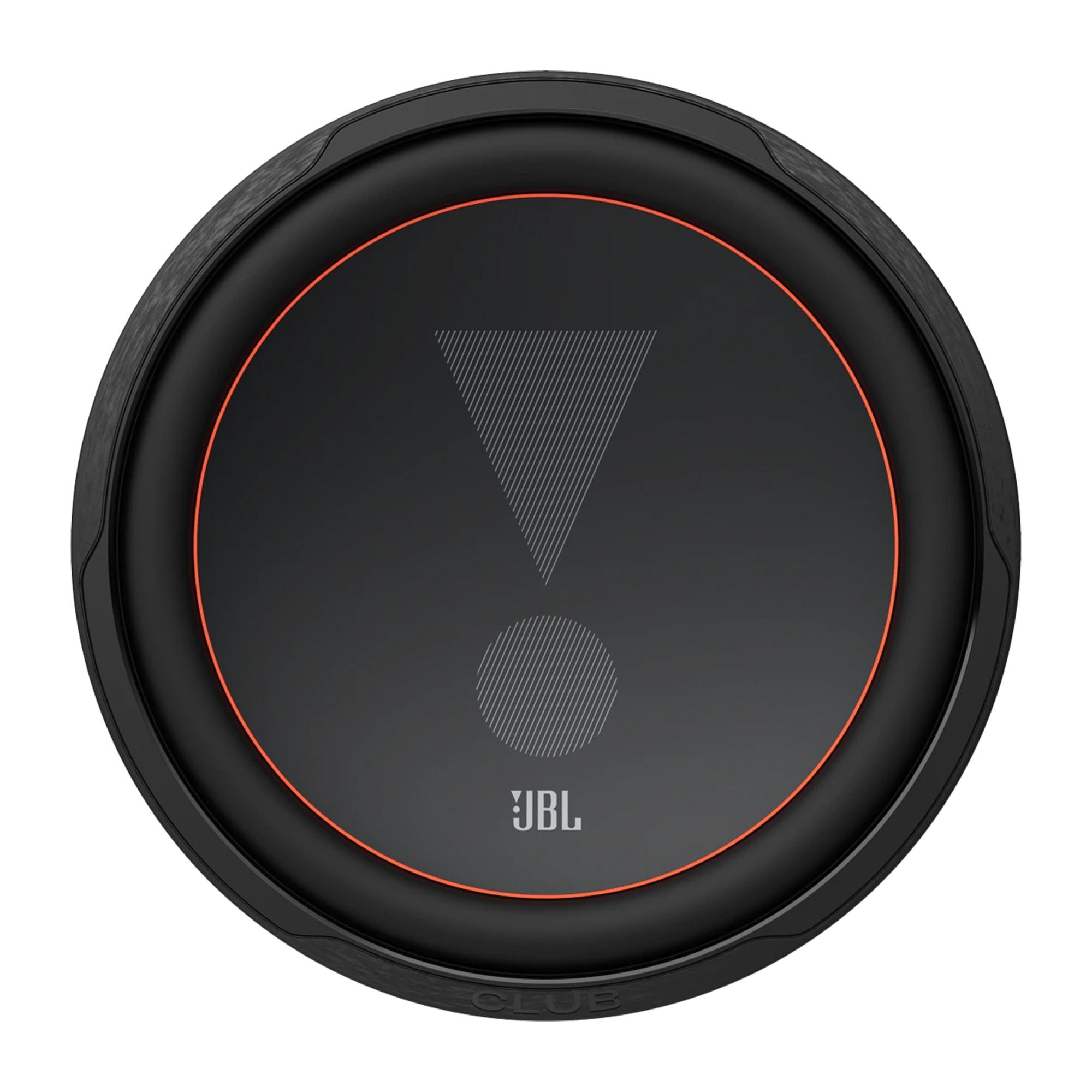

1x JBL CLUB12 JBLSUBCB122 12” Subwoofer w/SSITM (Selectable Smart Impedance) switch from 2 to 4 ohm (JBLSUBCB122)
This new JBL CLUB 12" subwoofer is designed to deliver deep bass at an affordable price for drivers. Leveraging technology from JBL’s Professional and Luxury Audio divisions, where loudspeakers fill giant stadiums, concert venues and movie theaters with incredible sound, this subwoofer takes a completely new approach to moving air in a car or SUV. Featuring JBL’s world famous bass response combined with superior technology and power handling, this makes them a great solution for bass in a car.
The 12" woofer features 400w power handling, patented SSI Smart Selectable Impedance providing either a 4- or 2-ohm load. The ultra-high roll surround, parabolic dish two-piece cone, double stacked magnets and long excursion suspension provide for unrivaled bass and performance at this price point. The sleek design of the vented basket and JBL family inspired cosmetics are elegant with a pop of iconic JBL orange. The easy push terminals make installation a snap, and the screw gasket cover creates the perfect finished look.
Features and Technical Highlights:
SSI (Selectable Smart Impedance) – This provides a 2- or 4-ohm impedance for either a single double, for full system building today or build as you go for tomorrow
High-roll surround – Provides long excursion design for deeper bass with less distortion
Vented basket design – Allows for consistent cooling of the 2” voice coil for longer life and more SPL
Double stack magnet – For big power handling, 400 watts RMS
Easy Push terminals – Make installation and hook up easy
Screw cover – Makes the final installation look like a million bucks
JBL Award winning design – Finished off with JBL orange around the cone.
Specifcations:
Power Handling (RMS) – 400 watts
Power handling (Peak) – 1200 watts
VC Impedance – SSI 2- 4-ohms (SSI) Smart Selectable Impedance
Frequency Response – 25-500 Hz
Sensitivity – 86db
Cone – Polypropylene concave dust cap / cone
Basket (trim ring) – Steel basket
Voice Coil – 2”
