Description
Included in this kit
This bundle includes a JBL MA600 Subwoofer marine amplifier 600 watts RMS x 1 at 2 ohms, and a JBL CLUB-12 - 12" Marine Audio Subwoofer with RGB Lighting, 400W – White/Gray grills included.

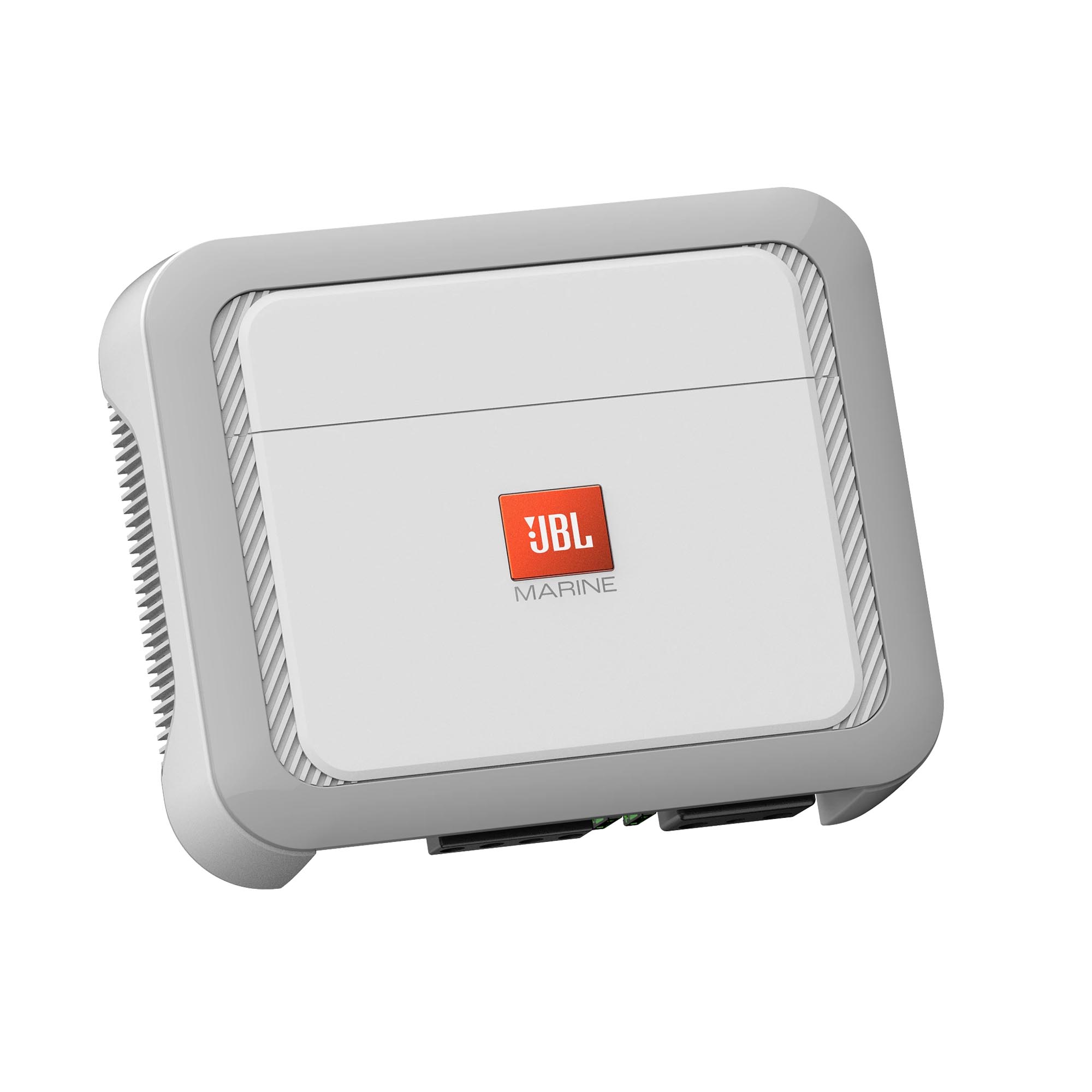

1x JBL MA600 Subwoofer marine amplifier 600 watts RMS x 1 at 2 ohms (MA600)
The JBL marine A600 mono subwoofer amplifier delivers 600-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your marine’s factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
Features
Compact size High and low level input Variable crossover and bass boost Low noise and distortion Input Level Control Full on-board protection Phase Switch RBC wired remote Class D amp technology Turn-on mode
Specifications:
mono subwoofer marine amplifier 350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms) Max Power 1200 watts Class D amp technology variable low-pass filter (32-320 Hz, 12 dB/octave) variable bass boost (0-12 dB at 45Hz) phase switch (0, 180 degrees) preamp and speaker-level inputs fuse rating: 30A x 2 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier WxHxD=220mm x 51.3mm x 180mm / 8-11/16” x 2-1/16” x7-1/8”
What’s in the box
One marine A600 mono subwoofer marine amplifier Four 30A ATO fuses (2 installed, 2 spare) 2 Bare wire-to-RCA adapters Remote bass control module 16.5’ Remote control cable (RJ-25 plugs on both ends) 2 Self-tapping screws for remote (M3 x 15mm) 4 Mounting screws (M4 x 53mm) Owner’s Manual Two JBL stickers 1 logo badge
1x JBL CLUB-12 - 12" Marine Audio Subwoofer with RGB Lighting, 400W – White/Gray grills included (CLUB-12)
JBL Club Marine Speakers are ready for your next outdoor adventure. These fully marinized speakers not only deliver JBL sound, they also provide RGB lighting to bring the sound to life. Engineered to withstand sun, salt, sea spray and wash downs, they feature sealed motor structures, UV resistant one-piece cast-polymer baskets, a sealed magnet and rubber surrounds. The polypropylene cone and balanced silk dome tweeter provide great bass, smooth hights and lots of output to ensure every note can be heard loud and clear. With two grille colors included in the box, you easily match your speaker with your boat.
Twist-Lock Speaker Grilles -
JBL Club Marine Speakers have two grille color options in the box (gloss white & satin grey), with a twist-lock design so you can easily match the grille color to your preference during installation. The innovative design hides the mounting fasteners so your installation results in a clean finish with high cosmetic appeal.
Outdoor Performance & Marine Rated -
JBL uses marine-grade materials & components to suit the demands of harsh outdoor environments, with an IPx5 marine rating from front of speaker, and accentuated performance at frequencies heard in open-air environments.
RGB Illuminated Speaker Cones -
Unique and eye-catching RGB illuminated speaker cones are capable of displaying seven colours out of the box, when hard-wired to your vessel lighting, or you can have even more color options when wired to an external lighting controller.
Specifications -
• Club Marine 12" Subwoofer - JBLMARSUBCB122AM
• Power Handling: 400Wrms, 1200W peak
• Sensitivity (@ 2.83V): 89dB
• Frequency Response: 25Hz – 500Hz
• Nominal Impedance: 4ohm
