Description
Included in this kit
This bundle includes a JBL Legend 700 7’’ Double-Din car stereo with built-in Wireless Apple CarPlay and Android Auto Compatiblity, a JBL CLUB-A754 High performance 4 channel car amplifier, a JBL CLUB-64CSQ Club Series 6.5" Premium Component Speakers, Pair, and a JBL CLUB-64SQ Club Series 6.5" Two-way Premium Car Audio Speaker Speakers, Pair.
1x JBL Legend 700 7’’ Double-Din car stereo with built-in Wireless Apple CarPlay and Android Auto Compatiblity (Legend700)

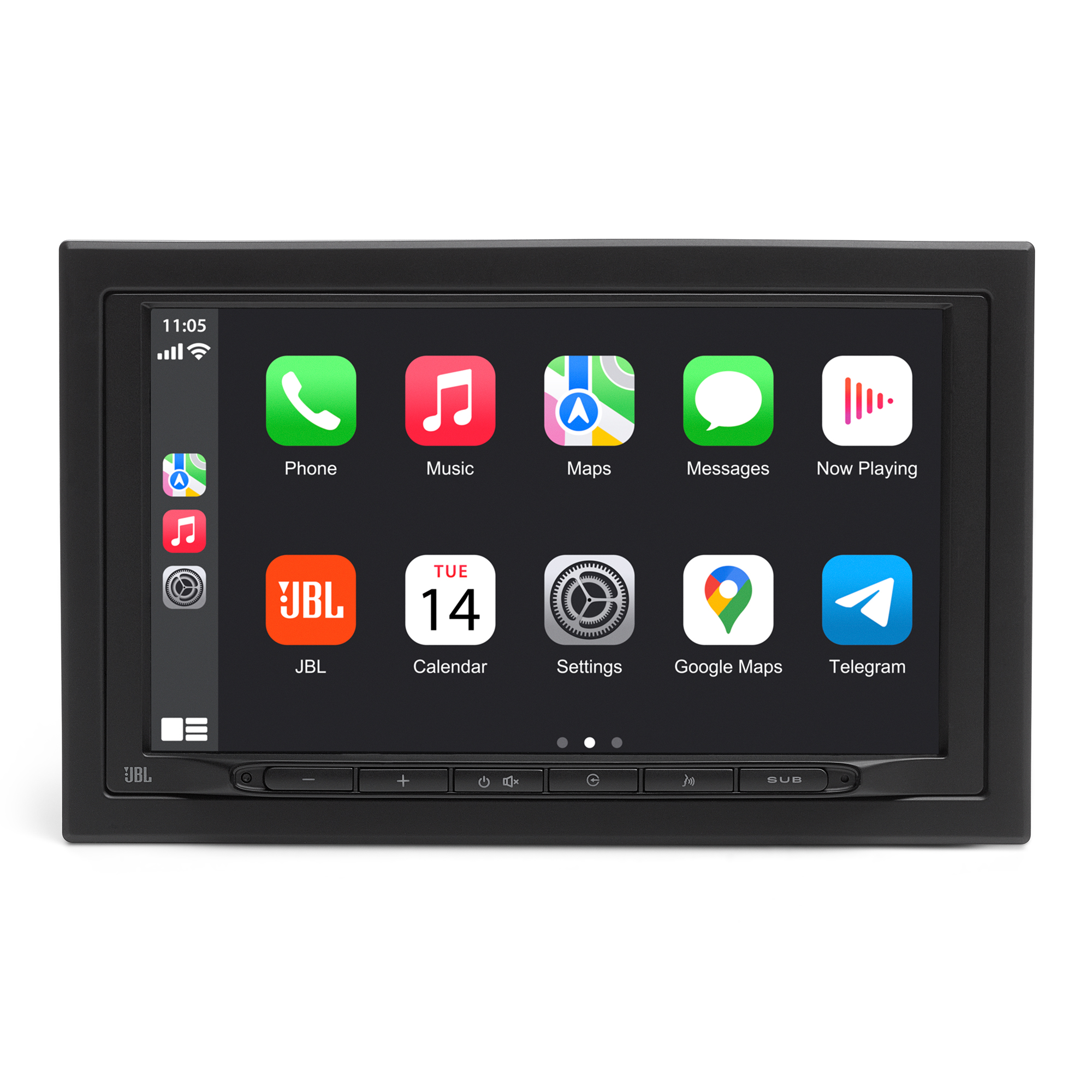

JBL Legend 700 - 7" Touchscreen Multimedia Receiver
Upgrade your in-car entertainment with the JBL Legend 700, a feature-packed 7” Double-DIN multimedia receiver designed for seamless smartphone integration. With built-in Wireless Apple CarPlay and Android Auto, you can easily access your favorite apps, music, navigation, and hands-free calling. Featuring high-quality audio outputs, advanced sound tuning options, and multiple connectivity sources, the JBL Legend 700 enhances every drive with premium sound and functionality.
Seamless Smartphone Integration
The JBL Legend 700 offers full support for Wireless Apple CarPlay and Android Auto, allowing you to control apps, make calls, send texts, and stream music without taking your hands off the wheel.
Premium Audio Performance
With 4V/6CH preamp outputs, a built-in 16-band equalizer with time alignment, and dedicated subwoofer controls, the JBL Legend 700 delivers crystal-clear audio with customizable tuning to match your vehicle's acoustics.
Multiple Connectivity Options
Stay connected with a wide range of audio sources, including Bluetooth 5.0 streaming, USB, Auxiliary Input, and AM/FM. Enjoy DAB/DAB+ Digital Radio for superior sound quality and a broader selection of radio stations.
High-Resolution 7" Capacitive Touchscreen
The 7" capacitive touchscreen offers a sharp, responsive display for easy navigation and quick access to settings, music, and apps. Its sleek design seamlessly integrates with most modern vehicles.
Key Features
- Double-DIN 7” Capacitive Touchscreen – Fits most popular car models
- Wireless Apple CarPlay & Android Auto – Provides seamless smartphone connectivity
- Wireless Bluetooth Streaming – Supports hands-free calling, music streaming, and phonebook access
- DAB/DAB+ Digital Radio – Enjoy high-quality digital radio with a wide station selection
- 4V/6CH Preamp Outputs – Front, rear, and subwoofer outputs for expanded audio system compatibility
- Dedicated Subwoofer Controls – Adjust subwoofer levels directly from the front panel
- 16-Band EQ with Time Alignment – Customize audio to match your vehicle’s acoustics
- 4x50W Maximum Power Output – Built-in amplifier capable of powering speakers and small subwoofers
Technical Specifications
| Specification | Details |
|---|---|
| Display Size | 7” Capacitive Touchscreen |
| Smartphone Integration | Wireless Apple CarPlay & Android Auto |
| Audio Sources | Bluetooth, USB, Auxiliary, AM/FM, DAB/DAB+ |
| Preamp Outputs | 6-channel (4V front, rear, subwoofer) |
| Subwoofer Control | Adjustable via front-panel buttons |
| Equalizer | 16-band EQ with time alignment |
| Power Output | 4x50W Max Power |
What’s in the Box?
- 1x 7” Touchscreen Multimedia Receiver
- 1x ISO Adapter Harness
- 1x GPS Antenna
- 1x Trim Ring
- 1x Mounting Cage
- 1x External Microphone
- 6x Screws
- 1x Quick Start Guide
- 1x Safety Sheet
Upgrade your driving experience with the JBL Legend 700 – a multimedia receiver that delivers seamless smartphone integration, high-quality audio, and an intuitive touchscreen interface.
1x JBL CLUB-A754 High performance 4 channel car amplifier (Club-A754)
The Club A754 4-channel amplifier delivers a powerful 75-Watts RMS to each of the front, and rear speakers in your car. You can also bridge the amp to 2-channel mode to drive, a couple subs with 200 watts RMS or 3-channel mode to drive both a pair of full range, speakers and a subwoofer. Speaker-level inputs allow this amplifier to integrate into almost, any system, even one using your car’s factory radio. Separate high-pass and low-pass, crossovers on the front and rear channels allow you dial in the perfect roll off to best suit, speaker placement and cabin acoustics.
What’s in the box:
One Club A754 four channel amplifier
4 Bare wire-to-RCA adapters
Four 30A ATO fuses (2 installed, 2 spare)
Two JBL stickers
Owner’s Manual
4 Mounting screws (M4 x 53mm)
1 logo badage
Technical specifications:
4 channel car amplifier
75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)
200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)
Variable high- and low-pass filters (32–320Hz, 12dB/octave) on front and rear channels
Preamp and speaker-level inputs
Preamp outputs
Fuse rating: 30A x 2
8-gauge power and ground leads recommended – wiring and hardware not included with amplifier
W x H x D = 320mm x 51.3mm x 180mm
W x H x D = 12-5/8" x 2-1/16" x 7-1/8"
1x JBL CLUB-64CSQ Club Series 6.5" Premium Component Speakers, Pair (CLUB-64CSQ)
Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors, and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never-harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation. Available in a range of standard sizes - 3”, 4”, 5-1/4”, 6-1/2”, 6” x 8”, 4” x 6”, 6” x 9”, and 3/4” - they’re the perfect upgrade from factory speakers.
Plus One™ Woofer Cone Architecture -
Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased lowfrequency output and greater musical character.
Adjustable Tweeter Output Level -
The Club 64 and Club 64C,Club 64CTP component systems offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.
Bigger Magnet, Bigger Power Handling -
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.
Starfish Tweeter Mounting Adapter -
The Club 64C, Club 64CTP component Speaker system come with the Starfish™ tweeter mounting adapter. The Starfish tweeter mounting adapter allows for easy installation of the tweeter behind factory grilles and in locations such an A-Pillar. It also provides six break-off mounting tabs to accommodate many mounting configurations. The tweeter can be surface- or flush-mounted. The tweeter can be easily serviced, and doesn’t require removing the whole assembly.
1x JBL CLUB-64SQ Club Series 6.5" Two-way Premium Car Audio Speaker Speakers, Pair (Club-64SQ)
Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors, and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never-harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation. Available in a range of standard sizes - 3”, 4”, 5-1/4”, 6-1/2”, 6” x 8”, 4” x 6”, 6” x 9”, and 3/4” - they’re the perfect upgrade from factory speakers.
Plus One™ Woofer Cone Architecture -
Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased lowfrequency output and greater musical character.
Specified Shallow Design for More Mounting Application -
Club 64FSL specified compact design for 6-1/2”that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.
Bigger Magnet, Bigger Power Handling -
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.
Acoustically Damped, UV-resistant Polypropylene Cone -
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Specifications -
• Power Handling: 55W RMS, 165W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 55Hz – 20kHz
• Nominal Impedance: 3.0 ohms
