Description
Included in this kit
This bundle includes a JBL STAGEA60041 Stage Series 4-channel, 65w X 4 amplifier, a JBL STAGE368CF 6.5” 2-Way Component Speaker - No Grille, and a JBL STAGE3968MF 6” x 9” 3-Way Speaker No Grille.

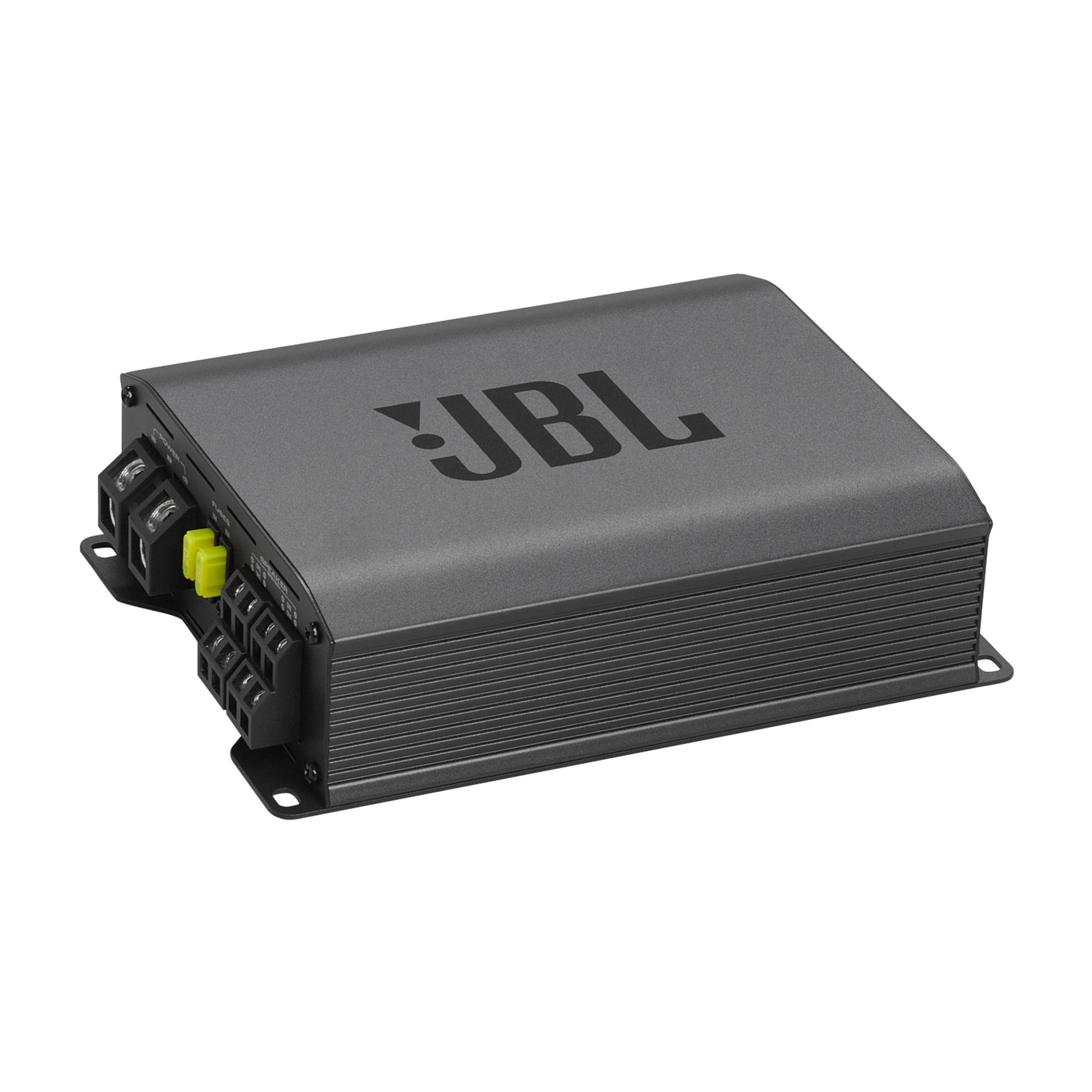

1x JBL STAGEA60041 Stage Series 4-channel, 65w X 4 amplifier (STAGEA60041)
Power you will feel at your core.
The JBL STAGE GT series high-performance Class-D amplifiers are available in four-channel, two-channel, and mono-channel models, designed to meet a variety of system configurations. Featuring advanced engineering capabilities, these amplifiers optimize performance for the ultimate listening experience. The JBL STAGE GT amplifiers are easily installed and remarkably reliable. The compact amplifiers are equipped with user controls, including a bass EQ as well as HPF and LPF crossover controls, allowing you to tailor the sound to suit the characteristics of your vehicle.
Features
• Great Performance at an Affordable Price
• Compact Footprint
• Full On-Board Protection
• Start/Stop Compatible
• Wide Input Sensitivity Range
• Adjustable Bass EQ
• OEM Load Detect Compatible
• Crossover Controls
• Immersive Sound Experience
• JBL Industrial Design
Technical Specifications
• Max Power: 1240W peak • Power Output: 180Wrms x 2 @ Bridged 4 ohms full range • Power Output: 90Wrms x 4 @ 2 ohms full range • Power Output: 65Wrms x 4 @ 4 ohms full range • Frequency Response: 20Hz - 20kHz±1dB • THD+N@ROP: 1% • Input Sensitivity LOW: 0.2V - 5V, HIGH: 1V - 25V • High/Low Pass Filter, Variable: 32Hz - 320Hz • Bass EQ@45Hz: 0 - 12dB Variable • Protection: DCP, OVP, UVP, OCP, OTP • Operating Voltage: 9V - 16V • Fuse Rating: 20A x 2
What’s in the Box
1x Amplifier
2x Spare Fuse
2x High-level Input Cable
4x Mounting Screw with Washer
2x Allen Key
2x JBL Stickers
1x QR Code Owners Manual
1x Safety Sheet
1x JBL STAGE368CF 6.5” 2-Way Component Speaker - No Grille (STAGE368CF)
High-performance speakers designed to deliver legendary JBL sound quality. The JBL Stage3 speakers embody JBL’s legendary sound, delivering powerful audio in the car. The woofer cone is manufactured using a laser-etched tool, features the patented Plus One™ design for increased surface area, and is reinforced with 10% glass fiber to play deeper, more resonant bass. The speaker’s true 4-ohm load design maximizes power output from your head unit or amplifier, compensating for system resistance to ensure optimal performance. Additionally, the speakers incorporate post-consumer recycled plastic components, PVC- free wiring, and packaging printed with soy-based inks, thereby minimizing environmental impact. Finally, precise fitment is critical to the success of this speaker family—ensuring seamless integration and consistent acoustic performance across vehicle platforms.
Features
Plus One™ Woofer Cone Architecture
PEI Balanced Dome Tweeter (Except Stage3 68C/68CF/58CF models, which feature edge-driven silk dome tweeters)
Laser-etched Woofer Cone Design
Environment-conscious Materials
True 4-ohm Technology
Engineered to Fit
Technical Specifications
Speaker: 6-1/2” (165mm) Two-Way Component Car Speaker without Grille
Power Handling: 95W RMS, 760W peak
Sensitivity (@2.83V): 91dB
Frequency Response: 55Hz – 20kHz
Nominal Impedance: 4 ohms
What’s in the Box
2x Speakers
2x 0.75" Tweeters
2x Threaded Flush-mount Adapters
2x Plastic Locking Nuts
2x Crossover Box
8x Screws
8x Spade Clips
1x Mini OM
2x Foam Gasket
2x Logo Badge
1x JBL STAGE3968MF 6” x 9” 3-Way Speaker No Grille (STAGE3968MF)
High-performance speakers designed to deliver legendary JBL sound quality. The JBL Stage3 speakers embody JBL’s legendary sound, delivering powerful audio in the car. The woofer cone is manufactured using a laser-etched tool, features the patented Plus One™ design for increased surface area, and is reinforced with 10% glass fiber to play deeper, more resonant bass. The speaker’s true 4-ohm load design maximizes power output from your head unit or amplifier, compensating for system resistance to ensure optimal performance. Additionally, the speakers incorporate post-consumer recycled plastic components, PVC- free wiring, and packaging printed with soy-based inks, thereby minimizing environmental impact. Finally, precise fitment is critical to the success of this speaker family—ensuring seamless integration and consistent acoustic performance across vehicle platforms.
Features
Plus One™ Woofer Cone Architecture
PEI Balanced Dome Tweeter (Except Stage3 68C/68CF/58CF models, which feature edge-driven silk dome tweeters)
Laser-etched Woofer Cone Design
Environment-conscious Materials
True 4-ohm Technology
Engineered to Fit
Technical Specifications
Speaker: 6”x9” (152x230mm) Three-Way Car Speaker with Grille
Power Handling: 80W RMS, 640W peak
Sensitivity (@2.83V): 92dB
Frequency Response: 40Hz – 20kHz
Nominal Impedance: 4 ohms
What’s in the Box
2x Speakers
8x Screws
8x Spade Clips
1x Mini OM
2x Foam Gasket
2x Logo Badge
