Description
Included in this kit
This bundle includes a JBL CLUB-A5055 High-performance 5 channel car amplifier, a JBL CLUB-64CSQ Club Series 6.5" Premium Component Speakers, Pair, a JBL CLUB-64SQ Club Series 6.5" Two-way Premium Car Audio Speaker Speakers, Pair, and a JBL CLUB102SL Club Series 10” Shallow Mount Subwoofer w/SSI™ (Selectable Smart Impedance) Switch From 2 To 4 Ohm.
1x JBL CLUB-A5055 High-performance 5 channel car amplifier (Club-A5055)
The Club A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your car, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car’s factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance. What’s in the box: One Club A5055 five channel amplifier 4 Bare wire-to-RCA adapters Six 30A ATO fuses (3 installed, 3 spare) Remote bass control module 16.5’ Remote control cable (RJ-25 plugs on both ends) 2 Self-tapping screws for remote (M3 x 15mm) 4 Mounting screws (M4 x 53mm) Owner’s Manual Two JBL stickers 1 logo badage Technical specifications: 5 channel car amplifier 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms Variable high- and low-pass filters (32–320Hz, 12dB/octave) on front and rear channels Low-pass filter (32–320Hz, 12dB/octave) on subwoofer channel Bass boost on subwoofer channel (0-12dB at 45Hz) Phase switch on subwoofer channel (0, 180 degrees) Preamp and speaker-level inputs Fuse rating: 30A x 3 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier W x H x D = 360mm x 51.3mm x 180mm W x H x D = 14-3/16" x 2-1/16" x 7-1/8"
1x JBL CLUB-64CSQ Club Series 6.5" Premium Component Speakers, Pair (CLUB-64CSQ)
Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors, and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never-harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation. Available in a range of standard sizes - 3”, 4”, 5-1/4”, 6-1/2”, 6” x 8”, 4” x 6”, 6” x 9”, and 3/4” - they’re the perfect upgrade from factory speakers.
Plus One™ Woofer Cone Architecture -
Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased lowfrequency output and greater musical character.
Adjustable Tweeter Output Level -
The Club 64 and Club 64C,Club 64CTP component systems offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.
Bigger Magnet, Bigger Power Handling -
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.
Starfish Tweeter Mounting Adapter -
The Club 64C, Club 64CTP component Speaker system come with the Starfish™ tweeter mounting adapter. The Starfish tweeter mounting adapter allows for easy installation of the tweeter behind factory grilles and in locations such an A-Pillar. It also provides six break-off mounting tabs to accommodate many mounting configurations. The tweeter can be surface- or flush-mounted. The tweeter can be easily serviced, and doesn’t require removing the whole assembly.
1x JBL CLUB-64SQ Club Series 6.5" Two-way Premium Car Audio Speaker Speakers, Pair (Club-64SQ)
Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors, and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never-harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation. Available in a range of standard sizes - 3”, 4”, 5-1/4”, 6-1/2”, 6” x 8”, 4” x 6”, 6” x 9”, and 3/4” - they’re the perfect upgrade from factory speakers.
Plus One™ Woofer Cone Architecture -
Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased lowfrequency output and greater musical character.
Specified Shallow Design for More Mounting Application -
Club 64FSL specified compact design for 6-1/2”that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.
Bigger Magnet, Bigger Power Handling -
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.
Acoustically Damped, UV-resistant Polypropylene Cone -
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Specifications -
• Power Handling: 55W RMS, 165W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 55Hz – 20kHz
• Nominal Impedance: 3.0 ohms

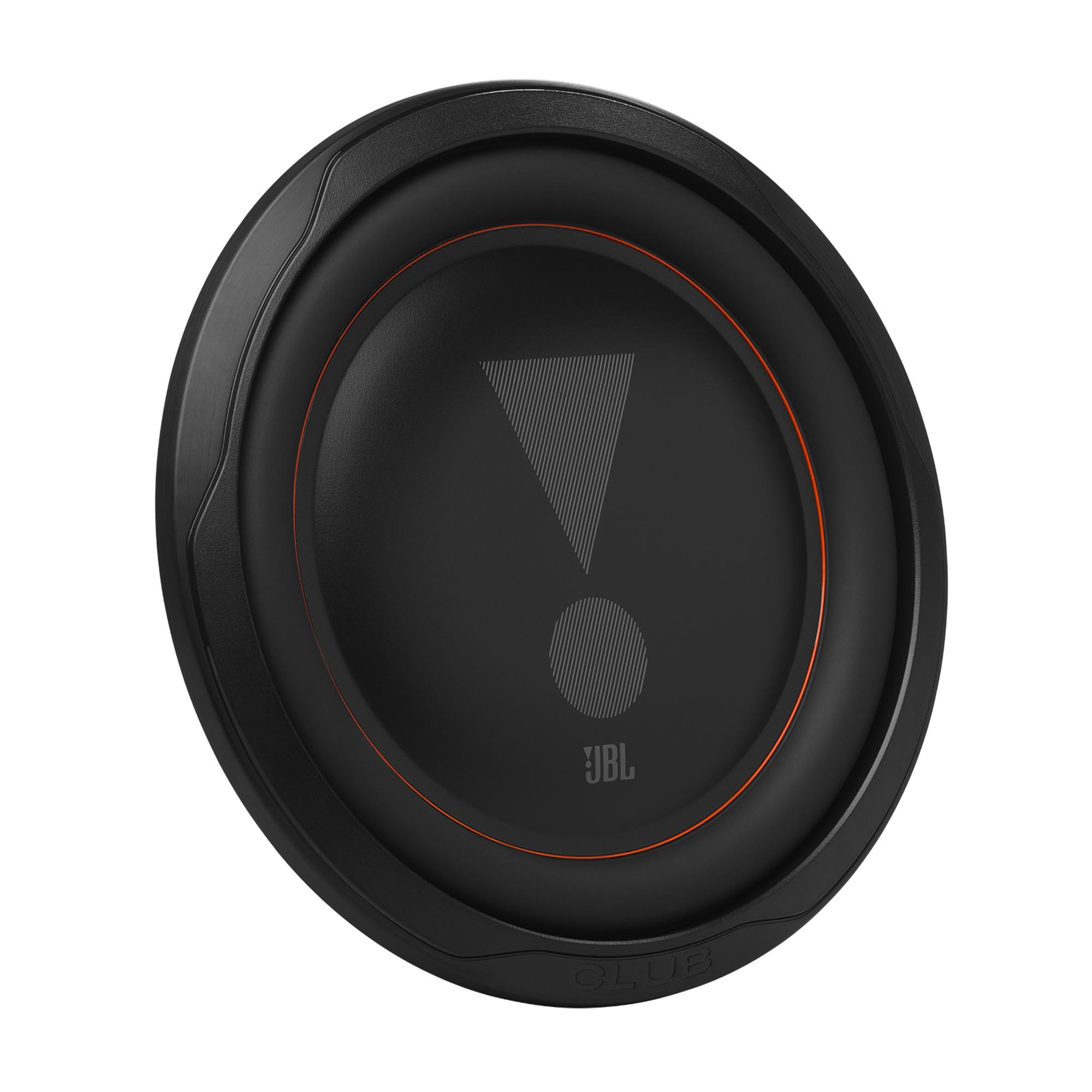

1x JBL CLUB102SL Club Series 10” Shallow Mount Subwoofer w/SSI™ (Selectable Smart Impedance) Switch From 2 To 4 Ohm (CLUB102SL)
Powerful performance, high flexibility.
JBL Club slim subwoofers deliver deep, powerful bass that will take your system to the next level. Utilizing our proprietary cone design and high-extension surrounds, they are extremely efficient and require less power to do their job. JBL CLUB slim subwoofers perform exceptionally well in both closed and band-pass box configurations, delivering a powerful, punchy, and accurate bass experience in either setup. They also feature SSI™ (Smart Impedance Selectable), a unique impedance switch that lets you select the ideal impedance (2 or 4 ohms) for your chosen amplifier and overall system configuration.
SSI™ (Selectable Smart Impedance)
Most car audio system designs call for 2- or 4-ohm impedance. Club shallow-mount subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option depending on your particular system and amplifier choice. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.
Aluminum Woofer Cone
A proprietary aluminum woofer cone has been engineered to provide high output while maintaining its shape to full excursion to ensure low distortion and minimal unwanted audible acoustical artifacts. The end result is deep, full bass performance that is musical and impactful.
General Specifications
Subwoofer: 10" (250mm) Aluminum Driver
Power Handling: 350W RMS, 1050W peak
Sensitivity (1W/1m): 82.5dB
Frequency Response (-6dB): 35Hz – 500Hz
Nominal Impedance: 2 or 4 ohms, switch-selectable
Voice Coil Diameter: 2" (50mm)
Cutout Diameter: 9" (228.61mm)
Mounting Depth: 3-1/4" (82.5mm)
What's in The Box?
1x 10" Subwoofer
1x EVA Foam Gasket
1x Owner’s Manual
Retail Box:
12.36”W x 12.36”D x 5.75”H
Master Carton:
12.99”W x 12.99”D x 12.60”H
Retail Box:
8.91lbs.
Master Carton:
19.44 lbs.
