Included in this kit
This bundle includes a JBL 4086AM 8-channel Class D Amplifier Design with Digital Signal Processing, and 4x JBL CLUB-64SQ Club Series 6.5" Two-way Premium Car Audio Speaker Speakers, Pair.

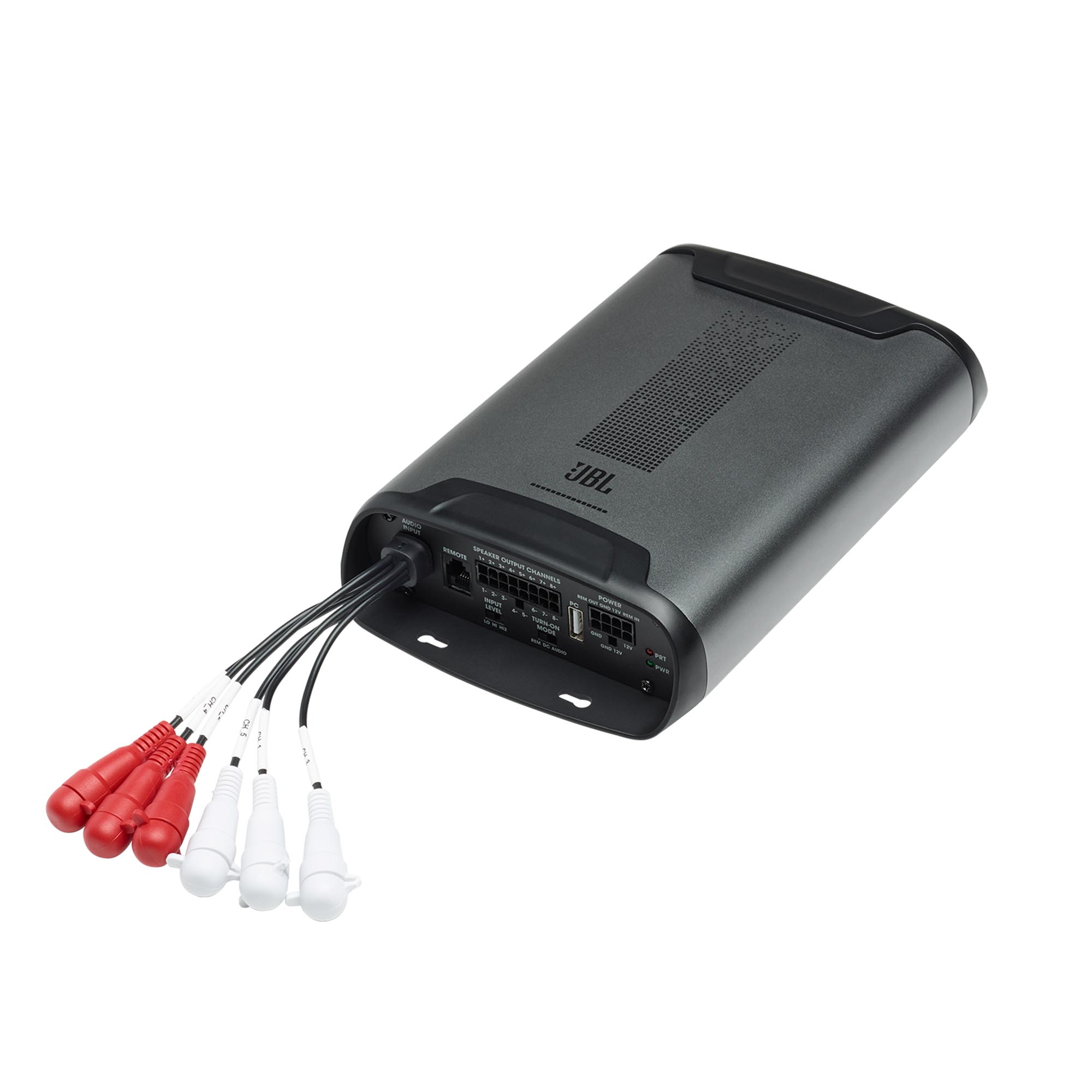

1x JBL 4086AM 8-channel Class D Amplifier Design with Digital Signal Processing (DSP4086AM)
JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy to use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers.
With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.
What’s in the box:
DSP Amplifier
Wiring Harness
USB Drive with Tuning Software
USB Tuning Cable
Wired remote level bass control
Mounting hardware
6 x hi level input adapters
Spare fuse
4 x wire ties
2 x JBL sticker
Quick Start Guide
Technical specifications:
Max Power: 1000W peak
RMS Power Output @ 2Ω: 60W x 8, Less Than 1% THD+N
RMS Power Output @ 4Ω: 40W x 8, Less Than 1% THD+N
Variable crossovers with hi-pass, lo-pass, band-pass capability & adjustable 0–to–48dB slopes
Selectable EQ adjustment: Parametric or Graphic
Selectable 12V/Signal Sense/DC Offset turn-on modes, with 12V remote output
Frequency Response: 10Hz to 22kHz @ -3dB
Signal-to-Noise Ratio: >90dB @ 4Ω
Subwoofer Level Control: -30dB to +6dB
Fuse Rating: 40A
Operating Voltage: 8V to 16V
4x JBL CLUB-64SQ Club Series 6.5" Two-way Premium Car Audio Speaker Speakers, Pair (Club-64SQ)
Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors, and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never-harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation. Available in a range of standard sizes - 3”, 4”, 5-1/4”, 6-1/2”, 6” x 8”, 4” x 6”, 6” x 9”, and 3/4” - they’re the perfect upgrade from factory speakers.
Plus One™ Woofer Cone Architecture -
Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased lowfrequency output and greater musical character.
Specified Shallow Design for More Mounting Application -
Club 64FSL specified compact design for 6-1/2”that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.
Bigger Magnet, Bigger Power Handling -
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.
Acoustically Damped, UV-resistant Polypropylene Cone -
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Specifications -
• Power Handling: 55W RMS, 165W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 55Hz – 20kHz
• Nominal Impedance: 3.0 ohms
