Description
Included in this kit
This bundle includes a JBL CLUB-A6001A High performance mono subwoofer car amplifier, and a JBL CLUB122SL Shallow-mount 12” (300mm) & 10” (250mm) component subwoofer with switchable 2- or 4-ohm impedance.
1x JBL CLUB-A6001A High performance mono subwoofer car amplifier (Club-A6001A)
The JBL Club A600 mono subwoofer amplifier delivers 600-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car’s factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
What’s in the box:
One Club A600 mono subwoofer car amplifier
Four 30A ATO fuses (2 installed, 2 spare)
2 Bare wire-to-RCA adapters
Remote bass control module
16.5' Remote control cable (RJ-25 plugs on both ends)
2 Self-tapping screws for remote (M3 x 15mm)
4 Mounting screws (M4 x 53mm)
Owner’s Manual
Two JBL stickers
1 logo badage
Technical specifications:
Mono subwoofer car amplifier
350 watts RMS x 1 at 4 ohms
(600 watts RMS x 1 at 2 ohms)
Class D amp technology
Variable low-pass filter (32–320 Hz, 12 dB/octave)
Variable bass boost (0-12dB at 45Hz)
Phase switch (0, 180 degrees)
Preamp and speaker-level inputs
Fuse rating: 30A x 2
8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
W x H x D = 220mm x 51.3mm x 180mm
W x H x D = 8-11/16" x 2-1/16" x 7-1/8"

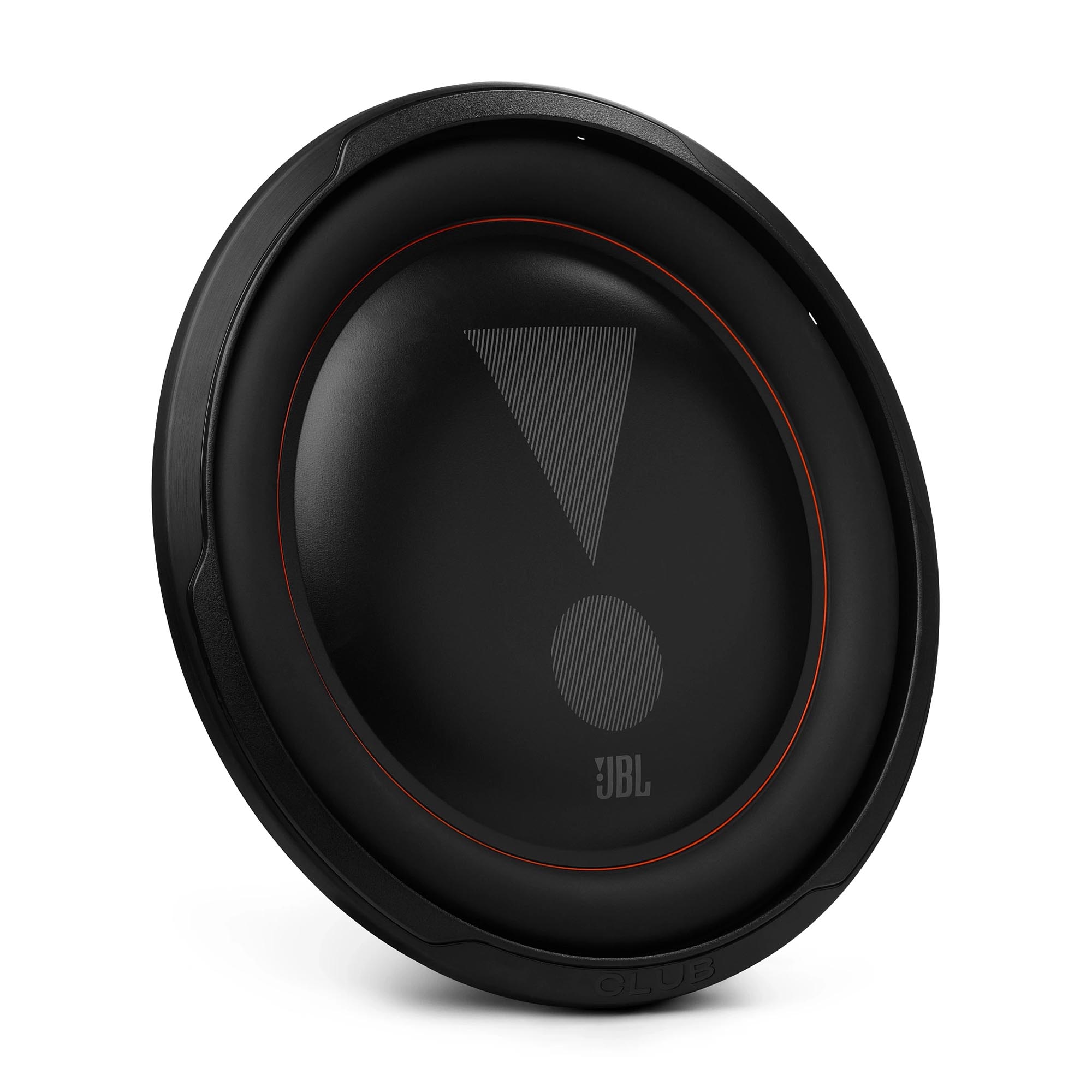

1x JBL CLUB122SL Shallow-mount 12” (300mm) & 10” (250mm) component subwoofer with switchable 2- or 4-ohm impedance (CLUB122SL)
JBL Club shallow-mount subwoofers deliver deep powerful bass that will take your system to the next level. Using our proprietary cone design and high roll surrounds, they are extremely efficient and require less power to deliver the goods. The JBL CLUB shallow-mount subwoofers are also happy in both sealed and bandpass box configurations, delivering powerful, punchy and accurate bass in all. They also feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance, 2 or 4 ohms for your chosen amplifier and overall system layout.
Features
SSI™ (Selectable Smart Impedance)
Aluminum Woofer Cone
Vented Basket Design for System Cooling
High-Roll Rubber Surrounds
Purposeful Design
Specifications:
Subwoofer: 12” (300mm) Aluminum Driver Power Handling: 400W RMS, 1200W peak Sensitivity (1W/1m): 84dB Frequency Response (-6dB): 30Hz – 400Hz Nominal Impedance: 2 or 4 ohms, switch-selectable Voice Coil Diameter: 2” (50mm) Cutout Diameter: 11” (279.04mm) Mounting Depth: 3-1/4” (82.5mm)
What’s in the box
1x 12” Subwoofer
1x EVA Foam Gasket
1x Owner’s Manual
