Description
Included in this kit
This bundle includes a JBL STAGEA50011 Stage Series Mono, 500w x 1 amplifier w/RLC, and a JBL STAGE1200S Single 12" Car Audio Subwoofer Sealed Enclosure.

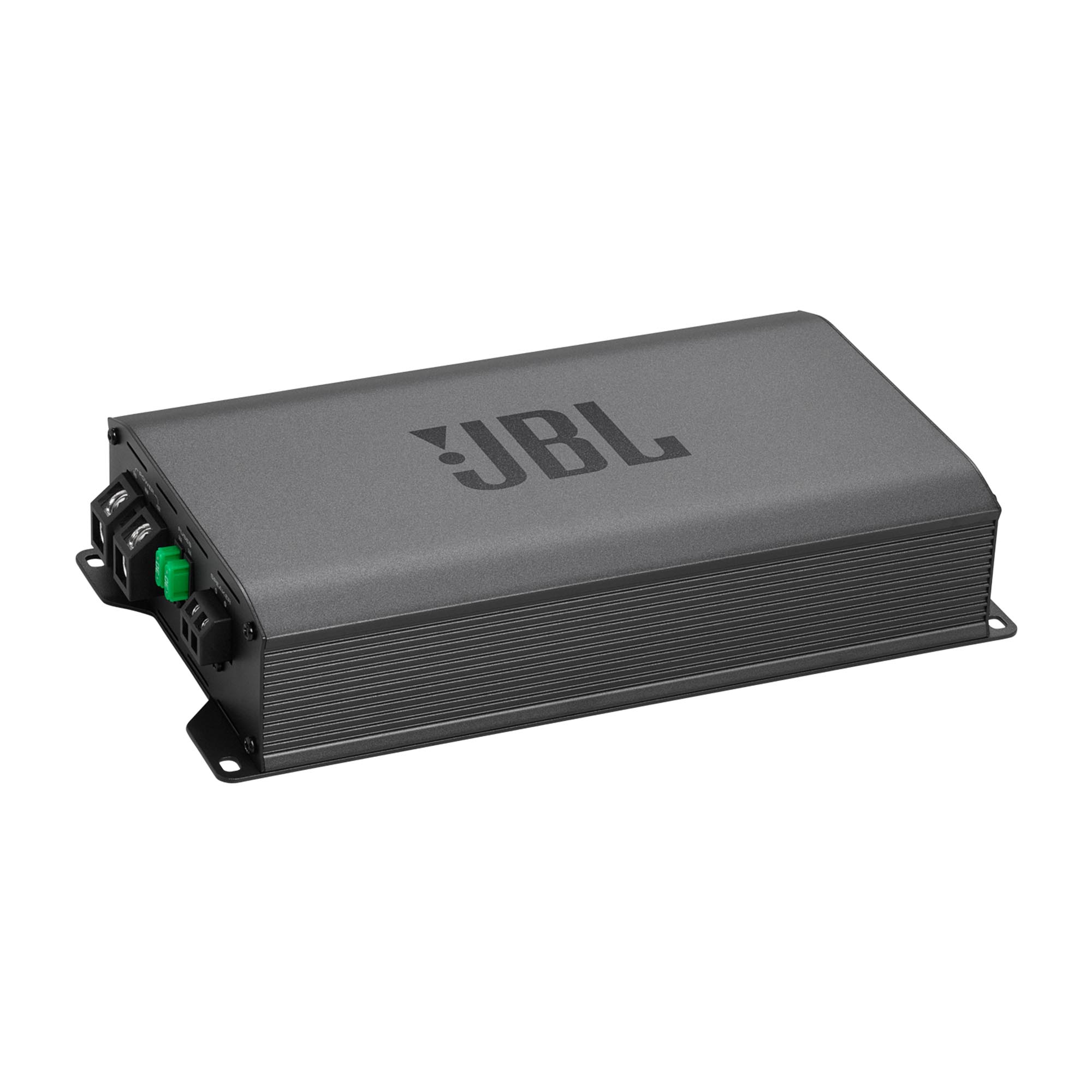

1x JBL STAGEA50011 Stage Series Mono, 500w x 1 amplifier w/RLC (STAGEA50011)
Power you will feel at your core.
The JBL STAGE GT series high-performance Class-D amplifiers are available in four-channel, two-channel, and mono-channel models, designed to meet a variety of system configurations. Featuring advanced engineering capabilities, these amplifiers optimize performance for the ultimate listening experience. The JBL STAGE GT amplifiers are easily installed and remarkably reliable. The compact amplifiers are equipped with user controls, including a bass EQ as well as HPF and LPF crossover controls, allowing you to tailor the sound to suit the characteristics of your vehicle.
Features
• Great Performance at an Affordable Price
• Compact Footprint
• Full On-Board Protection
• Start/Stop Compatible
• Wide Input Sensitivity Range
• Adjustable Bass EQ
• OEM Load Detect Compatible
• Crossover Controls
• Immersive Sound Experience
• JBL Industrial Design
Technical Specifications
• Max Power: 1220W peak
• Power Output: 500Wrms x1 @2ohms
• Power Output: 300Wrms x1 @4ohms
• Frequency Response: 10Hz - 320Hz±1dB
• THD+N@ROP:1%
• Input Sensitivity LOW: 0.2V - 5V, HIGH: 1V - 25V
• Bass EQ Level: 0dB to 12dB
• Bass EQ Width: Narrow - Wide
• Bass EQ Freq: 30Hz - 100Hz
• Phase Control: 0°- 180° Variable
• Low Pass Filter 32Hz - 320Hz
• Protection: DCP, OVP, UVP, OCP, OTP
• Operating Voltage: 9V - 16V
• Fuse Rating: 30A x 2
What’s in the Box
1x Amplifier
1x Remote Bass Control
1x Remote Bass Control Cable
2x Spare Fuse
1x High-level Input Cable
4x Mounting Screw with Washer
2x Allen Key
2x JBL Stickers
1x QR Code Owners Manual
1x Safety Sheet
1x JBL STAGE1200S Single 12" Car Audio Subwoofer Sealed Enclosure (STAGE1200S)
The Stage 1200S subwoofer enclosure pounds out resounding bass from a compact enclosure that fits in just about any vehicle. High efficiency combines with impressive power-handling for rich and satisfying performance. The 12" woofer cone and large voice coil work together for remarkable realism, note-perfect accuracy, and sustained bass response. And this enclosure’s striking good looks are matched by its ease of installation. Sealed slim enclosure with 12" (300mm) subwoofer.
What’s in the box:
1 x Subwoofer enclosure
Owner’s manual
2 x Brand stickers
Technical Specifications:
Power handling: 250Wrms, 1000W peak
Sensitivity (@2.83V/1m): 91dB
Frequency response: 34Hz – 200Hz
Voice coil diameter: 2 in (50mm)
Impedance: 2 ohms
