Description
Included in this kit
This bundle includes 3x JL Audio M3-650X-S-Gw-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gloss White Sport Grilles, and a Modus MX12 2-Zone Receiver with Backlit LCD Display 2 Zones and Bluetooth Audio Streaming.
3x JL Audio M3-650X-S-Gw-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gloss White Sport Grilles (M3-650X-S-Gw-i)
JL Audio M3-650X-S-Gw-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gloss White Sport Grilles
6.5-inch coaxial system with 0.75-inch (19 mm) marine silk dome tweeters, 60W, 4 ohms
M3 Marine Coaxial Speakers - High-performance sound, engineered for real marine duty
Truly Engineered for Marine Duty
To ensure long-term performance, all models are designed and built to exceed industry standards for salt-fog and UV exposure. These are saltwater-rated products that you can use with confidence.
Outstanding Sound Quality
• Acoustically engineered to produce powerful, smooth sound in real-world, open-air, marine environments.
• Long-excursion, high-efficiency woofers and treated silk dome tweeters deliver superior output capability with clear, high frequency detail.
• Integrated 2nd order, high-pass filter on tweeters, with solid-state protection circuit to minimize the possibility of tweeter failure.
Versatile Power Requirements
• Suitable for use with standard marine head-unit power.
• Designed to benefit with quality amplification, such as the JL Audio marine amplifiers.
Choose Your Look
• Available in two grille styles: “Classic” or “Sport”, both in Gloss White. Sport models are also available in a sleek, all Gunmetal finish.
• Allows you to match the look of the speakers to the theme of the boat interior.
Built-In RGB LED Lighting
Included on this Sport grille model, multi-color LEDs are embedded within each speaker grille to produce vibrant accent lighting.
Choose from seven fixed-wiring lighting colors or connect a lighting controller accessory (sold separately) for adjustable control. (Separate 12V wiring is required to power the illumination.)
For optimal performance, we recommend using the JL Audio MLC-RW (Marine Lighting Controller).
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 20 - 125 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 55 Hz - 25 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter (A) | 6.90 in / 175 mm |
| Bolt Hole Circle Diameter (B) | 6.125 in / 155.5 mm |
| Motor Outer Diameter (C) | 3.85 in / 98 mm |
| Frontal Grille Protrusion* (D) | 0.973 in / 25 mm |
| Mounting Hole Diameter (E) | 5.00 - 5.25 in / 127 - 133 mm |
| Mounting Depth (F) | 2.74 in / 69.5 m |

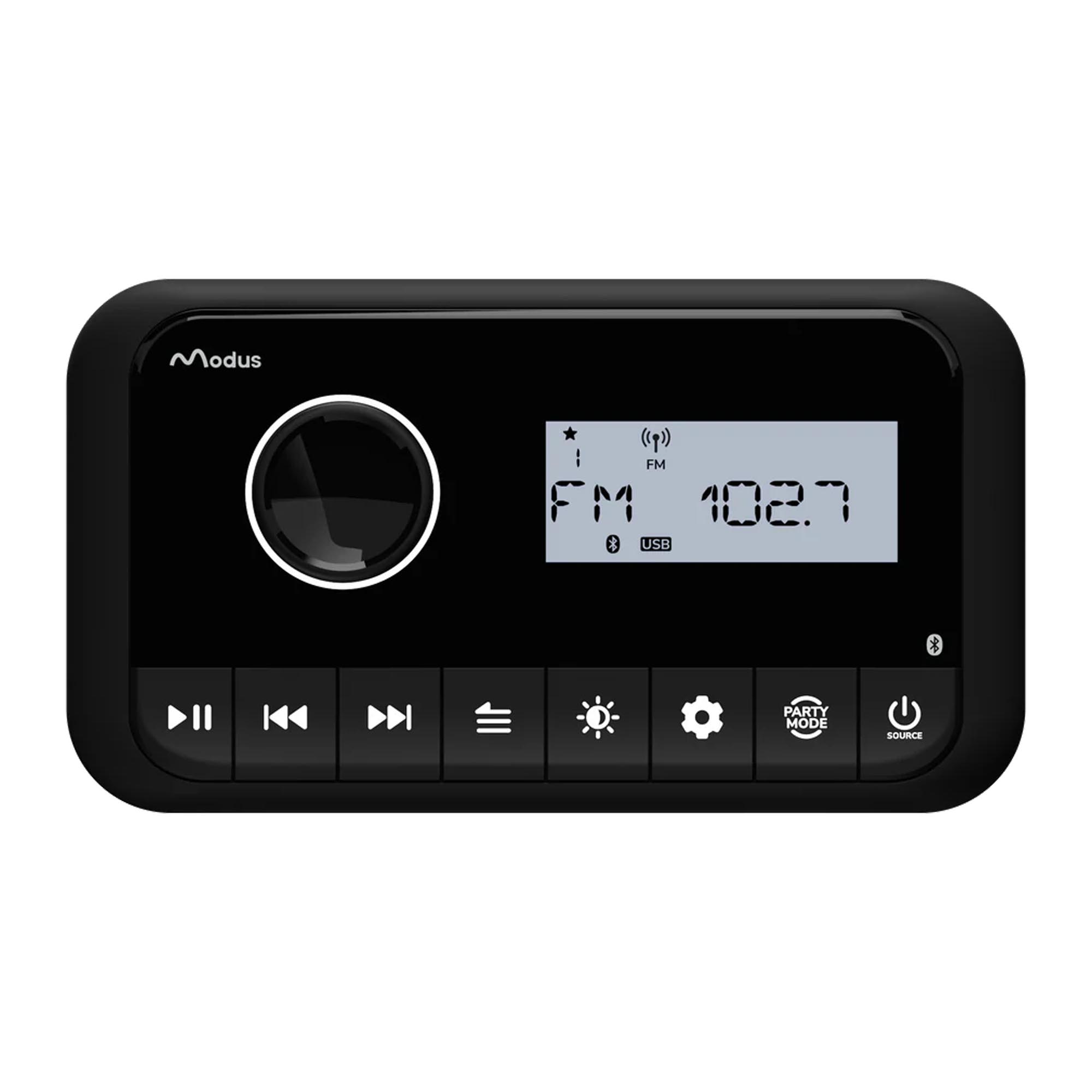

1x Modus MX12 2-Zone Receiver with Backlit LCD Display 2 Zones and Bluetooth Audio Streaming (MX12)
Marine Receiver with Bluetooth Streaming & Dual Zone Control
This marine receiver is designed for durable, high-performance onboard audio with Bluetooth streaming, dual-zone control, and weather-ready radio functionality. Built for marine environments, it combines visibility, connectivity, and rugged construction for reliable use on the water.
Key Features
- Optically bonded 2.54" backlit LCD display for enhanced visibility in bright conditions
- 25W RMS x 6-channel power output for full-range marine audio coverage
- 2-zone RCA outputs with dedicated 4V subwoofer pre-amp output
- Bluetooth audio streaming with transom remote compatibility
- AM/FM radio tuner with integrated Weather Band support
- Party Mode wireless fleet connectivity up to 330 feet
- Included radio cover for added protection when not in use
Audio & Control Features
Built-in audio tuning controls allow adjustment of bass, mid, and treble for customized sound. Party Mode enables synchronized playback across multiple boats, creating a shared listening experience across large gatherings or fleet environments.
- Audio tuning: Bass, Mid, Treble adjustment
- Party Mode wireless synchronization across multiple vessels
- Low voltage alert protection
- NVM (Non-Volatile Memory) saves settings, presets, and stations
- Display dimmer for nighttime usability
Marine-Grade Construction
Engineered for marine durability, this receiver features UV and salt/fog protection along with a conformal-coated PCB to withstand harsh marine environments. The polarized display is also sunglass-friendly for improved readability on the water.
- UV & salt/fog resistant construction
- Conformal-coated PCB for corrosion resistance
- Polarized sunglass-viewable display
Party Mode – Fleet Audio Sync
Party Mode allows wireless connection between multiple boats, synchronizing audio playback across vessels within range. Ideal for group outings, events, and on-water gatherings.
- Wireless fleet connection up to 330 feet
- Audio synchronization across multiple boats
- Simple setup with no complex wiring required
- Creates a unified audio experience across the water
Specifications
| Screen Size | 2.54" |
|---|---|
| Total Channels | 6 |
| Power Output | 25W x 6 RMS |
| Mounting | Custom |
| Length | 5.89" |
| Width | 6.22" |
