Description
Included in this kit
This bundle includes a Fusion SG-DA51600 Signature Series 5 Channel Marine Amplifier, 2x JL Audio M3-650X-S-Gm-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gunmetal Sport Grilles, and a JL Audio 10-Inch M6 Marine Subwoofer, Gunmetal & Titanium, Sport Grille - SKU: M6-10W-S-GmTi-4.
1x Fusion SG-DA51600 Signature Series 5 Channel Marine Amplifier (SG-DA51600)

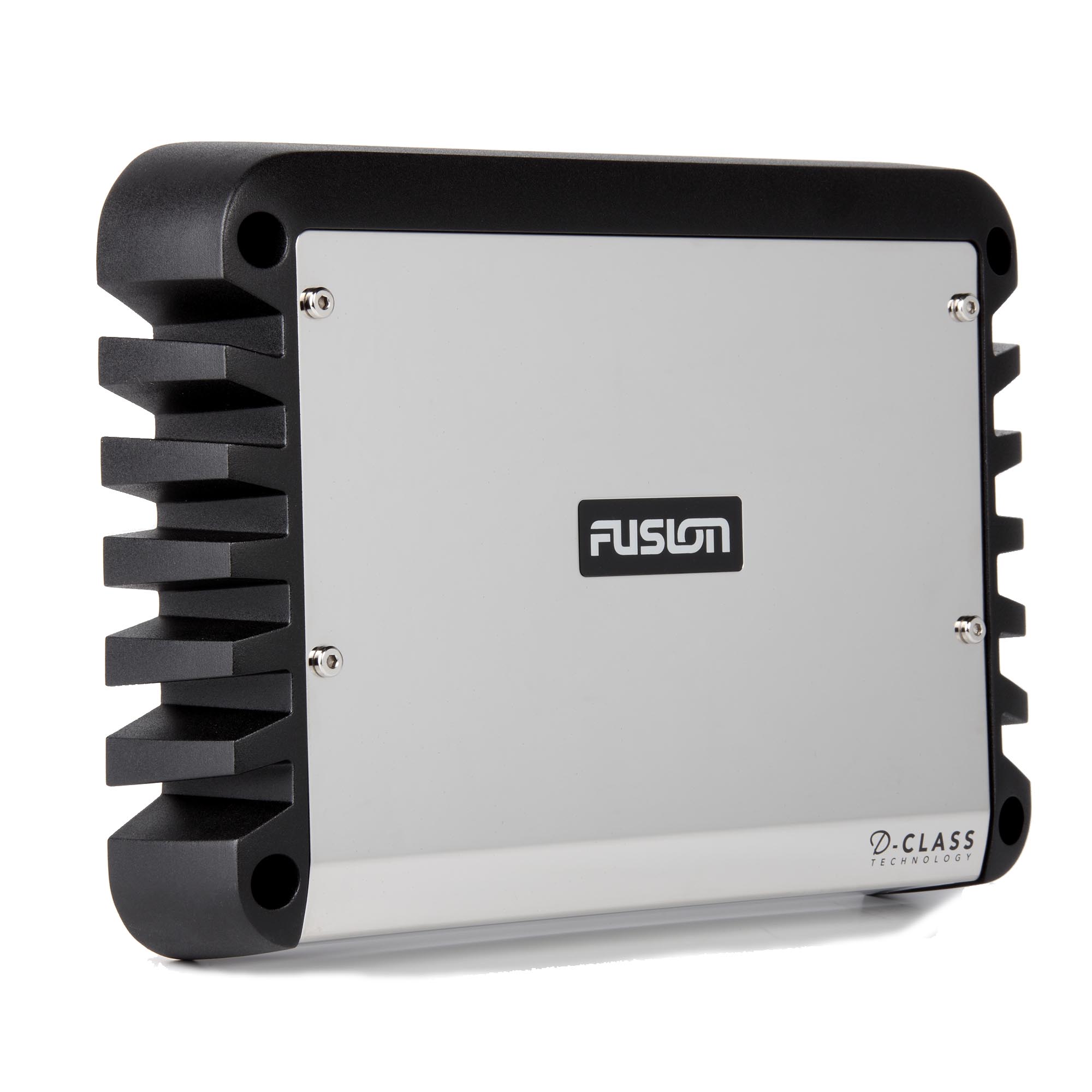

Fusion SG-DA51600 Signature Series 5 Channel Marine Amplifier
The FUSION Signature Series Marine amplifiers are purpose built for the marine environment, boasting some of the most impressive environmental protection available, to deliver a Signature performance on the water like never before.
Introducing our most efficient, stunning and powerful marine amplifier. The stainless steel SG-DA51600 will resist corrosion and the incredible 1600 watt output (peak) will power 4 speakers and 1 subwoofer with ease.
The SG-DA51600 is FUSION''s first 5 Channel Class-D Hi-Fi Marine amplifier; the key benefit of a Class-D amplifier is low battery drain with a high output, making this the perfect amplifier for the marine environment. The SD-DA51600 has conformal coated PCB''s for maximum product life and performance plus the amplifier chassis acts as a heat sink; reducing component core temperature and increasing efficiency.
Undeniably a stand out piece; the stunning stainless steel mirror install panel offers practical confinement of all cable connections and tuning controls, while delivering good looks that complement any installation. Outputs include Subwoofer plus four speaker channels for sound front and rear. RCA line-level inputs are included, for easy connection to new or existing systems.
This product is rated True-Marine and carries with it a 3 year limited consumer warranty.
Product Specifications
Frequency Response 10Hz - 50kHz
Peak Power 1600 Watts
Rated Power 80 Watts RMS x 4 + 250W RMS x 1 @ 4 Ohm 1% THD+N
Rated Power 130 Watts RMS x 4 + 330W RMS x 1 @ 2 Ohm 1% THD+N
Rated Power 250 Watts RMS x 2 @ 4 Ohm Bridged 1% THD+N + 250W RMS x 1 @ 4 Ohm 1% THD+N'
2x JL Audio M3-650X-S-Gm-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gunmetal Sport Grilles (M3-650X-S-Gm-i)
JL Audio M3-650X-S-Gm-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gunmetal Sport Grilles
6.5-inch coaxial system with 0.75-inch (19 mm) marine silk dome tweeters, 60W, 4 ohms
M3 Marine Coaxial Speakers - High-performance sound, engineered for real marine duty
Truly Engineered for Marine Duty
To ensure long-term performance, all models are designed and built to exceed industry standards for salt-fog and UV exposure. These are saltwater-rated products that you can use with confidence.
Outstanding Sound Quality
• Acoustically engineered to produce powerful, smooth sound in real-world, open-air, marine environments.
• Long-excursion, high-efficiency woofers and treated silk dome tweeters deliver superior output capability with clear, high frequency detail.
• Integrated 2nd order, high-pass filter on tweeters, with solid-state protection circuit to minimize the possibility of tweeter failure.
Versatile Power Requirements
• Suitable for use with standard marine head-unit power.
• Designed to benefit with quality amplification, such as the JL Audio marine amplifiers.
Choose Your Look
• Available in two grille styles: “Classic” or “Sport”, both in Gloss White. Sport models are also available in a sleek, all Gunmetal finish.
• Allows you to match the look of the speakers to the theme of the boat interior.
Built-In RGB LED Lighting
Included on this Sport grille model, multi-color LEDs are embedded within each speaker grille to produce vibrant accent lighting.
Choose from seven fixed-wiring lighting colors or connect a lighting controller accessory (sold separately) for adjustable control. (Separate 12V wiring is required to power the illumination.)
For optimal performance, we recommend using the JL Audio MLC-RW (Marine Lighting Controller).
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 20 - 125 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 55 Hz - 25 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter (A) | 6.90 in / 175 mm |
| Bolt Hole Circle Diameter (B) | 6.125 in / 155.5 mm |
| Motor Outer Diameter (C) | 3.85 in / 98 mm |
| Frontal Grille Protrusion* (D) | 0.973 in / 25 mm |
| Mounting Hole Diameter (E) | 5.00 - 5.25 in / 127 - 133 mm |
| Mounting Depth (F) | 2.74 in / 69.5 m |
1x JL Audio 10-Inch M6 Marine Subwoofer, Gunmetal & Titanium, Sport Grille - SKU: M6-10W-S-GmTi-4 (M6-10W-S-GmTi-4)
JL Audio M6-10W-S-GmTi-4
JL Audio 10-Inch M6 Marine Subwoofer, Gunmetal & Titanium, Sport Grille - SKU: M6-10W-S-GmTi-4
M6 Loudspeakers fulfill JL Audio’s commitment to raise the bar with each product generation. The JL Audio engineering team has completely reinvented the premium marine loudspeaker, with major improvements in performance, precision and durability. Offered in multiple sizes and cosmetic options, most models are also available with a brilliant, new lighting technology.
Advanced Subwoofer Technologies
The M6-10W is best used with amplifier power in the 75W - 250W range and is optimized to operate in a compact 0.75 cu. ft. (21.2 l) sealed enclosure, or a 1.50 cu. ft. (42.5 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. If you need a Subwoofer that operates without a dedicated enclosure, select one of our Infinite Baffle Subwoofers instead.
Physical Specifications
| Nominal Diameter | 10 in / 250 mm |
| Outer Diameter | 10.75 in / 273 mm |
| Bolt Hole Circle | 9.7 in / 247 mm |
| Frontal Grille Protrusion | 1.66-Inches for Classic Grille, 1.66-Inches for Sport Grille |
| Mounting Hole Diameter | 8.875 in / 225 mm |
| Net Weight | 12.6 lbs / 5.7 kg |
| Driver Displacement | .052 ft^3 / 1.47 liters |
Subwoofer Parameters
| Free Air Resonance (Fs) | 34.58 Hz |
| Electrical “Q” (Qes) | 0.522 |
| Mechanical “Q” (Qms) | 9.78 |
| Total Speaker “Q” (Qts) | 0.496 |
| Equivalent Compliance (Vas) | 1.22 ft3 / 34.49 litres |
| One-way, Linear Excursion (Xmax) | 0.52 in / 13.2 mm |
| Efficiency (1W/1m) | 86.4 dB SPL |
| Effective Piston Area (Sd) | 50.11 in² / 0.0323 m² |
| DC Resistance (Re) | 3.619 ohm |
| Nominal Impedance | 4 Ohm |
| Infinite Baffle Use | No |
| Enclosure Use | Yes (Sealed & Ported) |
| Power Handling (continuous) | 250W |
Sealed Enclosure Specs
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.75 cu ft / 21.2 L |
| External Width (W) | 17 in / 432 mm |
| External Height (H) | 17 in / 432 mm |
| External Depth (D) | 7.25 in / 184 mm |
| F3 | 41.54 Hz |
| Fc | 53.41 Hz |
| Qtc | 0.8035 |
|
Enclosure Notes Safety Notice When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van. |
|
Ported Enclosure Specs
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 1.50 cu ft / 42.5 L |
| External Width (W) | 17 in / 432 mm |
| External Height (H) | 17 in / 432 mm |
| External Depth (D) | 13.125 in / 333 mm |
| Internal Port Diameter (ID) | 3 in / 76 mm |
| Port Length (L) | 11.125 in / 283 mm |
| Tuning Frequency (Fb) | 31 Hz |
| F3 | 29.81 Hz |
|
Enclosure Notes Safety Notice When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van. |
|
