Description
Included in this kit
This bundle includes 2x Metra 72-8104 Toyota 1987-Up Speaker Harness - Pair, a Metra 82-8148 Speaker Mounting Brackets Install 5-1/4", 6-1/2" or 6-3/4" speakers in select 2000-up Lexus, Scion, Toyota, and Pontiac vehicles, a Metra 82-8146 Speaker Mounting Brackets Install 6"x9" speakers in select 2002-up Toyota, Nissan, Subaru, Scion, and Lexus models, a JL Audio C2-350x:3.5-inch (90 mm) Coaxial Speaker System (Pair), a JL Audio C2-690tx:6 x 9-inch (150 x 230 mm) 3-Way Coaxial Speaker System (Pair), a JL Audio C2-650x:6.5-inch (165 mm) Coaxial Speaker System (Pair), a JL Audio SBX-T-TACDCG3/10TW3 Stealthbox fox 2016-2023 Toyota Tacoma Double Cab, and a JL Audio XDM700/5 XDM Series 5-Channel Class-D Full Range Car/Marine Amplifier, 700 W.
2x Metra 72-8104 Toyota 1987-Up Speaker Harness - Pair (72-8104)
TOYOTA 87-Up Speaker Harness
Sold as pair

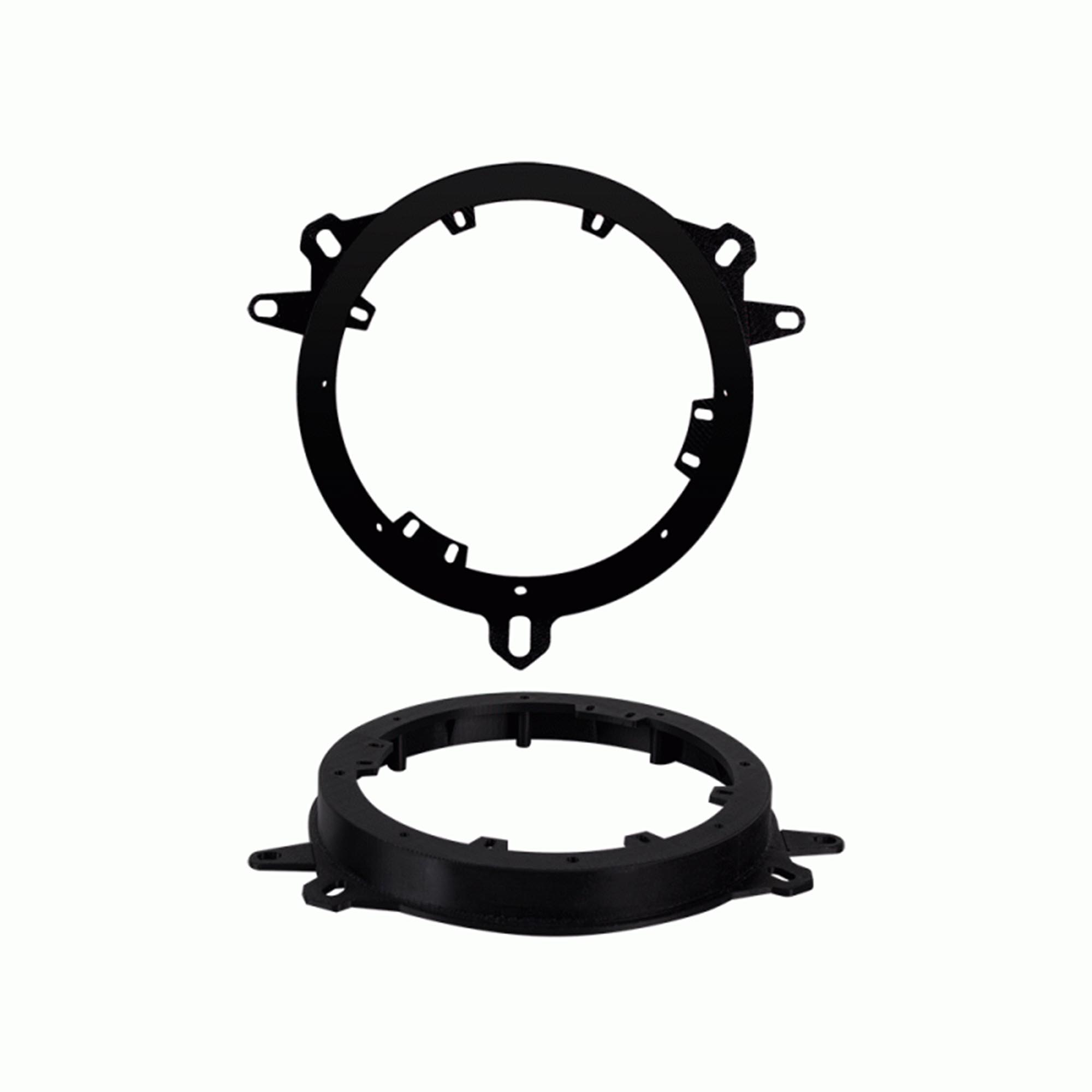

1x Metra 82-8148 Speaker Mounting Brackets Install 5-1/4", 6-1/2" or 6-3/4" speakers in select 2000-up Lexus, Scion, Toyota, and Pontiac vehicles (82-8148)
Description
Provides spacing for aftermarket speaker installation.
Works with all varieties of speakers including component drivers
Accommodates 6" to 6.75" speaker – pair
Applications
Lexus CT rear location 2009-2013
Lexus ES front and rear locations 2002-2006
Lexus GS front location 2006-2011
Lexus GX rear location 2003-2012
Lexus IS front location 2001-2012
Lexus IS rear location 2006-2012
Lexus RX front and rear locations 1999-2003
Pontiac Vibe front and rear locations 2003-2009
Scion TC front and rear locations 2005-2012
Scion XA front and rear locations 2004-2007
Scion XB front location 2004-2012
Scion XB rear location 2008-2012
Scion XD front and rear locations 2008-2011
Toyota 4Runner rear location 2003-2012
Toyota Avalon rear location 2005-2011
Toyota C-HR front and rear locations 2018-up
Toyota Camry rear doors 2021-2022
Toyota Celica front and rear locations 2000-2005
Toyota Corolla front location 2001-2012
Toyota Echo front location 2000-2005
Toyota Highlander rear location 2008-2012
Toyota Matrix front and rear locations 2002-2011
Toyota Prius front and rear locations 2001-2011
Toyota RAV4 front and rear locations 2001-2011
Toyota Sequoia front and rear locations 2008-2012
Toyota Sienna front and rear locations 1998-2012
Toyota Solara front location 1998-2003
Toyota Tacoma rear location 2005-2013
Toyota Tundra rear location 2000-2018
Toyota Tundra front location 2003-2006
Toyota Venza rear location 2009-2011
Toyota Yaris front location 2007-2012
Toyota Yaris lift back rear location 2007-2012
1x Metra 82-8146 Speaker Mounting Brackets Install 6"x9" speakers in select 2002-up Toyota, Nissan, Subaru, Scion, and Lexus models (82-8146)
Accommodates 6×9 inch speaker – pair
Applications
09-13 Lexus CT Front Location
03-14 Lexus GX Front Location
07-14 Lexus LS Front Location
04-14 Lexus RX Front Location
10-14 Toyota 4Runner Front Location
03-09 Toyota 4Runner Front Location
05-14 Toyota Avalon Front Location
02-11 Toyota Camry Front Location
07-14 Toyota FJ Cruiser Front Location
08-10 Toyota Highlander Front Location
08-14 Toyota Land Cruiser Front Location
10-14 Toyota Prius Front Location
08-14 Toyota Sequoia Front Location
04-09 Toyota Solara Front Location
05-14 Toyota Tacoma Front Location
07-18 Toyota Tundra Front Location
09-14 Toyota Venza Front Location
1x JL Audio C2-350x:3.5-inch (90 mm) Coaxial Speaker System (Pair) (C2-350x)
JL Audio C2-350x
Coaxial Speaker System: 3.5-inch (90 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-350x system features 3.5-inch (90 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 25 W |
| Peak Music Power | 75 W |
| Recommended Amplifier Power (RMS) | 10 - 40 W / Ch. |
| System Efficiency | 83 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 130 Hz - 22 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter* (A) | 3.44 in / 87 mm |
| Grille Tray Outer Diameter (B) | N/A |
| Motor Outer Diameter (C) | 2.36 in / 60 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.54 in / 14 mm |
| Frontal Grille Protrusion (E) | N/A |
| Mounting Hole Diameter (F) | 3.19 in / 81 mm |
| Mounting Depth (G) | 1.50 in / 38 mm |
1x JL Audio C2-690tx:6 x 9-inch (150 x 230 mm) 3-Way Coaxial Speaker System (Pair) (C2-690tx)
JL Audio C2-690tx
Coaxial 3-Way Speaker System: 6 x 9-inch (150 x 230 mm) Woofer, 2-inch (51 mm) Cone Mid-Range, 0.75-inch (19 mm) Silk Dome Tweeter | 6x9
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-690tx system features 6 x 9-inch (150 x 230 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6 x 9-inch (150 x 230 mm) format is a direct fit in many vehicles. The Mid-Range driver is ferrofluid-cooled, with a 2-inch Mylar® cone diaphragm to smoothly bridge the gap between the woofer and the dome tweeter.
Tweeters are mounted next to the mid-range driver and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 70 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 15 - 125 W / Ch. |
| System Efficiency | 93 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 53 Hz - 22 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter* (A) | 6.40 x 9.33 in / 163 x 237 mm |
| Grille Tray Outer Diameter (B) | 6.75 x 9.63 in / 172 x 245 mm |
| Motor Outer Diameter (C) | 3.94 in / 100 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.75 in / 19 mm |
| Frontal Grille Protrusion*** (E) | 0.98 in / 25 mm |
| Mounting Hole Diameter (F) | N/A |
| Mounting Depth (G) | 3.06 in / 78 mm |
1x JL Audio C2-650x:6.5-inch (165 mm) Coaxial Speaker System (Pair) (C2-650x)
JL Audio C2-650x
Coaxial Speaker System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 15 - 100 W / Ch. |
| System Efficiency | 91 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 59 Hz - 22 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter* (A) | 6.5 in / 165 mm |
| Grille Tray Outer Diameter (B) | 6.84 in / 174 mm |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.45 in / 12 mm |
| Frontal Grille Protrusion*** (E) | 0.85 in / 22 mm |
| Mounting Hole Diameter (F) | 5.56 in / 141 mm |
| Mounting Depth (G) | 2.44 in / 62 mm |
1x JL Audio SBX-T-TACDCG3/10TW3 Stealthbox fox 2016-2023 Toyota Tacoma Double Cab (SBX-T-TACDCG3/10TW3)
JL Audio SBX-T-TACDCG3/10TW3 Stealthbox fox 2016-2023 Toyota Tacoma Double Cab
SEE NOTE BELOW FOR MODELS WITH FACTORY SUBWOOFER!Toyota’s Tacoma Double Cab features a highly optimized interior cabin with almost zero wasted space. This makes adding a serious subwoofer a major challenge, but not one that JL Audio's design team could not overcome.
Benefiting from the small box prowess and shallow mounting depth of JL Audio's innovative, TW3 thin-line driver, we engineered a subwoofer solution that fits snugly behind the rear seat. Featuring a rugged, custommolded, sealed enclosure design, this Stealthbox model houses a 10-inch TW3 subwoofer. The results are stunning: real, deep sub-bass and totally undisturbed interior comfort and utility.
The Hard Data: Contains one 10TW3-D4 subwoofer in a sealed enclosure; 400-watt power handling; wired for 2-ohm mono. Installs in storage pocket behind the passenger side rear seat. Black steel mesh woofer grille is included. Requires relocation of factory amplifier and removal of factory “subwoofer,“ if so equipped.
NOTE: For models equipped with a factory subwoofer, you must purchase a plain (without subwoofer) passenger side rear cargo trim panel from Toyota parts.
1x JL Audio XDM700/5 XDM Series 5-Channel Class-D Full Range Car/Marine Amplifier, 700 W (XDM700/5)
JL Audio XDM700/5 5-Channel Class D Car/Marine System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V
The XDM700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and fits comfortably in just about any vehicle or vessel. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also generating a solid 300 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is JL Audio's high-speed NexD™ switching amplifier design.
Suitable for car or boat installations, the XDM700/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
Rated Continuous (RMS) Power @ 14.4 V
| Main Channels @ 4 Ω | 75 W RMS x 4 |
| Main Channels @ 2 Ω | 100 W RMS x 4 |
| Main Channels - Bridged @ 4Ω | 200 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 180 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 240 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 300 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| Main Channels @ 4 Ω | 60 W RMS x 4 |
| Main Channels @ 2 Ω | 90 W RMS x 4 |
| Main Channels - Bridged @ 4Ω | 180 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 180 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 240 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 300 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | N/A |
General Specifications
| Frequency Response (Main Channels) | 12 Hz - 22 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 10 Hz - 1 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <1% @ 2 Ω per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 60 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) | 12 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz - 5 kHz |
| Filter Mode(s): Channels 3 & 4 (rear) | High-Pass or Bandpass |
| Filter Slope(s): Channels 3 & 4 (rear) | 12 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 50 Hz - 500 Hz |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Filter Slope(s): Subwoofer Channel | 12/24 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter: Subwoofer Channel | none |
| Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Level Modes | Sub Ch. or All Channels |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 10.23 in / 260 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 6.15 lb / 2.79 kg |
