Description
Included in this kit
This bundle includes a JL Audio FiX 82 OEM Integration DSP, and a JL Audio DRC-100 Digital remote controller for the JL Audio FiX 82 processor.
1x JL Audio FiX 82 OEM Integration DSP (FiX 82)

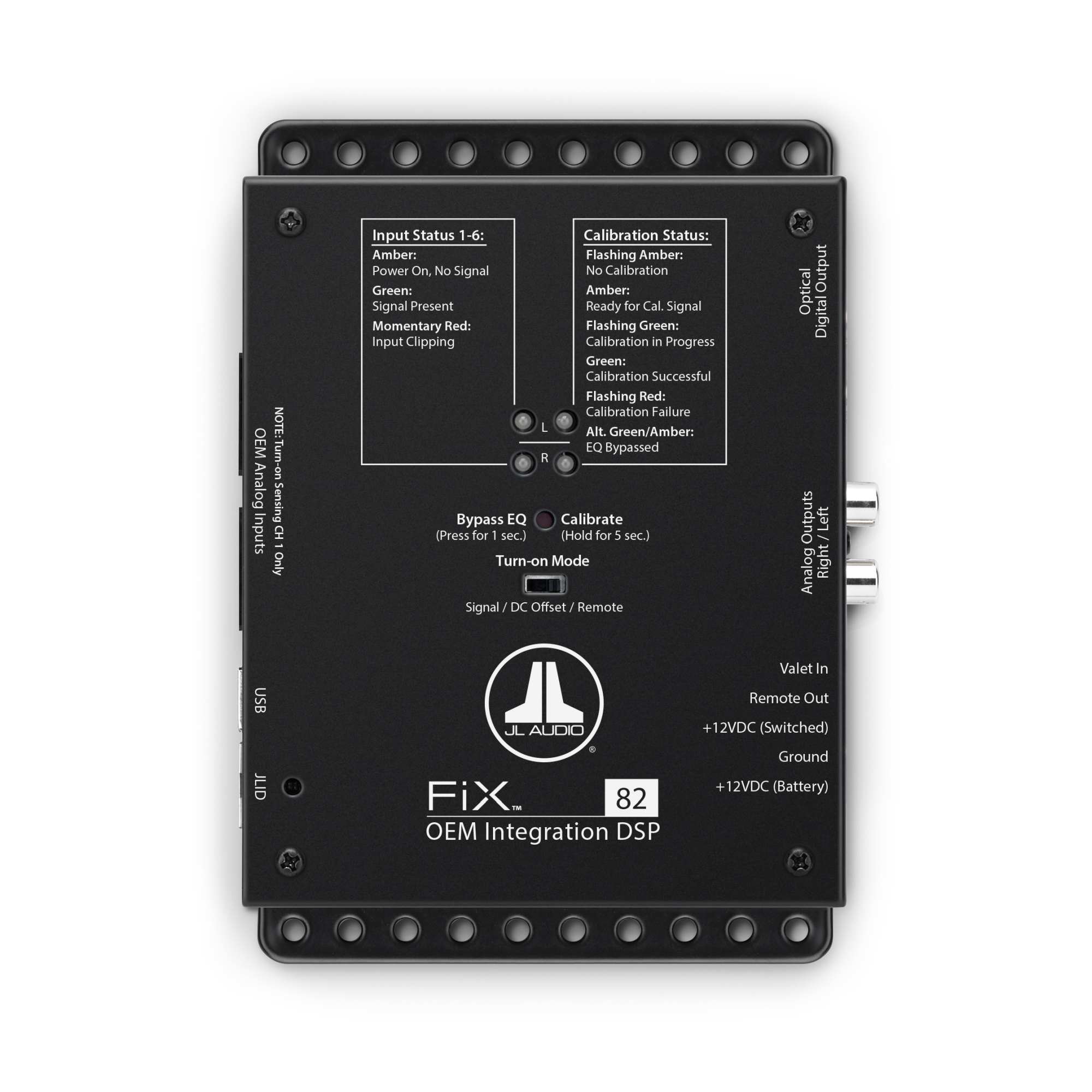

JL Audio FiX-82
OEM Integration DSP with Automatic Time Correction and Digital EQ. 8-ch. Inputs / 2-ch. Stereo RCA Outputs / 1 Digital Optical Output
The FiX™ 82 is a state-of-the-art digital signal processor engineered to deliver world-class sound from factory audio systems, without replacing the OEM source unit. The FiX™ 82 is the first DSP to automatically correct time delayed factory outputs prior to signal summing and EQ correction.
With a powerful 24-bit DSP processor and dual 1/3 octave equalizers onboard, complex 2-way, 3-way and 4-way factory audio outputs are combined and level-matched automatically into a flat, full-range stereo signal. Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS).
Calibration is initiated with just a single button press and takes only about 30 seconds to complete, with no special equipment needed! By connecting a PC running TüN™ 2.0 Software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the “TUNE” tab of the TüN™ 2.0 interface, you can also access a pair of user-adjustable, 10-band, graphic equalizers to fine tune the output signals.
General Specifications
| Power Supply Type | Regulated DC-DC SMPS |
| Input Operating Voltage | 10 - 16 VDC |
| Standby Current Draw | <1.5 mA |
| Operating Current Draw | 0.7 A |
| Recommended Fuse Value | 1 A |
| Input Channels | Eight |
| Input Type | Differential-Balanced |
| Input Voltage Range | 250 mV - 30 V RMS |
| Minimum Input Voltage | 10 mV RMS |
| Input Level Setting | Fully automatic |
| Output Channels | Two |
| Analog Output | Unbalanced, stereo RCA jacks |
| Digital Output | Optical (Toslink) output (S/PDIF) |
| Output Impedance | 450 Ω |
| S/N Ratio | 96 dB (A-Weighted, referred to 4V RMS Output) |
| THD+N @ Rated Output | 0.02% (20 Hz - 20 kHz) |
Signal Processing
| Audio Resolution | 24 bit / 48 kHz |
| Number of EQ Bands | 30 x 2 channels |
| EQ Resolution | 1/3 octave (25 Hz - 20 kHz) |
| Remote Level Control | Optional (DRC-100) |
| Remote Level Functions | Master Volume Control, Handsfree Optimization, LED Status Reporting |
Physical Specifications
| Height (H) | 1.85 in / 47 mm |
| Width (W) | 4.29 in / 109 mm |
| Depth (D) | 6.14 in / 156 mm |
| Net Weight | 2.58 lb / 1.17 kg |

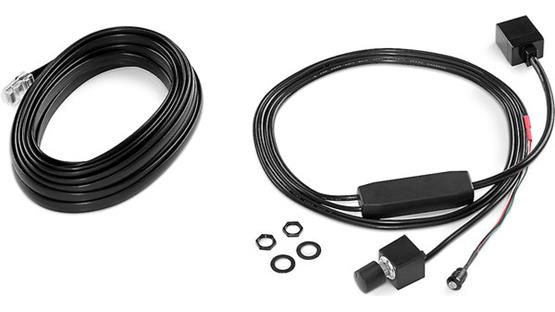

1x JL Audio DRC-100 Digital remote controller for the JL Audio FiX 82 processor (DRC-100)
JL Audio DRC-100 Digital remote controller for the JL Audio FiX 82 processor
The DRC-100 Digital Remote Controller lets you adjust the volume of a system that's using JL Audio's FiX 82 sound processor. Although offered as an option, you'll need the DRC-100 to adjust your system's volume if you want to maintain accurate processing at all levels.
In addition to volume control, the DRC-100 features a Handsfree Optimization Mode that disables the FiX 82's time-correction and adds a high-pass filter to the audio to clarify the sound when making hands-free phone calls. Multi-colored LEDs report the operational status of the FiX 82, so you'll know what's going on from the driver's seat.
