Description
Included in this kit
This bundle includes a JL Audio RD900/5+ RD car 5-channel system amplifier (900 watts), a PAC AP4-FD32 AmpPRO Amplifier Integration Interface for Select 2025+ Ford Vehicles Models with B&O A2B Factory Amplified Systems, a JL Audio SBX-F-RNGSCG4/10TW1 Stealthbox® Compatible with 2019-Up Ford Ranger, a JL Audio XD-PCS4-1B:Premium 4 AWG 12 V Power Connection Kit Single Amplifier, and 3x JL Audio XE-BLKAIC2-12 2-Channel Twisted-Pair RCA Audio Interconnect w/ Machined Connectors - 12 ft. / 3.66 m.
1x JL Audio RD900/5+ RD car 5-channel system amplifier (900 watts) (RD900/5+)
JL Audio RD900/5+
RD car 5-channel system amplifier (900 watts)
SLEEK, POWERFUL, PACKED WITH VALUEThe look is amazing, and the performance backs it up. Designed as a total “one-box solution,” this RD series amplifier from JL Audio can comfortably drive a complete 4-satellite speaker system plus a subwoofer — all with a robust 900 watts of power.
EFFICIENT CLASS-D DESIGN
Small size, minimal heat and lots of power — Class-D amplifier design offers significant advantages. And our NexD™ switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.
CLEAN, POWERFUL, RELIABLE
Churning out 900 watts of total power — 100 watts from each of its 4 channels into a 2-ohm load (14.4 volts, 1% THD) plus a robust 500 watts for a subwoofer — this RD series amp brings stunning output to your audio system. Each pair of main channels is also fully bridgeable, enabling an ultrapowerful 3-channel amplifier setup.
STUDIO-GRADE SIGNAL PROCESSING
Each of the amplifier’s main channels is equipped with a 12-decibel/octave high-pass filter, with an additional band-pass filter on its rear channels and a dedicated low-pass filter for the subwoofer channel. All 3 crossovers offer continuously variable frequency selection from 50–500 Hz for precise filtering.
LED CLIPPING INDICATOR RINGS
An LED clipping indicator light on the control panel lets you quickly set your amplifier’s input sensitivity, without the need for additional test equipment.
EASY CONNECTIVITY
With “input type” switches on the stereo channel sections, RD series amps can eliminate the need for Y-adapters when bridging stereo output channels.
BAND-PASS CROSSOVER
When used as a system amplifier, the band-pass crossover feature enables a two-way active configuration.
Specifications:
General
Channels: 5
Physical dimensions (Height): 2.13" (54 mm)
Physical dimensions (Width): 14.66" (372 mm)
Physical dimensions (Depth): 6.96" (177 mm)
Weight: 7.15 lbs (3.6 kg)
Operating voltage: 10-15 VDC
Operating temperature range: –4º to 149º F (–20º to 65º C)
Warranty: 2 years
Audio
Amplifier class: Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)
Main: 70 W x 4
Sub: 225 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
Main: 100 W x 4
Sub: 500 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)
Main: 60 W x 4
Sub: 200 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)
Main: 90 W x 4
Sub: 350 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: >104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: >103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: >84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: >83 dB
Damping factor @ 4 Ω: >150/50 Hz
Damping factor @ 2 Ω: >75/50 Hz
THD+N @ Rated Power: Main Channels: <1% @ 4 Ω
THD+N @ Rated Power: Subwoofer Channel: <1% @ 4 Ω
Frequency response (+0, -1dB): Main Channels: 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel: 10 Hz-500 Hz
Input voltage range @ RCA inputs: Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Input impedance: 10 kΩ (Low), 2.7 kΩ (High)
Current consumption (Idle): 1,900 mA-2,000 mA
Current consumption (Max): 70-80A
Fuse rating: 80 A
Recommended fuse type(s): AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge: 4 AWG wire
Protection circuits: Over temperature, Ground short, Speaker overcurrent
Signal Processing
Filter mode(s): Channels 1 & 2: High-pass only (Off, x1, x10)
Filter Slope(s): Channels 1 & 2: 12 dB/octave
Filter frequency range: Channels 1 & 2: 50 Hz-500 Hz (x10: 500 Hz-5 kHz)
Filter mode(s): Channels 3 & 4: Off, High-pass or Bandpass
Filter Slope(s): Channels 3 & 4: 12 dB/octave
Filter frequency range: Channels 3 & 4: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel: Off/Low-pass
Filter slope(s): Subwoofer Channel: 12 dB/octave
Filter frequency range: Subwoofer Channel: 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers: Yes
Remote level control: Optional (RBC-1)
Remote level modes: Sub Channel only
Channel input mode switch: yes (2/4/6 Channels)
Pass-through preamp output: Buffered
In the Box:
RD 5-channel system amplifier
Hex wrench
Documentation

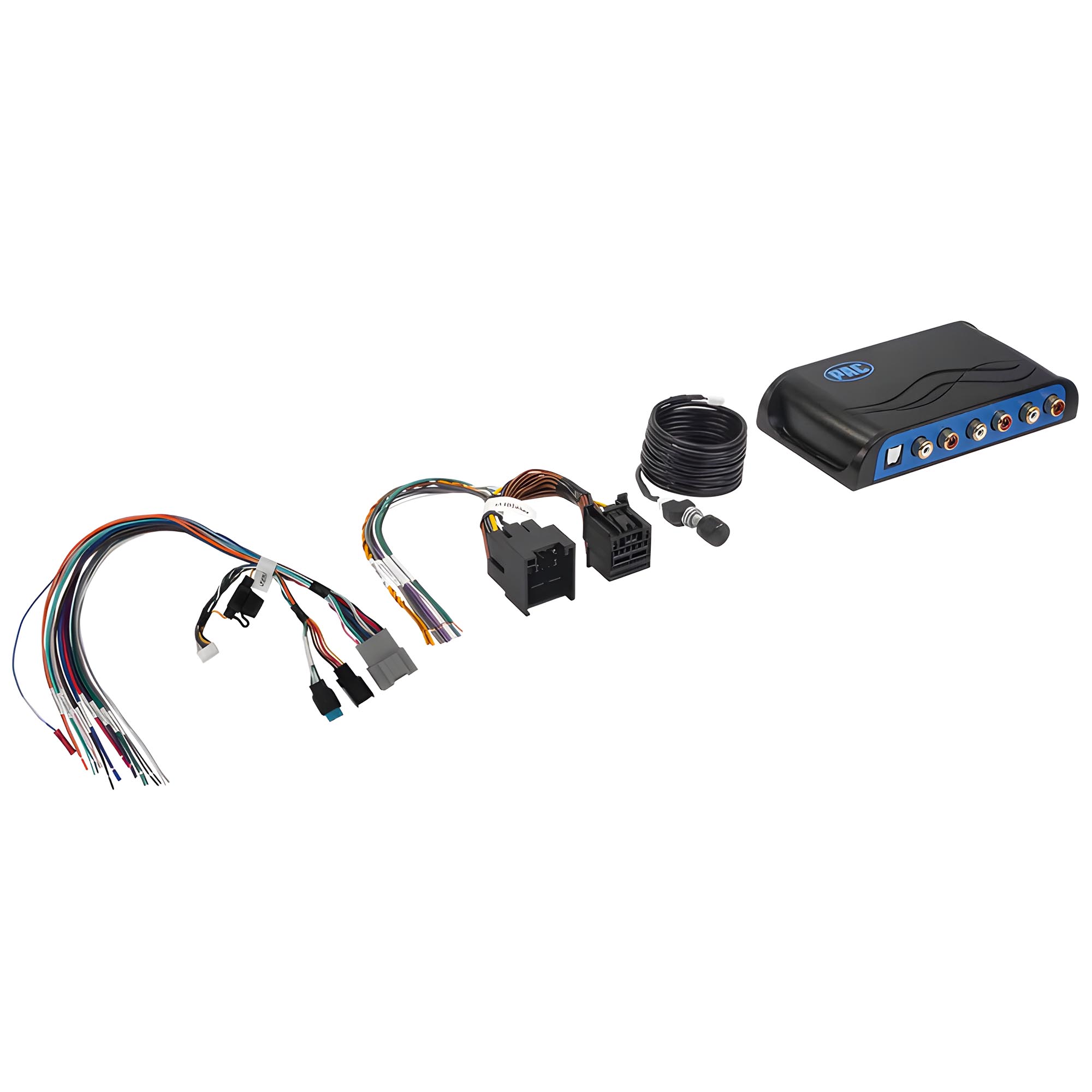

1x PAC AP4-FD32 AmpPRO Amplifier Integration Interface for Select 2025+ Ford Vehicles Models with B&O A2B Factory Amplified Systems (AP4-FD32)
AmpPRO Amplifier Integration Interface for Select 2025+ Ford Vehicles Models with B&O A2B Factory Amplified Systems
Note: Factory amplifier must be removed from vehicle when installing this interface
Application Guide:
Requires factory B&O Amplifier
2025 FORD BRONCO
2025 FORD BRONCO SPORT
2025 FORD F-150
2025-2026 FORD F-250
2025 FORD F-350
2025 FORD MAVERICK
2025 FORD RANGER
1x JL Audio SBX-F-RNGSCG4/10TW1 Stealthbox® Compatible with 2019-Up Ford Ranger (SBX-F-RNGSCG4/10TW1)
Vehicle-Specific Stealthbox® Enclosure
Under-Seat 10" Stealthbox® for 2019-Up Ford Ranger SuperCrew
Upgrade your Ford Ranger with deep, powerful bass while preserving valuable cabin space. This vehicle-specific Stealthbox® installs beneath the passenger-side rear seat, delivering impressive low-frequency performance from a sealed enclosure while remaining virtually hidden after installation.
10" 10TW1-2 Subwoofer
300W Power Handling
2Ω Wired Impedance
Sealed Enclosure
2019-Up Ranger SuperCrew
Overview
Hidden Bass Performance
Designed specifically for the 2019-up Ford Ranger SuperCrew, this Stealthbox® enclosure installs beneath the passenger-side rear seat in place of the factory storage compartment. The custom enclosure houses a single 10TW1-2 10-inch subwoofer to deliver strong, low-frequency performance without sacrificing interior space.
Vehicle Integration
Factory-Like Fit
- Installs under the passenger-side rear seat.
- Replaces the factory under-seat storage compartment.
- Rear seat folding operation remains unaffected.
- Driver-side under-seat storage area remains available.
- Stealthbox® remains virtually hidden once installed.
Technical Specifications
| Subwoofer | One 10TW1-2 10-inch subwoofer |
| Enclosure Type | Sealed |
| Power Handling | 300 W |
| Wired Impedance | 2 Ω |
| Vehicle Fitment | 2019-up Ford Ranger SuperCrew |
| Compatibility | Will not fit SuperCab models |
| Installation Location | Passenger-side rear seat, replacing the factory storage compartment |
In the Box
- One 10TW1-2 subwoofer in a sealed enclosure
- One black steel mesh woofer grille
Fitment Note
This Stealthbox® is designed exclusively for 2019-up Ford Ranger SuperCrew models. It installs beneath the passenger-side rear seat and will not fit SuperCab models.
This Stealthbox® is designed exclusively for 2019-up Ford Ranger SuperCrew models. It installs beneath the passenger-side rear seat and will not fit SuperCab models.
1x JL Audio XD-PCS4-1B:Premium 4 AWG 12 V Power Connection Kit Single Amplifier (XD-PCS4-1B)
JL Audio XD-PCS4-1B: Premium 4 AWG 12 V Power Connection Kit Single Amplifier
Premium 4 AWG 12V Power Connection System for One Amplifier
Everything you need to make secure, high-integrity power connections to a single amplifier with up to a 100A fuse rating. Our compact Maxi® Master Fuse Block is easy to install and allows you to accurately fuse your amplifier. A beefy self-tapping ground screw is also included to help you achieve a solid ground. As with all our Premium kits, the power wire is true AWG-spec, pure OFC copper.
What's in the kit?
XD-MFBW-MAXI Fuse Holder with Genuine 80A Maxi® Fuse
19 ft. (5.8 m) Blue 4 AWG Premium Power Wire, terminated with ring
3 ft. (0.9 m) Clear 4 AWG Premium Ground Wire, terminated with ring
20 ft. (6.1 m) Blue Remote Turn-On Lead Wire
Self-Tapping Ground Screw
Rubber Firewall Grommet
Nylon Wire Ties
Hex Wrench for Fuse Holder
Bonus: Additional 1-year warranty on JL Audio amplifier when installed by authorized dealer with this Power Connection System!
This kit is appropriate for single amplifiers with fuse ratings from 40A to 100A. Depending on the specific fuse rating of your amplifier, you may need to purchase an appropriate Maxi® fuse separately.

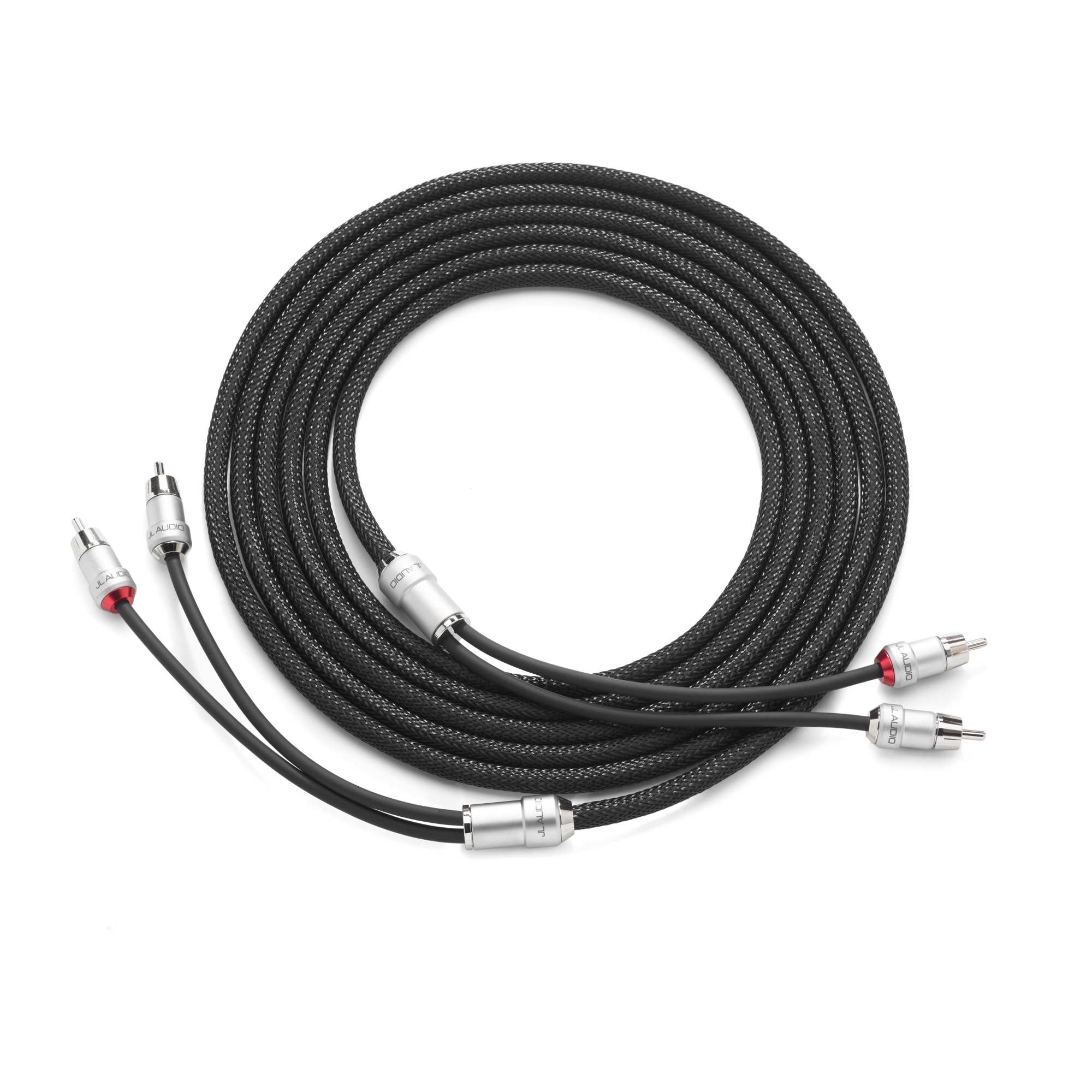

3x JL Audio XE-BLKAIC2-12 2-Channel Twisted-Pair RCA Audio Interconnect w/ Machined Connectors - 12 ft. / 3.66 m (XE-BLKAIC2-12)
JL Audio XE-BLKAIC2-12 2-Channel Twisted-Pair Audio Interconnect w/ Machined Connectors - 12 ft. / 3.66 m
ECS premium audio interconnect cables begin with small diameter silver-plated OFC copper conductors with Teflon® dielectrics constructed in a tight twisted-pair arrangement for optimum noise rejection. An overmolded strain-relief secures the silver-soldered connections inside the machined brass connector ends and splitters for maximum durability.The RCA plug barrels are short by design to facilitate installation in tight spaces while an extremely supple cable, protected by braided black outer jacket, provides a sleek look in any installation.
• Twisted-Pair Construction to Reject Noise
• Silver-Plated, pure OFC Copper Conductors with Teflon® Dielectrics
• Silver-Soldered Connections with overmolded strain-relief
• Machined Brass Connector Bodies and Cable-Splitter with Marine-rated corrosion-resistant plating
• Braided black outer jacket for protection from abrasion
• Compact connector design for installation in tight spaces
