Description
Included in this kit
This bundle includes a Garmin 010-11442-00 NMEA 2000 Starter Kit, and a JL Audio R5 NMEA 2000 Marine Stereo Volume Controller - 010-04790-00.
1x Garmin 010-11442-00 NMEA 2000 Starter Kit (010-11442-00)

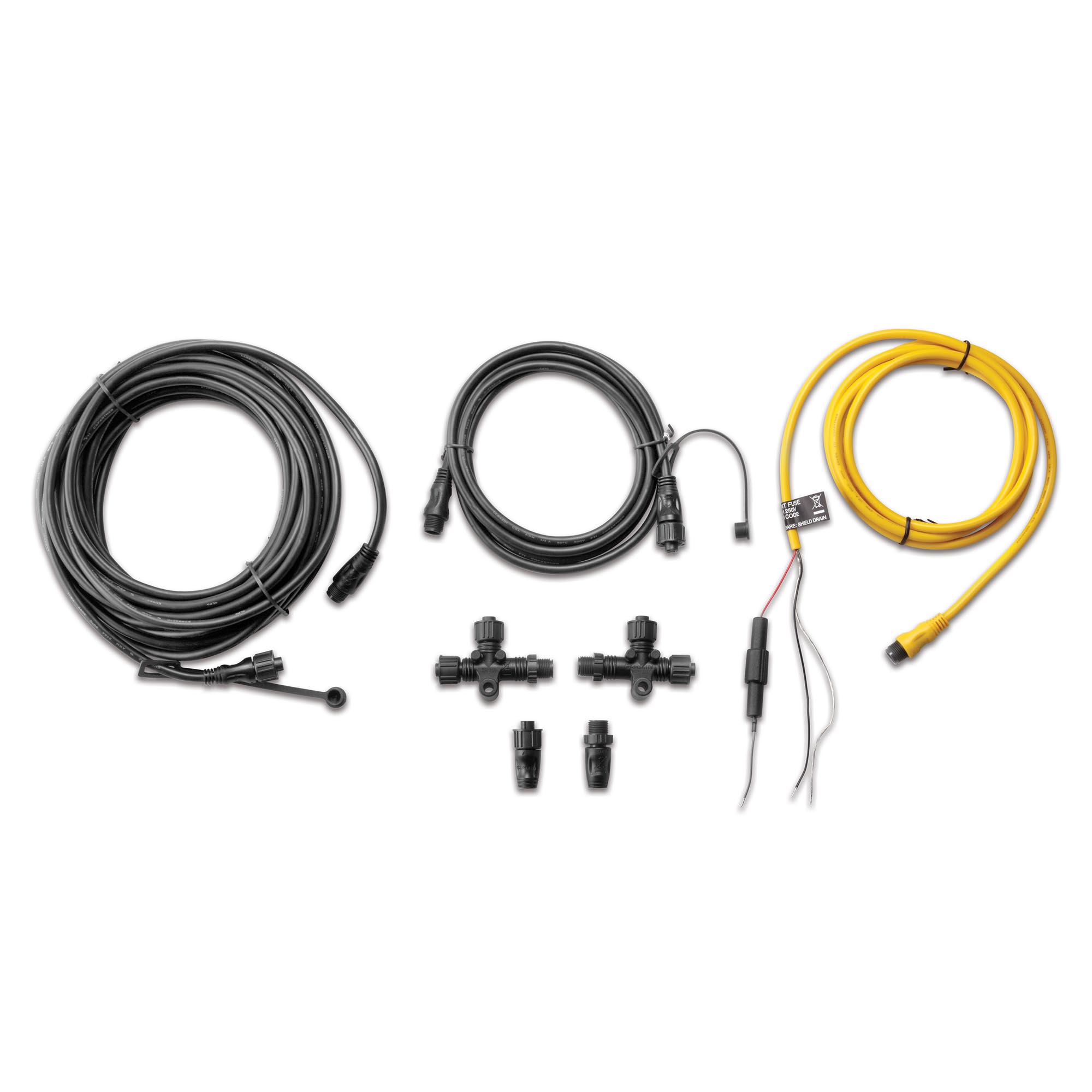

Our starter kit has everything you need to build a basic NMEA 2000 network on your boat. The kit includes an NMEA 2000 drop cable (2 m), backbone cable (6 m), power cable (2 m), 2 T-connectors, and male and female terminator connectors.
1x JL Audio R5 NMEA 2000 Marine Stereo Volume Controller - 010-04790-00 (R5)
JL Audio • R5 single-stereo volume controller
JL Audio R5 NMEA 2000 Marine Stereo Volume Controller
The JL Audio R5 adds a simple, tactile volume station for a compatible JL Audio marine stereo. Its large rotary knob, play/pause press function and compact NMEA 2000 connection make it a practical second control point without adding another display.
On-Water Advantages
Purpose-Built Features
- One-knob operation is easy to use while underway and keeps the control surface uncluttered.
- All-zone volume control suits a single head-unit system with multiple listening areas.
- Front mounting and a small cutout help place the controller where a full remote will not fit.
- The included NMEA 2000 T-connector supports integration with the vessel network.
Technical Specifications — JL Audio R5 NMEA 2000 Marine Stereo Volume Controller
| Control Type | Single-stereo volume controller; no display |
| Primary Functions | Volume and press-to-play/pause |
| Network | 1 NMEA 2000 Micro-C port |
| NMEA 2000 LEN | 2 (100 mA) |
| Supply Voltage | 10.8–16 VDC |
| Maximum Current | 110 mA |
| Water Rating | IPX7 |
| Operating Temperature | 32–122°F |
| Dimensions | 2.35" W x 2.35" H x 2.04" D |
| Mounting Hole | 1.5" diameter |
| Warranty | 1 year |
Compatibility Note
The R5 is not compatible with JL Audio MediaMaster source units.
The R5 is not compatible with JL Audio MediaMaster source units.
