Description
Included in this kit

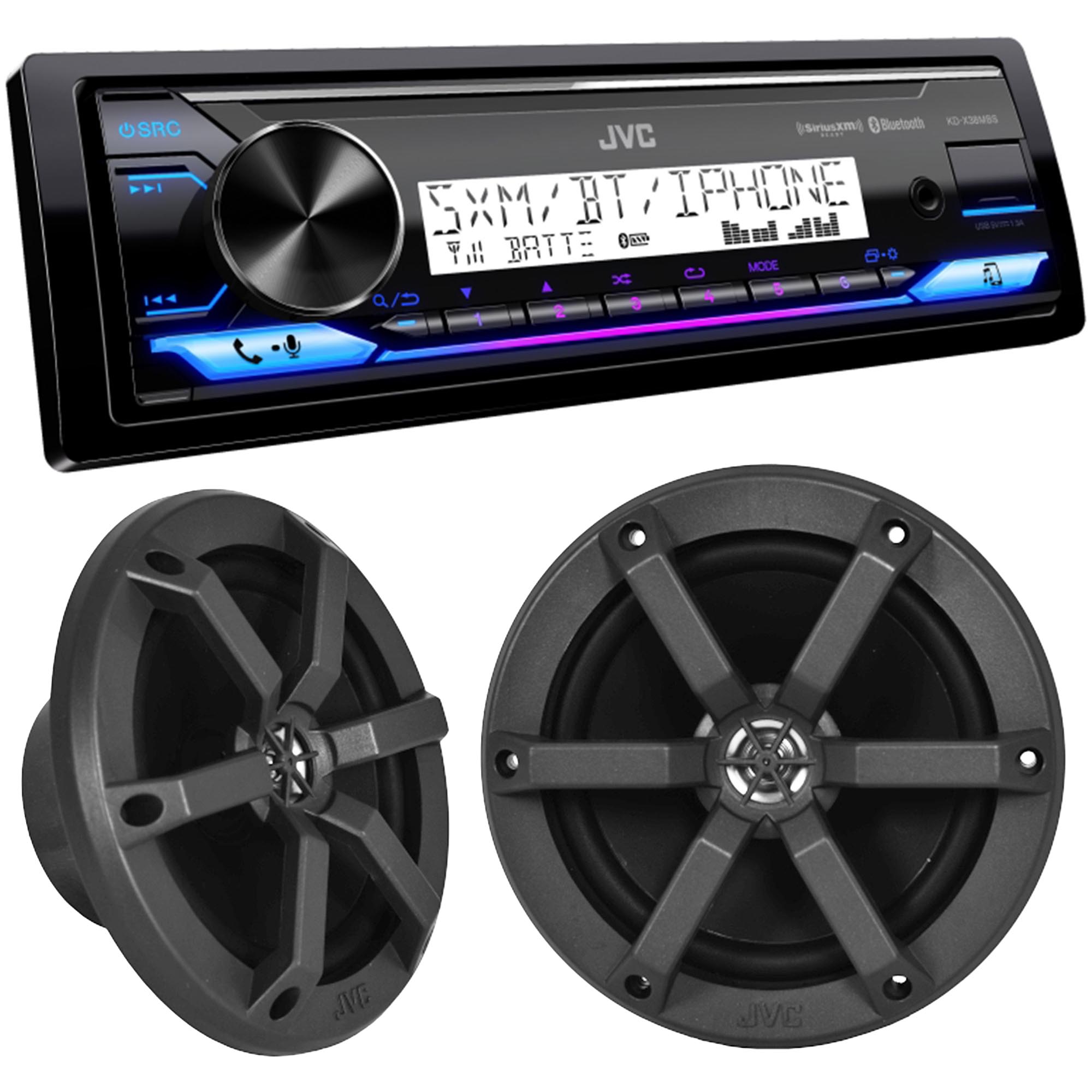

This bundle includes a JVC KD-X38MBS Single DIN Mechless USB AUX Bluetooth Car Digital Media Stereo Receiver with JVC CS-MS620 6.5" 2-Way 100 Watts Max Power Water Black Resistant Marine Speakers (Pair), and a JVC RM-RK62M Wired Remote Control for Marine Receivers.
1x JVC KD-X38MBS Single DIN Mechless USB AUX Bluetooth Car Digital Media Stereo Receiver with JVC CS-MS620 6.5" 2-Way 100 Watts Max Power Water Black Resistant Marine Speakers (Pair) (KD-PKX38MBS)
JVC KD-X38MBS Marine Digital Media Receiver + CS-MS620 6.5" Marine Speaker Bundle
This marine-ready audio bundle combines the JVC KD-X38MBS Single DIN digital media receiver with JVC CS-MS620 6.5" 2-way marine speakers. Designed for marine and powersports environments, this system delivers Bluetooth connectivity, advanced sound tuning control, and corrosion-resistant performance in a compact short-chassis design.
JVC KD-X38MBS Digital Media Receiver
Display & Interface
- 2-Line VA LCD Display (Black)
- Variable Color Key Illumination
- Auto Dimmer & Brightness Control
- Spanish & French Text Display Compatible
- Music Sync Effect
Bluetooth & Smartphone Integration
- Built-in Bluetooth Ver. 4.2 (Wired mic included)
- Hands-Free Calling (HFP 1.7.1)
- Dual Phone Full-Time Connection
- A2DP / AVRCP 1.6.1 Audio Streaming
- Supports AAC / SBC Bluetooth Audio Formats
- JVC Streaming DJ (up to 5 BT audio connections)
- Voice Dialing (compatible phone required)
- iPhone Music Playback via USB or Bluetooth
- Android Music Playback via Bluetooth
Audio Performance & Processing
- Maximum Power Output: 50W x 4 (4 ohms)
- Full Bandwidth Power: 22W x 4 (less than 1% THD)
- 13-Band Graphic Equalizer
- 11 Preset EQ Settings
- High-Pass & Low-Pass Filters
- Time Alignment
- K2 Technology
- Sound Response, Sound Lift & Space Enhancement
- Subwoofer Direct Connection (Mono Lch)
Connectivity & Expansion
- Front USB Input (1.5A charging)
- Front AUX Input
- 3 Pairs of 4.0V RCA Preouts (Front / Rear / Subwoofer)
- Subwoofer Output with Level (-50 to +10) & Frequency Control
- SiriusXM Ready
- Steering Wheel Remote Control Ready
Radio & Tuner Specifications
| FM Frequency Range | 87.9 – 107.9 MHz (200kHz step) |
|---|---|
| AM Frequency Range | 530 – 1,700 kHz (10kHz step) |
| Preset Stations | 18 FM / 6 AM |
| RBDS | Yes |
| Strong Station Memory (FM) | Yes |
| Radio Timer | Yes (Once / Daily / Weekly) |
| Tuner Preset Memory (Power Disconnection) | Yes |
Chassis & Installation
- Single DIN Short Chassis Design
- Detachable Face Panel
- Anti-Rust Coating for Marine Use
- Installation Size: 7-3/16" x 2-1/16" x 3-15/16" (182 x 53 x 100mm)
- Weight: 1.3 lbs.
JVC CS-MS620 6.5" 2-Way Marine Speakers
The included CS-MS620 marine speakers deliver balanced full-range performance in a compact 6.5" design suitable for marine installations.
| Speaker Size | 6.5" |
|---|---|
| Peak Power Handling | 100W |
| RMS Power Handling | 30W |
| Impedance | 4 ohms |
| Sensitivity | 87 dB (1W/1m) |
| Frequency Response | 60Hz – 20kHz |
| Cutout Diameter | 5 inch |
| Mounting Depth | 2-5/16 inch |
1x JVC RM-RK62M Wired Remote Control for Marine Receivers (RM-RK62M)
JVC RM-RK62M Wired Remote Control for Marine Receivers
The RM-RK62M is a Marine Motorsports Wired Remote Control. It is IPX7 Certified which makes it optimal for outdoor applications such as ATV/UTVs, Motorcycles, and boats.
IPX7 Waterproof Design
Works with all JVC Steering Wheel Remote Ready Receivers
White Illumination
Simple 4-wire Connection
Dimensions: Overall Diameter: 2.60 Inches, Mounting Hole Diameter: 0.70 Inches, Protrusion: 0.65 Inches.
