Description
Included in this kit
This bundle includes a JVC KW-M795BW Digital Media Receiver featuring 6.92" HD Capacitive Touch Control Monitor / Apple CarPlay® (Wireless, Wired) / Android Auto™ (Wireless, Wired) / SiriusXM Ready / iDatalink Maestro Ready / Bluetooth®, a JVC CS-DR1700C 360W Peak (55W RMS) 6.75 2-Way Factory Upgrade Component Speakers - Pair, and a JVC CS-DR6941 550W Peak (90W RMS) 6x9 4-Way Factory Upgrade Coaxial Speakers - Pair.

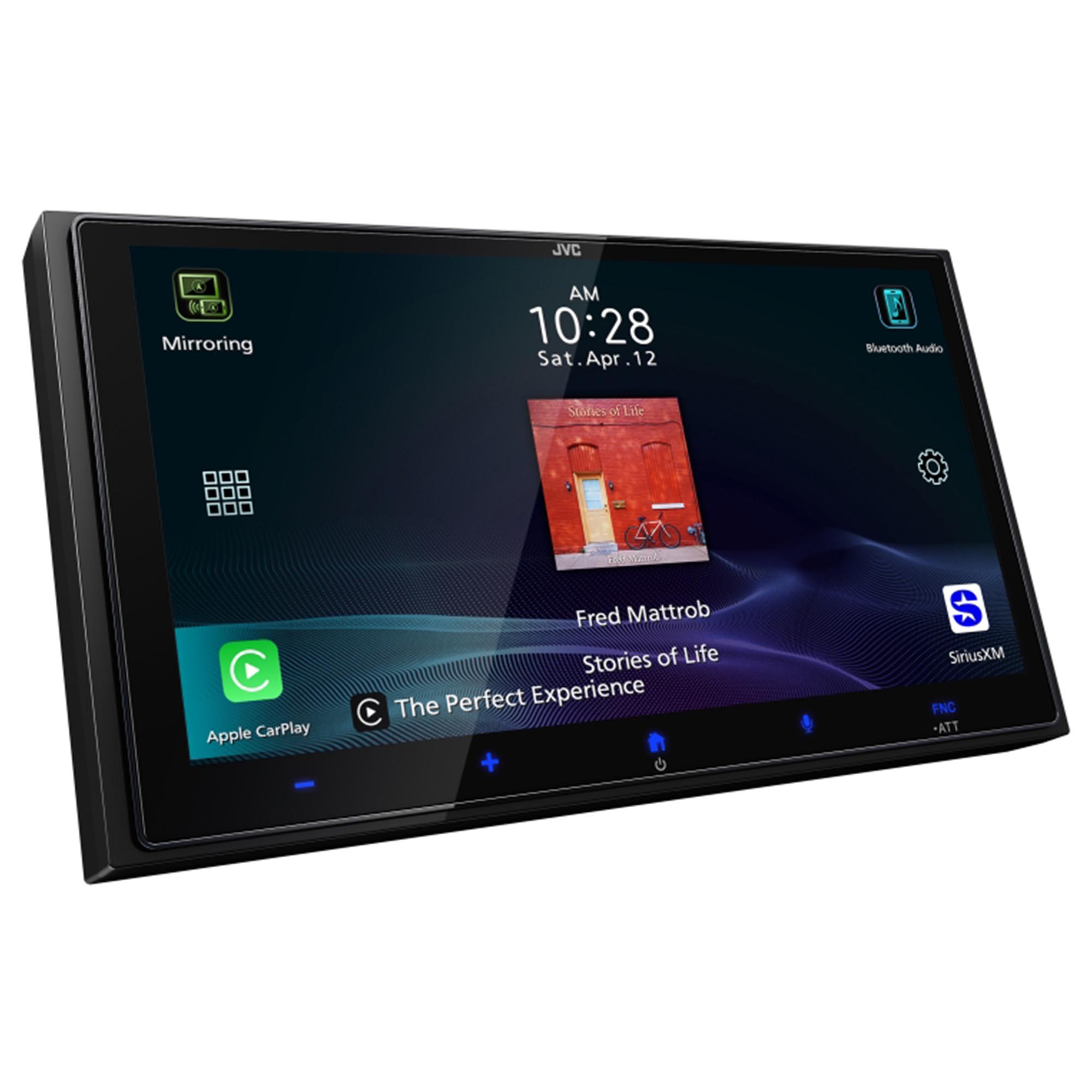

1x JVC KW-M795BW Digital Media Receiver featuring 6.92" HD Capacitive Touch Control Monitor / Apple CarPlay® (Wireless, Wired) / Android Auto™ (Wireless, Wired) / SiriusXM Ready / iDatalink Maestro Ready / Bluetooth® (KW-M795BW)
Monitor
High Definition Monitor: Yes
Screen Size: 6.92" HD Screen
Touch Panel: Capacitive
Touch Panel Surface: Anti Finger Print, Anti Glare
Key Illumination Color: Blue
Dimmer: Yes
Multilingual Display: Yes (English / Spanish / French)
Media Playback
MP3 Compatible with Tag: USB
WMA Compatible with Tag: USB
WAV Compatible with Tag: USB
AAC Compatible with Tag: USB
FLAC Compatible with Tag: USB
H.264 Compatible: USB
WMV Compatible: USB
MPEG 1/2 Compatible: USB
MPEG 4 Compatible: USB
MKV Compatible: USB
Bluetooth Control
Built-in Bluetooth: Yes (Version 5.3, Wired-Mic included)
Hands Free Call: Yes (HFP1.6)
2 Phones Full-Time Connection: Yes
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Wi-Fi Control
Built-in Wi-Fi: Yes
Android Control
Android Auto: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via Wi-Fi or USB)
iPod/iPhone Control
Apple CarPlay: Yes (via Wi-Fi or USB)
Mirroring for iPhone: Yes (via Wi-Fi or USB)
Audio
Maximum Power Output (Front & Rear): 50W x4
Full Bandwidth Power (Front & Rear): 22W x 4 (at less than 10% THD)
EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (7 Preset + 1 User)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
3-Way X'over: Yes
Time Alignment: Yes
Inputs and Outputs
AV Input: mini jack (AV-IN or Camera-IN switchable) x 1
Video Out: RCA x1
HDMI Terminal: Yes
HD Camera Input: Yes (Only for Rear Camera In)
Rear view camera Input: Yes
Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance: 3V
Subwoofer Output with Level/Frequency Control: Yes
General
iDatalink Maestro Ready: Yes (RR, RR2)
Wireless Remote Control: Optional (RM-RK259)
Steering Remote Control Ready: Yes
Dimensions (W x H x D) / Weight
Installation Size: 7" x 3-15/16" x 4-5/16" (178 x 100 x 109 mm)
1x JVC CS-DR1700C 360W Peak (55W RMS) 6.75 2-Way Factory Upgrade Component Speakers - Pair (CS-DR1700C)
General Features: 6.75" DR Series 2-Way Coaxial Speakers Perfect Factory Upgrade Speakers Power Handling: Peak: 720 watts per pair / 360 watts each RMS: 110 watts per pair / 55 watts each Carbon Mica Woofer Cone Hybrid Rubberized Cloth Surround Poly-Ether Imide Balanced Tweeter CEA-2031 compliant speakers Ferrite Woofer Magnet 4 ohms impedance Frequency Response: 66-23,800Hz In-line capacitor crossover for tweeters.
1x JVC CS-DR6941 550W Peak (90W RMS) 6x9 4-Way Factory Upgrade Coaxial Speakers - Pair (CS-DR6941)
JVC DRVN Series CS-DR6941 (New version of CS-DR6940) 6x9" Coaxial Factory Upgrade Speakers.
Combines high output sound and toughness to withstand the powerful drive. Easily upgradeable from factory-installed OEM speakers.
Balanced Neodymium Tweeter - It provides detailed high range and smooth mid range.
Great Factory Replacement - Installable vehicle types are greatly increased thanks to its shorter height.
Wide Opening Grill - Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.
Carbon Mica Cone - Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.
Hybrid Surround - Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
Small Design Tweeter Cover - Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.
Woofer
Size - 15 x 23 cm (6'' x 9'')
Diaphragm - Carbon Mica Cone
Surround - Hybrid Surround (Rubber & Cloth)
Magnet - Ferrite
Midrange
Size - 6.6 cm (2-5/8'')
Type - Cone
Diaphragm - Poly-Ether Imide
Magnet - Ferrite
Tweeter
Size - 2.5 cm (1'')
Type - Dome
Diaphragm - Poly-Ether Imide
Super Tweeter 1 Size - 1.5 cm (19/32'')
Type - Dome
Diaphragm - Poly-Ether Imide
General
Frequency Response - 56 - 21,000Hz
Power Handling Capacity (RMS) - 90W
Power Handling Capacity (Peak Power) - 550W
Impedance - 4 ohms
Sound Pressure Level - 86dB
Weight
Weight (w.Grille) - 1.42kg (3.2lbs)
Weight (w/o Grille) - 1.33kg (3.0lbs)
Magnet Mass - 445g (15.7oz)
Mounting Depth - 79 mm (3-1/8")
