Description
Included in this kit
This bundle includes a Kenwood DMX50S Monitor with Receiver 6.8" Digital Multimedia Receiver, and a Kenwood CMOS-230LP Rearview Camera with License Plate Mounting Hardware and Universal Mounting Hardware.

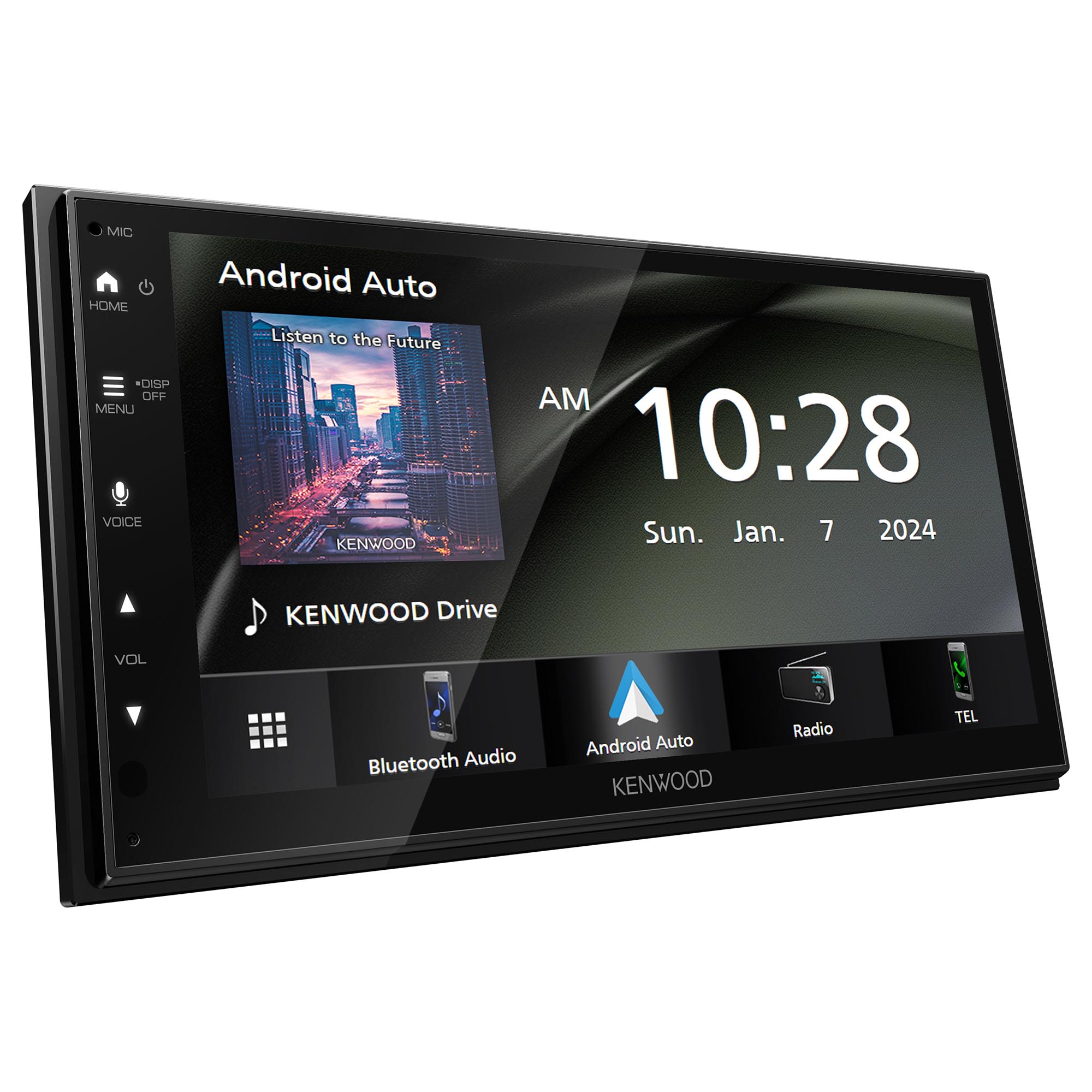

1x Kenwood DMX50S Monitor with Receiver 6.8" Digital Multimedia Receiver - (DMX50S)
6.8" WSVGA Display with Capacitive Touch Panel
Wired and Wireless Apple CarPlay®
Android Auto™ & Android Auto™ Wireless
Wireless Mirroring for iPhone / Android
iDatalink Maestro Ready
13 Band EQ & Digital Time Alignment
Rear View Camera Input with Parking Guidelines
Built-in Bluetooth
2 Preouts 2.5V & Subwoofer Out
Short Chassis
Apple CarPlay® – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Android Auto ™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
The Best Audio Experience
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.
Safe Driving
ENHANCED VEHICLE INTEGRATION
Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
1x Kenwood CMOS-230LP Rearview Camera with License Plate Mounting Hardware and Universal Mounting Hardware - (CMOS-230LP)
Rear View Camera with Waterproof Rating, 128° Perfect View Angle and crystal clear images. You will never worry about parking, even during night time,cloudy, rainy day or in the dark garage. The functional reversing system helps you to check blind spot clearly and make parking safe and simple.
Key Features
Wide-angle mirror image
1/3.6" Colour CMOS sensor
Waterproof unit with flexible mount base
NTSC Video Signal Out (RCA)
Camera Unit
Camera Type 1/3.6" colour CMOS sensor
Colour type Yes
Effective number of pixels roughly 330000
High sensitivity Pixels Yes
Output video wide-angle mirror image
Waterproof chassis Yes
Mounting system Fexible mount base
Installation positions Rear
Rear view switching Reverse line
High voltage protection Yes
Wide angle lens Yes
Focal length f: 1.12mm, F value 2.2
Horizontal Angle view +/- 128°
Vertical Angle View +/- 103°
Illumination range approx. 0.9 to 100000 lux
Iris System Electronic
White balance Automatically
Scanning System Interlace
Synchronizing System Internal
Video output level 1Vpp, 75Ω
Video signal format NTSC (Mirror view)
Connection cable (DC+video) 9 m
General Specifications
Operating voltage 14.5V (9 ~ 16V Allowable)
Maximum Current Consumption 0.05A
Dimensions (WxHxD) 23.4 x 23.4 x 23.9mm
Weight 22 gr.
Operation Temperature Range -30°C ~ 70°C
Storage Temperature Range -40°C ~ 80°C
License plate mounting kit included
